Embedded Artists'

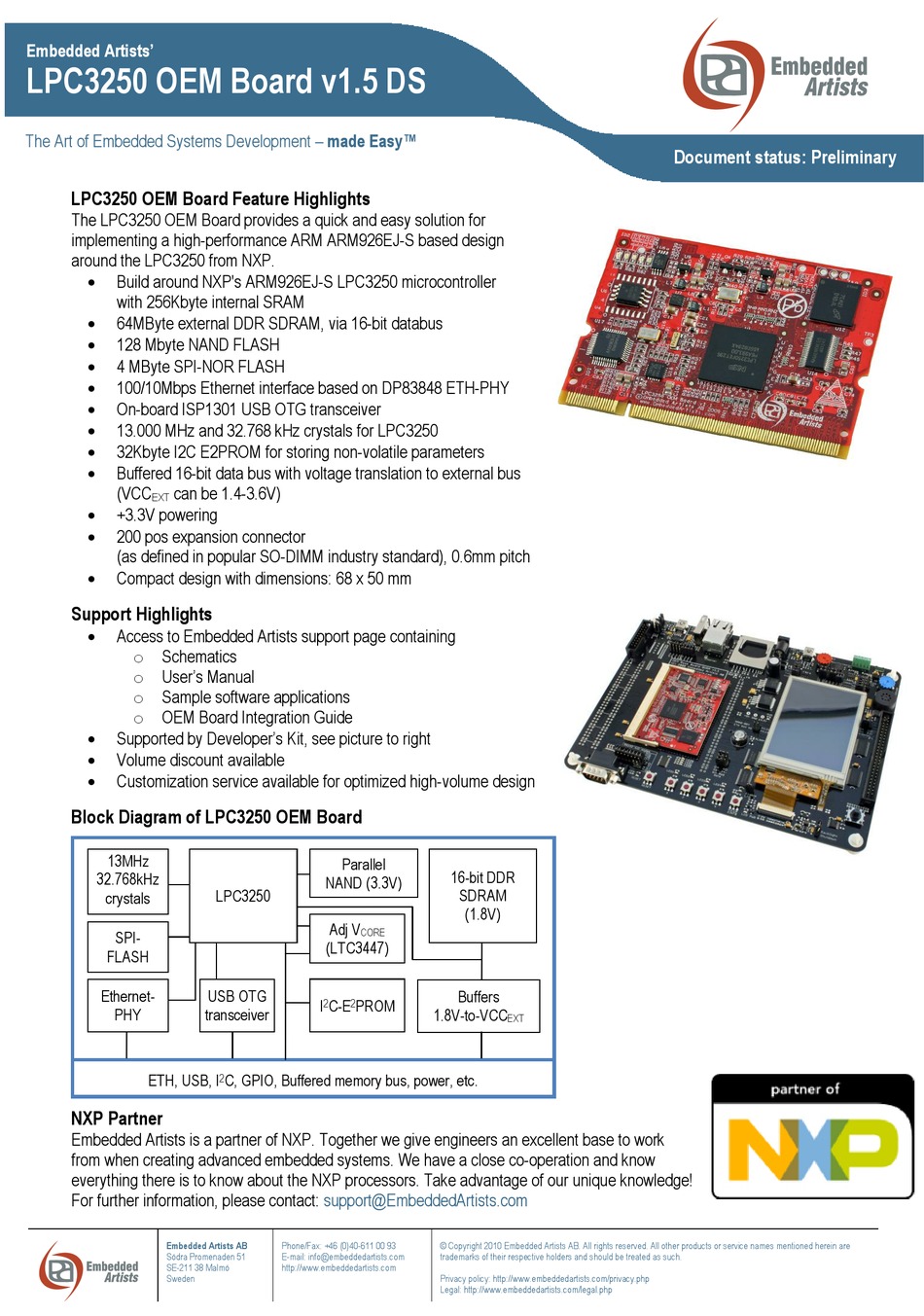

LPC3250 OEM Board v1.5 DS
The Art of Embedded Systems Development – made Easy™

LPC3250 OEM Board Feature Highlights

The LPC3250 OEM Board provides a quick and easy solution for
implementing a high-performance ARM ARM926EJ-S based design
around the LPC3250 from NXP.

Build around NXP's ARM926EJ-S LPC3250 microcontroller
with 256Kbyte internal SRAM

64MByte external DDR SDRAM, via 16-bit databus

128 Mbyte NAND FLASH

4 MByte SPI-NOR FLASH

100/10Mbps Ethernet interface based on DP83848 ETH-PHY

On-board ISP1301 USB OTG transceiver

13.000 MHz and 32.768 kHz crystals for LPC3250

32Kbyte I2C E2PROM for storing non-volatile parameters

Buffered 16-bit data bus with voltage translation to external bus
(VCC can be 1.4-3.6V)
EXT

+3.3V powering

200 pos expansion connector
(as defined in popular SO-DIMM industry standard), 0.6mm pitch

Compact design with dimensions: 68 x 50 mm

Support Highlights


Access to Embedded Artists support page containing
o Schematics
o User's Manual
o Sample software applications
o OEM Board Integration Guide

Supported by Developer's Kit, see picture to right

Volume discount available

Customization service available for optimized high-volume design

Block Diagram of LPC3250 OEM Board

13MHz
32.768kHz
crystals
SPI-
FLASH
Ethernet-
PHY
ETH, USB, I

NXP Partner

Embedded Artists is a partner of NXP. Together we give engineers an excellent base to work
from when creating advanced embedded systems. We have a close co-operation and know
everything there is to know about the NXP processors. Take advantage of our unique knowledge!
For further information, please contact:
Embedded Artists AB
Södra Promenaden 51
SE-211 38 Malmö
Sweden
Parallel
NAND (3.3V)
LPC3250
Adj V
CORE
(LTC3447)
USB OTG
I C-E PROM
2 2
transceiver
C, GPIO, Buffered memory bus, power, etc.
2
support@EmbeddedArtists.com
Phone/Fax: +46 (0)40-611 00 93
E-mail: info@embeddedartists.com
http://www.embeddedartists.com
16-bit DDR
SDRAM
(1.8V)
Buffers
1.8V-to-VCC
EXT
