Tytan DS 512 Installation Manual

Vehicle security system gsm/sms pager
Hide thumbs Also See for DS 512:

Advertisement

Vehicle Security System
GSM/SMS Pager
DS 512 -
CAN GSM GPS
INSTALLATION MANUAL
ver. 0.14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS 512 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tytan DS 512

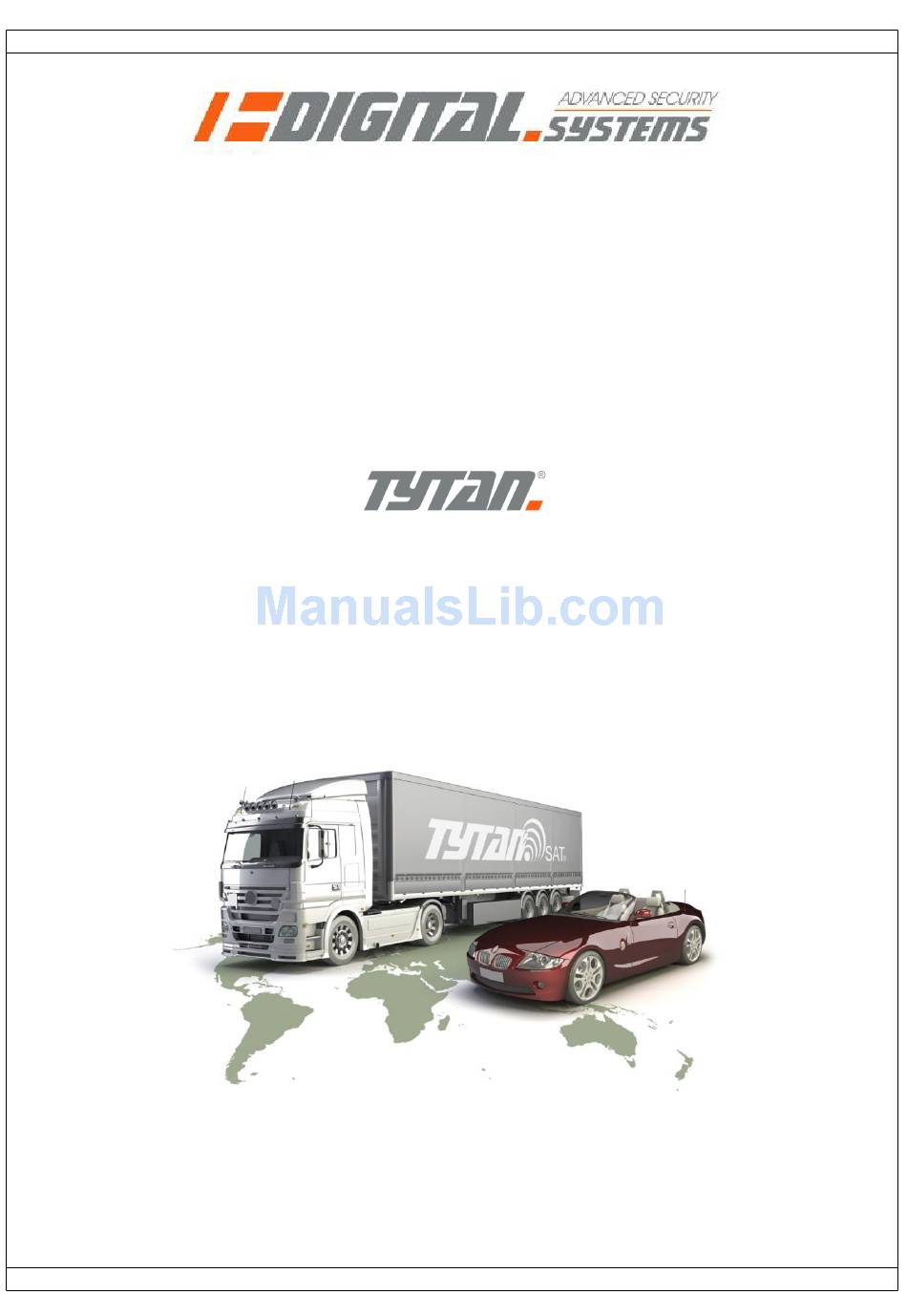

  • Page 1 Vehicle Security System GSM/SMS Pager DS 512 - CAN GSM GPS INSTALLATION MANUAL ver. 0.14...
  • Page 2 • operation mode as independent Vehicle Security System with CAN-bus connection to vehicle electronic systems is armed/disarmed with OEM remotes or SMS commands, • VSS: control by additional Tytan remote transmitters (optional - only with external RF module), • VSS: signalisation if door / trunk / bonnet is open during arming (door ajar), •...
  • Page 3 GENERAL • Tytan DS512 was designed to use in all vehicles with 12V/24V power supply system and negative ground. • Tytan DS512 must be installed according to the manufacturer’s requirements and documentation. • It is suggested to install the DS512 only by an authorized person or company. The list of authorised installers can be obtained from manufacturer or distributor of Tytan DS512 CAN.
  • Page 4 DS512 operating modes: Mode 4 - FULL ALARM - complete CAN-bus VSS with audible and visible signalisation. DS512 is the complete vehicle security system, controlled by OEM remote or Tytan remotes, integrated with the vehicle via CAN bus. In this mode the DS512 monitors the doors, trunk, bonnet and optional additional sensors or OEM alarm system.
  • Page 5 Mode 1 - ANALOGUE PAGER The DS512 operates as an analogue pager to any VSS installed in the vehicle. Detection of alarming in the monitored VSS causes the DS512 to notify up to 3 users with a SMS about alarming. There is no audible nor visible signalisation in this mode. The device does not react on opening the door or switching on the ignition as long as it does not trigger the OEM alarm.
  • Page 6 - see diagram 1. 2.5. CAN-bus vehicle control. On some vehicles the DS512 can perform a CAN-bus control of: - hazard lights (in this case the analogue or perimeter connection is not required), - power door locks, tytan...
  • Page 7 - power windows. The information which vehicles allow for CAN bus control and which circuits can be activated is present on the vehicle list and on wiring diagrams 2.6. Audible confirmation of arming/disarming The parameter enables acoustic signalisation of arming/disarming VSS with short siren chirps.
  • Page 8: Diagnostic Tools

    Unlocking the vehicle with OEM remote or with SMS command was detected. Unlocking command disarms the VSS. UNLOCKTRUNK Trunk release with OEM remote has been detected. It disables trunk, rear door and additional sensor vehicle protection if the VSS is armed. tytan...
  • Page 9 ALARM The DS512 in mode 3 and 4 (operating as VSS) has detected alarm condition and is alarming. ALARM_OEM The DS512 has detected, that OEM CAN VSS has been triggered (modes 2,3,4) . ALARM_PAGER The DS512 has detected, that monitored analogue VSS has been triggered and is alarming (mode 1 - analogue Pager) .
  • Page 10 Column 8 shows the status of optional equipment: RF module with analogue central door lock control outputs and external sensor No2 inputs Lamp Description RMT_LOCK The lamp shows that LOCK button on Tytan remote transmitter was pressed RMT_UNLOCK The lamp shows that UNLOCK button on Tytan remote transmitter was pressed...
  • Page 11: Preparation Of Sim Card

    5. PROGRAMMING OF TYTAN REMOTE TRANSMITTERS The DS512 can be equipped with additional RF receiver module, handling the Tytan remote transmitters. The RF module is automatically paired with DS512: - when the DS512 is restarted. Please keep in mind, that to restart DS512 all power supply sources must be disconnected: the main power supply, internal battery and USB connector.
  • Page 12: Basic Sms Commands

    (0,1,2 or 3 mobile phones) and sets the phone numbers for these mobile phones. {current VSS PIN} setgsm {new VSS PIN} {new VSS PIN} {number of mobile phones} {first phone number} {second phone number} {third phone number} tytan...
  • Page 13 where: current VSS PIN current (old) VSS PIN or default VSS PIN (12345) in the device new VSS PIN VSS PIN which will be set as the new one number of mobile phones number of mobile phones, which receive SMS with information when the alarm is triggered in the vehicle 0-3 first phone number, second phone number, third phone number mobile phone numbers which are informed about triggering the...
  • Page 14: Technical Data

    Switched ground control of immobilisation NC relay. The Ground (1.5A) relay is activated when the alarming starts The relay is deactivated when the VSS is disarmed. Siren Output / Switched ground control of electronic siren. Ground (1.5A) Ground DS512 ground tytan...
  • Page 15: Wiring Diagrams

    13. WIRING DIAGRAMS Diagram No 1 - Mode 3 and 4 – stand alone Vehicle Security System based on DS512 Digital Systems...
  • Page 16 Diagram No 2 - Mode 2 - OEM VSS CAN Pager tytan...
  • Page 17 Diagram No 3 - Mode 1 - GSM Pager for any other analogue VSS (ignition, door, armed signals are not monitored ) Digital Systems...
  • Page 18 Diagram No 4 - Mode 1 - GSM Pager for any other analogue VSS (ignition, door and armed signals are monitored ) tytan...
  • Page 19 Diagram No 5 - connections necessary for anti-hijack /remote stop function in modes 1,2,3 Digital Systems...
  • Page 20 Diagram No 6 – connection of RF receiver module with analogue power door lock control tytan...
  • Page 21 Diagram No 7 – connection of second additional sensor with pre-alarm Digital Systems...
