Page 1: Quick Start Guide
SCALING CONVERTERS Quick Start Guide SHCSA-2 (SDI to HDMI) and HSCSA-2 (HDMI to SDI) FRAME RATE INTERLACING SCALING CONVERSION INTERLACING USB CONTROLS AUDIO FEATURES All logos and trademarks are the property of their respective owners... -
Page 2: User Interface

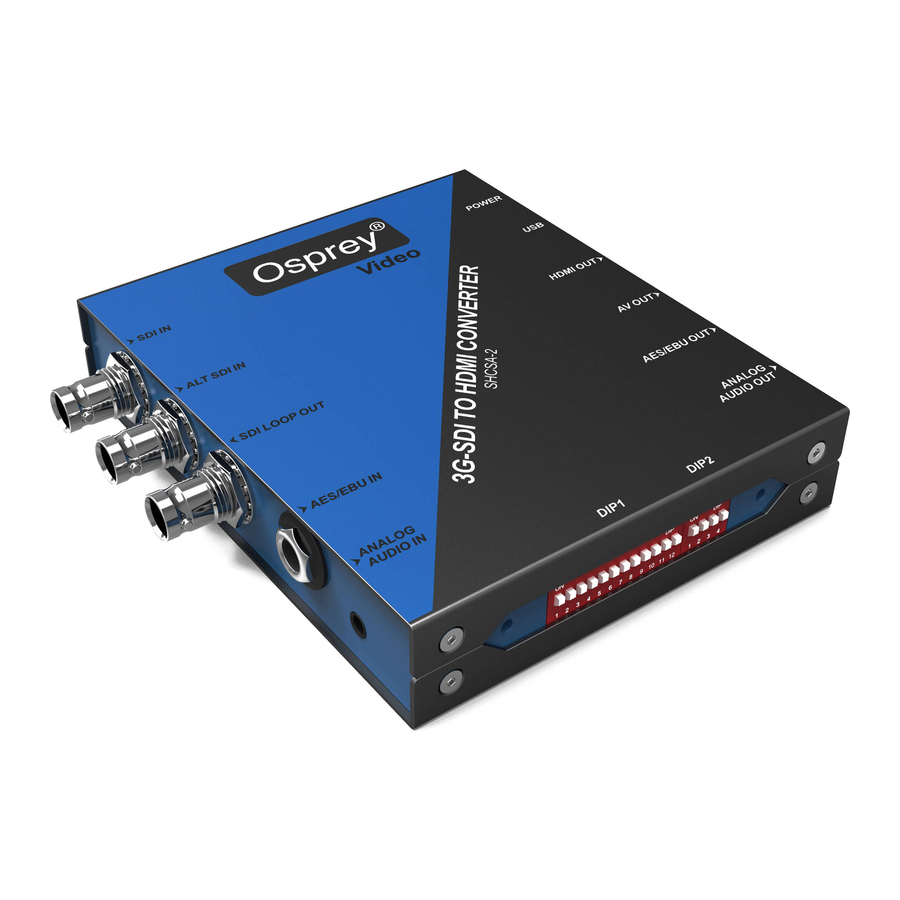

DIP Switch. Features only accessible by the Control Panel are: - Image Flip on SHCSA-2 only. HSCSA-2 has Dip Switches for Image Flip - OSD (On Screen Display) location (SHCSA-2 and HSCSA-2). The software allows you to place the text overlay for Video Information anywhere within the active screen area. - Page 3 SDI to HDMI and CVBS Converter (SHCSA-2) ______________________________________________ Video Input Features: 1. The device accepts SDI Video input Signals up to 3G data rate 2. “ALT SDI IN” is a fail over input in case of signal loss at “SDI IN”...
- Page 4 SDI to HDMI and CVBS Converter (SHCSA-2) ______________________________________________ HDMI Audio Embedding: 1. From SDI - Up to 4 Stereo Pairs of embedded HDMI Audio. User can select between first 4 Stereo Pairs or second 4 pairs of SDI Audio 2. From AES/EBU – One Stereo Pair of Audio will be embedded into HDMI 3.
- Page 5 HDMI or CVBS to SDI Converter (HSCSA-2) ______________________________________________ Video Input Features: 1. The device accepts HDMI Video input Signals up to 1080P60 2. CVBS/Composite input either 576i PAL or 480i NTSC 3. Only one input can be routed to the SDI output at a time Audio Input Features: 1.
- Page 6 HDMI or CVBS to SDI Converter (HSCSA-2) ______________________________________________ SDI Audio Embedding: 1. From HDMI – All HDMI Stereo Pairs embedded into SDI Audio 2. From AES/EBU – One Stereo Pair of Audio will be embedded into SDI 3. From Unbalanced Analog - One Stereo Pair of Audio will be embedded into SDI HDMI Audio De-Embedding: 1.
- Page 7 - Mounting Brackets - International 12V Power Supply - Micro USB Cable (for Software Controls) - AV Breakout Cable _____________________________________________________ SHCSA-2 - SDI to HDMI Converter - Mounting Brackets - International 12V Power Supply - Micro USB Cable (for Software Controls)
