Honeywell sixsiren Installation Instructions

TM
SiX
Series

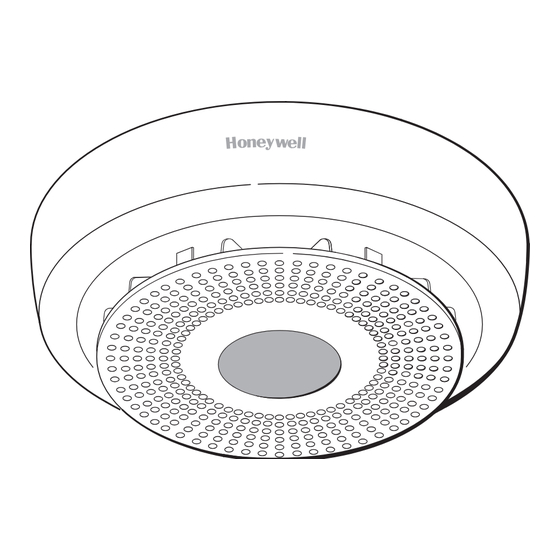

This wireless siren/strobe is intended for use
with Honeywell controls that support SiX™
series devices.
SiXSIREN
Enroll
This device can be enrolled and programmed either
before or after installation.
1. Set the Lyric Controller in Programming Mode and
go to Zone Programming. Select Add New, then
Serial Number. Follow the controller's instructions
to begin enrollment.
2. Insert four 1.5V AA Lithium batteries (included) to
activate the device and begin the enrollment
process.
3. The Green LED flashes rapidly during enrollment
(up to about 20 seconds*)
*NOTE: Enrollment time varies depending on the signal
strength between the device and the controller.
• The device sends its unique MAC ID address
(Serial Number) and Services information to the
controller.
• The controller registers the device and displays
the transmitter data on screen.
4. Enrollment is confirmed when the Green LED is
ON for 3 seconds and the controller chirps once.
5. Trigger the device tamper switch again to complete
enrollment and press SAVE.
6. The device did not enroll in the system if:
• The White LED flashes, the system chirps and
the device powers down.
• The Green LED flashes rapidly when the device
is removed from the mounting bracket (the
tamper switch is triggered).
To restart the enrollment process, ensure the
system is in programming mode and activate the
tamper switch.
The device can also be manually enrolled. See the
Controller's Programming Guide for details.
Program the SiXSIREN
Consult the Controller's instructions for programming the device in the system.
range is 0° – 120° F (-18° – 49° C); accuracy ±3° F (1.67° C)
SiXSIREN
OPEN
Programming Mode > Zones >
Add New > Serial Number
1
Serial Number Loop Number
Zone Description 1 Zone Description 2
Device Type Response Type
Alarm Report Chime
Panic
Select
6
After enrolling, update the SiXSIREN firmware (via the
Controller) to ensure the latest version is used. See the
Controller's instructions.
NOTE: Once enrolled in a system, the device cannot be used with
another controller until it is removed from the current controller. See
the Controller's instructions for details.

Installation Instructions

Gently twist the top of the Siren
counterclockwise and the
mounting bracket clockwise to
separate them.
Supervision
Home
3
0
The LED Flashes; wait
10
45
up to about 20 seconds*
20
30
4
The Green LED
is ON for 3 seconds
Trigger the device
again to complete
enrollment
SAVE
sensing –
2
5
