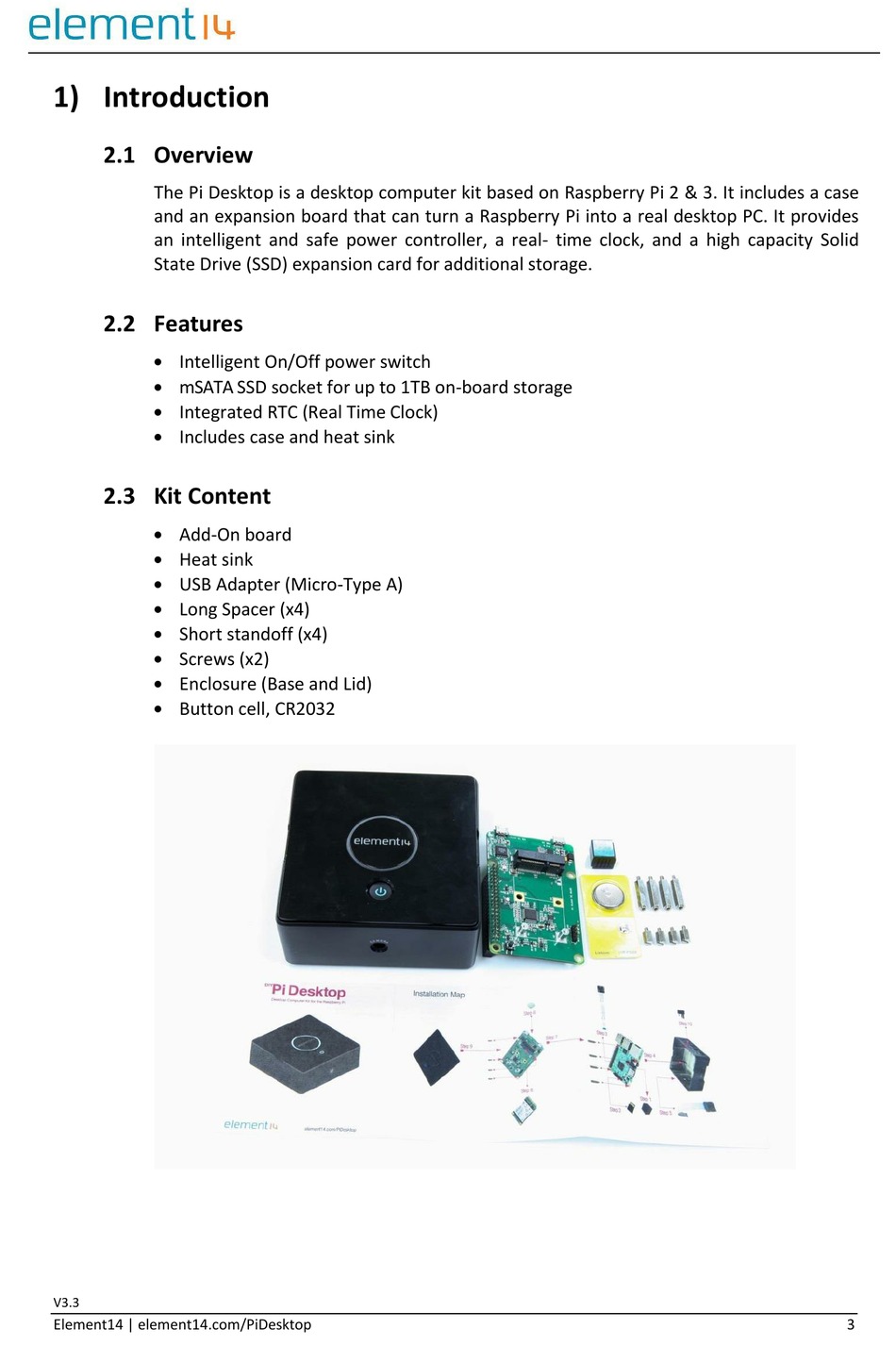

1) Introduction

2.1 Overview

The Pi Desktop is a desktop computer kit based on Raspberry Pi 2 & 3. It includes a case
and an expansion board that can turn a Raspberry Pi into a real desktop PC. It provides
an intelligent and safe power controller, a real- time clock, and a high capacity Solid
State Drive (SSD) expansion card for additional storage.

2.2 Features

 Intelligent On/Off power switch
 mSATA SSD socket for up to 1TB on-board storage
 Integrated RTC (Real Time Clock)
 Includes case and heat sink

2.3 Kit Content

 Add-On board
 Heat sink
 USB Adapter (Micro-Type A)
 Long Spacer (x4)
 Short standoff (x4)
 Screws (x2)
 Enclosure (Base and Lid)
 Button cell, CR2032
V3.3
Element14 | element14.com/PiDesktop 3
