Summary of Contents for Hanna Instruments GROLINE MONITOR HI981420

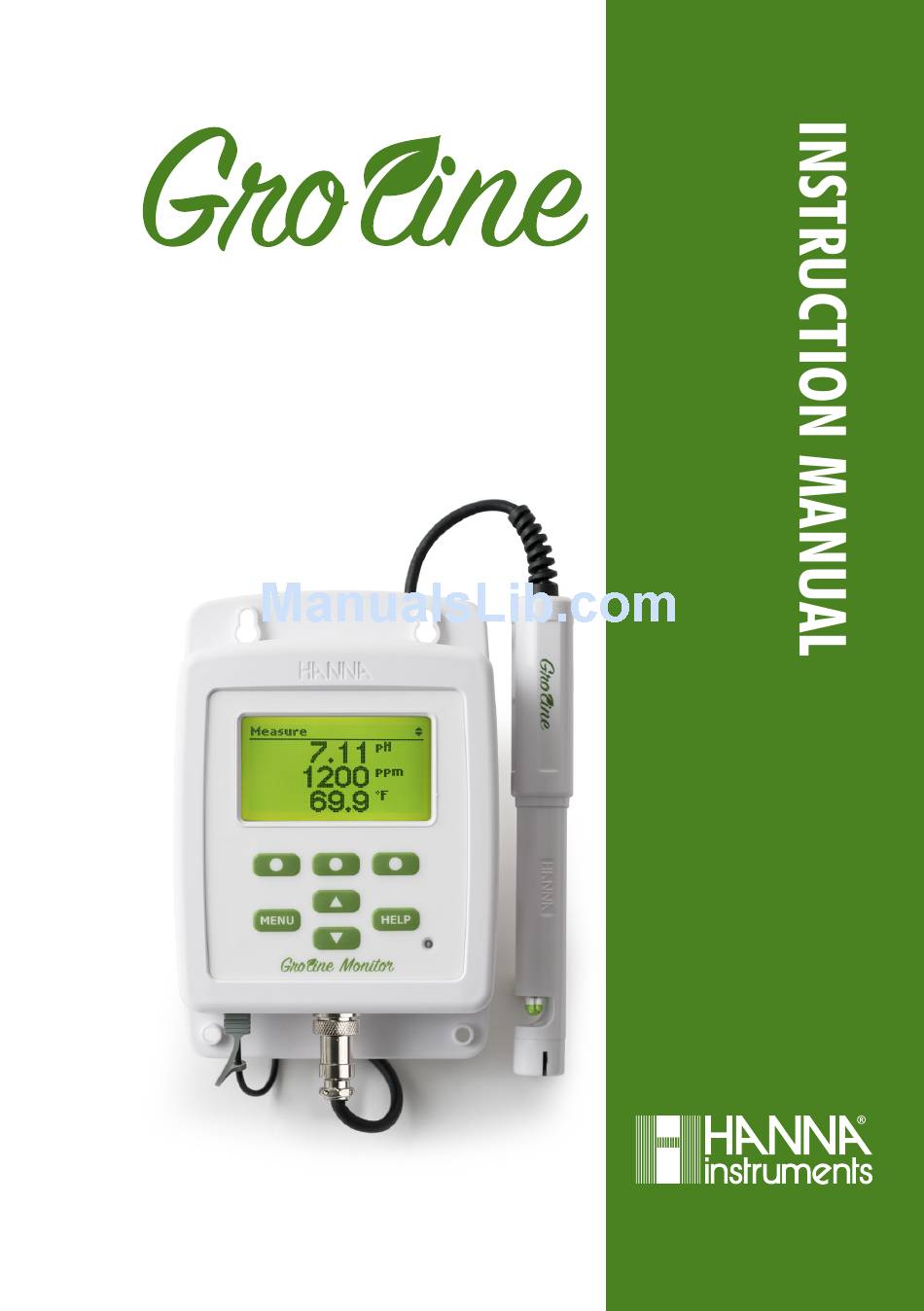

  • Page 1 HI981420 GROLINE MONITOR...
  • Page 2 If you need additional technical information, do not hesitate to e‑mail us at tech@hannainst.com or view our worldwide contact list at www.hannainst.com. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner, Hanna Instruments Inc., Woonsocket, Rhode Island, 02895, USA.
  • Page 3: Table Of Contents

    1. PRELIMINARY EXAMINATION ..................2. SAFETY MEASURES ......................3. SPECIFICATIONS ......................4. DESCRIPTION ......................... 4.1. SIGNIFICANCE OF USE ..................... 4.2. GENERAL DESCRIPTION .................... 4.3. PRODUCT DIAGRAM ....................4.4. KEYPAD DESCRIPTION ....................5. GENERAL OPERATIONS ....................5.1.
  • Page 4: Preliminary Examination

    This product is intended to monitor pH and conductivity levels in nutrient water. Remove the monitor and accessories from the packaging and verify that no damage has occurred during shipping. Remove the protective film from monitor. Contact your local Hanna Instruments Office if items are missing or damaged.
  • Page 5: Specifications

    3. SPECIFICATIONS pH Specifications Range 0.00 to 14.00 pH, 0.0 to 14.0 pH Resolution 0.01 pH, 0.1 pH Accuracy (@25 ºC/77 ºF) ±0.05 pH, ±0.1pH Calibration one or two‑point calibration (using pH 4.01,7.01, 10.01 buffers) using auto buffer recognition. one‑point calibration using quick calibration solution Temperature Compensation Automatic: 0.0 to 60.0 ºC;...
  • Page 6 Temperature Specifications Range 0.0 to 60.0 °C / 32.0 to 140.0 °F Resolution 0.1 °C / 0.1 °F Accuracy ±0.5 °C /±1 °F Additional Specifications HI1285‑8 pH/EC/TDS/temperature polypropylene body, pre‑amplified multiparameter probe with internal temperature sensor DIN connector and 2 m (6.6’) cable Probe Max Pressure: 0.2 bar pH range: 0 to 13 pH...
  • Page 7 Additional Specifications USB‑C (Host/Device) Export logged data on USB flash drive / PC Power Supply 12VDC adapter (included) Environment 0 to 50 °C (32 to 122 °F), RH max 95% non‑condensing Monitor Dimensions 125 x 185 x 38 mm (4.92 x 7.28 x 1.49”) Monitor Weight 333g ( 11.7oz.) Probe Dimensions...
  • Page 8: Description

    4. DESCRIPTION 4.1. SIGNIFICANCE OF USE pH in agriculture pH affects the ability of plant roots to absorb nutrients. Calcium, phosphorus, potassium and magnesium are likely to be unavailable to plants in acidic soils. Plants have difficulty absorbing copper, zinc, boron, manganese and iron in basic soils. By managing pH, you can create an ideal environment for plants and often discourage plant pests at the same time.
  • Page 9 EC in agriculture EC stands for electrolytic conductivity, or the ability of a solution to conduct an electric current. Current travels efficiently through water with high levels of salt present (high EC), and less so through pure water (low EC). EC indicates how much dissolved salt is in a given sample. That's why EC is also referred to as TDS (total dissolved solids).
  • Page 10: General Description

    4.2. GENERAL DESCRIPTION GroLine Monitor is designed to offer you the combination of pH, conductivity, (or total dissolved solids), with temperature measurements. All operations and settings, including calibration buffers and temperature scale selection, are included in easy to use monitor setup. The supplied HI1285‑8 multiparameter probe measures pH, EC/TDS, and temperature in one...
  • Page 11: Product Diagram

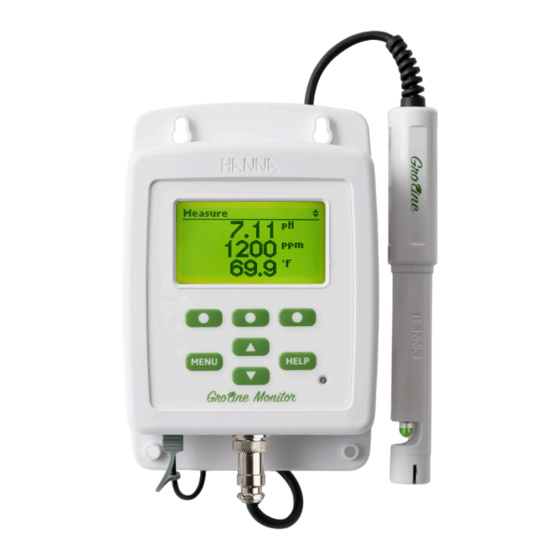

    4.3. PRODUCT DIAGRAM FRONT VIEW BOTTOM VIEW 1. Mounting holes 2. Liquid Crystal Display (LCD) 3. USB‑C port 4. Power cable 5. DIN Probe Connector 6. Ambient light sensor 7. Keypad Area...
  • Page 12: Keypad Description

    BACK VIEW 4.4. KEYPAD DESCRIPTION Access to Quick Calibration, History, pH/EC/Temperature options and General setup. In menu mode scroll the menu items /adjust the settings. In measurement mode changes the screen: three parameter screen (pH, EC and Temperature), single parameter screen and plot display. Enter/Exit Help Menu.
  • Page 13: General Operations

    5. GENERAL OPERATION 5.1.START UP MONITOR This is a general outline of the steps required to perform accurate measurements: 1. Mount the monitor on a stable support/wall. 2. Connect the HI1285‑8 probe to the monitor. 3. Connect the power adapter to the monitor and power source. 4.
  • Page 14: Probe Connection

    GroLine Monitor and probe can be used for fertilizer tank monitoring. The system continuously measures the EC and pH of the tank. The probe (HI1285‑8) should be placed in location representing the bulk properties of the tank. 5.2. PROBE CONNECTION With the monitor turned off, connect the HI1285‑8 probe to the DIN socket on the bottom of the...
  • Page 15: Electrode Conditioning And Maintenance

    5.3. ELECTRODE CONDITIONING AND MAINTENANCE During transport tiny bubbles of air may have formed inside the pH sensor bulb. The electrode cannot function properly under these conditions. These bubbles can be removed by “shaking down” the electrode as you would do with a glass thermometer. If the pH bulb and/or junction are dry, soak the probe in HI70300 Storage Solution for at least one hour.
  • Page 16 EC Cell cleaning and Inspection 1. On a weekly basics, rinse the probe with tap water as preventative maintenance. Monthly, a more thorough cleaning is advised. Clean the EC sensor (slot in bottom of probe) with a non‑abrasive detergent, or see #4 below. 2.
  • Page 17: Monitor Menu

    5.4. MONITOR MENU 5.4.1. MENU OPTIONS Press MENU key to display a list of configurable options. Highlight desired option using ▲▼. Quick Calibration Press Start to enter the Quick Calibration screen. pH and Conductivity are displayed and the quick calibration procedure is initiated (see Operational Guide). History When History is selected, two options are available: View and Options.
  • Page 18 3. Press GLP to display the last pH calibration data and up to 4 previous ones. Use ▲▼ to display previous Calibration data. The newest data is in position 1. Three options are available after pressing EC: CAL, Setup and GLP. 1.
  • Page 19: General Setup

    5.4.2. GENERAL SETUP Backlight Default state is Auto (backlight level is automatically adjusted to dim in low light conditions). This function works together with the integrated ambient sensor on the keypad to automatically adjust the backlight of the LCD. Press Auto and then Modify to adjust the minimum backlight intensity level.
  • Page 20 Date / Time Press the Modify key to change the date/time. Press the functional ► key to highlight the value to be modified (year, month, day, hour, minute or second). Use the ▲▼ keys to changes the value. Press the Accept key to confirm changes or Escape to return to general menu without saving the new date or time.
  • Page 21 Decimal Separator Option: Comma ( , ) or Period ( . ) Press the functional key to select the desired decimal separator or press Escape to return to general menu without saving the new format. The decimal separator is used on the measurement screen and CSV files.
  • Page 22: Ph Setup

    Meter Information Press the Select key to view the model, serial number, firmware version and selected language. Press Escape to return to the general menu. Reset Monitor defaults Press the Select key to activate Reset Monitor defaults settings. Press Accept to initiate procedure or Cancel to return to the general menu without reset.
  • Page 23 Set the Alarm Low and Alarm High as boundaries of acceptable variation for pH. If these bound‑ aries are exceeded, the display flashes as a visual indication that the desired solution pH has changed. Use ▲ ▼keys to set pH alarm value. Press the Accept key to confirm the value or Escape to return to the general menu without saving the new value.
  • Page 24: Ec Setup

    5.4.4. EC SETUP Note: Prior to setting EC alarm limits, select desired Mode of operation, TDS or EC. Alarm High and Alarm Low in the EC menu have two options, Enable or Disable: When alarms are set to Enable press Modify to adjust EC alarm value. Use ▲...
  • Page 25: Temperature Setup

    Calibration Timeout Calibration timeout feature is used to set a scheduled reminder for calibration or service. It can be configured 1‑30 days or disabled (no message). A reminder message will be displayed with the measurement indicating it's time to service the probe. Mode Press functional key to change EC with TDS mode.
  • Page 26 Press the Accept key to confirm the value or Escape to return to the general menu without saving the new value. When selected temperature unit is °F, alarm values will be displayed in same unit. Temperature Unit Option: °C or °F Press the functional key to select the desired temperature unit Celsius or Fahrenheit ;...
  • Page 27: Alarms

    5.4.6. ALARMS The alarm feature provides visual indication that a parameter has diverged from the preferred measurement readings. Active Alarms: When an alarm is activated, the display will flash providing a visual indication from a distance that an alarm set‑point has been triggered. If the measurement returns to the configured limits, the flashing will stop.
  • Page 28: Operational Guide

    6. OPERATIONAL GUIDE 6.1. PROBE CALIBRATION The probe should be calibrated: • Before installing the probe in the system. • After probe replacement. • Daily when greatest accuracy is required. • Every 2 weeks along with routine maintenance. Every time you calibrate the monitor use fresh buffer standards and perform electrode maintenance as required.
  • Page 29: Ph Calibration

    After saving the calibration the monitor returns to MENU. Pressing Escape can exit the Quick calibration without saving data. If the standard is not recognized or the offset is out of accepted range "Wrong Standard" is displayed. Refresh the calibration solution, clean and rinse the probe or press Escape to exit calibration.
  • Page 30 Two point calibration From the MENU screen with pH highlighted, press the CAL key to begin the calibration process. The monitor will suggest using the HI70007 pH 7.01 buffer, but it also automaticaly recognize the HI70004 pH 4.01 and HI70010 pH 10.01 buffers.
  • Page 31: Ec Calibration

    When the reading is stable and close to the selected buffer, the Confirm key will become available. Press Confirm to accept and store the calibration point 4.01 or 10.01pH. One point calibration To perform only a one‑point calibration, press Escape to calibrate in 7.01 pH, or will save automatically one calibration point for 4.01 and 10.01 pH.
  • Page 32 Note: The GLP history will show "Calibration cleared"message with the date. Immerse the probe in 1.41 mS/cm or 5.00 mS/cm calibration solution. From the MENU screen with EC highlighted, press the CAL key to begin the calibration process. EC standard value will be autorecognized by monitor. When the reading is stable and close to the selected standard, the Confirm key will become available.
  • Page 33 Calibration messages Wrong Buffer: If the buffer is not recognized or the offset is out of the accepted range “Wrong Buffer“ message is displayed. Change the buffer, clean the electrode and repeat calibration. Wrong Standard: If the EC standard is not recognized “Wrong Standard“ message is displayed.
  • Page 34: Glp Information

    6.2. GLP INFORMATION Good Laboratory Practice (GLP) refers to a quality control function used to ensure uniformity and consistency of sensor calibrations and measurements. Select pH or EC from MENU and press GLP to review the calibration information. The monitor can store calibration info from the last 5 pH and EC calibrations.
  • Page 35: Measurement Mode

    6.3. MEASUREMENT MODE Turn On the monitor by connecting power adapter to power cable socket. After initialization has been completed, the controller displays the measurement screen. • Verify the probe is installed • Verify the probe is calibrated • Install probe in tank. The lower 4 cm of the probe must be submersed in the sample solution •...
  • Page 36 The first two functional buttons selects the parameter, while in the title bar, the current unit of the selected parameter is indicated. Press Details button to access information regarding selected parameters: current reading, Max/ Min reading and average. Status Bar Messages Whenever an event is triggered the status bar will show it in measure screen.
  • Page 37 • "pH/EC/TDS/Temp. Alarm High/Low" ‑ measurements have exceeded the specified High or Low limits. The backlight and the affected parameter will blink. Note: For same parameter, warnings will not be visible while "Alarm High/Low" message persists. This has higher priority than warnings. •...
  • Page 38: Data Storage

    7. DATA STORAGE GroLine Monitor logging system automatically saves measurement data. Stored data can be accessed two ways; from the measurement screen and from the History Menu. Data from last 24 hours of measurements can be accessed directly from the Measurement screen. Using the arrows the screen will display a 24 hr.
  • Page 39 When Date and Time isn't set or the Real Time Clock is malfunctioning "Logging disabled" appears in measure screen in the status bar and the backlight will blink. To access, press MENU, highlight History and press View. The monitor will display a 30 day data plot.
  • Page 40: Data Export

    Note: If “!” appears in log data (*.csv and History/Details screen), an alarm was triggered. The symbol for High/Low Alarm is added next to Max/Min column of the affected parameter. Note: If “!!” appears in log data (*.csv and History/Details screen), the probe was used beyond monitor's specifications and the data is not considered reliable.
  • Page 41 If the USB flash drive is missing or not detected, the monitor displays a warning message: Export to PC Highlight History from Menu and press Options function. Connect an USB cable between the PC and monitor. Highlight Export to PC using ▲▼, then press Select.
  • Page 42: Accessories

    8. ACCESSORIES pH/conductivity probe with built‑in temperature sensor, DIN connector and 2 m HI1285-8 (6.6’) cable HI740036P Plastic Beaker Set, 100 mL (10 pcs.) ELECTRODE STORAGE SOLUTION HI70300-050 Storage Solution, 500 mL HI70300G Storage Solution Sachets, 20 mL (25 pcs.) ELECTRODE CLEANING SOLUTION HI7061-050 general purpose cleaning solution for agriculture, 500 mL...
  • Page 43 Returned Goods Authorization (RGA) number from the Technical Service department and then send it with shipping costs prepaid. When shipping any instrument, make sure it is properly packed for complete protection. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice.
  • Page 44 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com Local Office Hanna Instruments USA Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com MAN981420 Printed in ROMANIA...
