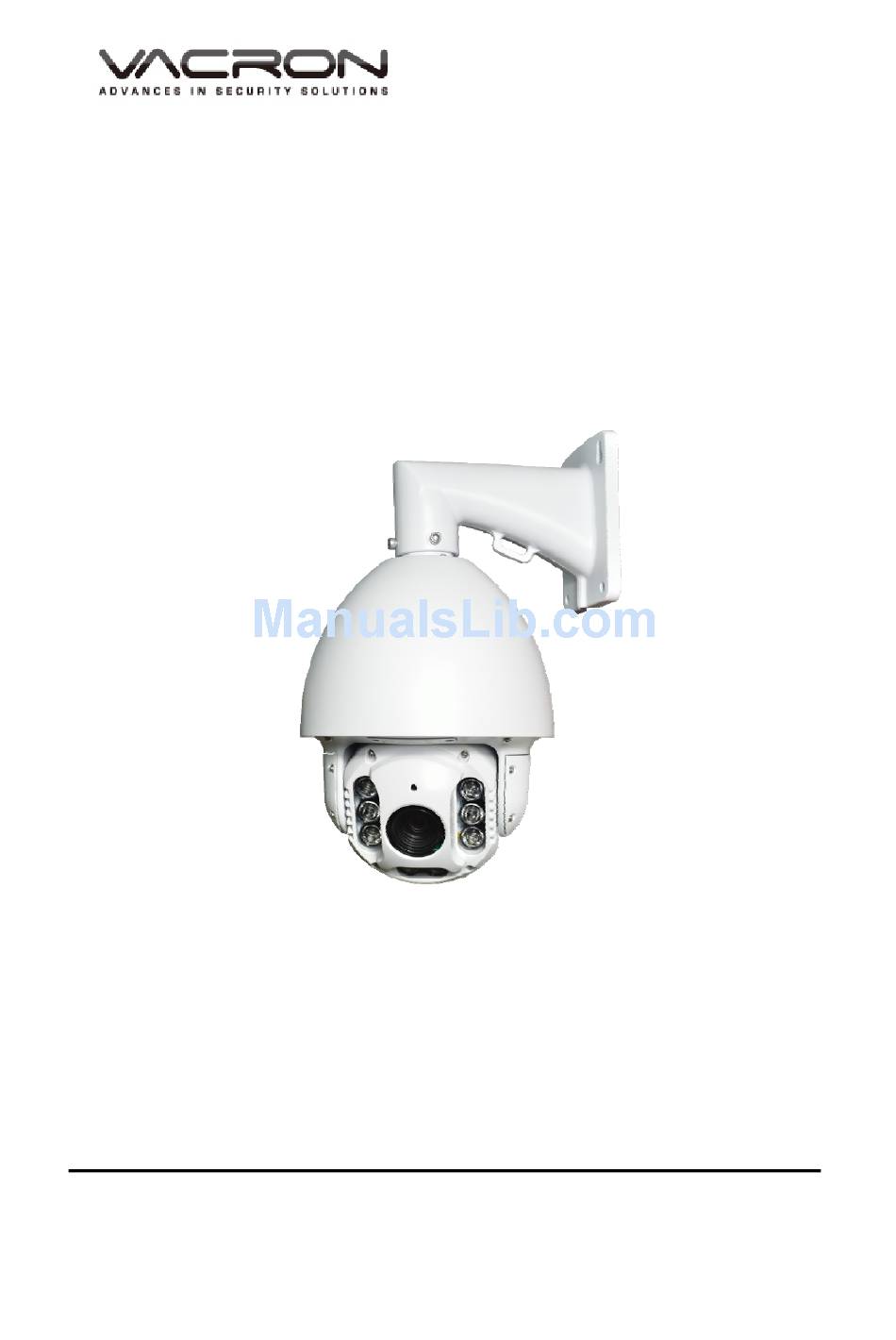

Speed Dome
OSD Operation Manual
(Using VFH-8330M 2.0M 33X Zoom Module)
2016 JUN V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VFH-8335I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vacron VFH-8335I

Summary of Contents for Vacron VFH-8335I

  • Page 1 Speed Dome OSD Operation Manual (Using VFH-8330M 2.0M 33X Zoom Module) 2016 JUN V1.0...

  • Page 2: Table Of Contents

    CONTENTS 1. Speed Dome OSD MENU Tree ................1 2. Speed Dome Main Menu(OSD MENU) ..............5 2.1 FOCUS MODE ......................5 2.2 DISTANCE ........................5 2.3 ZOOM SPEED ......................5 2.4 FOCUS SPEED ......................5 2.5 LENS IRIS ........................6 2.6 ISP SETTING.......................

  • Page 3: Speed Dome Osd Menu Tree

    1 . Speed Dome OSD MENU Tree Main Menu Settings FOCUS MODE AUTO (always focus) PUSHAF (one focus) MANUAL DISTANCE 0.1m ZOOM SPEED FOCUS SPEED LENS IRIS OPEN F1.6 F2.8 F4.0 F5.6 F8.0 CLOSE Image Processing Menu (ISP MENU) ISP SETTING LENS RESET Optic Setting Default(Not Including ISP MENU)
  • Page 4 LENS ADJUST Developer Mode(Do Not Change) EXIT Leave Main Menu ISP MENU  EXPOSURE SHUTTER 1/30 ~ 1/50000, X2~X30, FLK,AUTO 1~15 SENS-UP OFF / AUTO SENS-UP X2~X30 BRIGHTNESS 1~100 D-WDR ON / OFF DEFOG OFF / ON POS/SIZE GRADATION:OFF/LOW/MI DDLE/HIGH DEFAULT BACKLIGHT GAIN : LOW/MIDDLE/HIGH...
  • Page 5 2DNR 3DNR SPECIAL CAM TITLE FREEZE : OFF / ON MIRROR MIRROR V-FLIP ROTATE D-ZOOM D-ZOOM X1.0~ X62 PAN & TILT DEFAULT D-EFFECT SMART SELECT: AREA1, AREA2 D-ZOOM DISPLAY ON SENSITIVITY 0~60 D-ZOOM X1.0 ~ X62 TIME 0~15 DEFAULT NEG. IMAGE OFF / ON DIS OFF / ON MOTION OFF / ON...
  • Page 6 RETURN ADJUST SHARPNESS 0~15 MONITOR LCD / CRT GAMMA ADAPT.LEVEL BLUE GAIN RED GAIN ON / OFF VIDEO.OUT NTSC / PAL FACTORY RESET(Default value) / CHANGE(Use current RESET settings as default value) EXIT...

  • Page 7: Speed Dome Main Menu(Osd Menu)

    2 . Speed Dome Main Menu(OSD MENU) FOCUS MODE AUTO Automatically re-focus when object changes. PUSHAF Focus once at same location. MANUAL Fixed focus, no automatic re-focusing. DISTANCE 0.1m The distance of object is at 0.1 meter. The distance of object is at 1 meter. The distance of object is at 2 meter.

  • Page 8: Lens Iris

    LENS IRIS CLOSE/F32/F22/F16/F11/F8.0/F5.6/F4.0/F2.8/F2.0/F1.6/OPEN Change Aperture size.  ISP SETTING Enter ISP MENU(Image Processing Menu) (Visit Chapter 3.ISP MENU for more info).) LENS RESET Switch to YES then hit ENTER to restore main menu default value (except ISP value), the system will also default its optic position. (Please avoid lens reset under strong lighting condition).

  • Page 9: Speed Dome Isp Menu

    3 . Speed Dome ISP MENU (Choose ISP SETTING in Main Menu to display below functions) EXPOSURE Press ENTER to display below functions: 3.1.1 SHUTTER : AUTO, 1/60, FLK, 1/240, 1/480, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30。...
  • Page 10 3.1.2 AGC : 0 ~ 15 Auto Gain Control, it will automatically increase brightness  when image becomes too dark, the noise signals could also be increased as a result. 3.1.3 SENS-UP: AUTO , OFF OFF is to turn off this function. ...

  • Page 11: Backlight

    (a) Original lmage (b) DWDR ON 3.1.6 DEFOG : ON, OFF OFF is turn off this function  ON is turn on the defog function, useful in image obscured  by foggy, smoky and dusty condition. 3.1.7 RETURN：RET, END Choose RET then press ENTER will go back to the previous ...
  • Page 12 3.2.1 OFF: Turn off the Backlight compensation function. 3.2.2 WDR : GAIN, WDR OFFSET Wide Dynamic Range compensation function, press ENTER to access WDR Settings below. GAIN : LOW, MIDDLE, HIGH, adjust WDR enhancement level  WDR OFFSET : Adjust WDR calibration range between 0 ~ 60. ...
  • Page 13 3.2.3 BLC : GAIN, AREA, DEFAULT. Backlight compensation, press ENTER to access BLC settings.  GAIN : Choose LOW, MIDDLE, HIGH to adjust back light compensation level.  AREA : Press ENTER to adjust compensating area, BLC function will start when the selected area becomes too dark. ...

  • Page 14: White Bal

    area types.  DISPLAY: OFF is to turn off the HSBLC function for a certain area. ON press ENTER to turn on and adjust area sizes and positions.  LEVEL: Select illumination threshold (0~100) to start HSBLC function. MODE:NIGHT NIGHT turn on HSBLC only at night time. ...
  • Page 15 automatically track changes in color temperature, and adjust until reaching white balance. 3.3.3 AWC->SET : Auto White Balance Capture, press to ENTER to capture current color temperature as AWB value. 3.3.4 INDOOR: Use the default indoor color temperature setting for AWB. 3.3.5 OUTDOOR: Use the default indoor color temperature setting for AWB.

  • Page 16: Day & Night

    DAY & NIGHT Day & Night mode switches, this is control by the sensor onboard Speed Dome automatically. AUTO : Auto mode, let sensors onboard Speed Dome decide. Color : When good lighting condition is present, Speed Dome will set to color mode and filter out infrared light. B/W : When lighting condition is poor, Speed Dome will set to black &...
  • Page 17 Press ENTER to access Noise Reduction function setting page below. 2DNR : Choose OFF to turn off 2D de-noise function. Choose ON to turn ON 2D de-noise function. 3DNR : Choose OFF to turn off 3D de-noise function. Choose ON to turn on 3D de-noise function, press ENTER to access 3D de-noise function settings.

  • Page 18: Special Special Functions

    SPECIAL Special functions.  Press ENTER to access special function as page below. 3.6.1 CAM TITLE : Camera displayed name settings. OFF Turn off camera name display. ON Turn on camera name display, press ENTER to access character selection as below page.
  • Page 19 Choose  or  : Press ENTER to edit character. Choose CLR: Press ENTER to clear all character selected. Choose POS: Press ENTER to change camera name position. Choose END: Press END to exist camera naming function. 3.6.2 D-EFFECT : Digital Effect settings. Press ENTER to access digital effect settings as page below.
  • Page 20 3.6.2.1 FREEZE : Choose ON to freeze on current frame, the camera does not record new frame. 3.6.2.2 MIRROR: OFF, MIRROR, V-FLIP, ROTATE Choose OFF: No rotate effect. Choose MIRROR : Display footage in mirror (left side becomes right side). Choose V-FLIP: Vertical Flip footage.
  • Page 21 D-ZOOM : X1.0 ~ X62.0 times digital zoom adjustable. PAN&TILT: Press ENTER to pan & tilt in digital zoom. DEFAULT: Restore D-ZOOM default value as above screen. P.S. 3DR / WDR / D-ZOOM / DIS function should not be enabled at the same time, the system may overload when more than one function is enabled for extended duration.
  • Page 22 SENSITIVITY: 0 ~ 60 triggering threshold for SMART D-ZOOM. being most sensitive) D-ZOOM: X1.0 ~ X62.0 of digital zoom when triggered. TIME: Duration when Smart D-zoom triggered, 0 ~ 15 seconds selectable, D-zoom will return to normal when time expires. DEFAULT: Restore SMART D-ZOOM default value.
  • Page 23 3.6.3 MOTION : Image Motion Trigger settings. OFF is to turn off motion trigger function. ON is to turn on motion trigger function，Press ENTER to access motion trigger setting as below. SELECT: AREA1, AREA2, AREA3, AREA4 motion trigger area. DISPLAY: OFF is to turn off motion trigger area，ON is to turn on motion trigger area and adjust area position and size.
  • Page 24  Press ENTER to access privacy mask effect settings as below. SELECT : AREA1 ~ AREA8, total 8 privacy masks. DISPLAY : Turn off the mask function. INV. Inverted color scheme as mask. MOSAIC Mosaic as mask. COLOR Choose certain color as mask. COLOR : 0~15, 16 color setting (When DISPLAY Choose COLOR).
  • Page 25 COLOR). DEFAULT : Restore all privacy mask to default value. 3.6.5 LANGUAGE : OSD language settings. Press left and right arrow key to choose from 16 different languages, then press ENTER to ISP MENU, the system will then display the language selected. English Spanish Japanese...
  • Page 26 3.6.6 DEFECT : Defect Spot Patching settings. Press ENTER to access defect spot patching settings as below. LIVE DPC  OFF turn off dynamic defect spot patching function. AUTO turn on dynamic defect spot patching function，Press ENTER to set patching LEVEL. The system will automatically remove bright spot if AGC is over patching level, Vice versa if not.
  • Page 27 works within 2048 spots (one over exposed pixel counts as one spot). Static defect patching will fail if the spots count exceed this number, please follow methods below to setup static defect spot patching. (1) Main Menu \ LENS IRIS Set to CLOSE, this is to avoid light passing through ISP module.
  • Page 28 (10) The system will display all detected defect spots. Please note that the procedure will fail if defect spot exceed 2048 spots. Please go back to step (6), (7), (8) to adjust until the defect spot is within 2048 dots. (11) The screen will be displayed as below when defect patching completed.

  • Page 29: Adjust

    ADJUST Adjust function. 3.7.1 SHARPNESS : Image sharpness, adjust between values of 0 ~ 15 . 3.7.2 MONITOR: LCD, CRT Choose monitor between LCD and CRT (analogue).
  • Page 30 3.7.2.1 LCD : LCD monitor (include computer monitor). GAMMA：Image display composition adjustment. USER/USER+Y/0.45/0.5/0.55/0.60/0.65/0.70/0.75/0.80 /0.85/0.90/0.95/1.00/AUTO ADAPT.LEVEL 0~100 BLUE GAIN Blue color ratio. RED GAIN Red color ratio. 3.7.2.2 LSC : Lens Shading Compensation function. The four corners may appear darker when lighting condition is poor. LSC function can be used to reduce the dark edges.
  • Page 31 Enable. Disable. 3.7.2.3 VIDEO. OUT: Video display format (PAL/NTSC). NTSC 1080P 30 FPS 1080P 25 FPS 3.7.3 RESET : FACTORY Restore original default value.
  • Page 32 Press ENTER at the RESET selection to bring up restore original default value as below. Choose RESET: Restore original default value . Choose CHANGE: Set current settings as original default value (all the settings).
