- Page 1 WMC-704M Wallmount-Chassis User Manual...
- Page 2 Copyright Notice This document and product is copyrighted, January 2014, by AICSYS, Inc. All rights are reserved. No part of this manual may be reproduced, copied, or translated without prior notice to AICSYS, Inc. WMC-704M is trademark of AICSYS, Inc.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Getting Started ..............4 General Information ........................4 Product Specification......................... 4 Packing Checklist ........................4 Recommended Tools ......................... 5 Recommended Working Environment .................. 5 Chassis Mechanical Drawing ....................5 Chapter 2 Installation Guide ..............6 Unpacking the Chassis ...................... -
Page 4: Chapter 1 Getting Started

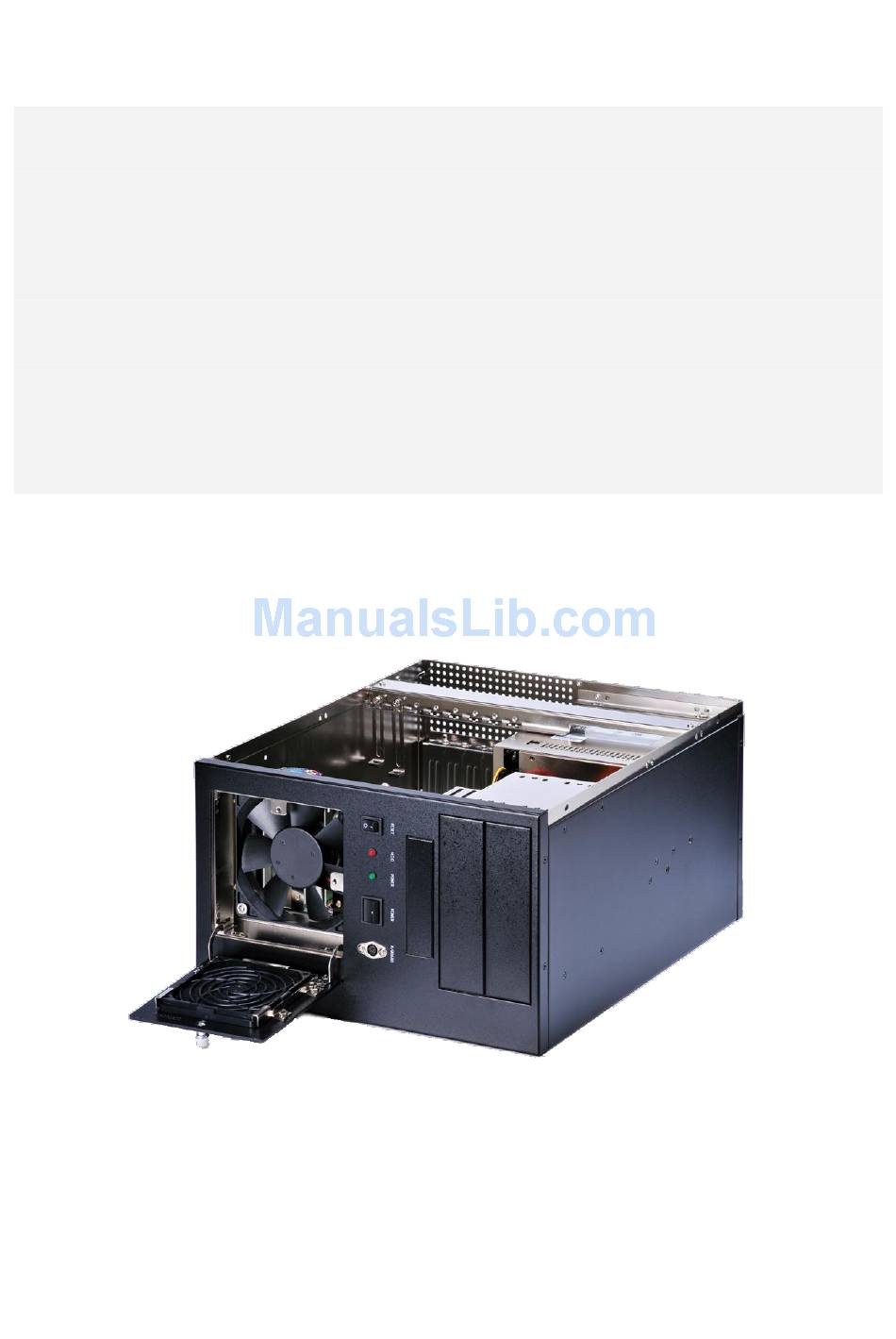

Chapter 1 Getting Started General Information The WMC-704M Wallmount chassis supports ATX motherboard, and 2 x 5.25” and 1 x 3.5” external drive bays. The chassis has one 12cm fan, and supports PS2 or mini-redundant power supply. Product Specification Construction Heavy-duty steel 2 x 5.25"... -
Page 5: Recommended Tools
Recommended Tools - Philips Head Screwdriver - Flat Head Screwdriver - Forceps (for pulling out jumpers and screws) Recommended Working Environment A flat anti-static work surface is required when assembling a complete system Chassis Mechanical Drawing Drawing with dimension in millimeter: - 5 -... -
Page 6: Chapter 2 Installation Guide
Chapter 2 Installation Guide Unpacking the Chassis The WMC-704M is shipped in a plastic bag that is placed inside a cardboard box. The accessories are also shipped with the chassis. When you unpack the chassis you must: - Make sure all the accessories and bracket (1 set) listed above are present. -
Page 7: Installing The Power Supply Unit
Compatible Power Supply Unit models are available in Appendix A. Installing the Hard Disk Drive The WMC-704M chassis supports two 5.25” and one 3.5” external drive bays. To install the drives, please follow the steps outlined in the sections below. - Page 8 2. Remove the screws (2 screws for one cover) to remove the drive cage covers. Secure the Optical drive and/or hard disk drive to the cage. 3. Carefully insert the ODD drive into the drive tray, and secure the drive by inserting four retention screws (four on each side) through the sides of the drive tray...
-
Page 9: Installing The Motherboard
Installing the Motherboard To install the ATX motherboard, please follow the instructions below: 1. Insert the standoffs to the predrilled screw 2. Lay the motherboard to chassis and holes in the bottom plate secured with screws to the standoff below ... -
Page 10: Appendix A Power Supply Unit
150 x 174 x 86 mm R4S-500G1V2 500W Redundant PSU 150 x 199 x 86mm R4B-500G1V2 500W Redundant PSU Appendix B Motherboard Compatible AICSYS motherboards are listed in the table below: Model number Type PCIe PSU type MBC-6508 Mini-ITX MBC-6243 Mini-ITX... - Page 11 The Global Choice for Premium Industrial Computer Products www.aicsys.com - 11 -...
