Copyright Notice This document and product is copyrighted, January 2014, by AICSYS, Inc. All rights are reserved. No part of this manual may be reproduced, copied, or translated without prior notice to AICSYS, Inc. RCK-203BE is trademark of AICSYS, Inc.

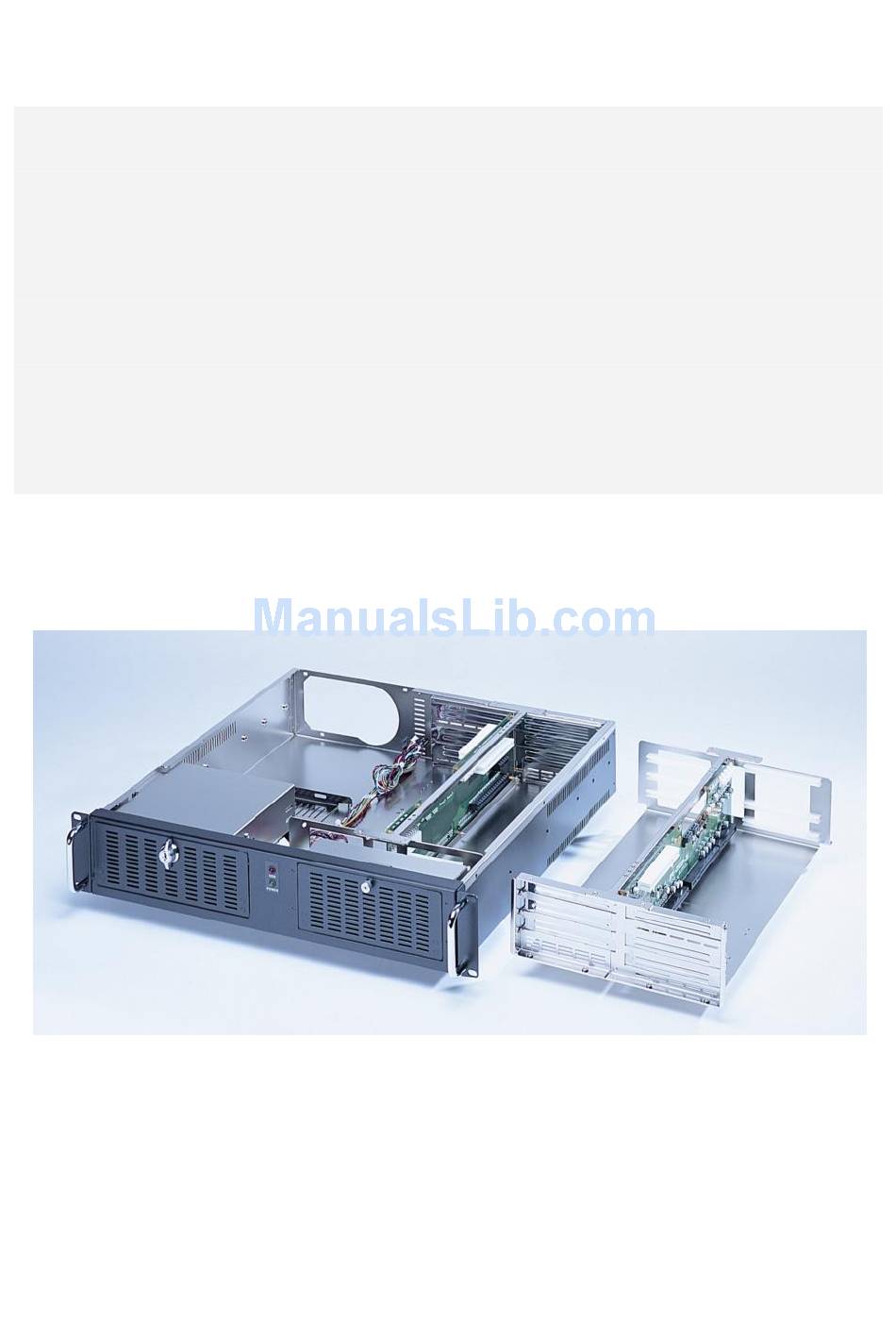

Chapter 1 Getting Started General Information The RCK-203BE Rackmount chassis supports full-size SBC through 2U PICMG1.0/ 1.3 butterfly backplanes, and (1) 5.25", (1) 3.5" external drives, and (1) 3.5" internal drive. The chassis has (2) 80mm high-speed ball-bearing fans, and supports PS2 power supply.
Recommended Tools - Philips Head Screwdriver - Flat Head Screwdriver - Forceps (for pulling out jumpers and screws) Recommended Working Environment A flat anti-static work surface is required when assembling a complete system Chassis Mechanical Drawing Drawing with dimension in millimeter: - 5 -...
Chapter 2 Installation Guide Unpacking the Chassis The RCK-203BE is shipped in a plastic bag that is placed inside a cardboard box. The accessories are also shipped with the chassis. When you unpack the chassis you must: - Make sure all the accessories and components listed above are present.
Compatible Power Supply Unit models are available in Appendix A. Installing the Hard Disk Drive The RCK-203BE chassis supports one 5.25" and one 3.5” external drives bays. To install the drives, please follow the steps outlined in the sections below.
Installing the Backplane To install the backplane please follow the instructions below: 1. Remove the fours crews securing the 2. Place the backplane to the bracket, and backplane bracket and pull upside to remove insert the screw to secure the backplane to from the chassis the bracket ...
400W Single output 150 x 140 x 86mm SS-600ES 600W Single output Appendix B Motherboard Compatible AICSYS motherboards are listed in the table below: Model number Type PCIe BP-0602P-2U Full-size PICMG 1.0 Backplanes 2 BP-0604P-2U Full-size PICMG 1.0 Backplanes 4 BPE-0502P-2U Full-size PICMG 1.3 Backplanes 2...
Page 10
The Global Choice for Premium Industrial Computer Products www.aicsys.com - 10 -...
