connectinG to a controller
attention JanDY 'rev l' or later users
It is critical that the controller setting be set to the correct Zodiac, Jandy
or Pentair controller designation. There are a number of different revisions
locked into the software. Please see the controller user manual to
determine the model and/or revision you are using. If the incorrect setting
is selected, it can damage the controller being connected.
caution When WirinG to a controller
IMPORTANT
Wiring of the controller should be completed by an authorised pool
equipment installer.
Before any wiring connections/disconnections ensure mains power is
removed from both the controller and the MagnaPool Control Centre.
When connected to a controller, the MagnaPool Control Centre acts
as the 'slave' - responding to requests. This means timer settings
are ignored and the output settings cannot be changed through
the MagnaPool control centre. Menu functions are still accessible,
except for LOW and BOOST modes.
WirinG to a controller
The following instructions should be read in conjunction with the
installation guide provided with the Controller.

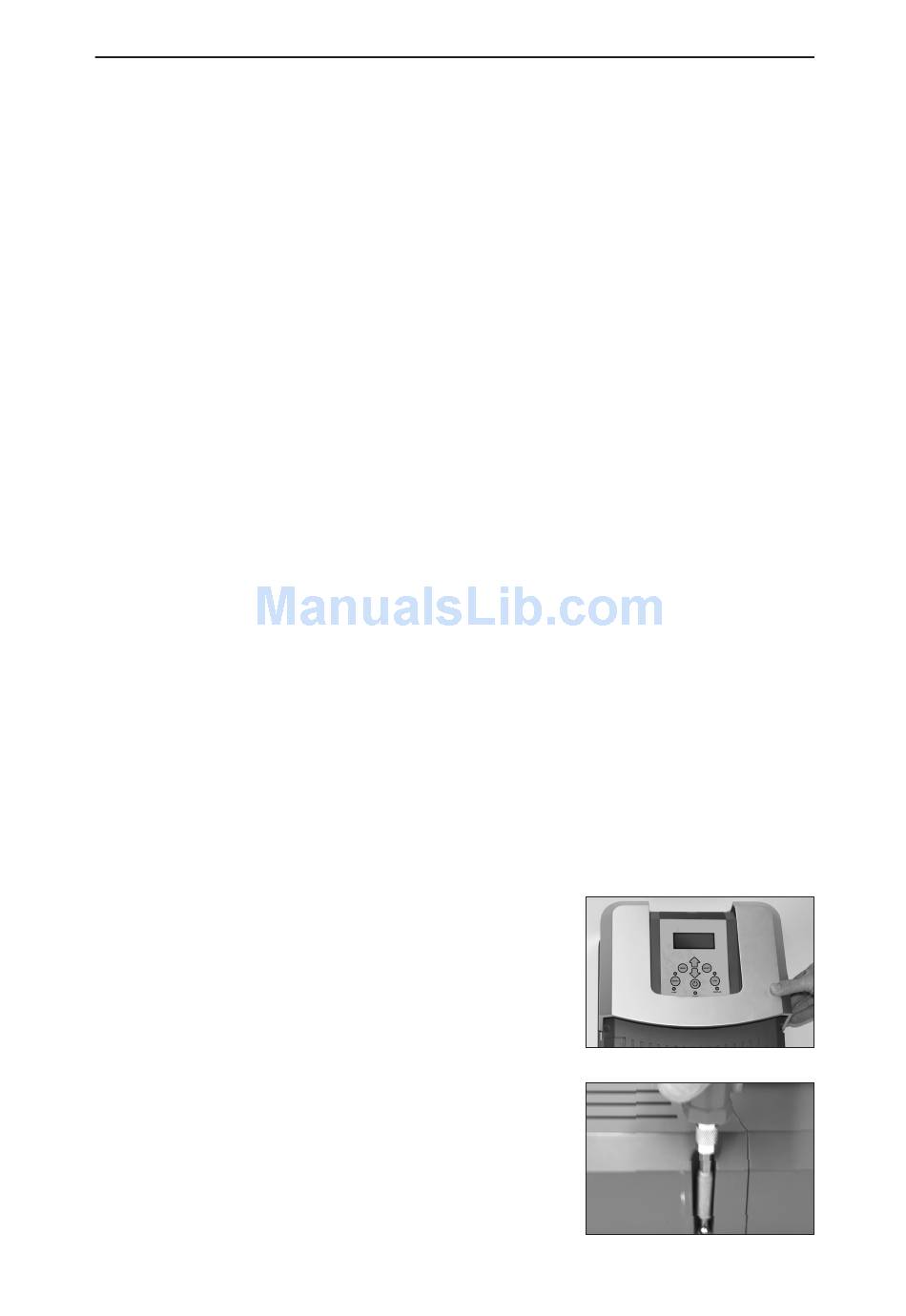

1. Remove blue 'dress' cover by
pressing in at the sides where
indicated below and lift.
2. Remove the two screws which
attach the lower cover to the main
unit:
