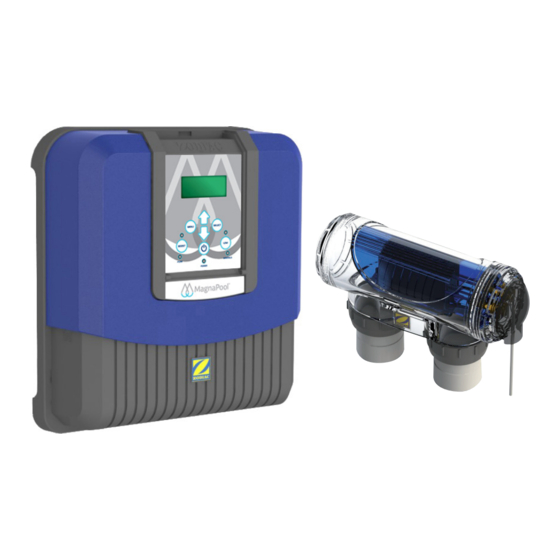

Summary of Contents for Zodiac Pool Systems MagnaPool

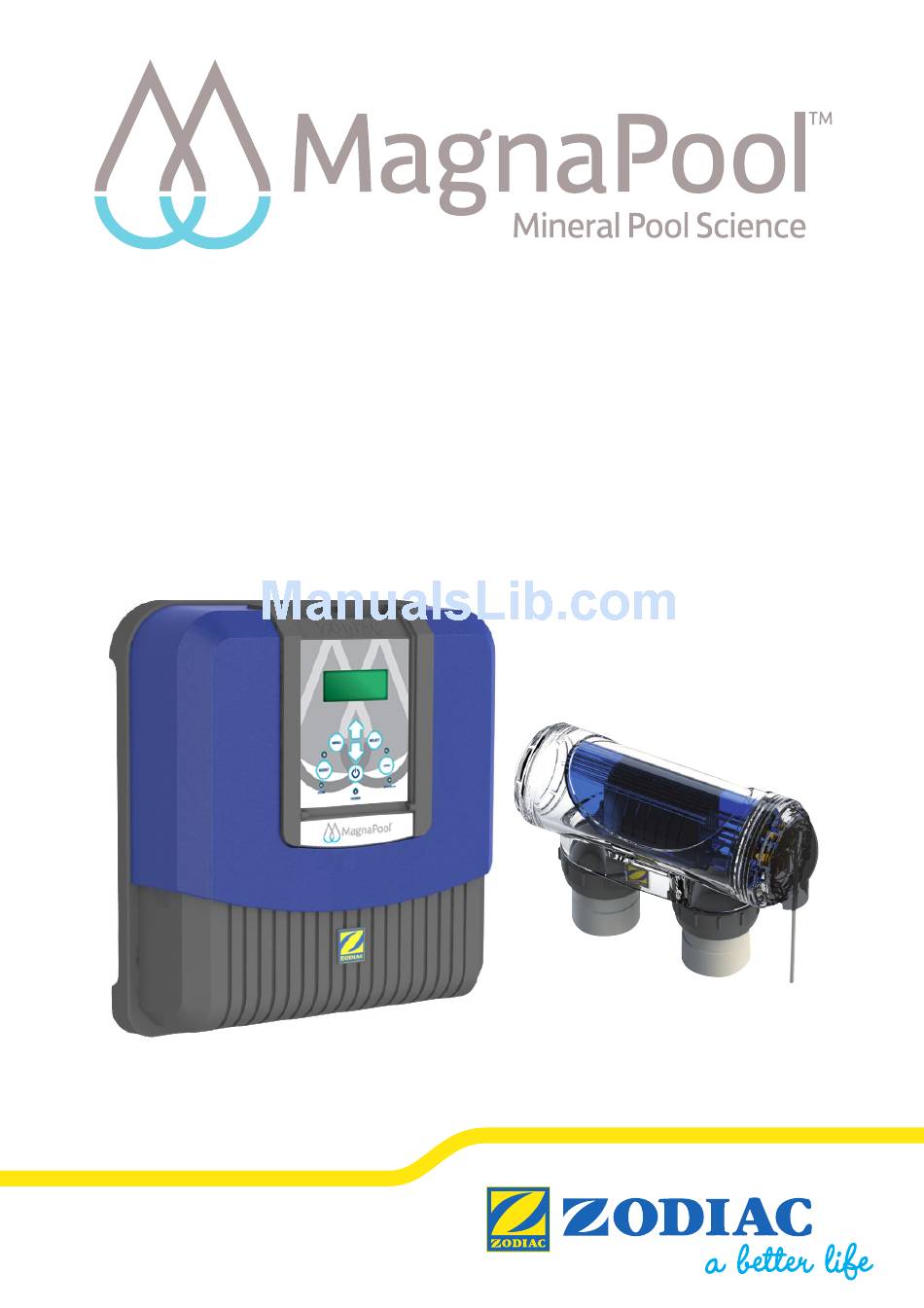

  • Page 1 Installation and Operator Guide...
  • Page 2 Kit contains: Part: Qty: Description: MagnaPool Control Centre Hydroxinator cell Power pack bracket Reducing bushes...
  • Page 3 Welcome to ZoDiac congratulations on Your Purchase of a magnaPool system. MagnaPool is a unique pool system designed to give you the best possible swimming experience with focus on health, beauty and the environment. The MagnaPool innovation in water science is providing therapeutic and environmentally friendly mineral water for homes and commercial pools around the world.

  • Page 4: General Warnings

    Failure to do so could result in permanent injury, electrocution or drowning. General WarninGs MagnaPool is designed for swimming pool use only. Contrary use could affect performance and void warranty. Operating without water flowing through the cell may cause a build up of flammable gases, resulting in fire or explosion.

  • Page 5: Child Safety

    To avoid accidental contact with lawn mowers and hedge trimmers, power cords should remain within sight and above ground at all times. The MagnaPool Control Centre must not come into contact with water and must be installed at least 3.5 metres from the inside wall of your swimming pool.
  • Page 6 (Note: Either RED wire can be connected to either RED pin on the electrode.) 6. Plug your pool pump into the outlet socket in the bottom of the MagnaPool Control Centre (this will allow the built in timer to control the filtration times) 7.

  • Page 7: Navigation Buttons

    naviGation Buttons Use the following UI buttons to access and select all menus and commands: on/off Turn UI power on/off. uP/DoWn Scroll up/down within current menu to highlight a specific menu command. menu/BacK Enters into the main menu, and used to go back to previous menu.

  • Page 8: Setting The Clock

    usinG inBuilt clocK anD timers This section will guide you through setting up the clock and setting timers to suit your sanitizer production requirements. settinG the clocK 1. Switch power on. 2. Wait for the start-up sequence to complete. 3. Press the button to enter the MAIN MENU.

  • Page 9: Setting Up For Operation

    To turn on manually, press the ON/OFF button. The output level can be set as described in ‘Setting the Sanitizer Output.’ NOTE: For safety reasons, MagnaPool will operate for a maximum of 30 hours if left running with no ‘OFF’ time – unless connected to en external controller. After this time it will switch to ‘OFF’.
  • Page 10 usinG inBuilt clocK anD timers To program the timer: 1. Press the button. 2. Press button to move arrow to ‘SET TIMERS’. 3. Press to enter the ‘SET TIMERS’ menu. 4. Press to select the timer you wish to set. (Timer 1 or Timer 2) 5.

  • Page 11: External Time Clock

    usinG inBuilt clocK anD timers clearinG the timers To clear the timer: 1. Press the button. 2. Press button to scroll to ‘SET TIMERS’. 3. Press to enter the ‘SET TIMERS’ menu. 4. Press to scroll to ‘CLEAR TIMERS’. 5. Press A confirmation message will appear on the screen.
  • Page 12 sanitiZer outPut levels settinG the sanitiZer outPut The amount of sanitizer required by your pool is dependent on a number of factors including the size of the pool, the number of users and the climate. Output will appear as a percentage on the screen readout, monitor the level according to the reading over time will help ensure optimum output.
  • Page 13 correct settinGs for Your Pool...

  • Page 14: Connecting To A Controller

    If you use an automation or controller system to control your pool you will need to configure the MagnaPool Control Centre to allow “communication” between the two. You must set the controller type before making the wiring connection.
  • Page 15 Before any wiring connections/disconnections ensure mains power is removed from both the controller and the MagnaPool Control Centre. When connected to a controller, the MagnaPool Control Centre acts as the ‘slave’ - responding to requests. This means timer settings are ignored and the output settings cannot be changed through the MagnaPool control centre.
  • Page 16 Polaris eos / Jandy / Zodiac aqualink / aqualink tri Green wire (0V) to ‘0V’ terminal on MagnaPool Red wire to the (+V) ‘POS’ terminal on MagnaPool Yellow/White (B) wire to ‘B’ terminal on MagnaPool Black wire (A) to ‘A’ terminal on MagnaPool Pentair intellitouch GREEN wire to ‘B’...
  • Page 17 Once a connection has been made between the Controller and the MagnaPool Control Centre, it will need to be tested. 1. Turn on the power to the Controller and the MagnaPool Control Centre. 2. If successful, a ‘ ’ symbol will appear in the top right hand corner of the screen after about 20 seconds.

  • Page 18: Manual Setting

    Note: Low or Winter mode cannot be selected when controlled by an external controller. automatic settinG The MagnaPool system can be connected to the valves of an automatic pool/spa system. When the input from the valves is set to ‘Low’ the system will automatically revert to ‘Low’...
  • Page 19 NOTE: The ‘BOOST’ mode cannot be engaged under the following circumstances: 1) If in the ‘OFF’ operating mode. The MagnaPool must be ‘ON’ for BOOST to be engaged. 2) From the user interface when the system is being controlled by an external controller.

  • Page 20: Help And Troubleshooting

    The MagnaPool Hydroxinator automatically provides a number of inbuilt warnings that can help identify problems and offer solutions. To access the HELP menu: 1. Press the button. 2. Using the buttons, scroll to the ‘HELP/DIAG’ menu. 3. Press to enter the ‘HELP/DIAG’...

  • Page 21: Maintenance

    In areas that experience calcium hardness the electrode will benefit from cleaning. To clean your electrode: 1. Switch off the filter pump and the MagnaPool Hydroxinator, close necessary valves and unplug the cell terminal cap. 2. Unscrew the retaining ring and remove the electrode.

  • Page 22: Check Power Supply

    Always maintain minerals at suitable levels. If the light should activate and the water temperature is at swimming temperature, it is recommended to add a bag of MagnaPool Minerals to the water. Above 5000ppm is optimal if you don’t know what your mineral level is or how to test it, consult your local pool care professional.

  • Page 23: Troubleshooting

    For further information and assistance please consult your local pool professional. Your Local Dealer:...
  • Page 24 ZoDiac australia - eXPress WarrantY anD Guarantees express Warranty* Zodiac Group Australia Pty Ltd (Zodiac australia) warrants that the MagnaPool Hydroxinator (including control centre and cell) will be free from defects in materials and workmanship for the period of 3 years from the date of purchase.
  • Page 25 ZoDiac australia - eXPress WarrantY anD Guarantees 4 Without limiting 3 above, products sold by Zodiac Australia are designed for use with swimming pool water balanced in accordance with Australian Standard AS3633-1989 with a pH range of 7.0 - 7.8. Maximum chlorine readings should not exceed 4ppm.
  • Page 26 Zodiac Australia will reimburse the Purchaser for charges reasonably incurred upon proof of the charges. Please note: You must always use genuine Zodiac MagnaPool minerals with the MagnaPool system, failure to do so will void warranty...
  • Page 27 ZoDiac australia - eXPress WarrantY anD Guarantees additional guarantees, rights and remedies australian Purchasers - Guarantees under the australian consumer law 12 The benefits of this express warranty are in addition to other guarantees, rights and remedies Australian consumers have under the Australian Consumer Law.
  • Page 28 Zodiac is a registered trademark of Zodiac Group Australia Pty Ltd ABN 87 002 641 965 ZoDiac customer service centre Zodiac Group Australia: 219 Woodpark Rd, Smithfield, NSW 2164 Australia Tel: 1800 688 552 Fax: 1300 781 688 Email: aftersales@zodiac.com.au www.zodiac.com.au Due to constant developments and improvements, specifications may change without notice.
