Summary of Contents for Contemporary Research ICE-HE-DXL

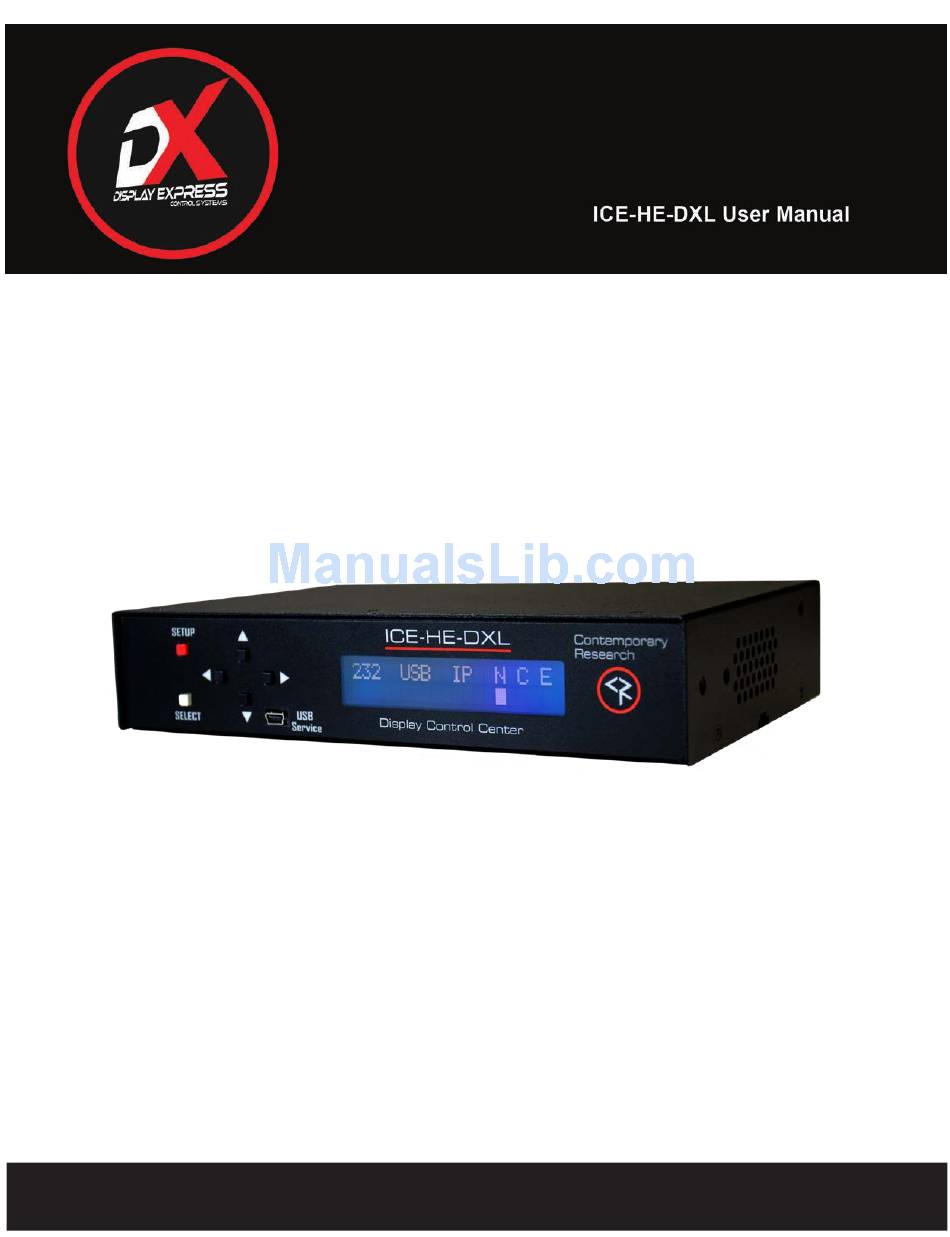

- Page 1 972.931.2728 | 888.972.2728 | www.contemporaryresearch.com...
- Page 2 Overview The ICE-HE-DXL Display Control Center is an intelligent solution for “over-the-coax” RF display control to any combination of ICC1- IRX Controllers, ICC1-232 Controllers, and ICC2-ATSC4S Tuner/Controllers. Control commands are sent over RF by inserting a micro data channel in the gap between channels 4 and 5. In addition, its flexibility allows it to communicate with individual displays, groups, zones, or all displays using any one of three software options: the onboard DX Lite web page, Display Express Software from Contemporary Research, or third-party control systems.
-
Page 3: Specifications
Power, 12 VDC, 250 mA max (using the included 500 mA power supply) 2 – OUT2 Output 2 3 – OUT1 Output 1 4 – IN2 Input 2 5 – IN1 Input 1 6 – GND- Ground Page 3 ICE-HE-DXL User Manual 04/2018... - Page 4 Power In: 2.1 mm coaxial jack (inside center conductor positive), 11 to 18 VDC, 12 VDC typical, 250 mA maximum Includes 12 VDC Power Supply, 500 mA 110/220VAC, 60/50 Hz Embedded DX Lite software Page 4 ICE-HE-DXL User Manual 04/2018...
-
Page 5: Installation
• Outputs are open collector and may require a pull-up resistor; 28 VDC max, 200 mA max. Turning on the output turns on the transistor and creates a current path to ground. Simplified Output Circuit Typical Application Page 5 ICE-HE-DXL User Manual 04/2018... - Page 6 • The DX Lite home page will appear on your screen. • If the ICE-HE-DXL is connected to a network with Wi-Fi access, the unit may also be accessed from the browser on a tablet or smart phone. Page 6...
-
Page 7: Front Panel Display
Front Panel Display During normal operation, the ICE-HE-DXL displays the above text on the LCD display. The top line shows communication ports as well as network and control status. “Rx” or “Tx” appears briefly under the three external ports (232, USB, IP) to show I/O activity, and a white cursor will blink under the three status options (Network, Communication, Error). - Page 8 RF Level dB when connecting to QCA9-33 Low RF Input. Confirm: N | Confirm: Y Restores factory default settings. Fact Dfault Displayed as ICE-HE-DXL<X.YY> L/R arrows may be used to view boot- Firmware loader and board rev. Network IP Address 192.168.1.251...
- Page 9 For a full list of IR codes, refer to the ICC1-IRX manual. Popular codes include: 21=LG 44=Vizio 25=Samsung 45=Panasonic 43=Sony 46=Sharp For a full list of 232 codes, contact Contemporary Research Support. Popular codes include: 54=LG 47 = Sharp 11=Samsung 13=Panasonic Press the white SELECT button to send the command lect...
- Page 10 Display Express Lite The Display Express Lite web page in the ICE-HE-DXL Display Control Center is a compact version of full Display Express software that runs on a PC. The Lite version is focused on one task – tuning channels for a selected group of TVs, with the added options for TV power and volume, and turning all the TVs on and off.
- Page 11 Click on a channel button to change the name or the channel number. Refer to the table below for channel number conventions. Channel Major # Minor # Type 2-part <0-999> <0-999> digital 1-part <1-9999> Leave digital Blank Analog <2-135> Page 11 ICE-HE-DXL User Manual 04/2018...
- Page 12 RS-232 ICE-HE-DXL Commands The following commands apply to the ICE-HE-DXL only. Commands addressed to controllers are included in the section for RS-232 Controller Commands. All commands follow the same structure: • Command strings begin with ASCII > (greater than symbol).
- Page 13 Page 13 ICE-HE-DXL User Manual 04/2018...
- Page 14 RS-232 Protocols for Custom Control Systems Overview RS-232 control for over 4000 TV Controllers is provided through an ICE-HE-DXL Display Control Center. The ICE-HE-DXL manages ICC-Net communication over RF coax to ICC1-IRX and ICC1-232 Controllers as well as ICC2-ATSC 4S Tuner/Controllers.
- Page 15 RTI = Select port, hex mode, enter A5 01 04 05 54 48 02 02 03 Note: When returning to normal editing mode, the app inserts an \x before each hex character. Go to www.asciitable.com for a handy Decimal/ASCII/Hex conversion chart. Page 15 ICE-HE-DXL User Manual 04/2018...
- Page 16 RS-232 Controller Commands for ICC1-232, ICC1-IRX, and ICC2-ATSC4s Page 16 ICE-HE-DXL User Manual 04/2018...
- Page 17 Page 17 ICE-HE-DXL User Manual 04/2018...
-
Page 18: Safety Instructions And Warranty
National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as possible. Page 18 ICE-HE-DXL User Manual 04/2018... - Page 19 Product Service: Contemporary Research will test, repair, or replace the product or products without charge if the unit is un- der warranty. If the product is out of warranty, Contemporary Research will test, and then repair the product or products. The parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.
