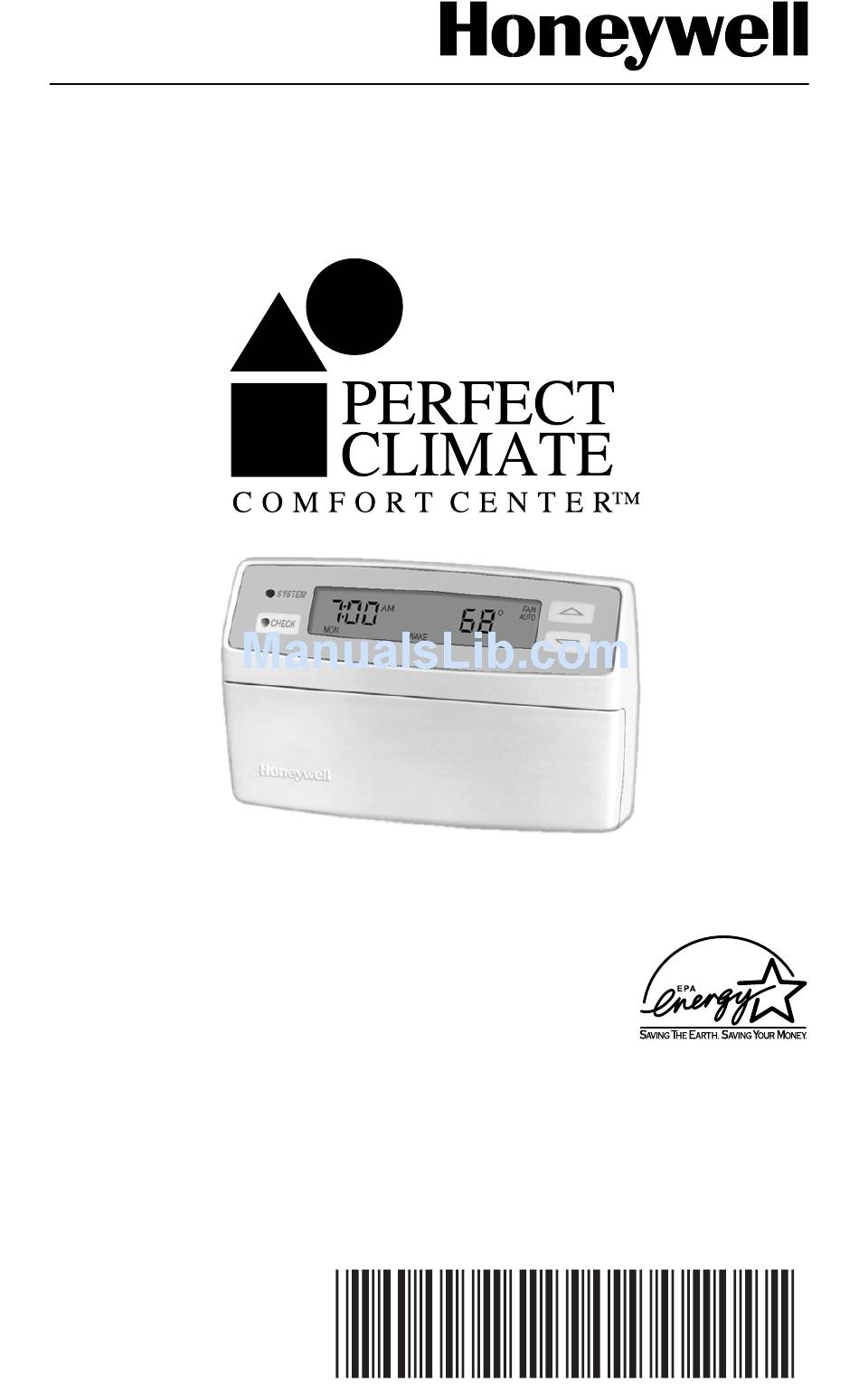

- Page 1 OWNER’S GUIDE As an ENERGY STARSM partner, Honeywell has determined that this product meets the ENERGY STARSM guidelines for energy efficiency. 69-0891-2 69-0891—2...
- Page 2 Congratulations! You made a smart choice when you pur- chased your Perfect Climate Comfort Center™ Control System! The Perfect Climate Comfort Center™ Control System is more than just a thermostat. It keeps you comfortable by: • Controlling temperature. • Controlling humidity.
-
Page 3: Table Of Contents
Table of Contents Features ....................4 Programming Your PC8900 ..............5 Setting Your Customized Program ..........6 Programming the First Day ............. 8 Programming the Remaining Days ..........12 Operating Your PC8900 ..............17 Changing Current Period Settings ..........17 Changing Settings for One Week or Less ........ -
Page 4: Features
Features • Program up to four different time periods in each daily schedule. • Set different schedules for each day of the week. • Monitor system operation; review current system settings at a glance. • System light indicates when heating or cooling equipment is operating. -
Page 5: Programming Your Pc8900
(82°F) (AUTO) (OFF) 1. Setting the Current Day and Time You can program the Perfect Climate Comfort Center™ Control System only when it is installed on the wall and power is connected. NOTE: — Always press the keys with your fingertip or similar blunt tool. -
Page 6: Setting Your Customized Program
b. Press and hold DAY until the current day appears in the display. SYSTEM CHECK SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT HUMIDITY VENTILATE HOLD PERIOD TIME TIME CANCEL M6203 c. Press and hold a TIME key until the current time appears in the display. - Page 7 The humidity setting is the same for all days and periods. When an outdoor sensor is part of the system, enter a frost setting that is also the same for all days and periods. See Default Settings. Start Heating Cooling Vent Period Time...
-
Page 8: Programming The First Day
Start Heating Cooling Vent Period Time Temp Temp Setting Setting Friday WAKE LEAVE RETURN SLEEP Saturday WAKE LEAVE RETURN SLEEP Sunday WAKE LEAVE RETURN SLEEP Programming the First Day You can erase the entire preprogrammed schedule, or make minor changes to the program. When you want to make only minor changes to the program, go to step 7a. - Page 9 1. Clearing Current Program a. Press SELECT PERIOD. SYSTEM AUX HEAT SET PT COOL CHECK SELECT PERIOD SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT WAKE HUMIDITY HOLD VENTILATE PERIOD TIME TIME CANCEL M6206 PROG CLR b. Hold CANCEL until display shows SYSTEM CHECK CANCEL...
- Page 10 d. Press and hold a TIME key until the display shows the desired starting time for the WAKE period. The time changes in ten-minute increments. SYSTEM CHECK TIME TIME SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT HUMIDITY VENTILATE HOLD...
- Page 11 NOTE: — When the numbers do not move while you are holding the arrowhead key, you have reached the setting limit (88°F and 45°F). — When set for auto changeover, there is a 3°F automatic field-installed differential between the heating and cooling setpoints. (When you are in cooling with the heating setpoint at 68°F, the cooling setpoint can be no lower than 71°F.) And when you...
-
Page 12: Programming The Remaining Days
4. Setting Ventilator IMPORTANT The VENTILATOR settings are the same for heating and cooling. SYSTEM HEAT COOL SET PT CHECK AUTO VENTILATE SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT HUMIDITY VENTILATE HOLD VENT PERIOD TIME WAKE TIME CANCEL M6211... - Page 13 b. Press the RUN key to save and start the program. SYSTEM CHECK SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT HUMIDITY VENTILATE HOLD PERIOD TIME TIME CANCEL M6230 You have now copied your Monday program to all seven days of the week.
- Page 14 e. Press and hold a TIME key until the display shows the desired period starting time. SYSTEM CHECK TIME TIME SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC LEAVE SELECT HUMIDITY VENTILATE HOLD PERIOD TIME TIME CANCEL M6238 f.
- Page 15 9. Starting the Program a. Press RUN to start the program. SYSTEM CHECK SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT HUMIDITY VENTILATE HOLD PERIOD TIME TIME CANCEL M6230 10. Programming the System Setting HEAT, OFF, COOL, a.
- Page 16 b. Press and hold the up or down arrowhead key until desired humidity setting is displayed. The available choices range from 10 percent to 80 percent, in 5 per- cent increments. SYSTEM CHECK SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT HUMIDITY...
-
Page 17: Operating Your Pc8900
Operating Your PC8900 Changing Current Period Settings This feature lets you customize the program for those times when someone comes home early, stays up late, or plans to be out for the evening. These settings will be in effect until the next regularly scheduled period starts or the RUN key is pressed. -
Page 18: Changing Settings For One Week Or Less
3. Ventilation Setting VENT a. Press VENTILATE to display or not, as desired. SYSTEM HEAT SET PT COOL CHECK AUTO VENTILATE SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT TEMPORARY VENT HUMIDITY HOLD VENTILATE PERIOD TIME TIME CANCEL M6224 Changing Settings for One Week or Less... - Page 19 d. Press FAN for fan setting and VENTILATE for ventilation setting during hold. SYSTEM HEAT SET PT COOL CHECK AUTO SYSTEM HEAT/COOL AUTO ON CIRC CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT HUMIDITY HOLD VENTILATE PERIOD TIME TIME CANCEL M6244 SYSTEM...
-
Page 20: Changing Settings For Indefinite Time Period
Changing Settings for Indefinite Time Period This feature lets you set one temperature that the PC8900 will hold continuously until you decide to resume your preset schedule. 5. Programming Indefinite Hold a. Press HOLD. HEAT COOL SET PT SYSTEM CHECK HOLD SYSTEM HEAT/COOL... -
Page 21: Canceling Program Settings
e. Press CANCEL to resume your program. Canceling Program Settings Each setting can be canceled separately for each day. 6. Canceling Period a. Press DAY until the desired day appears in the display. SYSTEM CHECK SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT LEAVE... -
Page 22: Reviewing Program Settings And Current Readings
Reviewing Program Settings and Current Readings 1. Review All Program Settings IMPORTANT You can make changes to your program when you use this review process. a. Press SELECT PERIOD to enter the program. HEAT SET PT COOL SYSTEM CHECK SELECT PERIOD SYSTEM HEAT/COOL... - Page 23 a. Press CHECK to display the current indoor humidity or outside temperature (if outside sensor is installed). SYSTEM CHECK CHECK SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT HUMIDITY VENTILATE HOLD PERIOD TIME TIME CANCEL M6200 b. Press CHECK to display the current indoor humidity. SYSTEM CHECK CHECK...
-
Page 24: Activating Or Deactivating Keyboard Lockout
f. Press CHECK to display the current FAN setting. SYSTEM CHECK AUTO CHECK SYSTEM HEAT/COOL CLOCK SETPOINTS HEAT OFF COOL AUTO ON CIRC SELECT HUMIDITY VENTILATE HOLD PERIOD TIME TIME CANCEL M6257 g. Press CHECK to display the current VENTILATOR setting. SYSTEM CHECK CHECK... -
Page 25: Adaptive Intelligent Recovery
Breakthrough Technology Senses Temperature More Like You Do M6397 Your Perfect Climate Comfort Center™ Control System is so smart, it’s almost human. • Your body perceives temperature from a variety of sources, not only from the air in the room, but also from your surroundings—walls, windows and furnishings. -
Page 26: The Optimum Comfort And Energy Savings Solution
THE PC8900 USES THE SAME SCHEME TO RETURN TO LOWER COMFORT TEMPERATURE DURING THE COOLING SEASON. M6351 The Perfect Climate Comfort Center™ Control System is actually a small but powerful computer. When calculating the time to turn on your heating or cooling system, it considers (1) air temperature, (2) wall temperature, and (3) the time you want the room to be comfortable. -
Page 27: Control Options
Control Options Frost Control If your Perfect Climate Comfort Center™ Control System is equipped with an outdoor temperature sensor and a humidifier, you can use the frost control feature to control window conden- sation during the heating season. -
Page 28: Fan Control
Fan Control Your fan will be on when any of these conditions are present (it can take up to 20 seconds for the fan to turn on). FAN ON: This setting means that your fan runs 100 percent of the time during this period. FAN AUTO: The AUTO setting means the fan runs only with your heating or cooling system. -
Page 29: Answers To Common Questions About The Pc8900
24 hours. A microcomputer with the Adaptive Intelligent Recovery™ algorithm allows the Perfect Climate Comfort Center™ Control System to think for itself and adjust the heating or cooling recovery time to reach your desired comfort temperature at the programmed time. - Page 30 See the two Changing Settings sections for details. How can the Perfect Climate Comfort Center™ Control System save energy when it comes on so early in the morning? A.
- Page 31 When any message occurs other than those listed, call your service person for maintenance or advice. If you have questions regarding the Perfect Climate Comfort Center™ Control System please visit our web site at www.honeywell.com/yourhome, or call the customer information line at 1-800-468-1502. Message on Display...
-
Page 32: Saving Energy Across The United States
CHECK LIST (Continued) Message on Display Explanation Outdoor sensor has failed or PC8900 is configured for outdoor sensor but sensor is not present. PC8900 is set up for outdoor sensor, but outdoor sensor has failed or is not connected. Humidity sensor failure. PC8900 is configured for discharge air sensor, but discharge air sensor has failed or is not connected. - Page 33 Find the city closest to your home. The energy savings listed are similar to the savings you can expect. PERCENTAGE OF HEATING ENERGY YOU CAN SAVE DODGE CITY, KS CHICAGO, IL 12% - 23% NEW YORK, NY 11% - 21% °...
-
Page 34: Glossary
Glossary Adaptive Intelligent Recovery™ Setting The time when the PC8900 operates the heating or cooling equipment to return the house from the energy savings to the comfort temperature. The PC8900 starts the recovery period earlier than the WAKE or RETURN period so the house will be at the comfort setting by the time you’ve chosen. - Page 35 Preprogrammed schedule The schedule programmed into your PC8900 at the factory. It sets a night program that provides energy savings if you don’t set your own program, or if your personal program is lost for any reason. The program, which is the same for all days of the week, is: Start Heating...
-
Page 36: Troubleshooting Guide
Time period One of four program periods: WAKE, LEAVE, RETURN and SLEEP available with the PC8900. One period begins when the previous period ends. WAKE—The time period when you want the house at a comfortable temperature while the family gets up and gets ready to leave for work and school. - Page 37 Troubleshooting (Continued) IF… THEN… Heating does not • Check the fuse or circuit breaker and come on. replace or reset if necessary. • Check that PC8900 is set to HEAT or AUTO. • The PC8900 has a built-in time delay that can add to time delays in the heating equipment.
- Page 38 Troubleshooting (Continued) IF… THEN… CHECK light • Press CHECK key. If the display comes on. message says FILTER or FILT CHG, change or clean the air cleaner filter, then press CANCEL to clear the message. If a different message is displayed, contact your heating and air conditioning contractor.
- Page 39 Troubleshooting (Continued) IF… THEN… System fan is • Check FAN setting: running – AUTO means the fan runs only independent of when the heating or cooling is heating or cooling running. equipment. – ON means the fan runs during this entire period. –...
- Page 40 HONEYWELL ELECTRONIC AIR CLEANER HONEYWELL WATER FILTER M6350 1. Honeywell PC8900 Perfect Climate Comfort Center™ Control System. 2. Honeywell F50, the air cleaners of choice. 3. Honeywell Home Ventilation Systems. 4. Honeywell Braukmann Water Filter. 5. Honeywell Home Security Systems.
- Page 41 ® Perfect Climate Describing Perfection The most convenient, most energy efficient, cleanest, healthiest and most comfortable indoor environment possible today! Perfect climate is achieved when the five core compo- nents of a home climate system work together: • Optimal efficiency heating and cooling equipment. •...
-
Page 42: Index
INDEX Activating or Deactivating Keyboard Lockout ........24 Adaptive Intelligent Recovery™ ......25, 26, 29, 30, 34, 36 Answers to Common Questions About the PC8900 ......29 CANCEL key ..........9, 14, 19, 21, 29, 30, 31, 38 Canceling Periods ................ 14, 21 Canceling Programs ................ - Page 43 LEAVE ................ 5-8, 12, 26, 34-36 LOCK KEY ..................24 Maintenance ..................30 ON ....................11, 17 OPEN KEY ..................24 Operation ................6, 17, 29, 34 Outdoor temperature ..............31, 34 Planning your program… ..............6 Preprogrammed schedule ............6, 8, 35 Programming LEAVE .................
- Page 44 Automation and Control Solutions Honeywell International Inc. Honeywell Limited—Honeywell Limitée 1985 Douglas Drive North 35 Dynamic Drive Golden Valley, MN 55422 Scarborough, Ontario M1V 4Z9 Rev. 12-98 69-0891—2 D.A. 69-0891—2 ©Honeywell Inc. 1998 Printed in Mexico...
