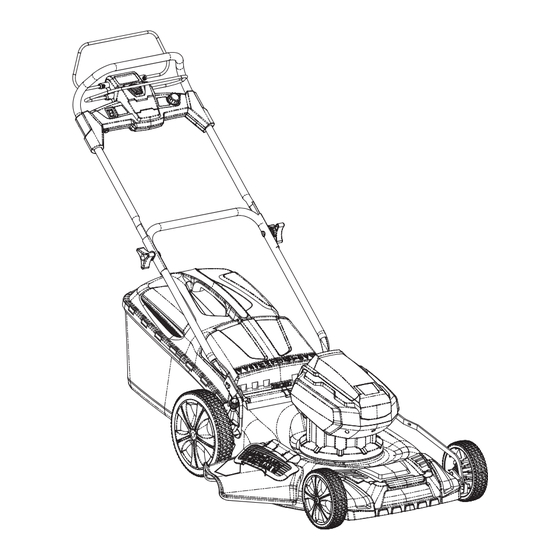

- Page 1 120V Lithium Ion Cordless Lawn Mower MODELS # 106491 (Self-Propelled) and #106648 Operation Manual This safety alert symbol identifies important safety messages in this manual. Failure to follow this important safety information may result in serious injury or death. Part # 106660 Rev A...
- Page 2 For Service or Questions Call 1-877-487-8275 720-287-5182 www.redbackpowerusa.com Redback products are distributed by 1100 W 120th Ave, Suite 600 Westminster, CO 80234 • 720-287-5182...
-
Page 3: Table Of Contents
Table of Contents Important Safety Information Intended Use ...................4 Personal Protective Equipment ............4 General Safety ..................5 Safety Icons ....................6 Assembly .....................7 Overview of Components .................8 Operation.....................9 Maintenance ....................10 Storage ......................11 Warranty & Specifications ..........Back Cover... -
Page 4: Important Safety Information
Important Safety Information WARNING WARNING: Read and thoroughly understand all instructions and safety information before assembling or operating the lawn mower. Failure to do so may cause serious injury or death. Do not allow anyone to operate this lawn mower who has not read this manual. As with all power equipment, a lawn mower can be dangerous if assembled or used improperly. -
Page 5: General Safety
Important Safety Information General Safety Failure to follow warnings, cautions, assembly and operation instructions in the Operation Manual may result in serious injury or death. DANGER READ THE OPERATION MANUAL BEFORE OPERATION. • Do not permit children to operate this equipment at any time. •... -
Page 6: Safety Icons
Safety decals on the lawn mower are to remind you of important information while you are operating the unit. Make sure all decals are attached and in readable condition. Replace missing or defaced decals. Contact Redback USA at 1-877-487-8275 for 130mm replacement decals. -
Page 7: Assembly
Assembly Attaching the Handlebars Fold the lower handle upwards. Insert a hex bolt into the top hole WASHER and fasten with a hex nut. Insert a carriage bolt into the bottom BOLT hole and secure with a washer and a triangle knob (see Figure 1). Place the upper handle on the lower handle aligning the hole in the lower handlebar assembly with one of the three holes in the upper handlebar assembly. -
Page 8: Overview Of Components
Overview of Components DRIVE ACTIVATION BAR (MODEL 106491) BLADE ACTIVATION BAR UPPER HANDLEBAR BATTERY DRIVE SPEED SWITCH ADJUSTMENT INTERLOCK INDICATOR (MODEL 106491) SAFETY LOWER GRASS HANDLEBAR CATCHER BATTERY COMPARTMENT BATTERY DISCHARGE COMPARTMENT FLAP CUTTING HEIGHT ADJUSTMENT SIDE DISCHARGE... -
Page 9: Operation
To switch ON press the switch interlock and hold down. Pull the power activation bar back towards the handle. The motor starts. On self-propelled models (#106491) pull the drive activation bar up towards the handle to engage the drive. Adjust the speed with the drive speed adjustment knob on the handlebar. -
Page 10: Maintenance
Maintenance CAUTION Before performing any maintenance on the lawn mower, remove the battery. Cleaning the Lawn Mower Remove the battery. Remove the grass catcher. Do not use water or liquid detergents. Whenever possible, always clean the unit directly after mowing. After mowing, always clean the lawnmower with a hand brush. -
Page 11: Storage
Storage Storage Remove the safety key and remove the battery from the mower before storing. Store the lawn mower in a dry, dust-free and frost- free place ideally in a temperature range of 50° - 77°F (10-25 °C). Store the battery and the unit separately. Folding the Lawn Mower The handle bar can be folded down to facilitate storage and transport. -
Page 12: Warranty & Specifications
Up to 55 minutes/charge Up to 65 minutes/charge Warranty 3 Year Limited Warranty 3 Year Limited Warranty For Service or Questions Redback products are distributed by Call 1-877-487-8275 720-287-5182 1100 W 120th Ave., Suite 600 www.redbackpowerusa.com Westminster, CO 80234 • 720-287-5182...
