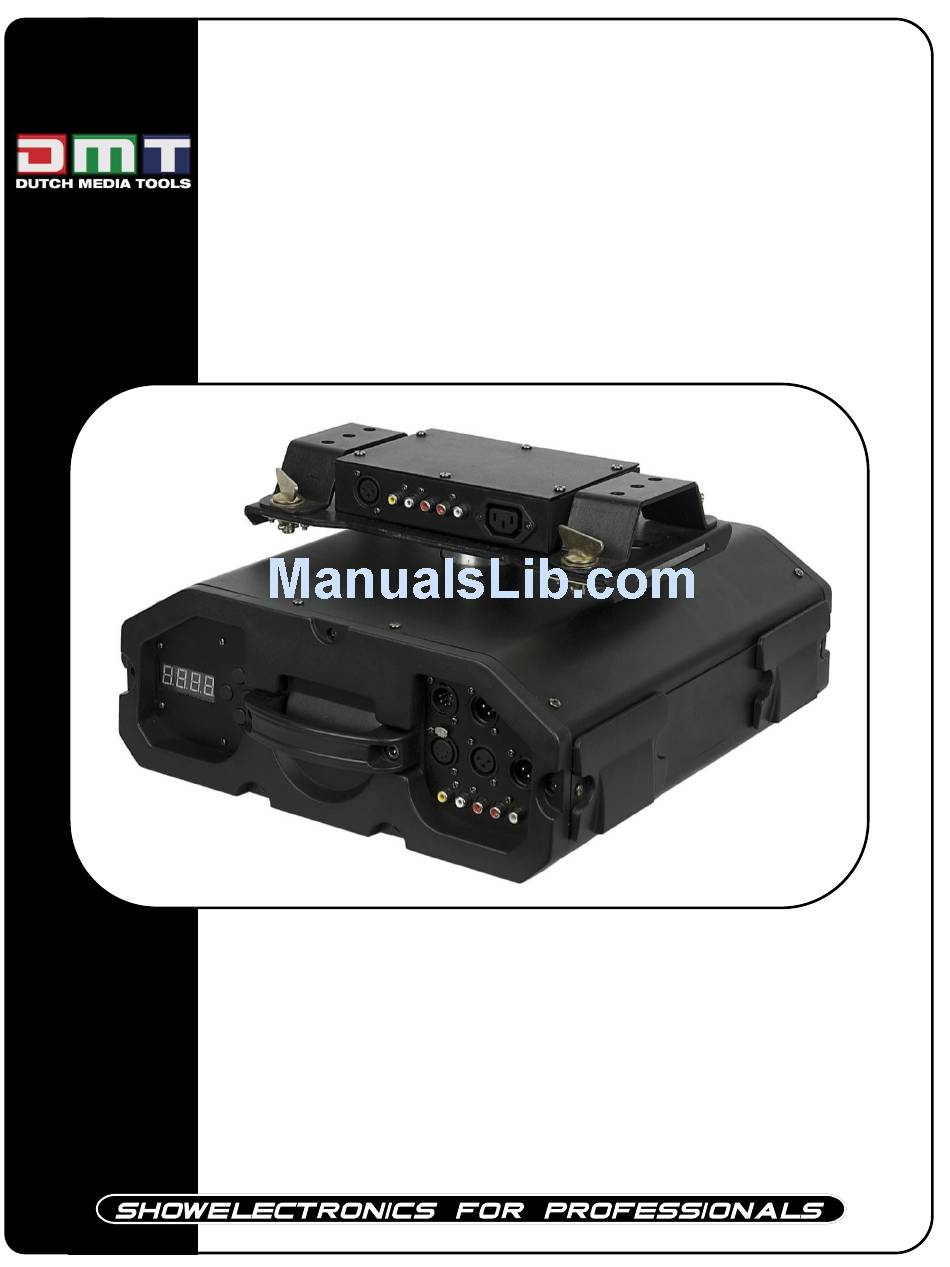

- Page 1 Media Spinner ORDERCODE 40169...
- Page 2 Congratulations! You have bought a great, innovative product from DMT. The DMT Media Spinner brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on DMT, for more excellent lighting products.
-
Page 3: Table Of Contents
DMT Media Spinner Product Guide ™ Warning..…...................…………………………………………………..….. Safety-instructions………………………………………………………………………………………….…………….. Operating Determinations………………………………………………………………………………………….…. Rigging…………………………………………………………………………………………………………………….. Description..…................……….……………………………………………… Features and Overview ………………………………...….……………….………….………………………………. Backside…………………………………………………...…...….……………….…………………...….……………... Installation................…...…………………………………….……………….. Set Up and Operation..............……..…………………………………………..… One Media Spinner ............………………………………………………..………….. Multiple Media Spinner.............….………………………………………………..DMX-Protocol…...........……………………………………………………………….……….. Control Panel….....……........…………………………………………………………….…... Control Mode........…………………………………………………………………….…………. addressing........………………………………………………………………….….…………. Functions control panel........…………………………………………………………….………… Master/Slave mode........……………………………………………………….………….……….. -
Page 4: Unpacking Instructions
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DMT Media Spinner • 1X 3m, 3-pin IEC powercable • User manual... -
Page 5: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 6: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your DMT device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your DMT dealer for service. -
Page 7: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the Media Spinner is lowered from the ceiling or high joists, professional trussing systems have to be used. - Page 8 Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN...
-
Page 9: Description
Description of the device Features The DMT Media Spinner is a great multimedia effect. • 540º pan movement • DMX-control via standard DMX-controller • 4 DMX-control channels required • Maximum Load Capacity Platform : 50 kg Overview Fig. 1 Fig. 2... -
Page 10: Installation
Additional Features • 3-pin and 5-pin DMX connections on base and platform • 5 RCA in/out connections capable of up to a 720p signal (individually grounded) • 1 XLR in/out connection • DMX pass-through to platform when power is on/off •... -
Page 11: Multiple Media Spinner
Multiple Media Spinners 1. Fasten the effect light onto firm trussing (Use a proper clamp fastened onto the Media Spinner ). Leave at least 1 meter on all sides for air circulation. 2. Use a 3-p XLR cable to connect the Media Spinners and other devices. Always use a safety cable. -
Page 12: Dmx-Protocol
DMX Protocol Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other. The head can be turned by 540°and stopped at any position you wish. Channel 2 –... -
Page 13: Control Panel
Control Panel When the indicator light is on, means the Media Spinner is working Fig. 4 A. Display D. Up Button B. DMX LED E. Down Button C. [MODE/ESC] Button F. [ENTER] Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 14: Functions Control Panel
Control Panel Functions Addressing With this menu you can set the DMX address. - DMX addressing 1) Press Mode until the display shows Run, then press enter. Press the Up / Down button until the display shows DNCO and then press Enter. 2) Press Up / Down to select the required address , press Enter to confirm. -
Page 15: Master/Slave Mode
MODE 1: as default mode. Receive DMX512 signal, set the desired address via the UP/DOWN buttons. DMX mode: select channel 1 - channel 512 MODE 2: press the MODE/ESC button until the display shows and set the desired function via UP/DOWN buttons, as master auto mode. -
Page 16: Maintenance
4. The electric power supply cables must not show any damages or material fatigue. The DMT Media Spinner requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 17: Troubleshooting
Troubleshooting No Movement This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the light effect does not operate properly, refer servicing to a technician. - Page 18 Symptom Solution(s) Applies to Lights Foggers & Controller Dimmers & Snow Chasers Auto shut off Check fan thermal switch reset Beam is very dim Clean optical system or replace or not bright lamp Check 220/110v switch for proper setting Breaker/Fuse Check total load placed on keeps blowing device...
-
Page 19: Product Specifications
Product Specification Model: DMT Media Spinner Voltage: 240V-50Hz (CE) Power: 50W Power Output (AC Plug): 3450W at 230V Max Base Main: 20mm Glass 5A 250V Fast Blow Platform: 20mm Glass 10A 250V Fast Blow Dimensions: 395x385x255mm (LxWxH) Weight: 17,2 kg...
