Summary of Contents for Chauvet DMX-RT

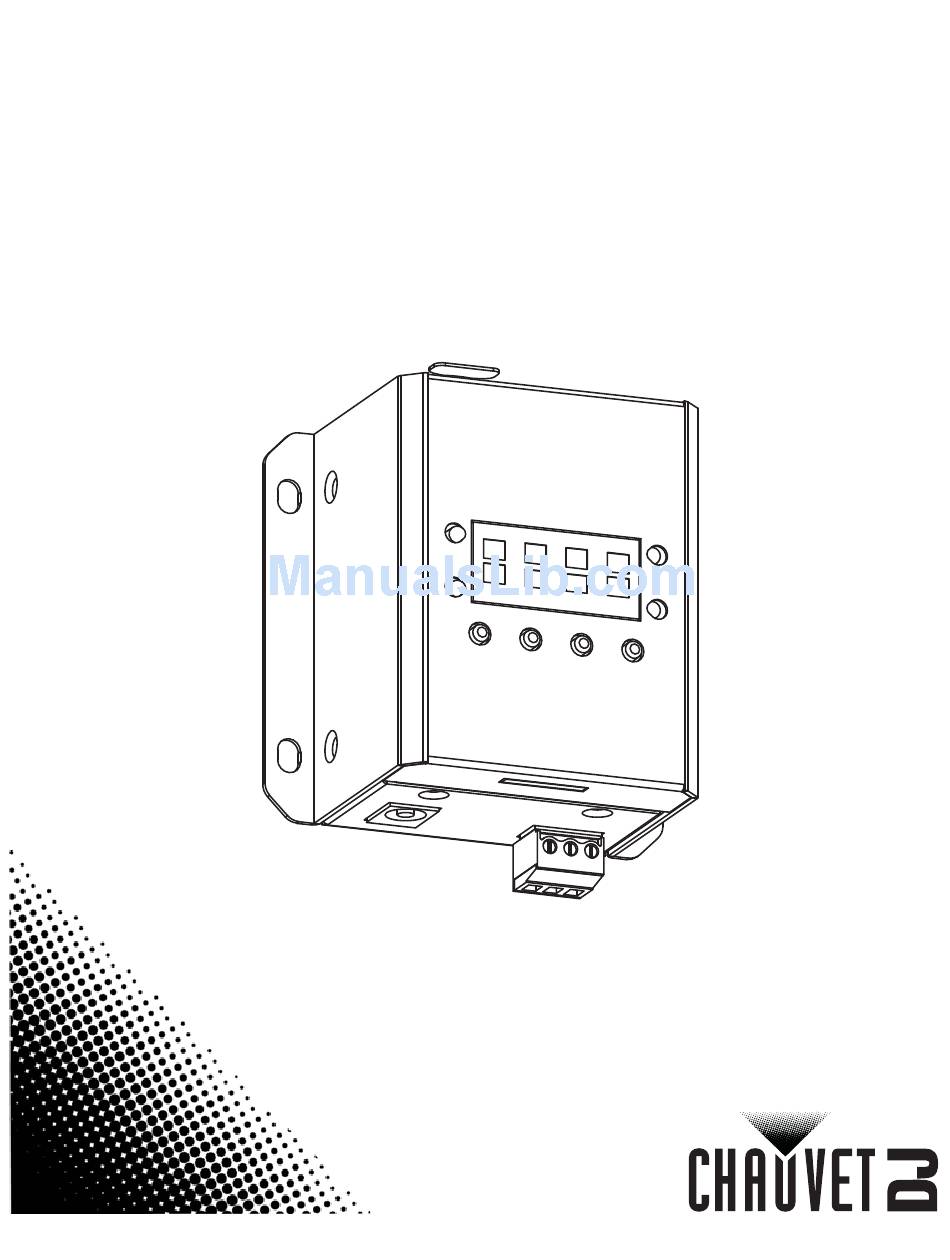

- Page 1 DMX-RT User Manual...
-
Page 2: Table Of Contents
DMX Sequence File Selection ..................Delay Time ........................Record File Start type ....................Record File End type...................... Record File........................Run File.......................... Software Version......................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............7. Returns..................8. Contact Us .................. DMX-RT User Manual Rev. 3... -
Page 3: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 2 of 13 DMX-RT User Manual Rev. 3... -

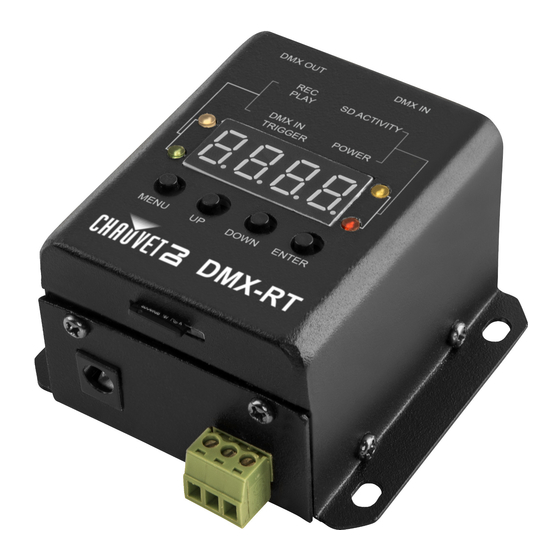

Page 5: Introduction
NTRODUCTION 2. I NTRODUCTION Product Overview Micro SD Card Slut Power In Trigger Input DMX Data In/Out Indicator LEDs Control 3 mm Mounting Panel LCD Points Control Panel Buttons DMX-RT User Manual Rev. 3 Page 3 of 13... -
Page 6: Product Dimensions
NTRODUCTION Product Dimensions 0.16 in 4 mm 2.87 in 73 mm 0.24 in 6 mm 3.23 in 82 mm 2.52 in 64 mm 1.81 in 46 mm 2.17 in 55 mm Page 4 of 13 DMX-RT User Manual Rev. 3... -
Page 7: Setup
ETUP AC Power The DMX-RT has an external auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. It runs on 12 VDC, 1A. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Basic Setup
The diagram above illustrates how to connect products to the trigger port of the DMX-RT. • “IN” “-” ports are for the signal that allows the DMX-RT to sense whether the circuit is closed or open. • “+” port provides 12 VDC 100 mA of power to connect to other devices if needed. -
Page 9: Dmx Set-Up
ETUP DMX Set-up DMX signal in from controller DMX signal out to fixtures DMX-RT User Manual Rev. 3 Page 7 of 13... -
Page 10: Operation
Shows the software (bootloader) and firmeware (application) versions Configuration Trigger Set-up Set the DMX-RT to nC if the circuit is “on” (closed) during normal operation. The trigger will be cued when the circuit is turned “off”. Go to SEtU > tt. Select nC. -
Page 11: Cue File Setting
Record File Start type The DMX-RT can initiate recording a DMX sequence file by using DMX (once a value of 001 or higher is sensed the DMX-RT will start recording) or manually on the control panel using the <ENTER> button. -
Page 12: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 10 of 13 DMX-RT User Manual Rev. 3... -
Page 13: Technical Specifications
Consumption Operating Current 0.03 A 0.03 A Thermal AXIMUM XTERNAL EMPERATURE OOLING YSTEM 104 °F (40 °C) Convection I/O C ONNECTOR 3-pin XLR Ordering UPC N RODUCT UMBER DMX-RT 09081254 781462216023 DMX-RT User Manual Rev. 3 Page 11 of 13... -
Page 14: Returns
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box. -
Page 15: Contact Us
Voice: +52 (728) 285-5000 www.chauvet.com.mx Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. DMX-RT User Manual Rev. 3 Page 13 of 13...
