Page 1: User Manual

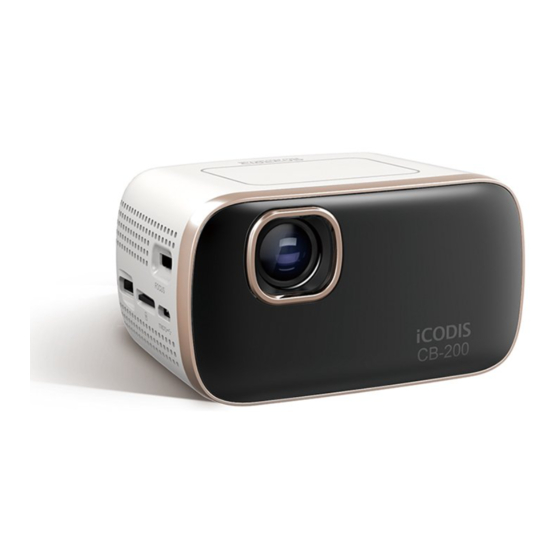

User manual iCODIS CB-200 Please read the safety information carefully before using this product. -
Page 2: Table Of Contents
8.Apple AirPlay - Wireless Screen Mirroring 9.Airplay connect Apple computers 10.Windows Teamviewer-- Wireless Screen Mirroring 11.DLNA application introduction HDMI application introduction Kindly Reminder Software Update 12.Additional Options 13.3D Settings 14.Watching 2D to 3D on internet 15.Important Safety instructions 16.Maintenance 17.CB-200 Summary of common questions 18.SPECIFICATIONS... -
Page 3: Parts And Components
Parts and components Touch pad Speaker Lens USB2 Power On/Off Button Reset Touch pad Speaker Focus Ring DC in Port Micro USB TF Card HDMI Speaker Speaker Headphone Battery Charge Indicator Due to the high temperature of vent area, do not get close to the vent area. Do not touch the lens when using the projector. -
Page 4: Using The Touch Pad
Using the Touch Pad You can operate the projector by touching or draging touch pad left/right, up/down. Basic functions 1.Single tapping 2.Single dragging 3.Two point swipe 4.Two point swipe (Up/Down) (Right/Left) Select, wake up Moving the cursor Drag and up/down Turns screen to projector screen scroll... - Page 5 Charging: About 5 hours Usage Hours: Up to 1.5 hours (Available battery using time up to 1.5 hours when battery mode set to Max.) Only use the official power cord provided by iCODIS. Do not use other power cords. Speaker...
-
Page 6: Starting Up Guide
Battery Charge Indicator Starting up guide As the picture below, Dialog box “WLAN” appears, choose language first, click skip click arrow in the right to next step Set location, Google services, date and time, click right arrow to next step, then enter main page... -
Page 7: Icon Instruction
Icon instruction After switch on, enter the main page above Big icons ( from left ) indicate separately: Video Player, Music player, Explorer, Gallery, File Manager, Settings, Air receiver, Pay Store, Applications. Small icons ( from left ) indicate separately: Screen shot, recently applications ( drag to log off ), e-share DM wireless button, 3D button, Android screen mirror ( Miracast ),... -
Page 8: Connect To Wireless Network
Connect to wireless network Click Settings, turn on WLAN, choose available router, enter correct password, Wi-Fi can be connected... -
Page 9: Dlna -Esharedmc For Android
Wirelessly connected to projector using the same Wi-Fi 1. Download E-share DMC application at http://www.icodis.co.kr/chinese/download.html choose first icon “ icodis E-share DMC APK” download a E-share APP in your mobile phone, and install it in phone. 2. Click Wi-Fi icon at the bottom of desktop, the projector will display two-dimension code (as picture ) 3. - Page 10 6. Select Renderer – Codis eShare, 7. Select file then play 8. Play via projector Media server – Local eShare Media Server...
-
Page 11: Android Miracast - Wireless Screen Mirroring
2. Turn on Miracast function on your smart Android 4.4.2 version and above phone or tablet PC (Name by manufacturer: Samsung-Screen Mirroring, LG-Miracast) Please turned on Wi-Fi before using Miracast function. 3. Choose CB-200 on the list of connectable device The devices need under same Wi-Fi. -
Page 12: Apple Airplay - Wireless Screen Mirroring
You can enjoy contents on another device with you projector via wireless connection. 1.Execute AirReceiver application on your projector. 2.Select Renderer and AirPlay on the AirReceiver menu. AirReceiver(CB-200) (CB-200) (CB-200) 3.Click AirPlay on control center of iPhone or iPad. 4.Select CB-200 and Mirroring on the device list. -
Page 13: Airplay Connect Apple Computers
1. Click “ preferences ” at the lower right corner of windows table 2. Click “ Airplay monitor ”, it displays Air-receiver ( CB-200 ), click ‘connect’ 3. After connected, one more blue “ AirPlay ” icon will be in taskbar of computer. -
Page 14: Windows Teamviewer-- Wireless Screen Mirroring
Windows Teamviewer-- Wireless Screen Mirroring 1. Computer and projector both need to download and install Teamviewer ( Download “PC version” in your computer, Download “Android version” in your projector ) 2. After installing in computer, get ID and password according to hint settings. 3. -
Page 15: Dlna Application Introduction
• Updating over the air The device can be updated to the latest software by the over-the-air service. 1. Download SW update file on website www.icodis.co.kr 2. Execute ‘Update’ Application 3. Check available SW update (click the icon on the center of screen). -
Page 16: Additional Options
Additional Options • Screen Rotation You can use your projector on ceiling mode and rear projection mode. Press settings > Select Display menu > Select horizontal flip or vertical flip • Keystone correction To prevent the screen image from becoming trapezoidal, Keystone adjusts the top and bottom width of the image if the projector is not set up at a right angle to the screen. -
Page 17: D Settings
3D Settings 1. Find the file manager in the main page, go to TF card or U-disk file, click on the 3D video source in it and select player to play. 2. Select 3D player mode according to video format. 3. - Page 18 4. How to change left and right style 3D movies 5. How to enhance the effect...
-
Page 19: Watching 2D To 3D On Internet
2. Click on the 3D settings menu, choose the 3D mode for “2D” to “3D”, and then select the full screen display. Now you can watch 3D movies by wearing DLP link 3D glasses ( as shown below ). Reminder: CB-200 supporting 2D to 3D online video player: YouTube HD video... -
Page 20: Important Safety Instructions
Important Safety instructions Installation . For best performance, please use this projector in dark room . Carefully use this projector, falling or bumping may damage the internal components or lead to display malfunction and blurred images. Power Supply . Cautiously use power line, avoid folded. Power damage may cause electric shock or fire. . -
Page 21: Maintenance
Maintenance Clean your projector to keep it in optimal condition. Cleaning the Lens • If there is any dust or staining on the lens surface, you must clean the lens. Use an air spray or a cleaning cloth to clean the lens. To remove dust or stains, use an air spray or apply a small amount of cleaning agent onto a swab or soft cloth to lightly rub the lens. -
Page 22: Cb-200 Summary Of Common Questions
1. How to change language? 1). You can choose language in the first page when you start to boot up CB-200. 2). You can go to ‘‘Settings’’ in the home page finding ‘‘Language&input’’ to change language. - Page 23 Yes, you can. There is a app ‘‘WPS’’ in our projector, you can use WPS project PPT / WORD / EXCEL by CB-200 or you may go Google play store download ‘‘Microsoft office’’ and install it in CB-200. If you want project microsoft office in computer,...
- Page 24 6). Also you can use ‘‘Miracast’’ which is 4th icon in the bottom of home page, it can connect CB-200 with your Android OS 4.4 device in SAME Wi-Fi. You just click ‘‘Miracast’’ in CB-200 and choose ‘‘Screen Mirroring’’ in your Android device, then they can connect.
- Page 25 Receiver’’ which is in the Apps, click Renderer and Airplay. 3). Open the Airplay in your iPhone control center, choose CB-200 and turn on the mirror image, then they connected. 16. How to connect with computer / laptop / Macbook? Step: 1).
-
Page 26: Specifications
SPECIFICATIONS Application processor Cortex A7 Octa-Core processor Operating system Android 4.4 Kitkat Memory capacity 1GB RAM, 16GB Internal storage Brightness 150 ANSI Lumens (Max) Resolution FWVGA 854 x 480pixels Aspect Ratio 16:9 (Horizontal:Vertical) Projection size 5inch~100inch (Recommendable) Offset 100% Keystone correction ±40˚... - Page 27 Toxic & Harmful substance or Meta element Component name PCBA and component Shell Battery Accessories :Indicate the percentage of Toxic & Harmful substance lower than the requirements specified by the SJ/T11363-2006 standard :Indicates that the toxic and hazardous substances in at least one of the components of a homogeneous material exceeds the limited requirements specified by the SJ/T11363-2006 standard In P.R.
- Page 28 Battery: 5000 mAh (Max 60 Mins) Speaker: built-in 1W speaker Input / output: Mini HDMI 1.4 (C type), USB Host / OTG, SD card, 3.5mm Earjack Screen mirroring: Miracast, AirPlay Etc: Supports 32GB external memory Customer Service: US: dearlayla1027@hotmail.com Ebay US: dearlayla0212@hotmail.com Website: www.icodis.us...
