Technical Specifications
Product Name
Native Resolution
Display Technology
Lamp
Projection Size
HDMI
WiFi
Media player
Support storage Device
File system
Headphone Output
Speaker
Power supply
Batter y
Projection Mode
Power Consumption
Working Temperature
Working Humidity
Dimension(L×W×H)
Weight
New features may be added to the specification chart without notice.
*
LED Mini Projector
854×480
DLP
R,G,B LED
37.8'@1m
Standard HDMI Input
Airply DLNA/Miracast*
Built-in 1080P media Player
TF USB NTFS,FAT16,FAT32
3.5mm stereo headphone
2 * 8Ω/1W
5V 2A
4500mAH Li-ion Batter y
Max 120 minutes
Projection:6W Charging:3W
0℃-35℃
0-85%
149*79*18MM
236g

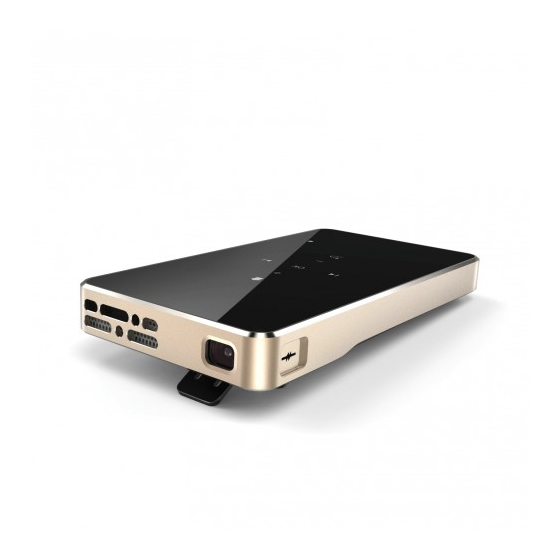

G1 User Manual
Please read this manual carefully before using your new projector.
Store it in a safe and convenient place for access at any time.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICODIS G1
Summary of Contents for ICODIS G1
- Page 1 Airply DLNA/Miracast* WiFi Built-in 1080P media Player Media player Support storage Device File system TF USB NTFS,FAT16,FAT32 3.5mm stereo headphone G1 User Manual Headphone Output 2 * 8Ω/1W Speaker 5V 2A Power supply Batter y 4500mAH Li-ion Batter y Projection Mode...
-
Page 2: Table Of Contents
Content Safety Instructions We would like to thank you for your purchase of the P1LED mini projector! Packing List By reading this manual, you will have a more comprehensive Summary understanding of how to properly use your new mini projector. The P1 is a hand-held device, designed for use with family and Charging friends, we designed the P1 to be the most versatile mini projector... -
Page 3: Safety Instructions
Safety Instructions Packing List To ensure safe use the projector,please carefully follow Carefully unpack the box. Examine the contents to make the user manual to operate. sure it contains all of the items listed below. If you are missing anything, contact the distributor. In order to prevent damage to your projector, do not disassemble, modify, throw or drop the device. -
Page 4: Summary
Summary Summary Summary Touch key Wire Mode (Mirror） WIFI Mode (Mobile phone, ( Mobile phone, Projector Mode PC or tablet PC ) Touch IOS / Android ) Standard Options Options Function Function Function Home Home Home UP / Vol+ UP / Vol+ UP / Vol+ Confirm Confirm... -
Page 5: Charging
Charging Connecting Mobile Devices Connecting Mobile Devices Charging DC 5V The indicator light will shine blue HDMI DC 5V when the projector is charging. When the projector has reached a full charge, the indicator light will automatically shut down. Using 5V -2A adapter for power supply DC 5V HDMI Connection Turn on/off the projector... - Page 6 Use a USB cable to connect your iPhone/Android phone to your projector, mirror your phone or stream multimedia to G1 projector through simple USB connection. Simple, stable and universal. (This feature is optional, please consult the vendor to buy)
-
Page 7: Select "Signal Source" Input
Select “File type” Input Select “Signal Source” Input After selecting a signal source, select one of thee five icons in the middle of the boot screen. Please touch the ] key to choose the file type and then press [ ] to After selecting the USB signal source, the file list will enter. - Page 8 Select “File type” Input Select “File type” Input After selecting the SETUP option, you can select the After selecting the MOVIE option, please touch the language of your choice, user mode, software updates, ] key to select the movie file of your choice, and restore factory defaults.
-
Page 9: Usb/Tf/Play
USB/TF/Play Selecting Wireless Display Mode *Standard version without this function ] button on the projector when a Press the [ video is playing. The quick operation menu will appear, press [ ]to choose the function you need and press [ ] to confirm. -
Page 10: Mirror Screen
Selecting Wireless Display Mode Mirror Screen Mirror Screen The DLNA can mirror the audio and image of your smart device and output it through your projector via a wireless signal. When your smart device is locked, the projector will not stop playing. iPhone Directions ( Please choose the Airplay mode on the right of thee screen. -
Page 11: Dlan Video Push Function
DLAN Video Push Function Mirror screen DLAN Video Push Function Android Directions ( Please select the DLNA mode on the right side of the screen.) (Choose the Miracast Mode on the left of the screen.) The user interface operates in an identical way, Mode Switch Key whether you are using an Android or iOS device. -
Page 12: Supported Media Format
Supported Media Format Supported Media Format Supported Media Format MP3/ WMA/ AAC(M4A) Photo Format JPEG/ BMP/PNG Music Format Resolution& Extension Container Video Codec Bit Rate Profile Frame Rate dat, mpg, Main Profile MPG, MPEG MPEG1,2 mpeg H.264: Main Profile and High Profile 1080p@30fps 20Mbit/sec MPEG2-TS... -
Page 13: Video App Support Dlna
Video App support DLNA Troubleshooting Video App support DLNA Troubleshooting Can not turn on Android phone: QQ (push icon ) Sohu (push icon ◆ The battery of the projector has possibly run out. Recharge Youku (push icon , the signal is not stable) the battery until full, then try to turn it on again. -
Page 14: Troubleshooting
Troubleshooting switch off the projector and provide enough time for it to cool down before restarting. Unstable Playback ◆ Please check if the media format is supported (refer. to Page20). Unable to play or enter the play function. Make sure the TF card, (U disk) is inserted correctly. Pay ◆...
