Adjustment-AM 502
Description
OsciI loscope
Digital Voltmeter
Power Module
Calibration Gen-
erator
Function Generator
Autotransformer
with ac voltmeter
Input RC normalizes
Termination
Attenuator, 10X
(4 required)
Coaxial cable
(2 required)
'Requires TM 500 . Series power module
3-2

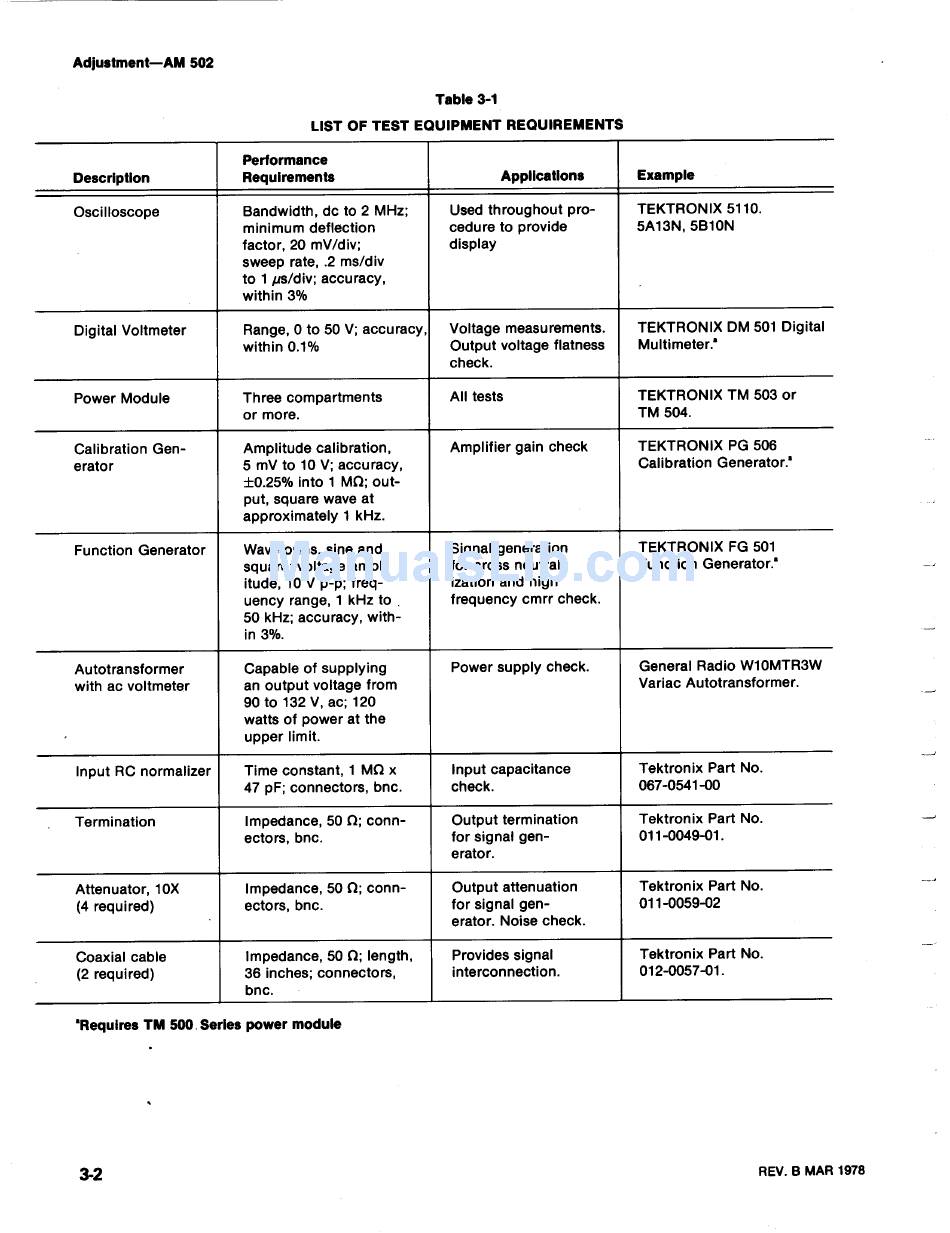

Table 3-1
LIST OF TEST EQUIPMENT REQUIREMENTS
Performance
Requirements
I
Applications
Bandwidth, do to 2 MHz ;
Used throughout pro-
minimum deflection
cedure to provide
factor, 20 mV/div ; display
sweep rate, .2 ms/div
to 1 Ns/div ; accuracy,
within 3%
Range, 0 to 50 V ; accuracy, Voltage measurements .
within 0.1%
I Output voltage flatness
check.
Three compartments
I
All tests
or more.
Amplitude calibration,
Amplifier gain check
5 mV to 10 V ; accuracy,
f0 .25% into 1 Mfl ; out-
put, square wave at
approximately 1 kHz .
Waveforms, sine and
Signal generation
square ; voltage ampl- for cross neutral-
itude, 10 V p-p ; freq-
ization and high
uency range, 1 kHz to .
frequency cmrr check .
50 kHz; accuracy, with-
in 3%.
Capable of supplying
Power supply check .
a n output voltage from
90 to 132 V, ac; 120
watts of power at the
upper limit .
Time constant, 1 Mfg x Input capacitance
47 pF ; connectors, bnc .
I
check.
Impedance, 50 f2 ; conn- I
Output termination
actors, bnc.
for signal gen-
erator .
Impedance, 50 f2 ; conn- I
Output attenuation
actors, bnc .
for signal gen-
erator . Noise check .
Impedance, 50 f2 ; length, I
Provides signal
36 inches ; connectors,
interconnection .
bnc.
Example
TEKTRONIX 5110 .
5A13N,5B10N
TEKTRONIX DM 501 Digital
Multimeter .'
TEKTRONIX TM 503 or
TM 504.
TEKTRONIX PG 506
Calibration Generator.'
TEKTRONIX FG 501
Function Generator .'
General Radio W10MTR3W
Variac Autotransformer .
Tektronix Part No .
067-0541-00
Tektronix Part No .
011-0049-01 .
Tektronix Part No .
011-0059-02
Tektronix Part No .
012-0057-01 .
REV. B MAR 1978
