iNels iMM Client / Server User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

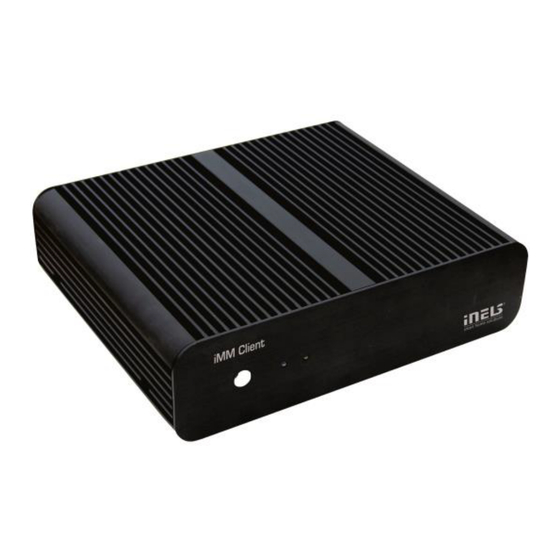

iMM Client / Server
User manual 3.265
2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMM Client / Server and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iNels iMM Client / Server

Summary of Contents for iNels iMM Client / Server

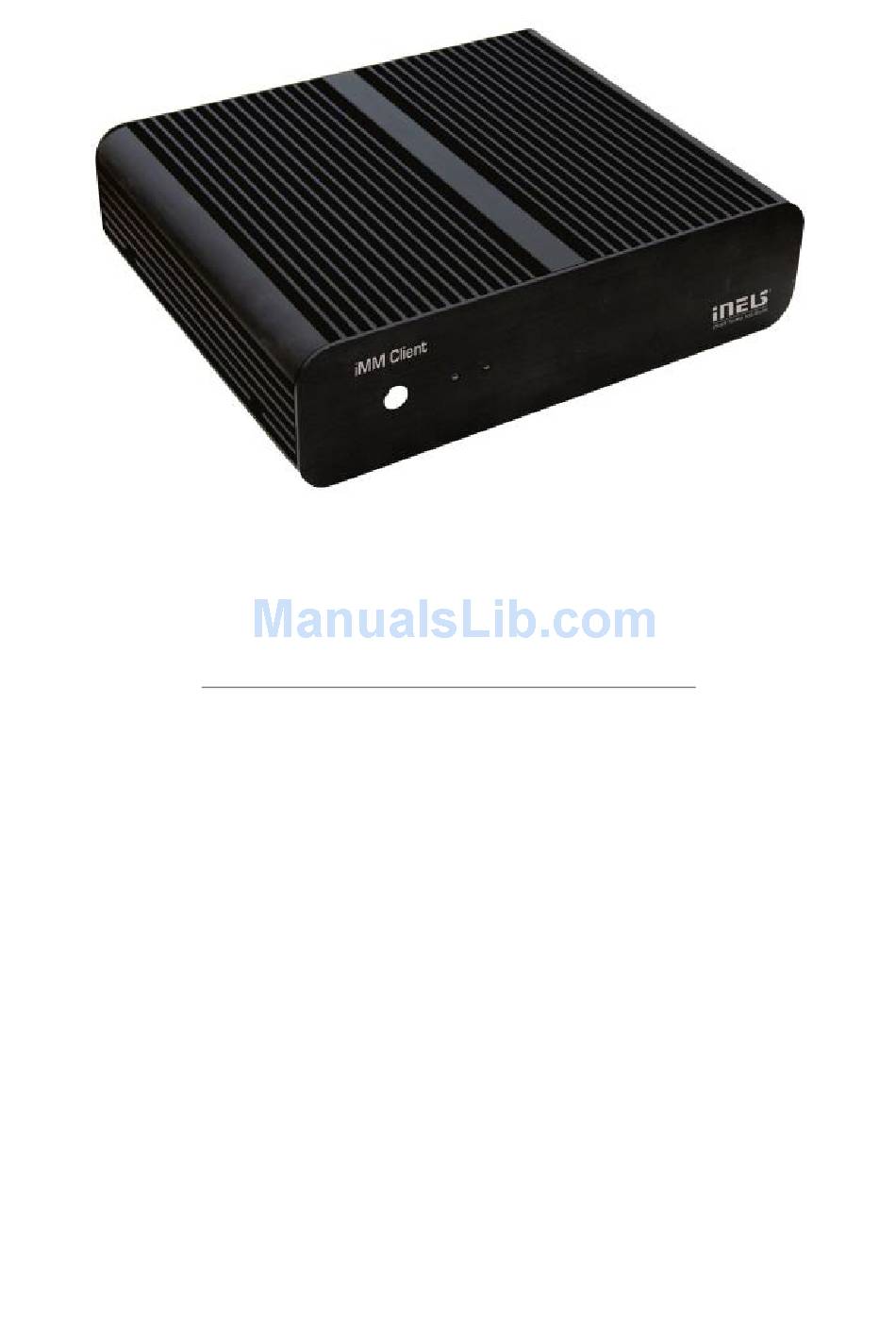

  • Page 1 Client / Server User manual 3.265 2017...

  • Page 2: Table Of Contents

    Table of Contents iMM Server EN ............................4 1.Get started ............................5 1.1. Putting VZ in operation ......................7 1.2. Basic setting ...........................8 2. Network File System (“NFS” hereinafter) configuration ............13 2.1 NFS configuration to VZ iMM Server ................14 2.2 NFS configuration on iMM Client ..................15 2.3 Connection of external hard disk drives .................16 2.4 Sharing external storage –...
  • Page 3 LG Clims ..........................67 CoolMaster ........................68 Air Pohoda ........................70 Atrea ..........................71 Universal 0-10V .......................72 Bookmark Rooms ........................73 New room ........................74 List Rooms ........................75 Edit ..........................76 Rename ........................78 Bookmark Cameras .......................79 New camera ........................80 Select the stream ......................82 No camera defined ......................83 List of cameras ........................84 Bookmark Miele ........................85 Miele ..........................86...

  • Page 4: Imm Server En

    iMM Server EN iMM Server Manual...

  • Page 5: Get Started

    BlueRay or TV program providers in HD quality. see Streamer Gyro control wireless mouse reacting to hand movement; serves to control the menu on the video zone iNELS Designer and Manager – sw environment for iNELS configuration iMMClient video zones iMMControl Center...
  • Page 6 Linux commands are inserted into the terminal to start using the keyboard shortcut. CTRL+ALT+T Important basic Linux commands: ifconfig - finding IP address of station/server, similar to IPCONFIG in Windows mount - command for connection of certain device (CD-ROM, network drive, etc.) umount - command for disconnection of certain device - command is used to format and display the man page for example.

  • Page 7: 1.1. Putting Vz In Operation

    1.1. Putting VZ in operation 1.1. Putting VZ in operation a) Once you unpack VZ, let the device stabilize at room temperature. b) Connect the cabling: • 230V/19V adapter. • LAN (iMM cannot be triggered without the presence of active network connection). •...

  • Page 8: 1.2. Basic Setting

    1.2. Basic setting 1.2. Basic setting Setting in this chapter need not be carried out; it serves for potential problem solution and general assistan e in the Linux system orientation. Majority of these settings is done already in the production but one should get familiarized with them and go back to them if a problem occurs. - Terminate Application by holding down the left mouse button (for longer than 5 seconds) on icon - You are on the Linux working area now.
  • Page 9 h) If the terminal requests installation of additional packages, confirm the “Y” question and press Enter. i) During the server part installation unpack the package on the desktop, same as with the client version, and install it in the same manner. (file: “install 12.04.sh) j) When the installation is completed, terminal closes automatically, and then restarts given VZ.
  • Page 10 f) A table activates where the "Add" option activates the line for address definition. • enter IP address of relevant home network range in the “Address” column • in the “network mask” column enter the mask network • type the address of your router in the “Gate” column, and confirm by Enter g) Type again your router's address in the “DNS servers”...
  • Page 11 In the “Fonts“ bookmark set the fonts as follows: • Default font: Myriad Pro 16 • Document font: Myriad Pro 16 • Monospace fonf: Myriad Pro 16 • Window title font: Myriad Pro 16 • “Close” after completion. 1.2.7 Update administration The system searches own software update resources by means on the internet.

  • Page 13: Network File System ("Nfs" Hereinafter) Configuration

    2. Network File System (“NFS” hereinafter) configuration 2. Network File System configuration NFS has to be set in case you use multiple VZ. If you use single VZ as iMM server, NFS need not be configured.

  • Page 14: 2.1 Nfs Configuration To Vz Imm Server

    2.1 NFS configuration to VZ iMM Server 2.1 NFS configuration to VZ iMM Server The following setting must take place physically on iMM Server. a) Press the ”F9“ key to display the system bar, and open the web browser (default Firefox). b) Type address http://localhost:8080 to open iMM CC.

  • Page 15: 2.1 Nfs Configuration On Imm Client

    2.2 NFS configuration on iMM Client 2.1 NFS configuration on iMM Client You need to do this part physically, separately for each iMM Client. a) Press the ”F9“ key to display the system bar, and open the Firefox web browser. b) Type the address http://localhost:8090 to open iMM CC.

  • Page 16: 2.3 Connection Of External Hard Disk Drives

    2.3 Connection of external hard disk drives 2.3 Connection of external hard disk drives Server Setiings fstab In terminal: “sudo gedit /etc/fstab “ Add a new line to the end: “UUID=F474B7AA74B76DCC /media/My\040Passport ntfs-3g defaults,nosuid,nodev,nobootwait,locale=cs_CZ.UTF-8 0 0“ Hard disk drive identifier is red;...

  • Page 17: 2.4 Sharing External Storage - External Hdd

    2.4 Sharing external storage – external HDD 2.4 Sharing external storage – external HDD Server settings: a) Set fstab in the same manner like fstab settings of Server 2.3. b) Set Export in the same manner like the Server Export settings. c) Restart server.
  • Page 18 Client a) Set fstab in the same manner like fstab Client 2.3. settings. b) Then create the below symbolic links in the terminal: ln -s /media/iMM-HDD/iMM/Music/ Music ln -s /media/iMM-HDD/iMM/Video/ Video ln -s /media/iMM-HDD/iMM/Pictures/ Pictures ln -s /media/iMM-HDD/iMM/Television/ Television ln -s /media/iMM-HDD/iMM/Cameras/ Cameras Note: For visibility of HDD in folders type the following command in the terminal: for path in Music Video Pictures;...

  • Page 19: 2.5 Setting Shared Storage Nas Synology

    2.5 Setting shared storage NAS Synology 2.5 Setting shared storage NAS Synology Connect to NAS web interface by typing the IP address of the NAS device in the web browser. Enable NFS service: Open – Control panel > Win/Mac/NFS > NFS service > Win/Mac/NFS > Enable NFS and click on use Enable SSH service: Open –...
  • Page 20 Open the terminal and create symbolic links: ln -s /mnt/nas/Music/ Music ln -s /mnt/nas/Video/ Video ln -s /mnt/nas/Pictures/ Pictures ln -s /mnt/nas/Television/ Television ln -s /mnt/nas/Cameras/ Cameras Then create a symbolic line for sharing by putting the following command in the terminal: for path in Music Video Pictures do [ ! -L ~/"$path/#EXTERNAL"...

  • Page 21: 3.0 Settings Imm Control Center Imm Server

    3.0 Settings iMM Control Center iMM Server 3.0 Configuration in iMM Control Center - iMM Server IMM Control Center (the "iMM CC" hereinafter ) is web interface serving for settings Connection server. iMM CC is activated upon entering the address http://Iocalhost:8080 (physically at iMM client) in your internet browser.

  • Page 22: Bookmark Server

    Bookmark Server Bookmark Server In bookmark Server you can control virtual servers (services), which are necessary for comunication third party. For software diagnostic is possible each virtual server check status, stop or enforce run service.

  • Page 23: Imm Servers Management

    iMM servers management iMM servers management In the section iMM servers management we can control the virtual servers running on the server via web interface.

  • Page 24: Bookmark Configuration

    Bookmark Configuration Bookmark Configuration In bookmark Configuration is main settings impotrant for propertly function device iMM server. Machine ID and Licence key are preset in factory default.

  • Page 25: Settings

    Settings Settings In the section Settings is main configuration for iMM server as IP address central unit, iMM server and Logitech media serveru (LMS). Machine ID and Licence key is preset at the factory. IP address format: If central unit is behind the NAT or in the other network and routers is possible use port forwarding. You can set port forwarded (on router) to comunication port central unit (CU2 port 61682 ,CU3 port 9999).

  • Page 26: Upload Or Edit Export.pub

    In the section Upload or edit export.pub you can upload export.pub file from softare IDM to iMM Server and manual edit elements in web browser. Functon for upload export.pub is only for central unit iNELS 2 In the central unit iNELS3 will download export automatically when you press Load iNELS3 export button.

  • Page 27: Bookmark System

    Bookmark System Bookmark System In bookmark System you can configure additional, network settings which will be stored on static IP address and disable option in Network manager in ubuntu. We recommend setting a static IP address for iMM. Other buttons offers: Recovery network manager - enable Network manager in Ubuntu Shutdown - turn off iMM server Restart server...

  • Page 28: Network Settings

    Network settings Network settings In the section Network settings you can set IP address manualy as static or dynamically allocate by DHCP server. Example setup static IP addres: Set static IP address deactivate LAN settings in Network manager function you can restore in menu Recovary network manager.

  • Page 29: Recover Network Manager

    Recover network manager Recover network manager Button Recover is use to restore lan settings Network manager, which was deactivated by setting Static IP address in the Network Settings.

  • Page 30: Shutdown Server

    Shutdown server Shutdown server Press down Shutdown button to power off iMM server from a web interface.

  • Page 31: Restart Server

    Restart server Restart server Press down the Reset button to restart iMM server from a Web interface.

  • Page 32: Restart Server Regulary

    Restart server regulary Restart server regulary In the section Restart server regulary we can set up scheduled restart the server at a specified time in a week. Example settings restart server in monday six minut after the midnight.

  • Page 33: Nfs Server Configuration

    NFS Server configuration NFS Server configuration Press down Update button to refresh NFS sharing settings in the file /etc/fstab. from a web interface.

  • Page 34: Bookmark Ha-Bus

    In bookmark HA-BUS we can used for interconnection iNELS3 BUS and decentralized control system KNX/EIB, which allows control from iHC app or floorplan. Second function to add more iNELS3 central unit. Requirements for connect with KNX/EIB: Central unit iNELS or more Router KNX Export group address from program ETS3 - 5...
  • Page 35 Example add device KNX to rooms in bookmark Rooms: This manual does not describe the setting elements KNX only link two systems among themselves.

  • Page 36: Inels3

    iNELS3 iNELS3 First, enter the IP address of the central unit iNELS3 and Add. After saving the settings will download export from central unit and elements will be added prefix "inels3" last letter (A-H) identify rank. The prefix consists of two parts first one is "inels3" and second "A" (last char A-H) distinguishes, letter central unit between themselves.

  • Page 37: Knx

    Enter the IP address of the router KNX and press Save button. After saving the configuration file we find export group addresses from the program ETS3 or higher and upload KNX exports. Check Configurations in the bookmark that contains a list of export elements KNX, if so go to bookmarks rooms and put in a selected room features KNX.

  • Page 38: Knx Add Actor To Rooms

    KNX add actor to rooms Add KNX element to the Rooms KNX elements put into a room in the same way as the elements iNELS, KNX recognise by prefixing "knx_". Example add KNX device to rooms:...

  • Page 39: Knx Export Group Address

    KNX export group address KNX export group address Export group addresses to format: 1/1 (Name/Add.) separate semicolon (;) the ETS 3 or higher. Example export group addresses from ETS: Before inserting the export it need to be more adapted behind the semicolon refill data type according element values (True, False, 0-255, 0-100) see.
  • Page 40 1 bit bool True | False 8 bit num 0-255 5.001 8 bit num 0-100 8 bit num -128 +127 3 byte num RGB [0,0,0] - [255,255,255]...

  • Page 41: Bookmark Rf Configuration

    Communication between wireless RF devices and iMM is required smart box eLAN-RF. RF devices add to FP the same way as iNELS elements. Just need to check the box below the list of RF devices. To configure the RF devices: a) The list of supported INELS RF devices b) For add wireless RF devices to floorplan check the box "RF"...
  • Page 42 Ovládání RF prvků povolte v nastavení aplikace iHC-MA, iHC-TA.

  • Page 43: Settings

    Settings Settings For control RF devices in menu Settings insert IP address device eLAN-RF, which must already be configured from the web interface or applications IHC-MARF see. manual eLAN-RF. Example settings:...

  • Page 44: Bookmark Zones

    Bookmark Zones Bookmark Zones Bookmark Zones is used to configure the zones for iMM server. In this menu adds the name and IP address Videozone for client GUI all switches set to "no" . New zone In the menu New zone confugure zones for iMM server (Videozone, Audiozone, Giom, a Virtual zone) Options selected zones: vodeozone Videozone: for iMM clients create as zone if all switch set to "no"...
  • Page 45 View already stored zone:...

  • Page 46: New Zone

    New zone New zone In the section New zone confugure zones for iMM server (Videozone, Audiozone, Giom, a Virtual zone) vodeozone Videozone: for iMM clients create as zone if all switch set to "no" squeezebox Audiozone: Audiozone-R, Squeezeboxs (Logitech) and Laras giom Meteostation: Giom 3000 virtual zone...

  • Page 47: No Zone Defined

    No zone defined No zone defined You do not have any saved zone to create a zone, go to create New zone...

  • Page 48: Defined Zones

    Defined zones Defined zone In the section Defined zone are displays saved zones. View already stored zone:...

  • Page 49: Defined Virtual Zones

    Defined virtual zones Defined virtual zones In the section Defined virtual zones are show saved zones which can be edit Configure button.

  • Page 50: Configure

    Configure Configure Configuration button to edit the selected virtual zone where we can continue to set the device ID in web interface eLAN-IR or app iHC-MAIR, iHC-MIIR. Example:...
  • Page 51 Example: Device ID number set equipment is located in web interface eLAN-IR in bookmark Devices Control device for Virtualzone must be stored in Elan IR. Device you can setup via app iHC-MAIR, iHC-MIIR.

  • Page 52: Bookmark Houses

    Bookmark Houses Bookmark Houses Bookmark Houses is used to configures the scenes when entering or leaving the house. In app iHC-MA is function call "Monitoring arriving home", which recognizes the different technologies that the user is coming to your home and starts the scene enterHouse more datail obout this function in manual app iHC-MA. Example create a scene enterHouse: Saved relays with state in the scene enterHouse: For proper function must be enabled on your mobile GPS, and Google Location, mobile data and active...

  • Page 53: Scene

    Scene Scene In the section Scene configure scene for entering or leaving the house. In app iHC-MA is function call "Monitoring arriving home", which recognizes the different technologies that the user is coming to your home and starts the scene enterHouse more datail obout this function in manual app iHC-MA. For proper function must be enabled on your mobile GPS, and Google Location, mobile data and active connection to iMM server.

  • Page 54: Edit Enterhouse Or Exithouse

    Edit enterHouse or exitHouse Edit enterHouse or exitHouse Edit scene enterHouse or Exit House... Example add elemets to scene enterHouse: Example add elemets to scene exitHouse:...

  • Page 55: Bookmark Security Scan

    Bookmark Security Scan Security Scan Security Scan is a security feature that checks the status of Miele appliances if you are running is displayed in the table Security scan report for all video zones iMM. Security scan can be set to monitor the status of selected elements in the house.

  • Page 56: Trigger Ralays

    Trigger ralays Trigger ralays In the section Trigger relays is main configuration for security relay for notify about preset states devices and Miele appliances.

  • Page 57: Notify Me If Device Obtains Folowing State

    Notify me if device obtains folowing state Notify me if device obtains folowing state In the section Notify me if device obtains folowing state you can set condition monitoring state relay. Example Security Scan:...

  • Page 58: Bookmark Eventscript

    Bookmark EventScript EventScript In bookmark EventScript creted events based on which the preset start script. The event is performed if the element reaches the set value of the event. You can use different kinds of elements relay, DAC. etc .. EventScript use ASCII protocol, whitch must be turn on in IDM program to free port and in bookmark Configuration in iMM CC insert ASCII port for comunication.

  • Page 59: Trigger Rules

    Trigger Rules Trigger Rules In the section Tringer Rules you can create event based on which the run script. Example created event : Depending on the setting ASCI protocol set value in hex or DEC example. 50 in (HEX) is 80 (DEC) EventScript run with all device modes (HEX , HEX with prefix and DECIMAL)

  • Page 60: Bookmark Multirooms

    Bookmark Multirooms Bookmark Multirooms Bookmark Multiroom allows you to set the synchronized playback to several audio zone. Mutiroom create inserting predefined zone's to multiroom. Supported are: Audiozone-R, Logitech Squeezebox, a videozone iMM. Lara do not yet support multiroom...

  • Page 61: New Multiroom

    New multiroom New multiroom In the section New multiroom created rooms which you can assign multiple audiozón for synchronized playback. Supported are: Audiozone-R, Logitech Squeezebox, a video zone iMM Client. Lara do not yet support multiroom...

  • Page 62: Defined Multirooms

    Defined multirooms Defined multirooms In the section Defined multiroom you can modify and delete created multirooms.

  • Page 63: Add To Multiroom

    Add to Multiroom Add to Multiroom When editing room to display audio zones in selected room key Add to Multiroom we can add the selected zone into the Multi zone. Example edit Multi zone:...

  • Page 64: No Zone Defined

    No zone defined No zone defined You do not have any saved zone (Multiroom) to create a zone, go to menu create New multirooms...

  • Page 65: Bookmark A/C

    Bookmark A/C Bookmark A/C Bookmark A/C is used to define the air-conditioning or heat recovery by third parties and their control through the application iHC. Supported are: LG Clims CoolMaster, CoolMasterNet Air Pohoda Atrea Universal 0-10V LG Clims over the modul PI-485 over Advantech Adam 4571 CoolMaster series 1000D, 2000S, 3000T, 4000M, 6000L, 7000F, 8000HM, 9000M, CoolMasterNet over Advantech Adam 4571...
  • Page 66 CoolMasterNet Daikin Mitsubishi Electric (ME) Fujitsu (FJ) Mitsubishi Heavy (MH) Gree (GR) Panasonic (PN) Hitachi (HT) Samsung (SM) Intensity (MD) Sanyo (SA) Kentatsu (KT) Toshiba (TO) (LG) Trane (TR) Midea (MD) Compatibility: indoor, outdoor unit link Other: Atrea Duplex 180 EC4 P (0-10), Duplex 180 EC4 P (0-100) AiRPohoda by Adam 4571 Universal 0-10V by DAC 0-10V...

  • Page 67: Lg Clims

    LG Clims LG Clims In the section LG Clims is used to define air conditiong LG corporation. Supported are units with communications board PI485. LG air conditioning must be installed via RS485 - LAN, for example through device Advantech Adam 4571 Example saved LG unit:...

  • Page 68: Coolmaster

    CoolMaster CoolMaster Is used to define air conditiong by universal control unit Coolmaster and control through the application iHC. Firs step: First, set the control unit Coolmaster according to the manufacturer's manual. (usually via DIP switches inside the unit) Setup converter LAN-serial485 (Recommended converter: Adam 4571) according to Coolmaster manual and connectconverter with control unit Coolmaster.
  • Page 69 Example stored Coomaster unit : For older Coolmasters version is necessary to set convertor to appropriate port. Coolmaster type: 1000D, 2000S, 3000T, 4000M, 6000L, 7000F, 8000I(HM), 9000M Convertor: Adam 4571 or Gnome 485 Port: 10001 CoolMasterNet (default setup) Port: 10102 Perform the function check via utility ncat command format: ncat IPADDRESS PORT Example ncat in terminal:...

  • Page 70: Air Pohoda

    Air Pohoda Air Pohoda Is used to define Air recovery call Air pohoda and control through app iHC. AirPohoda air recovery must be connected via RS485 - LAN, for example through device Advantech Adam 4571. Example saved Air recovery:...

  • Page 71: Atrea

    Atrea Atrea Is used to define Air recovery call Atrea and control through app iHC or FP. Atrea Air recovery must be installed via RS485 - LAN, for example through device Advantech Adam 4571. Example save Air recovery:...

  • Page 72: Universal 0-10V

    Universal 0-10V Universal 0-10V Is used to define universal air conditiong using DAC 0-10V and control through app iHC. Example save air condition:...

  • Page 73: Bookmark Rooms

    Bookmark Rooms Bookmark Rooms Bookmark Rooms is used to configuration souboru rooms.cfg, for loading applications iHC.. More information in the manual iHC. Rooms are actually "virtual rooms" (groups), which have the option to group the icons and zones for one or more screens. Name of room allows the use only characters A-Z, a-z, 0-9, -_.

  • Page 74: New Room

    New room New room Used to define rooms for applications iHC. Example imposed rooms: Pro název místnosti můžeme použít pouze znaky A-Z, a-z, 0-9, -_,.

  • Page 75: List Rooms

    List Rooms List of rooms Listing stored rooms on the server for applications iHC.

  • Page 76: Edit

    Edit Devices of rooms In menu Devices of room is used for editing rooms for application iHC. Example add device to room House:...
  • Page 77 Read only is a feature that change icon fuction "no" control device or "yes"icon can't control only information obout device state. Example create scene: For scene control can be programmed to use a script that can execute various functions defined in it. It is necessary to keep an absolute path starting with "/"...

  • Page 78: Rename

    Rename Rename In the section Rename you can change name of room for app iHC. Example rename "Room" to na Living room:...

  • Page 79: Bookmark Cameras

    If you do not fill HTTP or RTSP ports remain in default, HTTP port 80, RTSP port 554 New camera Supported cameras are: iNELS cam AXIS protokolu VAPIX2 od verze firmwaru kamery 4.0.X.X a VAPIX3 od firmwaru 5.0.X.X Cams with Onvif protocol profile S and Onvif certification...

  • Page 80: New Camera

    New camera New camera In the section New camera is used for define IP cameras. Example integration cam Axis supported Onvif: Connect the camera according to camera manual and create a user for protocol ONVIF might be different according to manufacturer.Setup a profile S video stream: for applications iHC to MJPEG, jpeg, rtsp and a second stream rtsp for iMM client.If camera supported video stream only over rtsp:// protocol set-up codec to MPEG4 both port HTTP port and iHC to 554.
  • Page 81 List saved cameras:...

  • Page 82: Select The Stream

    Select the stream Select the stream In the section Select the stream you can choose specific camera streams assign to mobile app iHC. Example:...

  • Page 83: No Camera Defined

    No camera defined No camera defined In this section will be displayed set cameras iMM server.

  • Page 84: List Of Cameras

    List of cameras List of cameras Menu List of cameras show saved cameras iMM server and options for remove selected camera.

  • Page 85: Bookmark Miele

    Bookmark Miele Bookmark Miele In bookmark Miele set IP adresu device Miele gateway, that serves remote control of appliances over powerline, or ZigBee protocol. Supported are: XGW 2000, XGW 3000 (Firmware 1.1,1.2) Set IP address MieleGateWay is stored in the file /etc/imm/miele...

  • Page 86: Miele

    Miele Miele In the section Miele set IP adresu device Miele gateway, that serves remote control of appliances over powerline, or ZigBee protocol. Supported are: XGW 2000, XGW 3000 (Firmware 1.1, 1.2) Set IP address MieleGateWay is stored in the file. /etc/imm/miele Relay for restart GW is used for power off /on if gateway lost network connection and sended notification on user email.

  • Page 87: Bookmark Dominus

    Bookmark Dominus Bookmark Dominus Bookmark Dominus we can setup acces details for ESS Milenium of which can be read states via the protocol Domiline subsystem and numbers and reaction on changes through using system bits in electrical installations iNELS.

  • Page 88: Dominus

    Dominus Dominus In the section Dominus we can setup access details to ESS Millenium IP address and communication port. Motion sensor function can simulate the input resistor 3,9K Connect to ESS Milenium software SetWterm Check jumper set to position COM0 RS 232 or USB Turn on remote control (instalation) on control keyboard Dominus MP4 Procedure: - open temper turn off and turn on ESS unit or hardware reset button on motherboard...
  • Page 89 Y= 1089/128 =8 integral Z= the remainder after division ie. 1089 mod 128 = 65 (switch windows calculator in scientific mode and use function mod)

  • Page 90: Sensors

    Sensors Sensors In the section deffined address motion sensors Line Module, Input and pair to the system bit CU3. The sensors are read out dynamically without following the opening of the partition and write their state to a defined system bit. Disturbed sensors - system bit = 1 Disturbed in alarm...
  • Page 91 Example: Disturbed in alarm with the program SetTermW For detecting the movement of the sensor without alarms, set the input type to Unused.
  • Page 92 Motion sensor function can simulate the input resistor 3,9K...

  • Page 93: Subsystems

    Subsystems Subsystems In section Subsystems setup numbers subsystems for pairing with systemic bit in CU3. Subsystem means a secure area with sensors that can be locked or unlocked state. Open - system bit = 1 Close - system bit = 0 Example of inserting subsystem:...

  • Page 94: Bookmark Intercoms

    Bookmark Intercoms Bookmark Intercoms Bookmark Intercoms is used for define 2N settings and VOIP accounts for applications iHC. In the section 2N settings set access (username, password) and lock code for open door (2N IP intercoms). Setting the following Username and Password access data on the web interface 2N and Lock code set value to relay 2N intercom.
  • Page 95 Update asterisk settings Butoon Apply settings activated VOIP newly created accounts. Intercom accounts In the menu Intercom accounts are shown VOIP account for Connection server. Example of an embedded account intercom 2N: Intercom from the company 2N are inserted so that the Contact name contained the word "intercom" for example: intercom2, Intercom_Entry etc.

  • Page 96: 2N Settings

    2N settings 2N settings In the section 2N settings set access (username, password) and lock code for open door 2N IP intercoms. Setting Username and Password are access datail on the web interface 2N and Lock code set value for switch to relay 2N intercom.

  • Page 97: New Intercom Account

    New intercom account New intercom account In the section New intercom account creating VOIP accounts on server side for applications iHC. Stream for cam 2N add in format rtsp://IPADDRESS For view in application iHC must be stream format mjpeg...

  • Page 98: Update Asterisk Settings

    Update asterisk settings Update asterisk settings Button Apply settings activate the newly created accounts VOIP and restart asterisk PBX .

  • Page 99: Intercom Accounts

    Intercom accounts Intercom accounts In the section Intercom accounts are shown VOIP account for iMM server. Example of an embedded account intercom 2N: Intercom from the company 2N are inserted so that the Contact name contained the word "intercom" for example: intercom2, Intercom_Entry etc. capitalization does not matter. According to the phrase "intercom"...

  • Page 100: Bookmark Energy

    Impulses are further processed in an optional input unit of system iNELS (IM2-140M, IM2-20/40/80B) in form of a counter. This value is by means of export.pub transferred to Connection Server where variable is in iMMCC on bookmark Energy assigned to Watter/Gas/Electrical.
  • Page 101 Creation of counter in iDM:...
  • Page 102 Creation of action “Counter incrementing":...
  • Page 103 Action assignment to binary input where output from measuring instrument is connected. Assign counter value in iMM Control Center...
  • Page 104 Example: 1 kWh = 100,- Kč = 100 pulzů Base Unit – kWh Impulses – 100 per 1 kWh Price – 1 per 1 impulse Create counter in sowftware IDM3 see. Create counter IDM3...

  • Page 105: Energy Management

    Energy management Energy management In the section Energy management select binary inputs for WATER, GAS, ELECTRICITY and adding them to unit, impulse, currency. Example Energy management:...
  • Page 106 Create counter see. bookmark Energy...

  • Page 107: Create Counter Idm3

    Create counter IDM3 Create counter IDM3 Create counter in software IDM3 In bookmark Managers, select the System Manager and go to the tab Counters where we create a counter name.
  • Page 108 Creating functions for counter In the Functions tab, select the Function Manager and create a function called Energy Increment Move the switch and central units to the desktop and double click on switch icon edit and select IN Digital input M3-80B.
  • Page 109 In the tab, Function select Wire Manager, select the input (IN) Energy through button the Edit function to adjust to Action: Short down User function: Energy Increment. Add the created counter to iMMCC Energy management...

  • Page 110: Bookmark Ir

    Bookmark IR Bookmark IR Serves for settings the eLAN-IR converter.The eLAN-IR converter enables control of devices of devices of third parties (that cannot be controled) by means of IR codes that the convertor learns from the original remote control. Control from iMM can then be used in two different ways (before API 4): By means of virtual control in web browser (that you optionally predefined).
  • Page 111 In client part iMM in bookmark Zones http://localhost:8090/zone in the section Control specify to IR type together with the set ID Equipment eLAN-IR. API version 4 you can check in your web browser http://IPADDRESSeLAN-IR/api...

  • Page 112: Ir Settings

    IR settings IR settings; In the section IR settings set IP address device eLAN-IR according versions API. API version: Verze firmwaru Before 4 1.6.406 and lower After 4 1.6.508 and higher The client part iMM tab Zones http://localhost:8090/zone in the Control to specify device type of IR codes together with ID set device eLAN-IR...
  • Page 113 API version 4 you can check in web browser http://IPADDRESS_eLAN-IR/api...

  • Page 114: Elan Ir Before 4

    Elan IR before 4 Elan Settings for API before 4: In the section Elan set IP address device eLAN-IR and port 61682 in default setup. Setting control IR commands for: turn off, turn on, volume up, volume down put into bookmark zone on client side.

  • Page 115: Panel

    Panel Panel In the section Panel you can setup background color and window resolution in bookmark panel. Setting control IR commands for: turn off, turn on, volume up, volume down put into bookmark zone on client side.

  • Page 116: Bookmark Giom

    Bookmark Giom In the bookmark Giom creating scenes based on data from weather stations Giom and their reactions elektoinstalací iNELS. In the bookmark Giom creating a scene according to data from the weather station call Giom Scene will be activated if selected value is higher or lower then set (IPADDRESS:8080/giom) and assigned to units.
  • Page 117 switch from "no" to "yes". To integrate Meteo Station you need to change its IP address to an address of the given range.Settings can be performed via web interface. Meteo station IP address can be found out using the "Mlocator" software whitch can be downloaded in the manafacture's website: link...

  • Page 118: Giom Scene

    Giom scene Giom scene In the bookmark Giom creating a scene according to data from the weather station call Giom Scene will be activated if selected value is higher or lower then set (IPADDRESS:8080/giom) and assigned to units. Edit scene: For proper function you must first set up Giom such a zone.

  • Page 119: Edit

    Edit Edit Edit is used to create or edit scenes. In the selected scene type is possible add or remove relay units. Edit selected scene: Example...

  • Page 120: Bookmark Manual

    Bookmark Manual Download manual In bookmark Manual is available for download the latest version of the manual in PDF format.

  • Page 121: Manual

    Manual Download manual In the section Download manual click the button Download you can download the current version manual in PDF format.

  • Page 122: Bookmark Default Settings

    Bookmark Default Settings Bookmark Default settings Bookmark Defualt settings is used for reset settings to default state. The first option offers is Reset all clients settings to default to reset iMM server to factory default ie. remove all users settings. The second option is Reset all devices dependencies to default, whitch only remove users settings related dependencies to other iMM server functions.

  • Page 123: Reset All Server Settings To Default

    Reset all server settings to default Reset all server settings to default Reset all server settings to defalt is used to reset server iMM to factory default i.e.that all user settings will be erased.

  • Page 124: Reset All Devices Dependencies To Default

    Reset all devices dependencies to default Reset all devices dependencies to default In the section Reset all devices dependencies to default, remove settings which are depending on other functions iMM server for example relay,air conditiong etc.

  • Page 125: Bookmark Audit

    Bookmark Audit Bookmark Audit Bookmark Audit is used to show a download LOG option events for diagnostic purposes developer.

  • Page 126: Logged Events

    Logged events Logged events In the section Logged events is used to show a download LOG option events for diagnostic purposes developer.

  • Page 127: Others

    Others <TODO>: Insert description text here... And don't forget to add keyword for this topic...

  • Page 128: Heating

    Heating Heating With the controls on the right side, FP heating is adapted to control the heating. There you can change setting of individual preset heating modes (Minimum, Low, Normal, Comfort, Attenuation, Auto). Switching to AUTO mode on the floorplan is allow for CU2. a) If you wish to control individual heating modes, you have to enable export of control and setting of heating program in IDM software.
  • Page 129 corresponds with the selected mode. Modes can be alternated by buttons on the right FP side. Komfort Normál Minimum Útlum (LO) Configuration in software IDM3 Heating circuit configuration is done in the Managers tab and select the System Manager and go to the HeatCoolareas.

  • Page 130: Control 4

    The first add iNELS3 Master Driver and after that load other iNELS3 drivers Insertion IP addresses to the Master Driver Procedure: Go to the Connections menu where select iNELS3 Master Driver and continue on the top bookmark Network, after that open iNELS 3 Master Driver and enter the IP address.
  • Page 131 Example of inserting the dimmer to ovaldače iNELS3_Dimmer First, select the unit from the list in bookmark Configuration in IMMCC , then DA3-22M_OUT1_000021 Y B 17039361 REAL PUB_INOUT put in the project iNELS3 Dimmer where change device name  and put the address of the unit Device Address: 17039361. Debug mode, it is an optional parameter, if you set the Print and log can verify the tab lua changeing states.
  • Page 132  Add to project  iNELS3_Thermostat  where change device name  and continue in bookmark Properties: First, select the unit address HEATCOOLAREA  stateTH from the list in bookmark Configuration in IMMCC NameHEATCOOLAREA_StateTH 2181234690 Y B REAL PUB_INOUT after that find address Cooling relay and Heating relay. If we only have a separate cooling circuit Or or heating.
