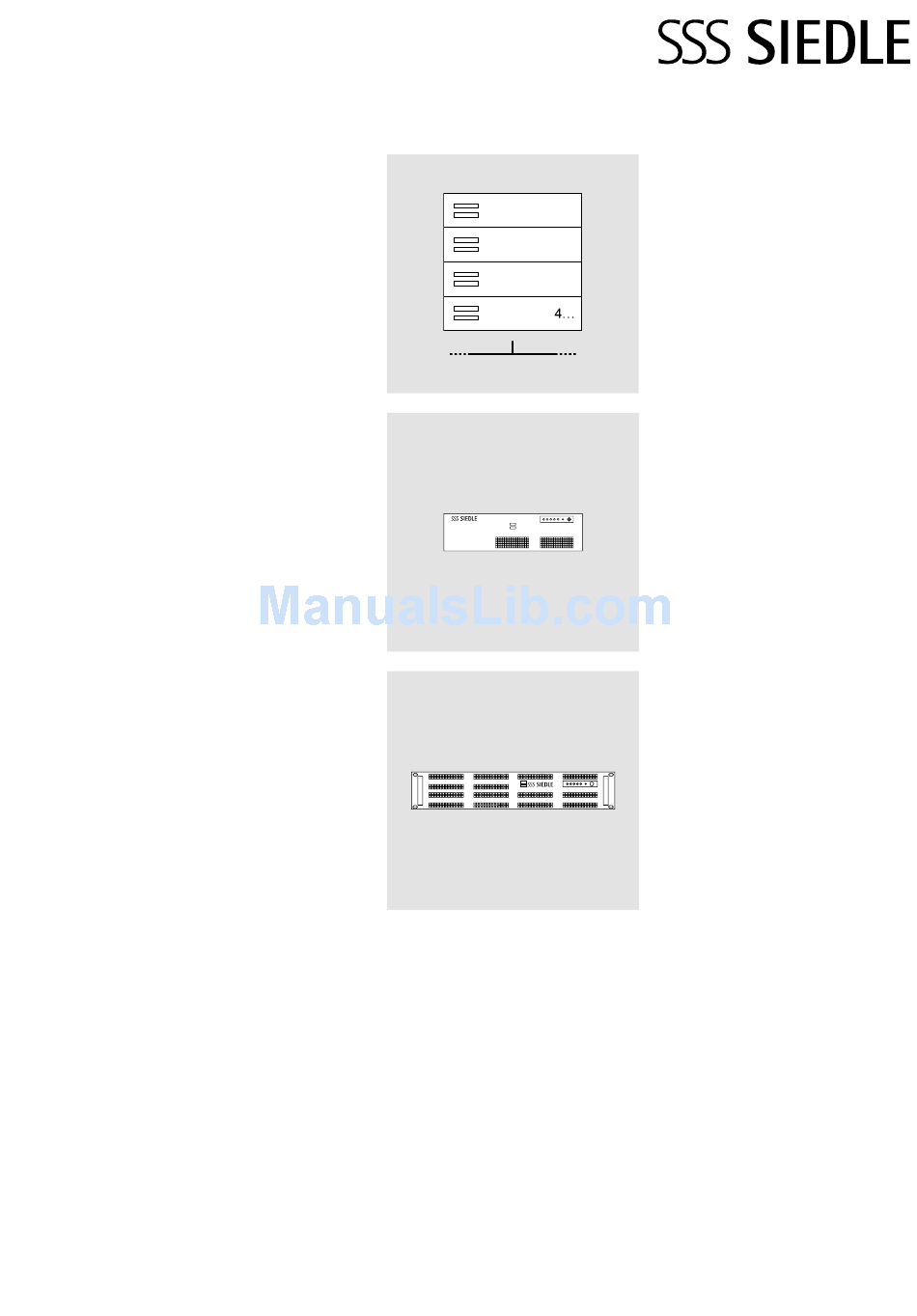

  • Page 1 Planning and System Manual Access Professional Issue 2017...

  • Page 2: Table Of Contents

    Distribution components – Overview Door controller Planning areas Switching outputs/inputs Distribution components – Supply limits ATLC/NG 670-… Active/passive system expansion 8.1 Siedle Vario Permitted conductor material Distribution components – 8.2 Access custom-fit door Network LAN loudspeaker Line rectifiers Cabling structure/areas Distribution components –...
  • Page 3 This document serves as a guide tomer advice/Siedle centres for the planning and technical After-sales service implementation of the Siedle Access system. It is designed to provide an overview of the key points that need to be observed. This document supplements and is supplemented by the Access server commissioning instructions.

  • Page 4: Safety Remarks

    1 Safety remarks Electrical distribution boards and Electrical voltage Electrostatic charging IT cabinet systems Mounting, installation and servicing As a result of electrostatic charging, Please make sufficient provisions in work on electrical devices may only direct contact with the circuit board the electrical distribution boards/IT be performed by a suitably qualified can result in destruction of the...
  • Page 5 Protect your network! Protect your property! Photographs of individuals taken Only use up-to-date components The Siedle App can be used from without their knowledge may not be and terminals in the network in any location as a door release! Keep published or stored in publicly acces- line with the latest state of the art.

  • Page 6: System Description

    Access offers and video memory system for building communication. • Simple planning and installation in • Polyphonic ringtones It offers the whole breadth of Siedle conformity with standards communication system functionality, • PC-based one-man commissioning Remarks from the speech or video connec- •...

  • Page 7: System Overview

    System overview iPhone WLAN iPhone WLAN iPad Internet iPad Public WLAN ASHT Switch Customer server (e.g. mail server) iPhone Access gateway 3G / 4G Router Internet Internet iPad Local network Public mobil network SIP telephone SIP telephone SIP telephone SIP telephone SIP telephone AHTV AHFV Switch...

  • Page 8: System Structure, Conductor Material And Range

    Door area The space requirement of network The following conductor materials The installation for the door station components and Siedle devices with suitable maximum ranges have is referred to as the door area. If cor- must be determined and taken into...

  • Page 9: Supply Limits Atlc/Ng 670

    Supply limits ATLC/NG 670-… Siedle Vario Video door stations Audio door stations Standard with with Standard with with COM 611-… DRM 612-… COM 611-… DRM 612-… ACM 67x-… ATLM 670-… COM 611-… DRM 612-… BTM 650-… Siedle Classic/Steel ACM 67x-… CATLE/SATLM 670-… COM 611-… DRM 612-… Call buttons Permitted conductor material Cable type Diameter...

  • Page 10: Network Lan

    3 System structure, conductor material and range Network LAN Power over Ethernet (PoE) Network characteristics The requirement for integration of The supply for the indoor stations Access system an Access system is a network infra- must be ensured by the customer •...

  • Page 11: Cabling For Indoor Devices

    (display height less 15 cm). and panel. The Siedle indoor device can be mounted above the junction box and connected to the network with a plug-in connector.

  • Page 12: Cameras

    3 System structure, conductor material and range Cameras External cameras The camera is connected to the Audio door station with external ATLC via the AIVS. analogue camera: For the external camera, an AIVS 670-… and a matching separate power supply (e.g. NG 602…) is required. Camera Door station Tö...

  • Page 13: Pick-Up Range Of The Camera

    Pick-up range of the camera General Video cameras operating with the Vario door loudspeaker or exter- nally in the background provide an unobtrusive method of surveillance in the entrance area. Call, speech and door release operation of the door station. The visitor appears on screen at one or more of the video call stations.
  • Page 14 3 System structure, conductor material and range Pick-up range of the camera Diagram showing the pick-up range of external camera CE 950-… with 12.00 image pick-up chip 1/4". 10.00 8.00 6.00 4.00 2.00 0.00 Object distance in m (h) Diagram pickup range Camera ACM 670-…...
  • Page 15 The picture excerpt visible on the display is mechanically set on the ACM 670-… camera by max. 30°. Diagram pickup range Camera ACM 673-… with image pick-up chip 1/3". 12.00 10.00 8.00 6.00 4.00 2.00 0.00 Object distance in m (h) Pick-up angle of the camera module ACM 673-…...
  • Page 16 3 System structure, conductor material and range Pick-up range of the camera The ACM 673-… camera transmits the entire recorded video image. Diagram pickup range Camera ACM 678-… with image pick-up chip 1/3". 12.00 10.00 8.00 6.00 4.00 2.00 0.00 Object distance in m Pick-up angle of the camera module ACM 678-…...
  • Page 17 The pick-up angle of camera module ACM 678-… can be adjusted depending on the mounting situ- ation. Required picture excerpt from the camera view (1 to 9) or full screen (0). 50 cm 50 cm 50 cm 70° 70° 70° Select the picture excerpt based on Picture excerpt (1–3) top camera the existing mounting situation.

  • Page 18: System Components Overview

    Access line rectifier Vario/Classic/Steel) Access Interface analog-video • ACM 670-… standard • ATLC/NG 670-… Access camera 80 for Siedle Vario Access door loudspeaker controller • CE 600-… with line rectifier • ACM 673-… External colour CCD video camera Access camera 130 for Siedle Vario for external mounting •...
  • Page 19 • ASH 670-04 M • APR 670-0 40 Access Professional Access server hardware M • APR 670-0 80 Access Professional • ASH 670-04 S • Siedle app for Access Access server hardware S • APR 670-0 160 Access Professional Software integration for Upgrade (server) non-Siedle systems •...

  • Page 20: Door Stations

    The modular principle. conceivably need at the front door. equipping the door station. Siedle Vario is unmatched in its flex- Alongside intercom system with bell, ibility. As an open-ended, modular access control, the letterbox and...
  • Page 21 Protection system: Dependent on Protection system: IP 54 the mounting conditions The connection of the call buttons Height of structure (mm): 9 Dimensions (mm) W x H x D: for Siedle Classic is described in the Dimensions (mm) W x H x D: ATLE 670-0 124 x 60 x 31, call button wiring diagram. 99 x 99 x 35 BRMA 050-01 53 x 100 x 17...
  • Page 22 1, 2, 3 or 4 call buttons. The door calls. control functions in conjunction with BTM 650-… is connected to the Indication of names in the display in Access and the Siedle access control ATLM 670-… via ribbon cable. alphabetical order. system. Nameplate size (mm) W x H: The DRM 612-…...
  • Page 23 PME-… TÖ-… (Door release) Access analog video standard inter- Mail notification system for signal- Siedle door release units are high- face in surface-mount housing for ling incoming post on any Access resistance > 20 Ohm and provide connection of an analog camera to indoor station.The mail notification...

  • Page 24: Access Cameras

    4 System components Access cameras ACM 670-02 ACM 673-01 ACM 678-01 Access camera 80 for Siedle Vario Access camera 130 for Siedle Vario Access camera 180 for Siedle Vario with automatic day/night switchover with automatic day/night switchover with automatic day/night switchover.

  • Page 25: External Cameras

    External cameras VTMC 640-01 CE 600-01 CE 950-01 Flush-mounted colour camera with Colour CCD video camera external Colour CCD video camera external automatic day/night switchover mounting with automatic day/night mounting with automatic day/night and integrated infrared lighting. switchover (True Day/Night) and inte- switchover (True Day/Night) and inte- grated infrared lighting.

  • Page 26: Indoor Stations (Audio/Video)

    4 System components Indoor stations (audio/video) AVP 870-0 With the functions calling, speech, AHTV 870-0 Access video panel with touchscreen vision, door release, light, remote Access in-house telephone video 17.8 cm for the Access system, made switching and call silencing. with door release button and 7 of high-grade plastic.
  • Page 27 AHT 870-0 AHFV 870-0 AHF 870-0 Access handsfree telephone video Access in-house telephone with door Access handsfree telephone with with speech/control button, door release button and 7 additional but- speech/control button, door release release button and 7 additional but- tons with 2-colour status LED. All button and 7 additional buttons tons with 2-colour status LED.

  • Page 28: Accessory

    4 System components Accessory Oben AUV 870-0 T/F AZA 870-0 AZIO 870-0 Access upgrade video subsequently Access surface-mounting accessory Access input/output accessory as enables the video function in an for professional surface mounting circuit board for integration in an audio device. of Access in-house and handsfree indoor unit with an additional input/ For the in-house telephone telephones.

  • Page 29: Distribution Components - Door Controller

    Distribution components – Door controller ATLC/NG 670-0 ATLC 670-0 ANG 600-0 Access door loudspeaker controller Access door loudspeaker controller Access line rectifier in switch panel with line rectifier in switch panel in switch panel housing as interface housing for power supply e.g. to housing as an interface for the con- for connecting the door station to a the ATLC 670-…...

  • Page 30: Distribution Components - Active/Passive System Expansion

    4 System components Distribution components – Active/passive system expansion ATLCE 670-0 AVA 670-0 DSC 602-0 Access door loudspeaker controller Access video decoupler in switch Pilfer safeguard controller in a switch extension in switch panel housing panel housing. Permits the decou- panel housing to control a maximum with 4 outputs and 2 inputs.

  • Page 31: Distribution Components Line Rectifiers

    Distribution components – Line rectifiers ANG 600-0 VNG 602-02 NG 602-01 Access line rectifier in switch panel Video line rectifier in switch panel Line rectifier in switch panel housing housing for power supply e.g. to housing for centrally supplying video for supplying additional components the ATLC 670-…...

  • Page 32: Distribution Components Transformers

    4 System components Distribution components – Transformers TR 602-01 TR 603-0 Transformer in switch panel housing Transformer in switch panel housing for supplying additional components for supplying additional components (e.g. easikey controller for access (e.g. mail notification system or door control).

  • Page 33: Space Requirements In Distribu Tion Boards/It Cabinets (19 Inch)

    Space requirements in distribution boards/IT cabinets (19 inch) Please make sufficient provisions in Space requirement in the distributor the electrical distribution boards/IT Models Horizontal pitches (TE) cabinet system for later expansion, ANG 600-0 changes or subsequent disassembly ASH 670-04 S * 3 x 12 TE (service/maintenance).

  • Page 34: Access Server Variants

    IP-based building communication IP-based building communication hardware/virtualization with installed system Siedle Access Professional system Siedle Access Professional server operating system according to for up to 320 users. An Access user for up to 50 users. An Access user requirements.
  • Page 35 (For detailed informa- tion, see page 43) Maintenance contract Maintenance contracts for the Siedle Access system can be purchased both through the Siedle Project Sales and through an Access Certified Partner (ACP). (For detailed information, see page 133)

  • Page 36: Minimum Requirements – Server Hardware / Virtual Machine

    4 System components A comparison of Access server variants Minimum requirements – Server hardware / Virtual machine * Possible number of users (User licences) Processor output min. Intel Xeon Quad Core Processor min. Intel Atom D510; 1.6 GHz 64 Bit (from launch year 2014 or more dual-core * recent) Random access memory (RAM)

  • Page 37: Hardware / Virtual Machine

    Virtualization * For Access systems with up to System conditions Additional requirements imposed Access Professional 50 users, server hardware can be on virtualization In order to operate Access • For virtualization, from VMware  used which corresponds to the performance data of Access server Professional correctly as a soft- vSphere 6 upwards a virtualization hardware S:...

  • Page 38: Network Security

    4 System components Network security Client-Software www.siedle.de/access www.siedle.de/access AGW 670-01 ASC 170-0 ASHT 170-0 Access gateway for the physical sep- Access application licence “Access Access application licence “Access aration of 2 networks (e.g. customer Software In-house telephone” for Software Concierge” for the opera-...

  • Page 39: App

    Server hardware with Access server sion of an Access door intercom system. software V. 1.x.x or V 2.x.x to from Siedle: It allows you to see who The ASM enables Siedle Access to be Access Professional V 4.0.0. is standing outside your door, talk integrated into non-Siedle systems...

  • Page 40: Access Licences

    Germany, please consult one After expiry of the 30-day test After expiry of the 30-day test of our Siedle centres or one of our period, the Access system is deacti- period, the Access system is deacti- Access Certified Partners. *...
  • Page 41 An Access user licence is required for the regular use of Access Professional. APR 670-0 20 The Access user licence allows Siedle Access Professional to be enabled and APR 670-0 40 used in Version V 4.0.0 for up to 320 users/terminals per system (optionally...
  • Page 42 Access licence for third-party audio device, for link-up of a VoIP audio tele- (ALFA 270-0) phone to the Access system. An analogue telephone can be connected via a VoIP-ATA adapter. Third-party devices are subject to authorization by Siedle. Non-Siedle smartphone device The third-party smartphone Access licence permits connection of the smart- (ALFS 270-0)

  • Page 43: Microsoft Licences (Cal)

    Microsoft licences (CAL) Microsoft Client Licences (CAL) CAL variants are not included in the scope of • Device CAL: A device CAL entitles supply of the Access server. all users to use a certain device with server access (e.g. PC in the The Microsoft Client Access License workshop which is used by different (CAL) licences access by devices or...

  • Page 44: Function Overview

    5 Function overview Calling, speech and video functions Connection facility for a storey call Supplementary functions between door station and the con- button (ERT) for calling an apart- • Internal calls and speech commu- nected Access indoor stations. ment door and potential-free con- nication between Access indoor call An existing call can not be listened in tact is available as standard.
  • Page 45 Access system function Access system version Video functions V 4.0.x Central image memory • Automatic and selective capture of a camera image per door call • Selective capture, display and deletion of camera images/pictures • Camera dialling via contact list or in video area •...
  • Page 46 Monitoring of system capacity utilization (via dashboard) • Manual line / user monitoring • Management of software statuses in the Access server • Detailed logging for Siedle support • Interfaces Connection to standardised IP telephone systems • Integration of a / b converters •...
  • Page 47 ASHT: Overlay entire application on an incoming call • ASHT: Automatic login and minimizing on Windows start-up • ASC/ASHT: Confirmation request prior to closing the application • ASM: Software module (integration in non-Siedle systems) • Siedle app for Access (iPhone) • Siedle app for Access (iPad) •...

  • Page 48: Configuration - Access System Models

    6 Configuration – Access System Models General Name • • • • • • • • • • • • • • • Description • • • • • • • • • • • • • • • Address (KNX) •...
  • Page 49 Button configuration Expert mode • • • • Single click • • • • Double click • • • • Press button • • • • Release button • • • • Entrance door light • Buttons (The number is dependent on •...
  • Page 50 (•)* - (•)* (•)* - • = available - = Not available * The doormatic function is exclu- sively user-based with the Access in-house telephone software (ASHT) and the Siedle iPhone/iPad app and is only possible with Access server V 3.2 and above.

  • Page 51: Server Administration - Device Parameters

    Server administration – device parameters General Name Displayed device name in the Access system (contacts, phonebooks etc.). Description Short description (e.g. model designation of the manufacturer or other information for device differentiation or logical assignment). Address (KNX) Physical address of a KNX device in the KNX network (e.g. 10.12.200) Data type (KNX) KNX function which can be initiated via the Access server.
  • Page 52 A potential-free switching contact is required for the “secondary signal unit” and the “camera actuation” script in order to enable signalling to third-party devices/systems. These two scripts can only be used for Siedle hardware terminals, as the PC software and app cannot make switching contacts available.

  • Page 53: Button Functions

    Size of audio frame [ms] * For transporting audio signals in the network, a length of 20 ms or 40 ms can be selected for the audio frames. The value to be selected depends on the external SIP device used. Acoustic button acknowledgements Acoustic feedback at the door station when pressing a call button.
  • Page 54 6 Configuration – Access System Server administration – device parameters Rerouting to device/participant/ Optional call rerouting to devices of the same or a different user, to a dif- group/external ferent user, to a different group or to an external call number (preconfigured telephony gateway and call number plan required).
  • Page 55 Scripts and switching functions Selection of available scripts and switching functions for devices and doors (selection is dependent on the devices and Access door loudspeaker control- lers used): • Switching point: Selection of a function in order to be able to trigger this remotely: •...
  • Page 56 6 Configuration – Access System Server administration – device parameters Scripts and switching functions • Setting the user to Do not disturb: If this function is activated, no user or device calls are indicated on any of this user’s devices. The user is marked red in the contact list.
  • Page 57 Retriggerable Timed switching operation can additionally be retriggered (restart of the timed switching operation for the programmed switching time from when the button is pressed again in running switching operation). Switching point The following functions can be triggered via a switching point: •...
  • Page 58 6 Configuration – Access System Server administration – device parameters Switching point Depending on the end device and its trigger, the following functions can be activated via a switching point: AHT/AHTV, Configured button • • • • AHF/AHFV Operating menu •...
  • Page 59 Story call Call signalling that can be displayed on your own device or a freely selectable user or a freely selectable group. If the potential-free contact at the input terminal of the terminal is closed, then the storey call is indicated for approx.

  • Page 60: Ranges In The Vario Bus

    7 Access control through the Vario bus Ranges in the Vario bus The range depends on the type of The modules COM/ELM or installation, the core diameter and FPM 611-… are used to actuate con- the connected load values “AW” of trol functions which are evaluated the connected devices.
  • Page 61 Access control with Easikey con- troller EC 602-… as independent system ELM/COM max. 250 m ELM 611-... TR 603-... COM 611-... EC 602-... ECE 602-... FPM 611-... FPM max. 130 m Access control with door controller IP TCIP 603-… as independent system ELM/COM max.

  • Page 62: Distribution Components Transformers

    7 Access control through the Vario bus Distribution components – Transformers TR 602-01 TR 603-0 Transformer in switch panel housing Transformer in switch panel housing for supplying additional components for supplying additional components (e.g. easikey controller for access (e.g. mail notification system or door control).

  • Page 63: Modules

    LED function. control functions in conjunction with Suitable for: As reading unit of electronic keys or • Stand-alone operation Access and the Siedle access control cards for opening doors, gates etc. • Operation with entrance controller system. Suitable for: EC 602-…...

  • Page 64: Distribution Components - Server/Controller

    7 Access control through the Vario bus Distribution components – Server/controller TCIP 603 TCIP SRV 603-0 • Variable public holiday and vaca- TCIP 603-03 The Door controller IP server tion profiles Door controller IP TCIP 603-… as TCIP SRV 603-… is used to net- •...
  • Page 65 EC 602-03 ECE 602-0 ZRE 600-0 Entrance controller in switch panel Entry controller extension in switch 19 inch rack mounting accessory housing for code lock module panel housing. Upgrades the for the Access Server S and the TCIP COM 611-…, electronic key reading EC 602-…...

  • Page 66: Access Circuit Diagrams Overview

    8 Access circuit diagrams Overview Device category Page Door loudspeaker Models Siedle Vario Basic circuit diagram (Video) • Potential-free door release work contact A2 • Potential-free door release changeover contact A3 • Additional power supply • Pilfer safeguard • Video decoupler (camera in switching operation) •...
  • Page 67 Con- Cameras/distributors Video inter- Function Peripherals troller faces modules • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...

  • Page 68: Switching Outputs/Inputs

    8 Access circuit diagrams Switching outputs/inputs The number of switching outputs and inputs can be extended for each indoor station and each door controller. The following list contains the as-delivered status and the max- imum full extension per device type. Model Number of switching outputs Number of switching inputs...
  • Page 69 10 mA Terminals (15, 16) Terminals (17, 18) Terminals (25, 26) Terminals (27, 28) The Siedle Access device log is avail- able for commissioning support and documenting the switching outputs and inputs used. The Siedle Access device log can be found in the Siedle download area/...

  • Page 70: Siedle Vario

    8.1 Siedle Vario Basic circuit diagram (Video)
  • Page 71 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 72 8.1 Siedle Vario Potential-free door release work contact A2...
  • Page 73 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 74 8.1 Siedle Vario Potential-free door release changeover contact A3...
  • Page 75 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 76 8.1 Siedle Vario Additional power supply...
  • Page 77 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 78 8.1 Siedle Vario Pilfer safeguard...
  • Page 79 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 80 8.1 Siedle Vario Video decoupler (camera in switching operation)
  • Page 81 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 82 8.1 Siedle Vario Video decoupler (camera in continuous operation)
  • Page 83 Notes on the circuit diagram m) Where there are more than a) If door releases or gate control 10 BTM 650-… units, an addi- systems are fitted and their con- tional 12 V AC supply, for instance nected values do not correspond to TR 603-…, must be installed due to 12 V AC/DC and min.
  • Page 84 8.1 Siedle Vario External camera...
  • Page 85 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 86 8.1 Siedle Vario External camera and video decoupler...
  • Page 87 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 88 8.1 Siedle Vario Code lock module as access control and direct dial...
  • Page 89 Notes on the circuit diagram r) To ensure smooth operation, the a) If door releases or gate control COM 611-… code lock module and systems are fitted and their con- the EC 600-… easikey controller nected values do not correspond to must be supplied with their own 12 V AC/DC and min.
  • Page 90 8.1 Siedle Vario Display call module...
  • Page 91 Notes on the circuit diagram m) Where there are more than The wiring of 2 door stations with a 10 BTM 650-… units, an addi- display call module each is described tional 12 V AC supply, for instance in a separate diagram TR 603-…, must be installed due to (For detailed information, see the current consumption.
  • Page 92 8.1 Siedle Vario 2 door stations/display call modules...
  • Page 93 Notes on the circuit diagram n) For programming the names, pro- a) If door releases or gate control gramming software PRS 602-… and systems are fitted and their con- programming interface PRI 602-… nected values do not correspond to are required. The names are now 12 V AC/DC and min.
  • Page 94 8.1 Siedle Vario Radio chime...
  • Page 95 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 96 8.1 Siedle Vario Basic circuit diagram (Audio)
  • Page 97 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.

  • Page 98: Access Custom-Fit Door Loudspeaker

    8.2 Access custom-fit door loudspeaker Access camera module...
  • Page 99 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 100 8.2 Access custom-fit door loudspeaker External camera...
  • Page 101 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 102 8.2 Access custom-fit door loudspeaker Basic circuit diagram (Audio)
  • Page 103 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.

  • Page 104: Siedle Classic

    8.3 Siedle Classic Wiring diagram for call buttons ATLE Tö 12 V AC min. 20 Ohm BRMA 7.11 7.12 ANG 600-... ATLC 670-... Gerätebedarf Classic Türstation ACM 670-... ATLE 670-... BRMA 050-... Hinweise Remarks l), q)
  • Page 105 Notes on the circuit diagram Example: In the case of 7 call but- l) The internal wiring of the Classic tons, terminal 6.1 of the first call door station is completed on site by button module is bridged with ter- the customer. minal 6.1 of the second call button (see wiring diagram).
  • Page 106 8.3 Siedle Classic Basic circuit diagram (Video) ATLE Tö 12 V AC min. 20 Ohm BRMA 7.11 7.12 ANG 600-... ATLC 670-... Gerätebedarf Classic Türstation ACM 670-... ATLE 670-... BRMA 050-... Hinweise...
  • Page 107 Notes on the circuit diagram y) The circuit diagram shows an a) If door releases or gate control exemplary connection of call buttons systems are fitted and their con- with the BRMA. nected values do not correspond to • (For detailed information, see 12 V AC/DC and min.
  • Page 108 8.3 Siedle Classic Video decoupler (camera in continuous operation)
  • Page 109 Notes on the circuit diagram q) Where there are more than 20 a) If door releases or gate control backlit call buttons, an additional systems are fitted and their con- 12 V AC supply, for instance nected values do not correspond to TR 603-…, must be installed due 12 V AC/DC and min.
  • Page 110 8.3 Siedle Classic 2 mail notification systems ATLE ATLE Tö 12 V AC Tö 12 V AC min. 20 Ohm min. 20 Ohm BRMA BRMA 7.11 7.11 7.12 7.12 ANG 600-... ANG 600-... ATLC 670-... ATLC 670-... Gerätebedarf Gerätebedarf Classic Türstation Classic Türstation...
  • Page 111 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to w) Separate power supply required. 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- x) A separate potential-free minals 13/14 (output)) or switching switching input is required for each output 3 (ANG terminals 11/12/14...
  • Page 112 8.3 Siedle Classic Code lock module as access control and direct dial...
  • Page 113 Notes on the circuit diagram r) To ensure smooth operation, the a) If door releases or gate control COM 611-… code lock module and systems are fitted and their con- the EC 600-… easikey controller nected values do not correspond to must be supplied with their own 12 V AC/DC and min.

  • Page 114: Siedle Steel

    8.4 Siedle Steel Basic circuit diagram (Video) SACM SATLM Door release (Tö) 12 V AC/DC min. 20 Ohm Buttons Device Siedle Steel ANG 600-... ATLC 670-... SACM 673-... requirement SATLM 670-... Remarks...
  • Page 115 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 116 8.4 Siedle Steel Video decoupler (camera in continuous operation)
  • Page 117 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 118 8.4 Siedle Steel 2 mail notification systems...
  • Page 119 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 120 8.4 Siedle Steel Code lock module as access control and direct dial...
  • Page 121 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 122 8.4 Siedle Steel Flush mounted camera...
  • Page 123 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.
  • Page 124 8.4 Siedle Steel Display call module Door release (Tö) 12 V AC/DC min. 20 Ohm SACM SATLM Büchner Claudia Maier Klaus Schuhmacher Michael Namensuche mit SDRM Büchner Claudia Maier Klaus Schuhmacher Michael Namensuche mit Siedle Steel TR 603-... ZWA 640-...
  • Page 125 Notes on the circuit diagram a) If door releases or gate control systems are fitted and their con- nected values do not correspond to 12 V AC/DC and min. 20 Ohm, then either switching output 2 (ATLC ter- minals 13/14 (output)) or switching output 3 (ANG terminals 11/12/14 (output)) can be used as a potential- free door release contact.

  • Page 126: Camera Connection

    8.5 Camera connection External camera with video distributor...
  • Page 127 Functional Notes on the circuit diagram Viewing/monitoring a certain area p) Camera in continuous operation using an Access indoor call station The camera used must be suit- set up for the purpose. able for continuous operation. Each camera is specifically selected Alternatively, the camera must be via the ATLC 670-…...
  • Page 128 8.5 Camera connection External camera...
  • Page 129 Functional Notes on the circuit diagram p) Camera in continuous operation Viewing/monitoring a certain area using an Access indoor call station The camera used must be suit- set up for the purpose. able for continuous operation. Each camera is specifically selected Alternatively, the camera must be via the ATLC 670-…...

  • Page 130: Storey Call Button

    8.6 Storey call button Customer-side signalling device Notes on the circuit diagram e) A suitable intermediate relay may be required for the customer’s own existing signalling device. f) By mounting accessory AZIO 870-… terminals 1 and 2 as well as 7 and 8 of the right-hand RJ45 telecom socket are occupied, as listed in the terminal assignment.
  • Page 131 An indoor device may only be con- nected to the network using an RJ45 8/8 (8) network socket or RJ45 socket modules 8(8). The connection between the junc- tion box and the circuit board of the indoor station is established with the RJ45 connectors included in the scope of supply.

  • Page 132: Commissioning And Operation

    Access system should be • The installation complies with • Review of submitted documents performed by Siedle or an Access structured cabling requirements as • Initialization of the system (server) Certified Partner. The system must outlined in DIN 50173-1/2/3/4. A •...

  • Page 133: Recommendation

    802.3af” with up to PoE class 3. repair. a fee is payable for every update/ Access indoor station upgrade. The software for all Siedle Access class Maintenance contracts for the products with network connection is Siedle Access system can be pur- capable of updating.

  • Page 134: Service Requirement

    After the update is complete, the ware supplied by Siedle if commis- devices are automatically restarted. sioning was carried out by the Siedle During the update process, the Access Service Centre or our Access power supply to the devices must Exchanging ATLM/ATLE 670-…...

  • Page 135: Initial Commissioning/Login

    If the security code is not legible, instructions can be found in the the procedure described in the click onto it to generate a new Siedle download area. Access commissioning instructions code. Start the login process using (chapter Activating the security the “login”...

  • Page 136: Led Displays

    10 Servicing LED displays LED 1 D1 D2 V1 V2 Output Input ATLM/ACM ATLC 670-0 Reset Link Access Türlautsprecher-Controller Access Door loudspeaker controller Access Contrôleur de platine de rue Status IP 20 Error / OK SN 0000000000 ATLC 670-0 LED display LED operating status Functional characteristics LED 1...
  • Page 137 LED 1 LED 1 LED 5 LED 4 LED 8 LED 1 LED 8 AHTV/AHFV 670-… LED display LED operating status Functional characteristics LED 8 flashes yellow Searching for the server server found LED 7 flashes yellow loading configuration from server export successfully completed LED 6 flashes yellow login to server...

  • Page 138: Terminal Connections And Meas Ured Values

    10 Servicing Terminal connections and measured values ATLC 670-0 Terminal Description Measured values Video signal (two-wire FBAS) appr. 40 – 200 mV AC only with active video connection Microphone + appr. 42,1 – 47,4 V DC Microphone - (Typical: 46,2 V DC) Loudspeaker + appr. 42,1 – 47,4 V DC Loudspeaker - (Typical: 46,2 V DC) Variobus + appr.
  • Page 139 AIVS 670-0 Terminal Description Measured values Video signal (two-wire FBAS) appr. 40 – 200 mV AC only with active video connection Supply AIVS 670-0 + appr. 48 V DC Supply AIVS 670-0 - Camera actuation + appr. 48 V DC Camera actuation - Camera supply permanent + Camera supply control signal + appr.

  • Page 140: Glossary

    Data backup to the areas for which they have of signals. Copying or exporting system confi- been approved. Siedle offers a The greater the bandwidth, the guration and/or operating data for modular access control system which more information can be trans-...
  • Page 141 (e.g. www. stations) and is needed for their its configuration of the computer siedle.com) into IP addresses (e.g. fundamental operation. Firmware (client) supports this. 10.11.12.13). DNS is automatically only works with its intended device.
  • Page 142 11 Glossary Gateway HTTP – Hypertext Transfer IP camera Network-capable components (cou- Protocol Network (video) camera which pling element) which connects or Protocol for data/file transfer of text, provides a retrievable video image disconnects networks which can be image, audio or video files within in the digital form of a video stream based on completely different archi- an IP-based network or via the...
  • Page 143 KNX standard – Konnex standard Latency time (delay time) Licences Globally accepted bus standard Technically-limited time difference Activated usage right on the Access (bus system) for building automa- (delayed response time) of technical server, the scope of functions of tion, where the device control (KNX devices in an IP-based network which is provided by the relevant bus system) and the power supply...
  • Page 144 11 Glossary MAC address – Media Access MJPEG – Motion JPEG NAT – Network Address Control address Process (video codec) for single Translation Twelve-character hexadecimal hard- frame compression of a video Network address translation method ware address organised in pairs (e.g. sequence to be transmitted, which for automatic replacement of 1A-2B-3C-4E-5F-66) of an internal or...
  • Page 145 NTP – Network Time Protocol QoS – Quality of Service RTP – Real-Time Transport Synchronisation protocol which syn- Process for determining the transfer Protocol chronises the time within IP-based behaviour of selected services in net- Protocol for continuous and packet- networks and the Internet.
  • Page 146 (several) bundled call numbers an IP-based network. SIP gateways place via the administration interface can be used from the Access server enable connection of the Siedle of the Access server. SIP provider for telephony purposes through the Access server on the network side accounts link the Access server over IP-based telephone network.
  • Page 147 SIP User (SIP account) Switch Telecom socket RJ45 8/8 User account which has been cre- Central coupling element and distri- Standardised connection unit for ated with a VoIP provider and bution component which links indi- network cabling with two eight-pin contains the required access and vidual network components to an RJ45 jacks for correct connection of operating data of a VoIP telephony...
  • Page 148 11 Glossary UDP – User Datagram Protocol Unicast VoIP – Voice over IP Transport protocol for data traffic An information and communication Network protocol for voice, data and between network-capable devices technology type of point-to-point video transmission which is used for (servers, computers, etc.) in IP-based connection for sending data from IP/internet telephony and enables...
  • Page 149 WLAN – Wireless LAN Wireless local network based on radio, for communication and data transfer between network-capable devices (computer, smartphone, etc.) and, if necessary, the Internet. The data transfer rate is continually being improved with the standard IEEE 802.11…. (Gross) data rates of up to 6.9 Gbps are currently possible (IEEE 802.11ac).

  • Page 150: Index Access Components

    Function module for door station FPM 611-… Function module for door station NG 602-… Line rectifier PME-… Mail notification system Siedle app for Access… App (iPhone/iPad) TCIP SRV 603-… Access control IP server TCIP 603-… Access control IP controller TR 602/603-… Transformer TÖ 61x-…...

  • Page 151: Access Topics

    Access circuit diagrams Extension of the switching Siedle centres outputs/inputs Access control Siedle Classic External cameras Access control connected Siedle Classic circuit diagrams values External device licences Siedle service Access control controller Function overview Siedle Steel Access custom-fit door loud-...

  • Page 152: Customer Support And Cus Tomer Advice/Siedle Centres

    13 Siedle service Customer support and customer advice/Siedle centres Welcome to Siedle! Also in your area. Qualified staff are on hand to offer a fast, competent service. By telephone, or where necessary we will be pleased to visit you on site.

  • Page 153: After-Sales Service

    After-sales service Services and information Siedle website www.siedle.com Access Certified Partner www.siedle.en/acp near to you...
  • Page 154 S. Siedle & Söhne © 2016/07.17 Telefon- und Telegrafenwerke OHG Printed in Germany Best. Nr. 210005937-01 EN Postfach 1155 78113 Furtwangen Bregstraße 1 78120 Furtwangen Telefon +49 7723 63-0 Telefax +49 7723 63-300 www.siedle.de info@siedle.de...

Table of Contents

Save PDF
