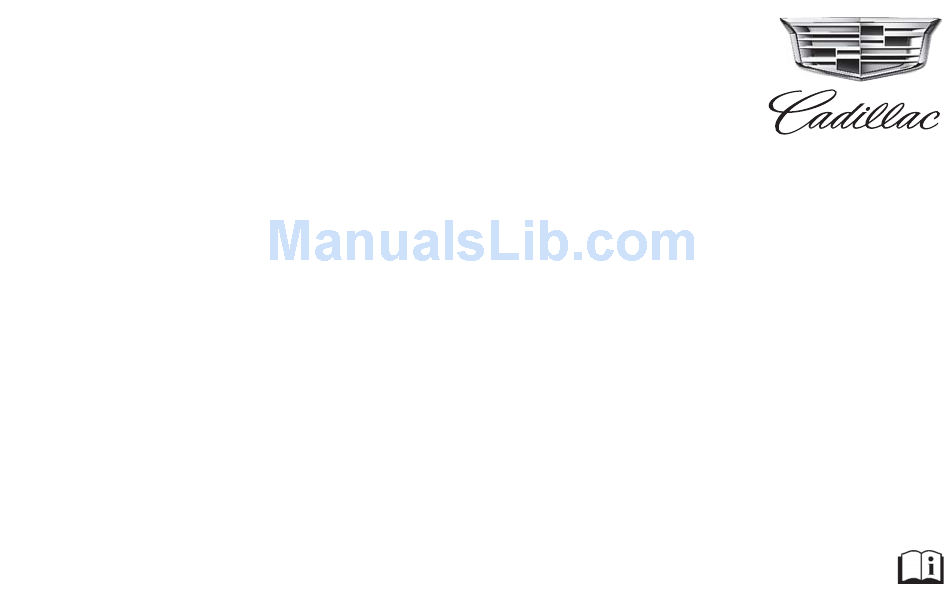

Page 1 CTS/CTS-V Owner’s Manual www.cadillaceurope.com...
Page 2: Table Of Contents
Introduction ......2 In Brief ....... 5 Keys, Doors, and Windows .
Page 3: Using This Manual
GM logo, CADILLAC, the CADILLAC reduce them. A circle with a slash through it is a Emblem, and CTS are trademarks and/ safety symbol which means Do Not, or service marks of General Motors Danger...
Page 4 Shown when the owner's manual Engine Coolant Temperature has additional instructions or Exterior Lamps information. Flame/Fire Prohibited Shown when the service manual Fuel Gauge has additional instructions or information. Fuses Shown when there is more Headlamp Main/Dipped-Beam information on another page Changer see page.
Page 6: In Brief
Door Locks ......9 (CTS-V Only) ..... 22 Boot .
Page 7: Instrument Panel
IN BRIEF Instrument Panel...
Page 8: Instrument Panel
IN BRIEF 1. Air Vents 0 175. Parking Assist Button. See 18. Horn 0 104. Assistance Systems for Parking or 2. Indicator Lever. See Indicator and 19. Steering Wheel Adjustment 0 103. Reversing 0 225. Lane-Change Signals 0 157. 20. Cruise Control 0 214 (If 10.
Page 9: Initial Drive Information
IN BRIEF Initial Drive Information Press and release to initiate vehicle locator. This section provides a brief overview about some of the important features Press and hold for more than that may or may not be on your three seconds to sound the panic specific vehicle.
Page 10: Door Locks
IN BRIEF Cancelling a Remote Start Power Door Locks Boot To cancel a remote start, do one of From outside, press on the the following: RKE transmitter. See Remote Keyless Entry (RKE) System Operation 0 28. Press and hold until the parking lamps turn off.
Page 11: Windows
IN BRIEF Windows Seat Adjustment High Performance Seat Adjustment Power Seats High Performance Seat The driver power window switches 1. Feature Select High Performance Seat control all the windows. The 2. Up passenger switch only controls that To adjust the seat: 3.
Page 12 IN BRIEF Press Rearward (3) to make Tilt the top of the control Two-Way Lumbar and Bolster rearward adjustments of the rearward to recline. Adjustment selected feature. Tilt the top of the control forward Press Down (4) to make downward to raise.
Page 13 IN BRIEF Four-Way Lumbar and Bolster High Performance Bolster Cushion Bolster Support Adjustment Support To adjust cushion bolster support, if equipped: Four-Way Lumbar Support To adjust lumbar support, if equipped: Bolster Adjustment To adjust the four-way lumbar and Press and release or hold Feature bolster support, if equipped: High Performance Seat Select (1) to scroll to bolster...
Page 14: Memory Features
IN BRIEF Back Bolster Support Memory Features When Easy Exit Options is enabled in the personalization menu, the feature To adjust back bolster support, will recall the previously stored exit if equipped: positions when the ignition is changed to OFF and driver door is opened within a short time.
Page 15: Head Restraint Adjustment
IN BRIEF stack. Use the manual heated or Do not drive until the head restraints Press to heat the driver or ventilated seat buttons on the center for all occupants are installed and passenger seat cushion and seatback. stack to turn auto heated or ventilated adjusted properly.
Page 16: Passenger Sensing System
IN BRIEF Refer to the following sections for The passenger airbag status indicator 2. Press the arrows on the control important information on how to use lights on the overhead console are pad to move the mirror up, safety belts properly: visible when the vehicle is started.
Page 17: Steering Wheel Adjustment
IN BRIEF Steering Wheel Adjustment Power Tilt and Telescoping Wheel Interior Lighting Dome Lamp If equipped, the control is on the left To adjust the steering wheel: side of the steering column. 1. Pull the lever down. To change the dome lamp settings, Push the control up or down to tilt press the following: 2.
Page 18: Exterior Lighting
IN BRIEF Reading Lamps : Turns off the exterior lamps. The knob returns to the AUTO position There are front and rear reading lamps on the overhead console and after it is released. Turn to again to over the rear passenger doors. These reactivate the AUTO mode.
Page 19 IN BRIEF HI : Use for fast wipes. Move the windscreen wiper lever out of the INT position to LO : Use for slow wipes. deactivate Rainsense. To turn the Rainsense feature on or off, see Rain Sense Wipers under Vehicle Personalisation 0 145.
Page 20: Climate Controls
IN BRIEF Climate Controls The climate control buttons and the touch screen are used to adjust the heating, cooling, and ventilation. Climate Touch Screen Controls 1. Outside Temperature Display 2. Driver and Passenger Temperature Controls Climate Control Buttons 3. Fan Control 1.
Page 21: Transmission
IN BRIEF See Dual Automatic Climate Control Vehicle Features Cruise Control System 0 168 and Rear Climate Control System 0 173 (if equipped). Infotainment System Transmission See the infotainment manual for information on the radio, audio Tap Shift players, phone, navigation system, and voice or speech recognition.
Page 22: Driver Information
IN BRIEF next 5 km/h (5 mph) mark on the Forward Collision Alert speedometer, press +RES up to the (FCA) System second detent. If equipped, FCA may help avoid or SET : Press the control down briefly reduce the harm caused by front-end to set the speed and activate cruise crashes.
Page 23: Lane Keep Assist (Lka)
IN BRIEF brake the vehicle. This can help avoid Surround Vision (CTS Only) See Curb View Camera (CTS-V Series or lessen the severity of crashes when Only) under Assistance Systems for If equipped, views around the vehicle driving in a forward gear.
Page 24: Parking Assist
IN BRIEF Parking Assist See Automatic Parking Assist (APA) Sunroof under Assistance Systems for Parking If equipped, Rear Parking Assist (RPA) If equipped, the sunroof will only or Reversing 0 225. uses sensors on the rear bumper to operate when the ignition is in ON/ assist with parking and avoiding RUN or ACC/ACCESSORY, or when Power Sockets...
Page 25: Performance And Maintenance
IN BRIEF Express-Open/Express-Close : With Performance and cluster. The appropriate DIC the sunroof in the vent position, press message displays. See Ride Control Maintenance (1) a second time to express-open System Messages 0 141. the sunroof. Press (1) to Press again to turn on both Traction Control/Electronic express-close the sunroof.
Page 26: Fuel
IN BRIEF Tyre and Loading Information label. Premium Recommended Fuel Engine Oil Life System See Vehicle Load Limits 0 188. The Use unleaded petrol rated at 95 RON The engine oil life system calculates warning light will remain on until the or higher in your vehicle.
Page 27: Driving For Better Fuel
IN BRIEF Driving for Better Fuel Follow recommended scheduled maintenance. Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible. Avoid fast starts and accelerate smoothly. Brake gradually and avoid abrupt stops.
Page 28: Keys
KEYS, DOORS, AND WINDOWS Keys, Doors, and Power Mirrors ..... . 44 Keys and Locks Heated Mirrors ..... 44 Windows Automatic Dimming Mirror .
Page 29: System
KEYS, DOORS, AND WINDOWS To remove the key, press the button Remote Keyless Entry on the side of the transmitter near the (RKE) System Operation bottom, and pull the key out. Never pull the key out without pressing the The Keyless Access system allows for button.
Page 30: Keys, Doors, And Windows
KEYS, DOORS, AND WINDOWS 30 seconds to light your approach to If the driver door is open when : Press and release one time to the vehicle. The indicators may flash initiate vehicle locator. The exterior pressed and Unlocked Door Anti Lock to indicate unlocking.
Page 31 KEYS, DOORS, AND WINDOWS Keyless Unlocking/Locking from the unlock button on a passenger door Driver Door handle will unlock all doors, unless the lock/unlock button was used to When the doors are locked and the lock the doors within the last RKE transmitter is within 1 m (3 ft) of five seconds.
Page 32 KEYS, DOORS, AND WINDOWS and at least one transmitter has been Remote Left In Vehicle Alert Programming Transmitters to removed or none remain in the the Vehicle When the vehicle is turned off and a vehicle. remote is left in the vehicle, the horn Only RKE transmitters programmed to The fuel door will also lock at will chirp three times after all doors...
Page 33 KEYS, DOORS, AND WINDOWS To start the vehicle: Battery Replacement 1. Open the center console storage Warning area and remove the rubber mat and place the RKE transmitter in Make sure that you dispose of old the transmitter pocket. batteries in accordance with environmental protection regulations to help protect the environment and your health.
Page 34: Remote Vehicle Start
KEYS, DOORS, AND WINDOWS 2. Separate the two halves of the Remote Vehicle Start The RKE transmitter range may be transmitter using a flat tool shorter while the vehicle is running. This feature allows the engine to be inserted into the bottom centre Other conditions can affect the started from outside the vehicle.
Page 35: Door Locks
KEYS, DOORS, AND WINDOWS Extending Engine Run Time Turn on the hazard warning lights. Door Locks The engine run time can also be Turn the vehicle on and then extended by another 10 minutes, back off. Warning if during the first 10 minutes Steps 1 Conditions in Which Remote Start 2 are repeated while the engine is still Unlocked doors can be dangerous.
Page 36 KEYS, DOORS, AND WINDOWS again within five seconds to unlock all Warning (Continued) passenger doors. See Remote Keyless Entry (RKE) System Operation 0 28. vehicle. Lock the doors to help prevent this from Driver Door Key Cylinder Access happening. Keyless Access To replace the cap: 1.
Page 37: Power Door Locks
KEYS, DOORS, AND WINDOWS Inside the Vehicle Power Door Locks On the rear doors, push down on the door lock knob to lock the door manually. Pull once on the door handle to unlock the door and again to open the door. Press the power door lock switch to lock or unlock all doors automatically.
Page 38: Automatic Door Locks
KEYS, DOORS, AND WINDOWS Unlocked Door Anti-Lockout When is pressed on the power door Press on the power door lock lock switch with the door open, a switch. If Unlocked Door Anti-Lockout is chime will sound three times turned on and the vehicle is off, the Shift the gearbox into P (Park).
Page 39: Boot
KEYS, DOORS, AND WINDOWS Doors Press to activate the safety Warning (Continued) locks on the rear doors. The indicator light in the switch will illuminate Boot set the fan speed to the when activated. highest setting. See Climate Control Systems in the Index. The rear door power windows are also Warning disabled.
Page 40 KEYS, DOORS, AND WINDOWS Close the boot by pulling on the Press on the driver door. Caution handle. Do not use the handle as a Press twice quickly on the tie-down. Do not use the emergency boot Remote Keyless Entry (RKE) Rear Seat Pass-Through release handle as a tie-down or transmitter.
Page 41: Vehicle Security
KEYS, DOORS, AND WINDOWS Vehicle Security Fast Flash : Vehicle is unsecured. A door, the bonnet, or the boot This vehicle has theft-deterrent is open. features; however, they do not make Slow Flash : Alarm system is armed. the vehicle impossible to steal. Arming the Alarm System Vehicle Alarm System 1.
Page 42 KEYS, DOORS, AND WINDOWS If the driver door is opened without Lock the vehicle after all The power sounder provides an first unlocking with the RKE occupants have left the vehicle audible alarm which is different from transmitter, the horn will chirp and and all doors are closed.
Page 43: Anti-Theft Locking System
KEYS, DOORS, AND WINDOWS Intrusion and Inclination closed and the vehicle off. The The immobilisation system is deadbolt lock can also be engaged disarmed when the pushbutton start Sensors Disable Switch with the Keyless Access system. See is activated to enter the ACC/ It is recommended that the intrusion Keyless Access Operation under ACCESSORY mode or the ON/RUN/...
Page 44: Exterior Mirrors
KEYS, DOORS, AND WINDOWS If the engine does not start and the It is possible for the immobiliser Exterior Mirrors security light stays on, there is a system to learn new or replacement problem with the system. Turn the RKE transmitters. Up to eight Convex Mirrors ignition off and try again.
Page 45: Power Mirrors
KEYS, DOORS, AND WINDOWS Power Mirrors Power Folding Mirrors Memory Mirrors The outside mirrors fold inward to If equipped, the vehicle may have prevent damage when going through memory mirrors. See Memory an automatic car wash. To fold the Seats 0 58. mirrors move the selector switch to Side Blind Zone Alert (SBZA) and press the down arrow on the...
Page 46: Reverse Tilt Mirrors
KEYS, DOORS, AND WINDOWS Reverse Tilt Mirrors Interior Mirrors The passenger and/or driver mirror tilt Interior Rearview Mirrors to a preselected position when the vehicle is in R (Reverse). This feature Adjust the rearview mirror for a clear allows the driver to view the curb view of the area behind the vehicle.
Page 47 KEYS, DOORS, AND WINDOWS To adjust the brightness, press the The camera that provides the Rear Warning button (1) on the back of the Camera Mirror (RCM) image is above rear-view mirror without covering the the license plate, next to the Rear The Rear Camera Mirror (RCM) has light sensor (2).
Page 48: Windows
KEYS, DOORS, AND WINDOWS The RCM may not work properly or Windows window is down and the front display a clear image if: windows are up. To reduce the sound, open either a front window or the There is glare from the sun or Warning sunroof, if equipped.
Page 49 KEYS, DOORS, AND WINDOWS Window Lockout Window Express Movement Express-down/up allows the windows to be opened or closed without holding the window switch. Press the window switch fully down or pull it up, and quickly release it to engage. Briefly press or pull the same switch to stop window movement.
Page 50: Sun Visors
KEYS, DOORS, AND WINDOWS 3. Partially open the window to be Pull the sun visor down to block glare. Warning (Continued) programmed, then close it and Detach the sun visor from the centre mount to pivot to the side window or, continue to pull the switch obstacle detection override, make briefly after the window has fully...
Page 51: Sunroof
KEYS, DOORS, AND WINDOWS When shifting the vehicle into Roof Vent : Press and release (1) to R (Reverse), the sunshade will vent the sunroof. The sunshade will automatically retract if it is extended. automatically open approximately Sunroof It will re-extend after a short delay 38 cm (15 in).
Page 52 KEYS, DOORS, AND WINDOWS closing difficulties like frost or other If water is seen dripping into the conditions, it is possible to override water drainage system, this is normal. the reversal system. To override the reversal system, close in manual mode.
Page 53 SEATS AND RESTRAINTS Seats and Restraints Replacing Safety Belt System Parts Securing Child Restraints (With after a Crash ..... . 71 the Seat Belt in the Rear Seat) .
Page 54: Seats And Restraints
SEATS AND RESTRAINTS Head Restraints If equipped with base seats, the vehicle's front seats have adjustable head restraints in the outboard seating positions. If equipped with high performance seats, the vehicle's front seats have head restraints in the outboard seating positions that cannot be adjusted.
Page 55: Front Seats
SEATS AND RESTRAINTS The height of the head restraint can Front Seats be adjusted. Pull the head restraint up to raise it. Try to move the head Electrically Operated Seat restraint to make sure that it is locked Adjustment in place. To adjust the head restraint forward and rearward, press the button located on the side facing the head restraint...
Page 56 SEATS AND RESTRAINTS If equipped, raise or lower the Press Down (4) to make downward front part of the seat cushion by adjustments of the selected moving the front of the control up feature. or down. Press Forward (5) to make forward To adjust the seatback, see Reclining adjustments of the selected Seat Backrests 0 57.
Page 57: Lumbar Adjustment
SEATS AND RESTRAINTS Press Forward (5) or Rearward (3) Back Bolster Lumbar Adjustment to adjust lumbar forward or To adjust back bolster, if equipped: Two-Way Lumbar and Bolster rearward. Adjustment Press Up (2) or Down (4) to adjust lumbar support up or down. Cushion Bolster To adjust cushion bolster, if equipped: Press and release or hold Feature...
Page 58: Thigh Support Adjustment
SEATS AND RESTRAINTS Four-Way Lumbar and Bolster Thigh Support Adjustment Warning (Continued) Adjustment The shoulder belt will not be against your body. Instead, it will be in front of you. In a crash, you could go into it, receiving neck or other injuries.
Page 59: Memory Seats
SEATS AND RESTRAINTS Tilt the top of the control Memory Seats rearward to recline. Tilt the top of the control forward to raise. Do not have a backrest reclined if the vehicle is moving. The SET, 1, 2, and (Exit) buttons on the driver door are used to High Performance Seat manually store and recall memory...
Page 60 SEATS AND RESTRAINTS 2. Adjust the driver seat, outside recalls the current driver's previously vehicle. See Storing Memory mirrors, and the power tilt and stored 1 or 2 position when the Positions listed previously. See also telescoping steering column (if ignition is changed from off to ON/ Vehicle Personalisation 0 145.
Page 61: Heated And Ventilated Front
SEATS AND RESTRAINTS If recalling the exit position, press front heated seats are on high, the and hold the appropriate manual level may automatically be lowered control for the exit feature not after approximately 30 minutes. recalling for two seconds. Then try When this feature is off, the heated recalling the exit position again.
Page 62: Rear Seats
SEATS AND RESTRAINTS seat is unoccupied, the auto heated or The heated or ventilated seat Rear Seats ventilated seats feature will not indicator lights do not turn on during activate that seat. The auto heated or a remote start. ventilated seats feature can be The temperature performance of an programmed to always be enabled unoccupied seat may be reduced.
Page 63 SEATS AND RESTRAINTS Folding the Seat Backrest To fold the seatback: Caution Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat.
Page 64: Heated Rear Seats
SEATS AND RESTRAINTS Raising the Seat Backrest To raise a seatback: Heated Rear Seats 1. Lift the seatback up. Make sure Warning the centre seat belt and latch do Warning not get trapped behind the seat. If either seatback is not locked, it Push the seatback rearward to If you cannot feel temperature could move forward in a sudden...
Page 65: Rear Seat Pass-Through Door
SEATS AND RESTRAINTS An indicator on the climate control Rear Seat Seat Belts display appears when this feature Pass-Through Door This section of the manual describes is on. how to use safety belts properly. Press the button once for the highest It also describes some things not to setting.
Page 66: How To Wear Safety Belts
SEATS AND RESTRAINTS When riding in a vehicle, you travel as Q: If my vehicle has airbags, why Warning (Continued) fast as the vehicle does. If the vehicle should I have to wear safety stops suddenly, you keep going until belts? area of the vehicle that is not something stops you.
Page 67: Three-Point Belt
SEATS AND RESTRAINTS It is very important for all occupants pelvic bones and you would be Three-Point Belt to buckle up. Statistics show that less likely to slide under the lap All seating positions in the vehicle unbelted people are hurt more often belt.
Page 68 SEATS AND RESTRAINTS 3. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. Position the release button on the buckle so that the safety belt could be quickly unbuckled if necessary.
Page 69 SEATS AND RESTRAINTS 5. To make the lap part tight, pull Before a door is closed, be sure the up on the shoulder belt. safety belt is out of the way. If a door is slammed against a safety belt, damage can occur to both the safety belt and the vehicle.
Page 70: Seat-Belt Use During
SEATS AND RESTRAINTS seat belts when the forward vehicle Safety Belt Pretensioners Rear Safety Belt Comfort Guides speed exceeds the threshold for This vehicle has safety belt Rear safety belt comfort guides may activation. pretensioners for front outboard provide added safety belt comfort for The system also activates during occupants.
Page 71: Safety System Check
SEATS AND RESTRAINTS Safety System Check Warning Check that the seat belt reminder, seat Do not bleach or dye seat belt belts, buckles, latch plates, and webbing. It may severely weaken retractors, are all working properly. the webbing. In a crash, they might Look for any other loose or damaged seat belt system parts that might keep not be able to provide adequate...
Page 72: Replacing Safety Belt System Parts
SEATS AND RESTRAINTS Replacing Safety Belt Have the safety belt pretensioners Airbag System checked if the vehicle has been in a System Parts after a Crash crash, or if the airbag readiness light Air-Bag System stays on after you start the vehicle or Warning while you are driving.
Page 73 SEATS AND RESTRAINTS All vehicle airbags have the word Warning Warning AIRBAG on the trim or on a label near the deployment opening. You can be severely injured or Because airbags inflate with great For frontal airbags, the word AIRBAG killed in a crash if you are not force and faster than the blink of an is on the centre of the steering wheel...
Page 74: Where Are The Airbags
SEATS AND RESTRAINTS Where Are the Airbags? Warning Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Always secure children properly in the vehicle. To read how, see Older Children 0 83 or Infants and Young Children 0 85.
Page 75: When Should An Airbag
SEATS AND RESTRAINTS Warning (Continued) and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag covering. Do not use seat accessories that block the inflation path of a seat-mounted side impact airbag.
Page 76: What Makes An Airbag Inflate
SEATS AND RESTRAINTS has electronic sensors that help the In addition, the vehicle has advanced Roof-rail airbags are designed to airbag system determine the severity technology frontal airbags. Advanced inflate in moderate to severe side of the impact. Deployment thresholds technology frontal airbags adjust the crashes depending on the location of can vary with specific vehicle design.
Page 77: How Does An Airbag Restrain
SEATS AND RESTRAINTS For airbag locations, see Where Are the But airbags would not help in many windscreen or being able to steer the Airbags? 0 73. types of collisions, primarily because vehicle, nor does it prevent people the occupant's motion is not toward from leaving the vehicle.
Page 78: Passenger Sensing System
SEATS AND RESTRAINTS exceeds a predetermined threshold. Airbags are designed to inflate airbag status indicator will light on You can lock the doors, turn off the only once. After an airbag inflates, the overhead console when the vehicle interior lights and turn off the hazard you will need some new parts for is started.
Page 79 SEATS AND RESTRAINTS passenger frontal airbag and knee The passenger sensing system is Warning (Continued) airbag should be allowed to inflate designed to turn off the front or not. outboard passenger frontal airbag and killed if the passenger frontal airbag knee airbag if: According to accident statistics, inflates and the passenger seat is in...
Page 80 SEATS AND RESTRAINTS senses that a person of adult size is 4. Reinstall the child restraint Warning (Continued) sitting properly in the front outboard following the directions provided passenger seat. by the child restraint Airbag Readiness Light 0 119 for manufacturer and refer to When the passenger sensing system more information, including...
Page 81 SEATS AND RESTRAINTS 6. Restart the vehicle. properly in the seat. Use the following Warning steps to allow the system to detect The passenger sensing system that person and enable the front may or may not turn off the If the front outboard passenger outboard passenger frontal airbag and airbags for a child in a child airbag is turned off for an...
Page 82: Servicing The Airbag-Equipped
SEATS AND RESTRAINTS covers, seat heaters, and seat If the passenger frontal airbag and Servicing the massagers can affect how well the passenger knee airbag are turned Airbag-Equipped Vehicle passenger sensing system operates. on, the on indicator will be lit. We recommend that you not use seat Airbags affect how the vehicle should If the passenger seat gets wet, dry the...
Page 83: Adding Equipment To The Airbag-Equipped Vehicle
SEATS AND RESTRAINTS Adding Equipment to the object, such as an aftermarket seat Airbag System Check heater or a comfort-enhancing pad or Airbag-Equipped Vehicle The airbag system does not need device, installed under or on top of regularly scheduled maintenance or Adding accessories that change the the seat fabric, could also interfere replacement.
Page 84: Replacing Airbag System Parts
SEATS AND RESTRAINTS Replacing Airbag System Child Restraints Warning Parts after a Crash Older Children Safety procedures must be followed at all times when disposing of the Warning vehicle or vehicle parts. Disposal A crash can damage the airbag should be performed only by an systems in the vehicle.
Page 85 SEATS AND RESTRAINTS The manufacturer instructions that Q: What is the proper way to wear Warning come with the booster seat state the safety belts? weight and height limitations for that A: An older child should wear a Never allow more than one child to booster.
Page 86: Infants And Young Children
SEATS AND RESTRAINTS Warning Warning (Continued) Never allow a child to wear the seat The shoulder belt locks when it is belt with the shoulder belt behind pulled all the way out of the their back. A child can be seriously retractor.
Page 87 SEATS AND RESTRAINTS Child restraints are devices used to Warning Warning restrain, seat, or position children in the vehicle and are sometimes called Never hold an infant or a child Children who are up against, child seats or car seats. while riding in a vehicle.
Page 88: Child Restraint Systems
SEATS AND RESTRAINTS Child Restraint Systems Warning To reduce the risk of neck and head injury in a crash, infants and toddlers should be secured in a rear-facing child restraint until age two, or until they reach the maximum height and weight limits of their child restraint.
Page 89 SEATS AND RESTRAINTS Securing an Add-On Child When securing an add-on child restraint, refer to the instructions that Restraint in the Vehicle come with the restraint which may be on the restraint itself or in a booklet, Warning or both, and to this manual. The child restraint instructions are important, A child can be seriously injured or so if they are not available, obtain a...
Page 90: Where To Put The Restraint
SEATS AND RESTRAINTS Where to Put the Restraint Depending on where you place the Danger (Continued) child restraint and the size of the According to accident statistics, child restraint, you may not be able to if not, the triggering of the airbags children and infants are safer when access adjacent safety belt assemblies poses a risk of fatal injury to the...
Page 91 SEATS AND RESTRAINTS ISOFIX Child Restraint Systems Installation Suitability Mass Group Class Size Fixture Vehicle ISOFIX Positions Front Rear Left Rear Centre Rear Right Passenger Passenger Passenger Passenger Carrycot ISO/L1 ISO/L2 ISO/R1 (up to 10 kg) ISO/R1 (up to 13 kg) ISO/R2 ISO/R3 ISO/R2...
Page 92 SEATS AND RESTRAINTS Child Restraint Systems Installation Suitability Mass Group Seating Positions Front Rear Left Rear Centre Rear Right Passenger Outboard Outboard Group 0 Up to 10 kg Group 0 + Up to 13 kg Group I 9 to 18 kg Group II 15 to 25 kg Group III...
Page 93: Isofix Child Restraint
SEATS AND RESTRAINTS ISOFIX Child Restraint No more than two ISOFIX child Systems Installation Suitability table restraint systems can be installed on by IUF. See Where to Put the Systems the rear seats at the same time, Restraint 0 89. though not right next to each other.
Page 94 SEATS AND RESTRAINTS If the child restraint or vehicle seat position does not have the ISOFIX system, you will be using the seat belt to secure the child restraint. Be sure to follow the instructions that came with the child restraint. If more than one child restraint needs to be installed in the rear seat, be sure to read Where to Put the Restraint 0 89.
Page 95: Securing Child Restraints
SEATS AND RESTRAINTS regarding the use of the top See Passenger Sensing System 0 77 and tether. See ISOFIX Child Restraint Passenger Airbag Status Systems 0 92. Indicator 0 120. 6. Before placing a child in the Warning child restraint, make sure it is securely held in place.
Page 96 SEATS AND RESTRAINTS When the passenger sensing Position the release button on system has turned off the front the buckle, away from the child outboard passenger frontal restraint system, so that the seat airbag and knee airbag, the off belt could be quickly unfastened indicator on the passenger airbag if necessary.
Page 97: Pedestrian Protection System
SEATS AND RESTRAINTS If the child restraint system has Pedestrian Protection Warning a lock-off mechanism, use it to System secure the vehicle safety belt. After the bonnet has lifted, the 6. Before placing a child in the Your vehicle is equipped with a bonnet hinge and latch area may be child restraint, make sure it is pedestrian protection system which is...
Page 98 SEATS AND RESTRAINTS The vehicle impacts a small object. Caution Warning For other frontal impacts or vehicle speeds, the airbags may also deploy. After the pedestrian protection Before beginning the procedure, See Air-Bag System 0 71. system has deployed, see your read all the instructions.
Page 99 SEATS AND RESTRAINTS For V-Series Models 4. Pull up on the front of the If you do not have the system bonnet to make sure the bonnet repaired, the pedestrian protection 1. Unlatch the bonnet. is latched securely and will system will not be operable in the 2.
Page 100: Storage Compartments
STORAGE Storage Storage Compartments Touch the bottom of the climate control system panel until the door automatically starts to open. The Warning storage area may contain a USB port. Storage Compartments See the infotainment manual. Storage Compartments ... . 99 Do not store heavy or sharp objects Keep the storage area door closed Instrument Panel Storage .
Page 101: Cupholders
STORAGE Cupholders Power Retractable Cover Centre Console Storage Anti-Pinch Feature If any object is in the path of the power cover when it is active, the cover will stop at the obstruction and auto-reverse to a preset position. The cover will return to normal operation after the obstruction is removed.
Page 102: Additional Storage Features
STORAGE Additional Storage Convenience Net Features If equipped, the convenience net is in the rear. Put small loads behind the net. It can also be positioned into an Cargo Tie-Downs envelope style to hold smaller items. The net is not for heavier loads. Store items as far forward as you can.
Page 103 INSTRUMENTS AND CONTROLS Instruments and Engine Coolant Temperature Adaptive Forward Lighting (AFL) Gauge ......118 Light .
Page 104: Steering Wheel Adjustment
INSTRUMENTS AND CONTROLS Security Messages ....143 Controls Power Tilt and Telescoping Wheel Service Vehicle Messages ..143 Starting the Vehicle Messages .
Page 105: Instruments And
INSTRUMENTS AND CONTROLS Steering Wheel Controls Windscreen Wiper/Washer frequent wipes. If Rainsense is enabled, see Rainsense later in this The infotainment system can be section. operated by using the steering wheel If the windshield wipers are in use for controls. See "Steering Wheel a while when driving, the exterior Controls"...
Page 106 INSTRUMENTS AND CONTROLS If the ignition is put in OFF while the Warning wipers are performing wipes due to windscreen washing or Rainsense In freezing weather, do not use the wipes, the wipers continue to run washer until the windscreen is until they reach the base of the warmed.
Page 107: Headlamp Washer
INSTRUMENTS AND CONTROLS The wiper operations return to normal lever returns to its starting position Setting the Time when the transmission is no longer in when released. See Rear Camera To set the time: N (Neutral) or the vehicle speed has Mirror 0 45.
Page 108: Power Sockets
INSTRUMENTS AND CONTROLS To set the clock display: These outlets are powered while the replaced with a standard minifuse by vehicle is in ON/RUN/START or ACC/ the dealer. A minifuse will not reset 1. Touch the SETTINGS screen ACCESSORY mode, or until the driver and will have to be replace if blown.
Page 109: Wireless Charging
INSTRUMENTS AND CONTROLS turn the Retained Accessory Power Caution (Continued) (RAP) off and then back on. See Retained Accessory Power (RAP) 0 196. be covered by the vehicle warranty. The power restarts when equipment Do not use equipment exceeding using 150 watts or less is plugged into maximum amperage rating of the outlet and a system fault is not 15 amperes.
Page 110 INSTRUMENTS AND CONTROLS compatible mobile device. To check Warning for phone or other device compatibility, see your retailer for Remove all metal objects from the details. charging pad before charging your mobile device. Metal objects, such Warning as coins, keys, rings, or paper clips, between the phone and charging Wireless charging can affect the pad will become very hot.
Page 111: Cigarette Lighter
INSTRUMENTS AND CONTROLS 2. Remove all objects from the To activate the cigarette lighter, push Caution charging pad. The system may it in and release. The lighter pops out not charge if there are any when it is ready to be used. If papers, pins, or other flammable objects on the charging pad.
Page 112: Warning Lights, Gauges, And Indicators
INSTRUMENTS AND CONTROLS Warning Lights, Gauges, and Indicators Warning lights and gauges can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement. Paying attention to the warning lights and gauges could prevent injury. Some warning lights come on briefly when the engine is started to indicate they are working.
Page 113: Instrument Cluster
INSTRUMENTS AND CONTROLS Instrument Cluster Base Level with Auto Stop...
Page 114 INSTRUMENTS AND CONTROLS Uplevel, Balanced Configuration...
Page 115 Press SEL to select the desired cluster configuration. 5. Exit the Display Layout menu by pressing Performance Configuration (CTS-V Cluster Application Displays Series and V-Sport Only) The cluster can display information The Performance configuration has regarding Navigation, Audio, and two interactive display zones.
Page 116: Speedometer
INSTRUMENTS AND CONTROLS Phone Info Pages : Press SEL while Info steering wheel controls. When FAV Pages is highlighted to select the Primary is selected, pressing While the Phone application page is items to be displayed in the DIC info will go to the next or previous displayed, press SEL to enter the displays.
Page 117: Mileometer
INSTRUMENTS AND CONTROLS Mileometer When the engine is on, the Fuel Gauge tachometer will indicate the engine's The odometer shows how far the revolutions per minute (rpm). The vehicle has been driven, in either tachometer may vary by several kilometres or miles. hundred rpm's, during Auto Stop mode, when the engine is shutting off Trip Odometer...
Page 118: Boost Gauge (Performance Configuration Only)
INSTRUMENTS AND CONTROLS Here are four things that some owners Boost Gauge (Performance ask about. None of these show a Configuration Only) problem with the fuel gauge: At the service station, the fuel pump shuts off before the gauge reads full. It takes a little more or less fuel to fill up than the gauge indicated.
Page 119: Engine Coolant Temperature
INSTRUMENTS AND CONTROLS Engine Coolant Temperature Gauge English 6.2 engine (LT4) shown, 3.6L Uplevel Balanced Configuration engine (LF3) similar This gauge measures the engine This gauge indicates boost under coolant temperature. Base Level heavier throttle. While driving under normal operating It displays the air pressure level in the conditions, if the needle moves into intake manifold before it enters the...
Page 120: Safety Belt Reminders
INSTRUMENTS AND CONTROLS Safety Belt Reminders Passenger Seat Belt Reminder turn off the reminder light and/or chime, remove the object from the Light Driver Safety Belt Reminder seat or buckle the safety belt. There is a passenger safety belt Light reminder light near the passenger Airbag Readiness Light There is a driver safety belt reminder...
Page 121: Passenger Airbag Status
INSTRUMENTS AND CONTROLS problem with the lights or the Warning passenger sensing system. See your retailer for service. If the airbag readiness light stays on after the vehicle is started or Warning comes on while driving, it means the airbag system might not be If the airbag readiness light ever When the vehicle is started, the working properly.
Page 122: Malfunction Indicator Lamp
INSTRUMENTS AND CONTROLS the engine is started. For vehicles with on to show that it is working when Caution a reconfigurable cluster, this light may the ignition is in Service Only Mode. not come on when the ignition is See Ignition Positions 0 193. Modifications to the engine, turned on.
Page 123 INSTRUMENTS AND CONTROLS If the light continues to flash, find a up. If this occurs, change the fuel The vehicle may not pass safe place to park. Turn the vehicle off brand. It may require at least one inspection if: and wait at least 10 seconds before full tank of the proper fuel to turn The light is on when the engine is...
Page 124: Brake System Warning Light
INSTRUMENTS AND CONTROLS Brake System Warning display in the Driver Information Warning Centre (DIC). See Brake System Light Messages 0 136. The brake system might not be The vehicle brake system consists of If the light does not come on, working properly if the brake two hydraulic circuits.
Page 125: Antilock Brake System (Abs)
INSTRUMENTS AND CONTROLS If this light stays on, the vehicle If the ABS light is the only light on, This light is green if LKA is available should be taken to a retailer as soon the vehicle has regular brakes, but the to assist.
Page 126: Traction Off Light
INSTRUMENTS AND CONTROLS See Forward Collision Alert (FCA) See Traction Control/Electronic Stability Traction Control System System 0 230. Control 0 206. ® (TCS)/StabiliTrak Light ® Traction Off Light StabiliTrak OFF Light This light comes on briefly when the engine is started. This light comes on briefly while This light comes on briefly while If the light does not come on, have...
Page 127: Engine Coolant Temperature Warning Light
INSTRUMENTS AND CONTROLS See Traction Control/Electronic Stability When the Light Is On Steady Caution (Continued) Control 0 206. This indicates that one or more of the tyres are significantly underinflated. and it may not be covered by the Engine Coolant vehicle warranty.
Page 128: Low Fuel Warning Light
INSTRUMENTS AND CONTROLS Low Fuel Warning Light This light comes on when the engine Caution (Continued) is in an Auto Stop. See Starting the Engine 0 194. The repairs would not be covered by the vehicle warranty. Check the Security Light oil level as soon as possible.
Page 129: High-Beam On Light
INSTRUMENTS AND CONTROLS High-Beam On Light Adaptive Forward Lighting Lamps On Reminder (AFL) Light This light comes on when the This light comes on when the exterior high-beam headlamps are in use. lamps are in use. See Exterior Lamp This light should come on briefly as Controls 0 153.
Page 130: Door Ajar Light
INSTRUMENTS AND CONTROLS Adaptive Cruise Control Light Door Ajar Light Information Displays Driver Information Centre (DIC) The DIC displays are shown in the left and right interactive display zones on the instrument cluster. The displays This light is white when the Adaptive show the status of many vehicle Cruise Control (ACC, if equipped) is on systems.
Page 131 INSTRUMENTS AND CONTROLS DIC Information Displays along with the trip odometer by : Press to move between the pressing and holding SEL while this interactive display zones in the The following is the list of all possible display is active. cluster.
Page 132 INSTRUMENTS AND CONTROLS Instantaneous Fuel Economy : Shows Turn Arrow : Shows the next Best Fuel Economy : Displays average the current fuel economy in either manoeuvre when using route fuel economy, the best fuel economy litres per 100 kilometers (L/100 km) over the selected distance, and a bar guidance.
Page 133: Head-Up Display (Hud)
INSTRUMENTS AND CONTROLS The Oil Life display must be reset Head-Up Display (HUD) The HUD information can be after each oil change. It will not reset displayed in various languages in itself. Do not to reset the Oil Life some vehicles. The speedometer Warning display accidentally at any time other reading and other numerical values...
Page 134: Vehicle Messages
INSTRUMENTS AND CONTROLS Some vehicle messages or alerts : Lift up and hold to brighten the displayed in the HUD may be cleared display. Press down and hold to dim by using the steering wheel controls. the display. Hold down to turn the See Vehicle Messages 0 135.
Page 135 INSTRUMENTS AND CONTROLS selected to cancel the setting. The Navigation View : This display vehicle must be in P (Park). See includes the information in the speed Instrument Cluster 0 112. view along with Turn-by-Turn Navigation information in some HUD Views vehicles.
Page 136: Vehicle Messages
INSTRUMENTS AND CONTROLS Clean the HUD lens with a soft cloth Vehicle Messages vehicle that may be noticed. At the sprayed with glass cleaner. Wipe the point that features are disabled, this Messages displayed on the DIC lens gently, then dry it. message displays.
Page 137: Brake System Messages
INSTRUMENTS AND CONTROLS Brake System Messages STEP ON BRAKE TO RELEASE entire front and/or rear of the vehicle. For cleaning instructions, HAND BRAKE BRAKE FLUID LOW see Exterior Care 0 308. This message displays when This message displays when the brake Heavy rain or snow is interfering attempting to release the Electric fluid level is low.
Page 138: Door Ajar Messages
INSTRUMENTS AND CONTROLS SHIFT TO PARK BEFORE EXITING Engine Cooling System ENGINE OVERHEATED TURN VEHICLE OFF Messages This message may display if Adaptive Cruise Control (ACC) is engaged This message displays and a A/C OFF ENGINE COOLANT HOT holding the vehicle at a stop, and the continuous chime sounds if the driver attempts to exit the vehicle.
Page 139: Engine Power Messages
INSTRUMENTS AND CONTROLS ENGINE OIL LOW ADD OIL may be reduced the next time the NO REMOTE DETECTED vehicle is driven. The vehicle may be On some vehicles, this message This message displays when the driven at a reduced speed while this displays when the engine oil level may transmitter battery may be weak.
Page 140: Lamp Messages
INSTRUMENTS AND CONTROLS REPLACE BATTERY IN TURN SIGNAL ON System does not need service. This message can display under the REMOTE KEY This message is displayed if the following conditions: indicator has been left on. Turn off This message displays when the The front of the vehicle or the indicator.
Page 141 INSTRUMENTS AND CONTROLS system will not operate. Adaptive SERVICE FORWARD COLLISION the Lane Keep Assist (LKA), Lane Cruise Control (ACC), Forward Departure Warning (LDW), and SYSTEM Collision Alert (FCA), and the Forward Forward Collision Alert (FCA) features. If this message displays, take the Automatic Braking (FAB) may not SERVICE PARK ASSIST vehicle to your dealer to repair the...
Page 142: Ride Control System
INSTRUMENTS AND CONTROLS area, such as the desert, where there This message turns off when the Launch Control is available when this is insufficient data for operation. This above conditions are no longer mode is selected. In this mode, the message may also activate during present and the warning message is Traction Control and Active Handling...
Page 143 INSTRUMENTS AND CONTROLS PERFORMANCE TRACTION 4 - intended for use on dry race track SERVICE REAR AXLE conditions. The Active Handling SPORT 2 (V-Series Only) If there is a problem detected with the System is disabled when this mode is Electronic Limited-Slip Rear Axle, this This message displays when this selected.
Page 144: Airbag System Messages
INSTRUMENTS AND CONTROLS SERVICE TRACTION CONTROL Safety Belt Messages Service Vehicle Messages This message displays when there is a AUTOMATIC SEATBELT SERVICE AC SYSTEM problem with the Traction Control TIGHTENING UNAVAILABLE This message displays if there is a System (TCS). See Traction Control/ problem with the air conditioning Electronic Stability Control 0 206.
Page 145: Starting The Vehicle Messages
INSTRUMENTS AND CONTROLS SERVICE VEHICLE SOON If the vehicle still does not start, turn If a tyre pressure message appears on the steering wheel the other way, and the DIC, stop as soon as possible. This message displays if there is a try starting the vehicle again.
Page 146: Vehicle Reminder Messages
INSTRUMENTS AND CONTROLS SHIFT TO PARK Vehicle Speed Messages Vehicle Personalisation This message displays when the SPEED LIMIT EXCEEDED Use the audio system controls to transmission needs to be shifted to access the personalisation menus for This message is displayed when the P (Park).
Page 147 INSTRUMENTS AND CONTROLS Driving Mode Press and the following may display: The selected language will display on the system, and voice recognition will Language Engine Sound Management reflect the selected language. Valet Mode Steering Valet Mode (If Equipped) Radio Suspension This will lock the infotainment system Vehicle Engine Sound Management...
Page 148 INSTRUMENTS AND CONTROLS Bose Audio Pilot Climate and Air Quality Bose Audio Pilot Maximum Start-Up Volume If equipped, this feature adjusts the Select and the following may display: volume based on the noise in the Auto Fan Max Speed Manage Favourites vehicle and speed.
Page 149 INSTRUMENTS AND CONTROLS Select Off or On. Select Off or On. Select Beeps or Safety Alert Seat. Auto Demist Forward Collision System Lane Change Alert When set to On, the front demist will This feature will turn on or off the This allows the Lane Change Alert automatically react to temperature Forward Collision Alert (FCA) and...
Page 150 INSTRUMENTS AND CONTROLS Easy Exit Options Rainsense Wipers Power Door Locks This feature automatically recalls the This allows the feature to be turned Select and the following may display: current driver's previously stored Exit on or off. Unlocked Door Anti-Lockout button position when exiting the Select Off or On.
Page 151 INSTRUMENTS AND CONTROLS Remote Lock, Unlock, Start Remote Start Auto Cool Seats Passive Door Lock Select and the following may display: If equipped and turned on, this This allows passive locking to be feature will turn on the ventilated turned on or off and selects feedback. Remote Unlock Light Feedback seats when using remote start on See Remote Keyless Entry (RKE) System...
Page 152 INSTRUMENTS AND CONTROLS Device Management Manage Apple CarPlay Devices Confidence Threshold Select to connect to a different phone Select to manage Apple devices. Apple This feature allows the adjustment of source, disconnect a phone, or delete CarPlay must be on for this feature to the sensitivity of the speech a phone.
Page 153 INSTRUMENTS AND CONTROLS Proximity Sensing Guidance Lines Clear All Private Data When on, certain screen buttons and Select to turn Off or On. See This allows selection to clear all features will become visible when a Assistance Systems for Parking or private information from the vehicle.
Page 154: Exterior Lamp Controls
LIGHTING Lighting Lighting Features Exterior Lighting Entry Lighting ....159 Exit Lighting ..... . 159 Exterior Lamp Controls Battery Load Management .
Page 155: Lighting
LIGHTING ® IntelliBeam System Driving with IntelliBeam used. See Headlamp Main/ Dipped-Beam Changer 0 155 and The system only activates the main If equipped, this system turns the Flash-to-Pass 0 155. beams when driving over 40 km/h vehicle's main beam headlamps on (25 mph).
Page 156: Exterior Lamps Off Reminder
LIGHTING Your vehicle's windscreen is dirty, Headlamp Main/ If the headlights are off or in cracked, or obstructed by dipped-beam mode, the Dipped-Beam Changer something that blocks the view of main-beam headlights will turn the light sensor. : Push the indicator lever away on.
Page 157: Automatic Headlamp System
LIGHTING The DRL turn off when the headlamps If equipped, the light sensor is on top Lights On with Wipers of the instrument panel or on the are turned to . DRL also If the windscreen wipers are activated windscreen near the rearview mirror. turns off when the ignition is off.
Page 158: Hazard Warning Flashers
LIGHTING driving a short distance is required to Indicator and Lane-Change If after signalling a turn or lane calibrate the AFL. See Exterior Lamp change, the arrow flashes rapidly or Signals Controls 0 153. does not come on, a signal bulb might be burned out.
Page 159: Control
LIGHTING Interior Lighting Courtesy Lamps Reading Lamps The courtesy lamps come on when There are front and rear reading Instrument Panel any door is opened and the dome lamps on the overhead console and Illumination Control lamp is in the DOOR position. over the rear passenger doors.
Page 160: Lighting Features
LIGHTING Lighting Features comes on after the ignition is changed to the OFF position. The exterior lamps and interior light remain on for Entry Lighting a set amount of time, then automatically turn off. The headlamps, tail lamps, number plate lamps, dome lamps, and most of The exterior lamps turn off the interior lights turn on briefly at immediately by turning the exterior...
Page 161: Battery Power Protection
LIGHTING The battery can be discharged at idle recommended that the driver reduce To keep the lamps on for more than if the electrical loads are very high. the electrical loads as much as 10 minutes, the ignition must be in This is true for all vehicles.
Page 162: Introduction
INFOTAINMENT SYSTEM Infotainment System Introduction Performance Data Recorder (PDR) Infotainment Introduction If equipped, the PDR icon displays on See the infotainment manual for the Home page. Infotainment ..... 161 information on the radio, audio Important Information Performance Data...
Page 163: Infotainment System
INFOTAINMENT SYSTEM countries and situations. Vehicles voices or images of other persons The PDR records video, audio, and equipped with the PDR System are or collecting other personal data vehicle data. This data is stored on a intended for use on private tracks with the PDR System.
Page 164 INFOTAINMENT SYSTEM Touch Start Recording to begin Define Finish Line recording. After recording begins, this To track and record the vehicle's lap button changes to Stop Recording. times, the starting point of a lap must Touch to stop the recording session. be set.
Page 165 INFOTAINMENT SYSTEM Choose Video Overlay A list of recordings displays. Delete Recording : Touch to delete Select the recording to start playback. the video. A confirmation screen Touch the Choose Video Overlay displays. Touch Yes to delete or No to screen button to display the menu Touch next to an item to delete...
Page 166 INFOTAINMENT SYSTEM Sport: Event Odometer: This displays the green when the vehicle distance driven since the recording accelerates. The dot is white when began. the vehicle is not moving. A white dot is the default. Track: Brake and Throttle Graphic: Displays the percentage value of brake and throttle pedal position from 0 100%.
Page 167 INFOTAINMENT SYSTEM Event Odometer: Displays the As the vehicle passes each speed Touch the Settings button from the distance driven since the recording and distance milestone, it is PDR menu to display settings. began. displayed on the overlay. Drive Mode: Displays the vehicle's Throttle Position: Displays current drive mode.
Page 168 INFOTAINMENT SYSTEM Audio will not record during Valet Mode. Record Audio : Allows audio to be recorded along with video. Audio will not record during Valet Mode. Software Information : Displays PDR software information and version numbers. Toolbox Software : Allows for the evaluation of the driver and the vehicle performance on a personal computer after a recorded event.
Page 169: Climate Control Systems
CLIMATE CONTROLS Climate Controls Climate Control Systems Dual Automatic Climate Control System Climate Control Systems The climate control buttons and the touch screen are used to adjust the heating, Dual Automatic Climate Control cooling, and ventilation. System ......168 Rear Climate Control System .
Page 170: Climate Controls
CLIMATE CONTROLS adjusted. The air delivery mode can be Climate Control Touch Screen adjusted on the climate control status The fan, air delivery mode, air screen. conditioning, driver and passenger temperatures, and SYNC settings can Climate Control Function with Stop/ be controlled by pressing CLIMATE on Start (If Equipped) the infotainment home screen or the...
Page 171 CLIMATE CONTROLS Automatic Operation English units can be changed to control screen. The rear climate metric units through the instrument control settings can now be adjusted The system automatically controls the from the front passenger area. cluster. See Cluster Options Menu fan speed, air delivery, air under Instrument Cluster 0 112.
Page 172 CLIMATE CONTROLS airflow can be controlled manually. run. Outside temperatures below Pressing this button cancels automatic Press AUTO to return to automatic freezing may also prevent the air recirculation. Press AUTO to return to operation. conditioner from running. automatic operation; recirculation runs automatically as needed.
Page 173 CLIMATE CONTROLS The rear window demister can be set heat or cool the inside of the vehicle. Caution (Continued) to automatic operation. See Climate The rear demist may come on during and Air Quality under Vehicle remote start based on cold ambient stations clearly.
Page 174: Rear Climate Control
CLIMATE CONTROLS The climate control system uses the The air quality sensor system does not 2. AUTO (Automatic Operation) sensor information to adjust the protect against carbon monoxide (CO), 3. Temperature Control temperature, fan speed, recirculation, which you cannot see or smell. See and air delivery mode for best Engine Exhaust 0 199.
Page 175 CLIMATE CONTROLS 6. Front (Front Climate Control to unlink the set driver and rear : Press the desired mode Touch Screen) temperatures. The SYNC button button on the touch screen or the turns off. MODE button on the rear faceplate to 7.
Page 176: Air Vents
CLIMATE CONTROLS Air Vents Use of non-GM approved bonnet air flow deflectors can adversely Adjustable air vents are in the centre affect the performance of the and on the side of the instrument system. Check with your dealer panel. before adding equipment to the outside of the vehicle.
Page 177: Passenger Compartment Air Filter
CLIMATE CONTROLS Maintenance environment and may also create unsafe conditions based on inhalation, combustion, frostbite, or other Passenger Compartment health-based concerns. Air Filter The filter reduces dust, pollen, and other airborne irritants from outside air that is pulled into the vehicle. The filter should be replaced as part of routine scheduled maintenance.
Page 178 DRIVING AND OPERATING Driving and Parking over Things Adaptive Cruise Control ..217 That Burn ..... . . 198 Driver Assistance Systems Operating Extended Parking .
Page 179: Driving And Operating
DRIVING AND OPERATING Towing Equipment (L4 Driving Information Become familiar with vehicle Engine) ......244 features before driving, such as Towing Equipment (V-Series) .
Page 180: Defensive Driving
DRIVING AND OPERATING See the infotainment manual for Braking Once the power assist is used up, it information on that system or the can take longer to stop and the brake Braking action involves perception navigation system, if equipped, pedal will be harder to push. time and reaction time.
Page 181: Off-Road Recovery
DRIVING AND OPERATING If the steering wheel is turned until it Steering in Emergencies 1. Ease off the accelerator and then, reaches the end of its travel and is if there is nothing in the way, There are some situations when held against that position for an steer the vehicle so that it steering around a problem may be...
Page 182: Track Events And Competitive
DRIVING AND OPERATING Defensive drivers avoid most skids by to a lower gear. Any sudden Engine Oil taking reasonable care suited to changes could cause the tyres to 2.0L (LTG) Engine existing conditions, and by not slide. overdriving those conditions. But This is not available with a track Remember: Antilock brakes help avoid skids are always possible.
Page 183 DRIVING AND OPERATING Automatic Transmission Fluid Brake cooling can be improved if the Caution (Continued) front brake disc splash shield and Have the gearbox fluid set to the track front tyre deflector are removed. specific oil level prior to track usage. drive as long or as fast the first Removing the shield will require that Gearbox fluid should be changed after...
Page 184 DRIVING AND OPERATING Racing/Track Brake Burnishing between stops. Repeat until the Caution Procedure brake pedal travel starts to increase. Depending on The new vehicle running-in period conditions, this should take no Caution should be completed before longer than 25 brake performing the brake burnishing applications.
Page 185 DRIVING AND OPERATING Rear: -1.7 deg camber, 0.2 deg Tyre Inflation Pressure Warning total toe Guidelines V-Series Vehicles Equipped with Tracks/courses put high loads on Tyre inflation pressures affect vehicle handling and tyre life, and should be tyres operating at high speed, which the Original Equipment Tyres adjusted for various types of tracks/ can lead to tyre failure if not...
Page 186: Driving On Wet Roads
DRIVING AND OPERATING Inflate tyres to a minimum of 300 kPa For continuous road/street course use, Warning (Continued) (44 psi) when cold. hot tyre inflation pressure may be adjusted to a minimum of 270 kPa Do not reduce tyre inflation pressure After driving through a large puddle (39 psi).
Page 187: Hill And Mountain Roads
DRIVING AND OPERATING Other Rainy Weather Tips Pay attention to special road signs Warning (e.g., falling rocks area, winding Besides slowing down, other wet roads, long gradients, overtaking weather driving tips include: Using the brakes to slow the vehicle or no-overtaking zones) and take on a long downhill slope can cause Allow extra following distance.
Page 188: If The Vehicle Is Stuck
DRIVING AND OPERATING be applied sooner than when on Warning Warning (Continued) dry pavement. See Antilock Brake System (ABS) 0 203. Snow can trap engine exhaust For more information about CO, see See Driver Mode Control 0 208 under the vehicle. This may cause Engine Exhaust 0 199.
Page 189: Vehicle Load Limits
DRIVING AND OPERATING might need to be towed out. If the Warning Warning (Continued) vehicle does need to be towed out, see Towing the Vehicle 0 305. If the vehicle's tyres spin at high the way the vehicle handles. speed, they can explode, and you or This could cause loss of control Vehicle Load Limits others could be injured.
Page 190 DRIVING AND OPERATING Tyre and Loading Information A vehicle-specific Tyre and never exceed XXX kg or Label Loading Information label is XXX lbs. on your vehicle's attached to the vehicle's centre placard. pillar (B-pillar). The Tyre and Determine the combined Loading Information label shows weight of the driver and the size of the original tyres and...
Page 191 DRIVING AND OPERATING exceed the available cargo and luggage load capacity calculated in Step 4. If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle.
Page 192 DRIVING AND OPERATING Certification Label Warning Things inside the vehicle can strike and injure people in a sudden stop or turn, or in a crash. Put things in the cargo area of the vehicle. In the cargo area, put them as far forward as possible.
Page 193: Starting And Operating
DRIVING AND OPERATING Starting and Operating Check engine oil with every Warning refuelling and add if necessary. Oil and fuel consumption may be New Vehicle Run-In Exposed edges of parts containing higher than normal during the carbon fiber and other composite first 2,400 km (1,500 mi).
Page 194: Ignition Positions
DRIVING AND OPERATING Ignition Positions To shift out of P (Park), the vehicle wheels turned off centre. If this must be in ACC/ACCESSORY or ON/ happens, the vehicle may not start. RUN, and the brake pedal must be Move the steering wheel from left to applied.
Page 195: Starting The Engine
DRIVING AND OPERATING lever must be in P (Park) to turn With the ignition off, pressing the and audio systems will operate as they the ignition switch to the OFF button once without the brake pedal do in ON/RUN, but the vehicle will position.
Page 196 DRIVING AND OPERATING engine immediately after starting Caution (Continued) Caution it. Operate the engine and transmission gently until the oil resulting damage would not be Cranking the engine for long warms up and lubricates all covered by the vehicle warranty. See periods of time, by returning the moving parts.
Page 197: Retained Accessory
DRIVING AND OPERATING Auto Engine Stop/Start The interior comfort level has not When comes on green in the reached the required level for the instrument cluster, the system is When the brakes are applied and the climate control system or demist active.
Page 198: Shifting Out Of Park
DRIVING AND OPERATING 2. Move the shift lever into P (Park) brake and then shift into P (Park). To Warning (Continued) by holding in the button on the find out how, see Shifting Into Park shift lever and pushing the lever listed previously.
Page 199: Parking
DRIVING AND OPERATING 2. Release the parking brake. See Warning (Continued) Warning (Continued) Electric Parking Brake 0 204. 3. Press the shift lever button. Always apply parking brake. See For vehicles with automatic Parking Brake or Electric Parking transmission, the key can only be 4.
Page 200: Engine Exhaust
DRIVING AND OPERATING If the vehicle is left in P (Park) while Engine Exhaust Warning (Continued) running and the Remote Keyless Entry (RKE) transmitter is outside the There are holes or openings Warning vehicle, the vehicle will turn off after in the vehicle body from one hour.
Page 201: Running The Vehicle While
DRIVING AND OPERATING Running the Vehicle While Automatic Transmission Warning (Continued) Parked Do not leave the vehicle when the It is better not to park with the engine engine is running unless you have running. to. If you have left the engine If the vehicle is left with the engine running, the vehicle can move running, follow the proper steps to be...
Page 202 DRIVING AND OPERATING lever button and move the shift lever D : This position is for normal driving. Warning into another gear. See Shifting out of It provides the best fuel economy. Park 0 197. If you need more power for Shifting into a drive gear while the overtaking, and you are: engine is running at high speed is...
Page 203: Manual Mode
DRIVING AND OPERATING Manual Mode To enter Permanent Tap Shift Mode: Caution 1. With the gear lever in D (Drive), Tap Shift press the M (Manual Mode) Spinning the tyres or holding the button on the top of the gear vehicle in one place on a hill using Caution lever.
Page 204: All-Wheel Drive
DRIVING AND OPERATING While using Tap Shift, the vehicle will Drive Systems Brakes have firmer, quicker shifting. You can use this for sport driving or when All-Wheel Drive Antilock Brake climbing or descending hills, to stay in System (ABS) gear longer or to downshift for more Vehicles with this feature always send power or engine braking.
Page 205: Electric Parking Brake
DRIVING AND OPERATING a sudden obstacle, a computer senses Using ABS The vehicle has an Electric Parking the wheels are slowing down. If one of Brake (EPB). The switch for the EPB is Do not pump the brakes. Just hold the the wheels is about to stop rolling, the on the instrument panel, to the left of brake pedal down firmly and let ABS...
Page 206: Brake Assist
DRIVING AND OPERATING The red handbrake status light will The vehicle may automatically apply Caution flash and then stay on once the EPB is the EPB in some situations when the fully applied. If the red handbrake vehicle is not moving. This is normal, Driving with the parking brake on status light flashes continuously, then and is done to periodically check the...
Page 207: Ride Control Systems
DRIVING AND OPERATING supplement the power brake system Ride Control Systems disengage. Cruise control may be under conditions where the driver has turned back on when road conditions quickly and forcefully applied the allow. Traction Control/Electronic brake pedal in an attempt to quickly Both systems come on automatically Stability Control stop or slow down the vehicle.
Page 208 DRIVING AND OPERATING The indicator light for both systems is To turn off only TCS, press and Drive the vehicle. if comes on and in the instrument cluster. This release . The traction off light stays on, the vehicle may need more light will: time to diagnose the problem.
Page 209: Driver Mode Control
DRIVING AND OPERATING To turn TCS and StabiliTrak on again, While in the Sport and/or Track on the MODE switch on the centre Modes, the vehicle monitors driving console to make a mode selection. The press and release . The traction off behaviour and automatically enables first press of the switch will show the light...
Page 210 DRIVING AND OPERATING Snow/Ice Mode There are seven attributes that vary by mode shown below. Not all vehicles Use when more traction is needed have all features, depending on the during slippery conditions. vehicle options. When selected, the Snow/Ice Mode indicator will display in the DIC.
Page 211 DRIVING AND OPERATING Modes: TOUR SPORT SNOW/ICE TRACK Default Throttle Progression Normal Sport Normal Sport/Track Transmission Shift Mode Normal Sport Normal Track Steering (Assist Effort) Comfort Sport Comfort Track Magnetic Ride Control (if equipped) Tour Sport Tour Track Launch Control Available Stability Control Normal...
Page 212: Competitive Driving Mode
DRIVING AND OPERATING is moving. The transmission will StabiliTrak can be turned off by Steering also shift differently to assist in pressing and holding the button Suspension maintaining traction. for five seconds. The default will be to follow the Steering (Assist Effort) PTM (Performance Traction vehicle mode switch settings, but the Management) (if equipped)
Page 213 DRIVING AND OPERATING wheel. See Limited-Slip Differential will modify the level of engine power (V-Series Only) later in this section. for a smooth and consistent Adjust your driving accordingly. corner exit. The PTM system contains five modes. Press again, or turn the ignition to These modes are selected by pressing ACC/ACCESSORY and restart the the Driver Mode Control/PTM buttons...
Page 214 DRIVING AND OPERATING StabiliTrak is on and engine power PERF TRAC 5 RACE ACTIVE race events where consistent zero to is slightly reduced. 60 and quarter mile times are HANDLING OFF desirable. PERF TRAC 3 SPORT ACTIVE For use by experienced drivers Launch Control is only available when who are familiar with the track.
Page 215: Limited-Slip Differential
DRIVING AND OPERATING pedal to wide open throttle. Allow the slip differential, driven under severe Cruise Control engine rpm to stabilise. A smooth, conditions, the rear axle fluid should quick release of the brake pedal, while be changed. See Competitive Driving Warning maintaining the fully pressed Mode 0 211 and Scheduled...
Page 216 DRIVING AND OPERATING cruise control is activated, cruise hold to accelerate. If the cruise control 1. Press control is disengaged. See Forward is already active, use to increase 2. Get up to the desired speed. Collision Alert (FCA) System 0 230. vehicle speed.
Page 217 See Instrument Cluster 0 112. vehicle down (CTS model only). brake to slow the vehicle down (CTS The increment value used depends on model only). Also, you may have to The speedometer reading can be the units displayed.
Page 218: Adaptive Cruise Control
DRIVING AND OPERATING Ending Cruise Control If a vehicle is detected in your path, Warning (Continued) ACC can apply acceleration or limited, There are four ways to end cruise moderate braking to maintain the control: required while driving and you selected following gap.
Page 219 DRIVING AND OPERATING by 1 km/h (1 mph), pressSET down 2. Get up to the desired speed. to the first detent. To decrease speed 3. Press and release the SET to the next 5 km/h (5 mph) mark on control. the speedometer, press SET down to 4.
Page 220 DRIVING AND OPERATING Resuming a Set Speed Press and hold +RES up until the Reducing Speed While ACC is at a desired set speed appears on the Set Speed If the ACC is set at a desired speed display, then release it. and then the brakes are applied, the If ACC is already activated, do one of ACC is disengaged without erasing the...
Page 221 DRIVING AND OPERATING Selecting the Follow Distance Changing the gap setting flash on the windscreen. Either eight automatically changes the alert timing beeps will sound from the front, When a slower moving vehicle is sensitivity (Far, Medium, or Near) for or both sides of the Safety Alert Seat detected ahead within the selected the Forward Collision Alert (FCA)
Page 222 DRIVING AND OPERATING ACC automatically slows the vehicle Notification to Resume ACC Warning (Continued) down and adjusts vehicle speed to ACC will maintain a follow gap behind follow the vehicle in front at the a detected vehicle and slow your caution when using ACC.
Page 223 DRIVING AND OPERATING A DIC warning message may display ACC Override Warning (Continued) indicating to shift to P (Park) before If using the accelerator pedal while exiting the vehicle. See Vehicle ACC is active, a warning message on exiting or entering exit ramps. You Messages 0 135.
Page 224 DRIVING AND OPERATING guardrails, and other stationary Do Not Use ACC on Hills and When objects when entering or exiting a Towing a Trailer bend. This is normal operation. The vehicle does not need service. Other Vehicle Lane Changes When following a vehicle and entering a bend, ACC may not detect the vehicle ahead and accelerate to the set speed.
Page 225: Driver Assistance Systems
DRIVING AND OPERATING Erasing Speed Memory Driver Assistance Warning (Continued) The cruise control set speed is erased Systems Detect vehicles or objects from memory if is pressed or if This vehicle may have features that outside the area monitored by the ignition is turned off.
Page 226: Or Reversing
Always check around the object. the vehicle when parking or backing. Surround Vision (CTS Only) Rear Vision Camera (RVC) If equipped, Surround Vision displays When the vehicle is shifted into an image of the area surrounding the...
Page 227 Series Only) are out of position will not display 2. Area Not Shown surround view correctly. Always Front Vision Camera (CTS Only) check around the vehicle when parking or backing. If equipped, a view of the area in front of the vehicle displays in the centre console.
Page 228 DRIVING AND OPERATING forward gear, or by pressing CAMERA Parking Assist Warning (Continued) in the centre console, and when the With RPA, and if equipped with FPA, vehicle is moving forward slower than as the vehicle moves at speeds of less always check the area around the 8 km/h (5 mph).
Page 229 DRIVING AND OPERATING the vehicle rear, or <0.3 m (1 ft) in the Turning the Features On or Off Automatic Parking Assist (APA) vehicle front), five beeps will sound If equipped, APA searches for and from the front or rear depending steers the vehicle into parallel or where the object is detected, or both perpendicular parking spots.
Page 230 DRIVING AND OPERATING will briefly vibrate as a reminder to Warning (Continued) remove hands from the steering wheel. Check surroundings and vehicle. Always be prepared to stop continue braking or accelerating as the vehicle during the parking needed, and be prepared to stop to manoeuvre.
Page 231: Forward Collision Alert (Fca)
DRIVING AND OPERATING APA may automatically disengage if: Alert (LCA), and/or Forward Warning Automatic Braking (FAB) can help to The steering wheel is used by the avoid a crash or reduce crash damage. driver. FCA is a warning system and does not apply the brakes.
Page 232 DRIVING AND OPERATING Detecting the Vehicle Ahead Warning (Continued) also not detect a vehicle on winding or hilly roads, or in conditions that can limit visibility such as fog, rain, or snow, or if the headlamps or Without Head-Up Display windscreen are not cleaned or in When your vehicle approaches proper condition.
Page 233: Forward Automatic
DRIVING AND OPERATING The vehicle-ahead indicator will alerts will vary based on vehicle speed. Unnecessary Alerts display amber when you are following The faster the vehicle speed, the FCA may provide unnecessary alerts a detected vehicle ahead much too farther away the alert will occur. for turning vehicles, vehicles in other closely.
Page 234 DRIVING AND OPERATING driving in a forward gear. Depending Warning (Continued) Warning on the situation, the vehicle may automatically brake moderately or Detect all vehicles, especially FAB may automatically brake the hard. This forward automatic braking vehicles with a trailer, vehicle suddenly in situations can only occur if a vehicle is detected.
Page 235: Side Blind Zone Alert (Sbza)
DRIVING AND OPERATING moving vehicles in the side blind zone Warning Warning (or spot) areas. When the vehicle is in a forward gear, the left or right side IBA may increase vehicle braking in LCA does not alert the driver to mirror display will light up if a moving situations when it may not be vehicles outside of the system...
Page 236 DRIVING AND OPERATING LCA Detection Zones When the System Does Not Seem to Work Properly The LCA sensor covers a zone of approximately one lane over from The LCA system requires some driving both sides of the vehicle, or 3.5 m for the system to calibrate to (11 ft).
Page 237: Lane Departure
DRIVING AND OPERATING LCA may not always alert the driver to Declaration of Conformity detects that you are actively steering. vehicles in the next lane over, Override LKA by turning the steering See Declaration of Conformity 0 330. especially in wet conditions or when wheel.
Page 238 DRIVING AND OPERATING The LKA system does not Warning (Continued) Warning continuously steer the vehicle. If LKA does not detect active driver steering, proper condition, or if the sun Using LKA while towing a trailer or an alert and chime may be provided. shines directly into the on slippery roads could cause loss Move the steering wheel to dismiss.
Page 239: Fuel
DRIVING AND OPERATING Fuel Fuel Additives Caution Petrol should contain detergent Use the recommended fuel for proper Do not use fuels with any of the additives that help prevent engine and vehicle maintenance. following conditions; doing so may fuel system deposits from forming. For the LTG 2.0L L4 turbo engine, use damage the vehicle and void its Clean fuel injectors and intake valves...
Page 240 DRIVING AND OPERATING The vehicle has a capless refuelling Warning (Continued) Warning (Continued) system and does not have a fuel cap. The filling nozzle must be fully To help avoid injuries to you weather. Insert the refuelling inserted and latched prior to starting and others, read and follow nozzle slowly and wait for any fuel flow.
Page 241: Filling A Portable Fuel
DRIVING AND OPERATING 2. Insert and latch the funnel into Warning Warning (Continued) the capless fuel system. If a fire starts while you are You or others could be badly Warning refuelling, do not remove the burned and the vehicle could be nozzle.
Page 242: Trailer Towing
DRIVING AND OPERATING Trailer Towing Do not tow a trailer during the Warning first 2 414 km (1,500 mi) to prevent damage to the engine, axle General Towing When towing a trailer, exhaust or other parts. gases may collect at the rear of the Information Then during the first 800 km vehicle and enter if the tailgate,...
Page 243 DRIVING AND OPERATING itself. Get acquainted with the Reversing If the trailer indicator bulbs burn out, handling and braking of the rig before the arrows on the instrument cluster Hold the bottom of the steering wheel setting out for the open road. will still flash for turns.
Page 244: Trailer Towing (L4 Engine)
DRIVING AND OPERATING turning the engine off. If the overheat 4. Reapply the brake pedal. Then Check periodically to see that all hitch warning comes on, see Engine apply the parking brake and shift nuts and bolts are tight. Overheating 0 262. into P (Park).
Page 245: Trailer Towing (V-Series)
DRIVING AND OPERATING the amount of tongue weight the GVW because the vehicle will be Total Weight on Your Vehicle's vehicle can carry. See Weight of the carrying that weight, too. See Vehicle Tyres Trailer Tongue later in this section. Load Limits 0 188.
Page 246: Towing Equipment
DRIVING AND OPERATING Will any holes be made in the Because the vehicle has antilock Conversions and body of the vehicle when the brakes, do not tap into the vehicle's Add-Ons trailer hitch is installed? If so, seal brake system. If this is done, both the holes when the hitch is brake systems will not work well or Add-On Electrical...
Page 247 DRIVING AND OPERATING Caution Some electrical equipment can damage the vehicle or cause components not to work and would not be covered by the vehicle warranty. Always check with your dealer before adding electrical equipment. Add-on equipment can drain the vehicle's 12-volt battery, even if the vehicle is not operating.
Page 248: Vehicle Care
VEHICLE CARE Vehicle Care Park Brake and P (Park) Summer Tyres ....283 Mechanism Check ....268 Tyre Pressure .
Page 249: Vehicle Care
VEHICLE CARE Appearance Care General Information Damage to vehicle components resulting from modifications or the Exterior Care ..... . 308 For service and parts needs, visit your installation or use of non-GM certified Floor Mats .
Page 250: Vehicle Checks
VEHICLE CARE Vehicle Checks Caution Doing Your Own Even small amounts of contamination can cause damage to Service Work vehicle systems. Do not allow contaminants to contact the fluids, Warning reservoir caps, or dipsticks. It can be dangerous to work on your vehicle if you do not have the Bonnet proper knowledge, service manual,...
Page 251: Overview
VEHICLE CARE Engine Compartment Overview 2.0L L4 Engine (LTG)
Page 252 VEHICLE CARE 1. Windscreen Washer Fluid Reservoir. See Washer Fluid 0 263. 2. Remote Positive (+) Battery Terminal. See Jump Starting 0 303. 3. Engine Compartment Fuse Block 0 272. 4. Engine Coolant Surge Tank and Pressure Cap. See Cooling System 0 258.
Page 253 VEHICLE CARE 6.2L V8 Engine (LT4)
Page 254: Engine Oil
VEHICLE CARE 1. Windscreen Washer Fluid Engine Oil dipstick handle is a loop. See Engine Reservoir. See Washer Compartment Overview 0 250 for the To ensure proper engine performance Fluid 0 263. location. and long life, careful attention must 2. Remote Positive (+) Battery be paid to engine oil.
Page 255 VEHICLE CARE If unable to wait two hours, the 15 minutes, add 1 L (1 qt) of the Add enough oil to put the level engine must be off for at least recommended oil and then recheck somewhere in the proper operating 15 minutes if the engine is warm, the level.
Page 256: Engine Oil Life System
VEHICLE CARE Engine Oil Additives/Engine Oil or pouring it on the ground, into Caution sewers, or into streams or bodies of Flushes water. Recycle it by taking it to a place Use only engine oil that is approved Do not add anything to the oil. The that collects used oil.
Page 257: Automatic Transmission
VEHICLE CARE an oil change is not necessary for up Automatic Transmission Engine Air Cleaner/Filter to a year. The engine oil and filter Fluid The engine air cleaner/filter is in the must be changed at least once a year engine compartment on the driver and, at this time, the system must be How to Check Automatic side of the vehicle.
Page 258 VEHICLE CARE engine air cleaner/filter or 5. Reverse Steps 1-3 to reinstall the Warning components with water or air cleaner/filter cover. compressed air. Operating the engine with the air To inspect or replace the air cleaner/ cleaner/filter off can cause you or filter: others to be burned.
Page 259: Cooling System
VEHICLE CARE Cooling System Warning The cooling system allows the engine Heater and radiator hoses, and to maintain the correct working other engine parts, can be very hot. temperature. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak.
Page 260: Engine Coolant
VEHICLE CARE Engine Coolant Warning (Continued) Caution The cooling system in the vehicle is fire and you or others could be If improper coolant mixture, filled with DEX-COOL engine coolant. burned. Use a 50/50 mixture of inhibitors, or additives are used in See Scheduled Maintenance 0 315 and clean, drinkable water and the vehicle cooling system, the...
Page 261 VEHICLE CARE Checking Coolant If no coolant is visible in the coolant Warning surge tank, add coolant as follows: The vehicle must be on a level surface when checking the coolant level. How to Add Coolant to the Steam and scalding liquids from a hot cooling system can blow out Coolant Surge Tank It is normal to see coolant moving in...
Page 262 VEHICLE CARE system, including the coolant 3. Fill the surge tank top chamber Warning (Continued) surge tank pressure cap and with the proper DEX-COOL coolant mixture to the bottom of upper radiator hose, is no burned. Use a 50/50 mixture of longer hot.
Page 263: Engine Overheating
VEHICLE CARE Then check to see if the engine Caution Warning (Continued) cooling fan is running. If the engine is overheating, the fan should be If the pressure cap is not tightly until it cools down. Wait until there running. If it is not, do not continue installed, coolant loss and possible is no sign of steam or coolant to run the engine.
Page 264: Washer Fluid
VEHICLE CARE If No Steam Is Coming from the back on, continue to drive normally Open the cap with the washer symbol and have the cooling system checked on it. Add washer fluid until the tank Engine Compartment for proper fill and function. is full.
Page 265: Brakes
The sound can come and go or be Cold Weather Brake Operation heard all the time when the vehicle is Properly torqued wheel nuts are (CTS-V Model) moving, except when applying the necessary to help prevent brake brake pedal firmly.
Page 266: Brake Fluid
VEHICLE CARE Drive the vehicle and apply the brakes A fluid leak in the brake hydraulic When the brake fluid falls to a low several times if it is washed before system. Have the brake hydraulic level, the brake warning light comes long-term storage.
Page 267: Battery
VEHICLE CARE Caution Warning If brake fluid is spilled on the Batteries have acid that can burn vehicle's painted surfaces, the paint you and gas that can explode. You finish can be damaged. Immediately can be hurt badly if you are not wash off any painted surface.
Page 268: All-Wheel Drive
VEHICLE CARE All-Wheel Drive How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface. If the vehicle is equipped with If the level is below the bottom of the All-Wheel-Drive (AWD), this is an fill plug hole, on the transfer case, additional system that needs some lubricant will need to be added.
Page 269: Check
VEHICLE CARE 2. Firmly apply both the parking 2. Firmly apply the parking brake. Park on a fairly steep hill, with the brake and the regular brake. Do See Electric Parking Brake 0 204. vehicle facing downhill. Keeping your not use the accelerator pedal, foot on the regular brake, apply the Be ready to apply the regular and be ready to turn off the...
Page 270: Windshield Replacement
VEHICLE CARE Driver Assistance Systems Caution When a windscreen replacement is needed and the vehicle is equipped Allowing the wiper arm to touch with a front-looking camera sensor for the windscreen when no wiper the Driver Assistance Systems, the blade is installed could damage the windscreen must be installed windscreen.
Page 271: Headlamp Aiming
VEHICLE CARE Headlamp Aiming Bulb Replacement Warning (Continued) Headlamp alignment has been preset For the proper type of replacement any of the system components, you and should need no further bulbs, see Replacement Bulbs 0 271. could be seriously injured. Have adjustment.
Page 272: Number Plate Lamp
VEHICLE CARE Number Plate Lamp 2. Bulb Electrical System 3. Lamp Assembly Electrical System Overload To replace one of these bulbs: 1. Push the lamp assembly (3) The vehicle has fuses and circuit toward the centre of the vehicle. breakers to protect against an electrical system overload.
Page 273: Fuses And Circuit Breakers
VEHICLE CARE Headlamp Wiring linkage damage. Always clear ice and To identify and check fuses, circuit heavy snow from the windscreen breakers, and relays, see Engine An electrical overload may cause the before using the windscreen wipers. Compartment Fuse Block 0 272, lamps to go on and off, or in some Instrument Panel Fuse Block 0 275, and If the overload is caused by an...
Page 274 VEHICLE CARE Caution Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component. Fuses Usage Fuses Usage...
Page 275 VEHICLE CARE Fuses Usage Fuses Usage Fuses Usage Passenger motorized Driver motorized Engine control seat belt seat belt module /Heated seat 2 Driver power seat /Reverse lock out Washer AFS AHL/Pedestrian Instrument panel/ protection Body/Ignition FSCM/Ignition Passenger window Heated steering switch wheel Engine control...
Page 276: Instrument Panel Fuse Block
VEHICLE CARE Fuses Usage Relays Usage Headlight levelling Run/Crank motor Starter 2 Horn Vacuum pump Coolant fan Starter Starter 2 A/C control Brake vacuum pump Horn Starter * Optional A/C clutch To access the fuses, remove the end Instrument Panel Fuse panel by gently prying with a plastic Block tool near each clip, beginning at the...
Page 277 VEHICLE CARE To install the end cover, insert the tabs on the back of the cover into the slots in the instrument panel at the points shown. Align the clips with the slots in the instrument panel, and press the cover into place. The vehicle may not be equipped with all of the fuses and relays shown.
Page 278 VEHICLE CARE Fuses Usage Fuses Usage Fuses Usage Lighter HVAC control Wireless charger Retained accessory power Tilt/Telescoping Sensing diagnostic steering column module/ Automatic K605 Logistics occupant sensing Data link connector K644 Retained accessory Radio/DVD/HVAC power/Glove box Glove box release control release Shunt Display...
Page 279: Block
VEHICLE CARE Rear Compartment Fuse Block The rear compartment fuse block is behind a cover on the driver side of the rear compartment. The vehicle may not be equipped with all of the fuses, relays, and features shown.
Page 280 VEHICLE CARE Fuses Usage Fuses Usage Fuses Usage Rear driver control RUN relay Theft deterrent module/DC DC module/Universal Logistics relay transformer garage door opener/ Rain sensor Left window Rear window Body control demister relay module 8 Radio/DVD Mirror window A/C inverter Exhaust valve module Passive entry/Passive...
Page 281: Wheels And Tyres
VEHICLE CARE Wheels and Tyres Fuses Usage Warning (Continued) Tyres Underinflated tyres pose the same danger as Every new GM vehicle has Trailer module overloaded tyres. The high-quality tyres made by a resulting crash could cause Door lock security leading tyre manufacturer. See the serious injury.
Page 282: All-Season Tyres
VEHICLE CARE All-Season Tyres on the vehicle if frequent driving on Warning (Continued) ice or snow covered roads is expected. This vehicle may come with all-season See your dealer for details regarding Replace any tyres that tyres. These tyres are designed to winter tyre availability and proper tyre have been damaged by provide good overall performance on...
Page 283: Run-Flat Tyres
VEHICLE CARE Run-Flat Tyres do not drive too far or too fast. The valve stems on run-flat tyres have Driving on the tyre may not be sensors that are part of the TPMS. See This vehicle, when new, may have had possible if there is permanent damage.
Page 284: Summer Tyres
VEHICLE CARE compound will have decreased Caution Caution (Continued) performance in cold climates, and on ice and snow. It is recommended that Low-profile tyres are more directly on the tyres. Always inspect winter tyres be installed on the susceptible to damage from road tyres before use.
Page 285 VEHICLE CARE When to Check on the metal stem in the centre of Caution (Continued) the tyre valve to release air. Check the tyres once a month Re-check the tyre pressure with Overinflated tyres, or tyres that or more. the tyre gauge. have too much air, can result in: How to Check Put the valve caps back on the...
Page 286: System
VEHICLE CARE Sustained operation at speeds over air pressure in your vehicle's tyres and Warning (Continued) 160 km/h (100 mph) requires a load transmit tyre pressure readings to a receiver located in the vehicle. limit of the driver and one passenger, require inflation pressure with no additional cargo.
Page 287: Operation
VEHICLE CARE also reduces fuel efficiency and tyre of reasons, including the installation tread life, and may affect the vehicle's of replacement or alternate tyres or handling and stopping ability. wheels on the vehicle that prevent the TPMS from functioning properly. Please note that the TPMS is not a Always check the TPMS malfunction substitute for proper tyre...
Page 288 VEHICLE CARE The low tyre pressure warning light If tyre pressures and Tyre Loading do Caution (Continued) may come on in cool weather when not match, the tyre pressure light may the vehicle is first started, and then indicate a low tyre. See Tyre caused by using an incorrect tyre turn off as the vehicle is driven.
Page 289 VEHICLE CARE The TPMS sensor matching Operating electronic devices or passenger side rear tyre, and driver process was not done or not being near facilities using radio side rear tyre. See your dealer for completed successfully after wave frequencies similar to the service or to purchase a relearn tool.
Page 290: Tyre Inspection
VEHICLE CARE 5. Press and hold the SEL button in identification code has been The tread or sidewall is the centre of the five-way DIC matched to the driver side rear cracked, cut, or snagged deep control. tyre, and the TPMS sensor enough to show cord or fabric.
Page 291 VEHICLE CARE rotation, check the wheel Use this rotation pattern if the Adjust the front and rear tyres to alignment. See When It Is Time for vehicle has different size tyres on the recommended inflation New Tyres 0 291 and Wheel the front and rear and they are pressure on the Tyre and Loading Replacement 0 294.
Page 292: When It Is Time For New
VEHICLE CARE digits of the DOT Tyre Identification Warning (Continued) Number (TIN) which is moulded into one side of the tyre sidewall. The first can be used; however, use a scraper two digits represent the week (01 52) or wire brush later to remove all and the last two digits, the year.
Page 293: Buying New Tyres
VEHICLE CARE Buying New Tyres GM recommends replacing worn Winter tyres with the same speed tyres in complete sets of four. rating as the original equipment GM has developed and matched Uniform tread depth on all tyres tyres may not be available for H, specific tyres for the vehicle.
Page 294: Different Size Tyres And Wheels
VEHICLE CARE Vehicles that have a tyre pressure Warning (Continued) Warning monitoring system could give an inaccurate low-pressure warning if or types may cause loss of control If different sized wheels are used, non-TPC Spec rated tyres are of the vehicle, resulting in a crash there may not be an acceptable installed.
Page 295: Wheel Replacement
VEHICLE CARE slight pull to the left or right, Used Replacement Wheels Warning depending on the crown of the road and/or other road surface variations Warning Using the wrong replacement such as troughs or ruts, is normal. wheels, wheel bolts, or wheel nuts If the vehicle is vibrating when driving Replacing a wheel with a used one can be dangerous.
Page 296: If A Tyre Goes Flat
VEHICLE CARE Only use low profile tyre chains that A rear blowout, particularly on a Warning are the proper size for the tyres and curve, acts much like a skid and may add no more than 6 mm thickness to require the same correction as used in Special tools and procedures are the tyre tread and inner sidewall.
Page 297: Tyre Sealant And Compressor Kit
VEHICLE CARE 1. Turn on the hazard warning or has a puncture larger than 6 mm Warning flashers. See Hazard Warning (0.25 in), the tyre is too severely Flashers 0 157. damaged for the tyre sealant and Overinflating a tyre could cause the compressor kit to be effective.
Page 298 VEHICLE CARE If this vehicle has a tyre sealant and 5. Tyre Sealant Canister compressor kit, there may not be a 6. Sealant/Air Hose (Clear) spare tyre, tyre changing equipment, 7. Air Only Hose (Black) and on some vehicles there may not 8.
Page 299 VEHICLE CARE Using the Tyre Sealant and If a tyre goes flat, avoid further tyre and wheel damage by driving slowly Compressor Kit to Temporarily to a level place. Turn on the hazard Seal and Inflate a warning flashers. See Hazard Warning Punctured Tyre Flashers 0 157.
Page 300 VEHICLE CARE 6. Plug the power plug (8) into the sealant is completely dispersed Caution (Continued) accessory power outlet in the into the tyre, the pressure will vehicle. Unplug all items from quickly drop and start to rise and the tyre sealant and other accessory power outlets.
Page 301 VEHICLE CARE 14. Replace the tyre valve stem cap. 19. Stop at a safe location and check 22. Replace with a new canister the tyre pressure. Refer to assembly available from your 15. Replace the sealant/air hose (6), Steps 1 11 under Using the Tyre dealer.
Page 302 VEHICLE CARE See If a Tyre Goes Flat 0 295 for other If the vehicle only has a cigarette important safety warnings. lighter, use the cigarette lighter. 1. Remove the tyre sealant and Do not pinch the power plug compressor kit from its storage cord in the door or window.
Page 303 VEHICLE CARE compressor may be turned on/off 15. Place the equipment in the 2. Press the canister release until the correct pressure is original storage location in the button (9). reached. vehicle. 3. Pull up and remove the canister. If you inflate the tyre higher 4.
Page 304: Jump Starting
VEHICLE CARE Jump Starting Caution For more information about the Ignoring these steps could result in vehicle battery, see Battery 0 266. costly damage to the vehicle that If the battery has run down, try to use would not be covered by the vehicle another vehicle and some jumper warranty.
Page 305 VEHICLE CARE 4. Discharged Battery Remote 2. Position the two vehicles so that Warning Negative Ground Terminal they are not touching. The jump start positive terminal (1) 3. Set the parking brake firmly and An electric fan can start up even and negative post (2) are on the put the shift lever in P (Park) when the engine is not running and...
Page 306: Towing The Vehicle
VEHICLE CARE 10. Try to start the vehicle that had Towing the Vehicle Warning the dead battery. If it will not start after a few tries, it probably Fans or other moving engine parts Caution needs service. can injure you badly. Keep your Incorrectly towing a disabled hands away from moving parts Caution...
Page 307: Recreational Vehicle Towing
VEHICLE CARE with two wheels on the ground and Caution two wheels up on a device known as a dolly. Improper use of the tow eye can Here are some important things to cause vehicle damage. Use caution consider before recreational vehicle and low speeds to prevent damage towing: to the vehicle.
Page 308 VEHICLE CARE Dinghy Towing To dolly tow a rear-wheel-drive vehicle Caution from the rear: 1. Attach the dolly to the tow Use of a shield mounted in front of vehicle following the dolly the vehicle grille could restrict manufacturer instructions. airflow and cause damage to the transmission.
Page 309: Appearance Care
VEHICLE CARE Dolly Towing (All-Wheel Drive Appearance Care Caution (Continued) Vehicles) Exterior Care correct product usage, necessary safety precautions, and appropriate Locks disposal of any vehicle care product. Locks are lubricated at the factory. Use a de-icing agent only when absolutely necessary, and have the locks greased after using.
Page 310 VEHICLE CARE If using an automatic car wash, follow non-abrasive cleaners that are marked Protecting Exterior Bright Metal the car wash instructions. The safe for painted surfaces to remove Mouldings windscreen wiper and rear window foreign matter. wiper, if equipped, must be off. Caution Occasional hand waxing or mild Remove any accessories that may be...
Page 311 VEHICLE CARE Do not use cleaners that are not Washer fluids and other cleaning Air Intakes intended for automotive use. agents in higher concentrations Clear debris from the air intakes, than suggested by the Use a nonabrasive wax on the between the bonnet and windscreen manufacturer.
Page 312 VEHICLE CARE material on painted surfaces can be Brake System Caution removed by rubbing with a clean Visually inspect brake lines and hoses cloth. See Recommended Fluids and for proper hook-up, binding, leaks, Chrome wheels and other chrome Lubricants 0 318. cracks, chafing, etc.
Page 313: Floor Mats
VEHICLE CARE clean cloth will make them last Finish Damage Warning (Continued) longer, seal better, and not stick or Quickly repair minor chips and squeak. scratches with touch-up materials which can cause a crash and injury. available from your dealer to avoid Underbody Maintenance Make sure the floor mat does not corrosion.
Page 314 VEHICLE CARE Do not place one floor mat on top 3. Make sure the floor mat is of another. properly secured in place. Verify the floor mat does not interfere The driver side floor mat is held in with the pedals. place by two button-type retainers.
Page 315 SERVICE AND MAINTENANCE Service and General Information Scheduled Maintenance. To keep the vehicle in good condition, see your Maintenance dealer. Caution The maintenance schedule is for vehicles that: Maintenance intervals, checks, General Information inspections, recommended fluids Carry passengers and cargo within General Information .
Page 316: Service And Maintenance
SERVICE AND MAINTENANCE At your dealer, you can be certain that Scheduled Maintenance Windscreen wiper blade inspection you will receive the highest level of for wear, cracking, service available. Your dealer has or contamination and windscreen Engine Oil Change specially trained service technicians, and wiper blade cleaning, Change engine oil and filter when uses genuine replacement parts, as...
Page 317 SERVICE AND MAINTENANCE with a clean cloth makes them last Automatic transmission shift lock needed if there is reduced airflow, longer, seal better, and not stick or control function check. window misting, or odours. Your squeak. GM retailer can help determine Parking brake and automatic when to replace the filter.
Page 318 SERVICE AND MAINTENANCE Additional Maintenance Every Additional Maintenance Every 60 000 km 80 000 km Replace brake fluid every Visually check all fuel and vapour 60 000 km or two years, whichever lines and hoses for proper occurs first. attachment, connection, routing, and condition.
Page 319: Recommended Fluids And Lubricants
-HP Automatic Transmission Fluid (GM Part No. 19331925). ® Electronic Limited Slip Differential DEXRON -VI Automatic Transmission Fluid. (eLSD) Clutch System Lubricant (CTS-V Only) ® Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant. See Engine Coolant 0 259.
Page 320: Maintenance Replacement Parts
SERVICE AND MAINTENANCE Usage Fluid/Lubricant Transfer Case (All-Wheel Drive) Transfer Case Fluid (GM Part No. 88861950). Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770) or Dielectric Silicone Grease (GM Part No. 12345579). Windscreen Washer Automotive windscreen washer fluid that meets regional freeze protection requirements.
Page 321 SERVICE AND MAINTENANCE Part GM Part Number ACDelco Part Number 6.2L V8 Engine 12642722 41 128 Wiper Blades Driver Side 60 cm (23.6 in) 23144358 Passenger Side 45 cm (17.7 in) 23144359...
Page 322: Maintenance Records
SERVICE AND MAINTENANCE Maintenance Records After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. Retain all maintenance receipts. Odometer Date Serviced By Maintenance Stamp Services Performed Reading...
Page 323: Technical Data
TECHNICAL DATA Technical Data Vehicle Identification Service Parts Identification Label Vehicle Identification This label, under the floor cover in the Vehicle Identification Number (VIN) boot on the passenger side, has the Vehicle Identification following information: Number (VIN) ....322 Vehicle Identification Service Parts Identification Label .
Page 324: Technical Data
TECHNICAL DATA Vehicle Data Capacities and Specifications The following approximate capacities are given in metric and English conversions. See Recommended Fluids and Lubricants 0 318. Capacities Application Metric English Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under the bonnet.
Page 325 TECHNICAL DATA Capacities Application Metric English All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual. Recheck fluid level after filling. Engine Specifications Engine VIN Code Horsepower Torque Spark Plug Gap 2.0L L4 Engine 200 kW (268 hp)@ (295 lb ft)@...
Page 326: Engine Drive Belt Routing
TECHNICAL DATA Fuel Consumption and Emissions Information (cont'd) Urban Extra-Urban Combined Fuel Economy (L/100 km) 11.3 6.2L V8 (V-Series only) Carbon Dioxide (g/km) Fuel Economy (L/100 km) 20.0 13.0 Engine Drive Belt Routing 6.2L V8 Engine 2.0L L4 Engine...
Page 327: Customer Information
Copyright (c) 1996 - 2010, Daniel Privacy ......330 technology in Cadillac vehicles does Stenberg, <daniel@haxx.se>.
Page 328: Customer Information
CUSTOMER INFORMATION PARTICULAR PURPOSE AND For the purposes of this copyright and and to alter it and redistribute it NONINFRINGEMENT OF THIRD license, Info-ZIP is defined as the freely, subject to the following PARTY RIGHTS. IN NO EVENT SHALL following set of individuals: restrictions: THE AUTHORS OR COPYRIGHT Mark Adler, John Bush, Karl Davis,...
Page 329 CUSTOMER INFORMATION library versions must be plainly libcurl: OF OR IN CONNECTION WITH THE marked as such and must not be SOFTWARE OR THE USE OR OTHER COPYRIGHT AND PERMISSION misrepresented as being the DEALINGS IN THE SOFTWARE. NOTICE original source. Such altered Except as contained in this notice, the Copyright (c) 1996 - 2010, Daniel versions also must not be...
Page 330 CUSTOMER INFORMATION David Kirschbaum, Johnny Lee, Onno 2. Redistributions in binary form versions with the names van der Linden, Igor Mandrichenko, (compiled executables) must Info-ZIP (or any variation Steve P. Miller, Sergio Monesi, Keith reproduce the above copyright thereof, including, but not Owens, George Petrov, Greg Roelofs, notice, definition, disclaimer, and limited to, different...
Page 331: Declaration Of Conformity
CUSTOMER INFORMATION Declaration of Conformity Vehicle Data Recording Environmental concerns (e.g., temperature). and Privacy Transmission Systems This data is exclusively technical and This vehicle has systems that transmit helps identify and correct errors as Event Data Recorders and/or receive radio waves subject to well as optimise vehicle functions.
Page 332 CUSTOMER INFORMATION Additional functions contractually See the infotainment manual for agreed upon with the client (e.g., information on stored data and for vehicle location in emergency cases) deletion instructions. allow the transmission of particular vehicle data from the vehicle. ® OnStar If the vehicle is equipped with ®...
Page 333 ONSTAR OnStar OnStar Overview Remote control, e.g. location of the vehicle, activation of horn and ® lights, control of central locking OnStar system system OnStar Overview OnStar is a personal connectivity and Stolen vehicle assistance OnStar Overview ....332 service assistant with integrated Wi-Fi hotspot.
Page 334: Onstar
ONSTAR OnStar services Note: The Wi-Fi hotspot functionality Press to answer a call or to end a is not available for all markets. call to an advisor. General services Up to seven devices may be Press to access the Wi-Fi settings. If you need any information connected.
Page 335 ONSTAR Smartphone app The following functions are available: On-demand diagnostics With the smartphone app, some Lock or unlock vehicle. At any time e.g. if the vehicle displays vehicle functions can be operated a service message, press to contact Provide information on the vehicle remotely: an advisor and ask to complete a location.
Page 336 ONSTAR Destination download If the OnStar service is used on Note: The vehicle location always remains accessible to OnStar in the another vehicle, press and request If equipped with this feature, a desired case of an emergency. that the account be transferred to the destination can be directly new vehicle.
Page 337 INDEX Index Airbag System (cont'd) Where Are the Airbags? ... .73 Accessories and Modifications ..248 Airbags Accessory Power ....196 Adding Equipment to the Acknowledgements Vehicle .
Page 338: Index
INDEX Auto Stop Mode ....127 Brakes (cont'd) Charging System Light ... . . 120 Automatic Antilock .
Page 339 INDEX Control Declaration of Conformity ..330 Driving (cont'd) If the Vehicle is Stuck ... . 187 Traction and Electronic Defensive Driving ....179 Stability .
Page 340 INDEX Engine (cont'd) Floor Mats ......312 Coolant Temperature Fluid Gauges Warning Light ....126 Automatic Transmission .
Page 341 INDEX Headlamps (cont'd) Indicator Lamps (cont'd) Daytime Running Vehicle Ahead ..... 124 Exterior Lamps Off Reminder ..155 Lamps (DRL) .
Page 342 INDEX Lighting (cont'd) Limited-Slip Differential ... . 214 Messages (cont'd) Exit ....... . 159 Locking Systems, Anti-theft .
Page 343 INDEX Mirrors (cont'd) Outlets Power Automatic Dimming Rear View ..45 Power ......107 Door Locks .
Page 344 INDEX Records Routing, Engine Drive Belt ..325 Seats and Restraints Maintenance ..... . 321 Run-Flat Tyres .
Page 345 INDEX Signals, Turn and Lane-Change ..157 Symbols ....... .2 Trailer Specifications and Capacities .
Page 346 INDEX Tyres (cont'd) Vehicle Care (cont'd) Windshield Wheel Alignment and Tyre Tyre Pressure ..... 283 Replacement ..... . 269 Balance .

This manual is also suitable for:

Ats 2017 Ats-v 2017 2011 cts-v sports sedan

Cadillac CTS Owner's Manual

Cts/Cts-V Owner's Manual

In Brief 5

Keys, Doors, and Windows

Head Restraints

Head Restraints

Seats and Restraints

Front Seats

Rear Seats

Seat Belts

Airbag System

Child Restraints

Storage

Lighting Lighting Features Exterior Lighting

Driving and Operating

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cadillac CTS

Summary of Contents for Cadillac CTS
