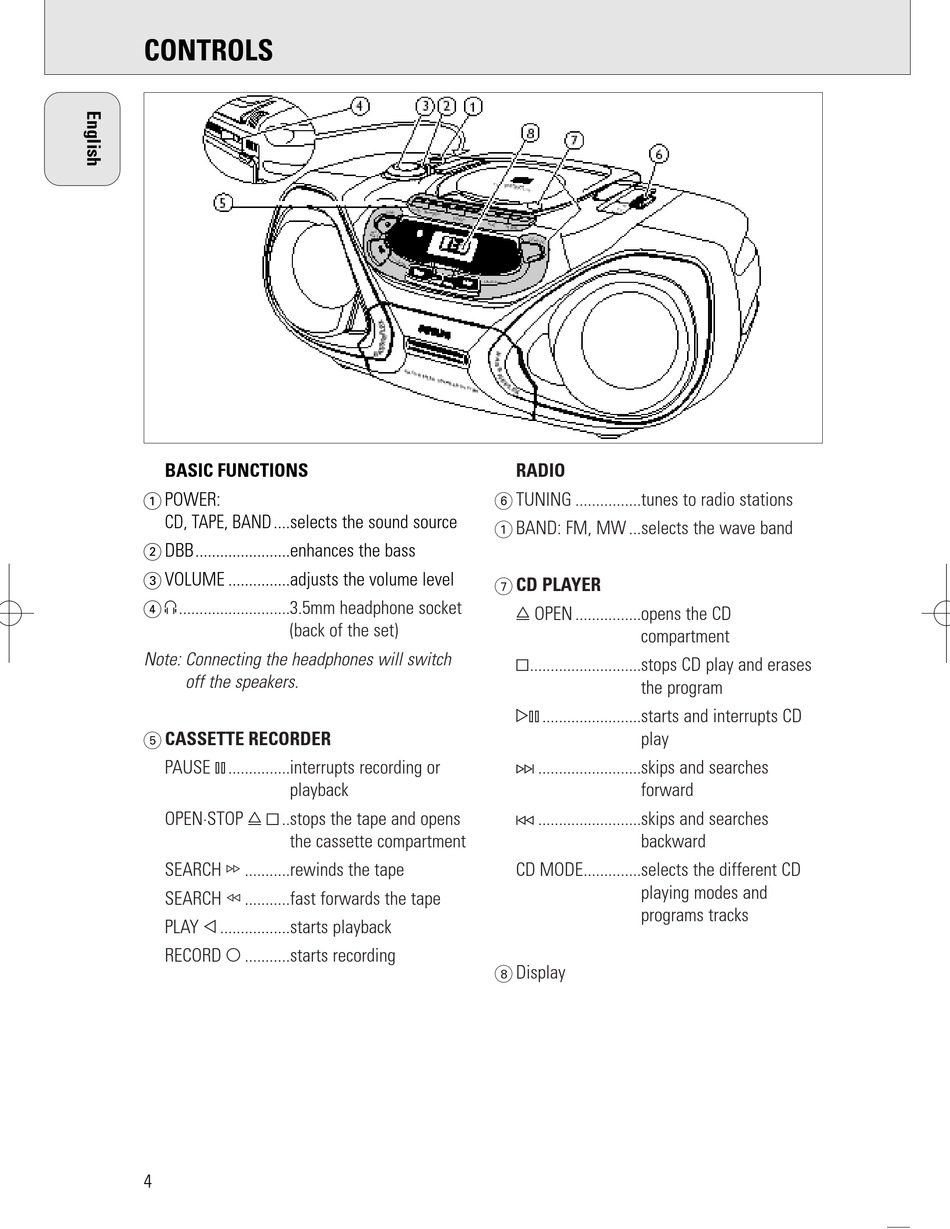

CONTROLS

BASIC FUNCTIONS

1 POWER:
CD, TAPE, BAND ....selects the sound source
2 DBB.......................enhances the bass
3 VOLUME ...............adjusts the volume level
4 p...........................3.5mm headphone socket
(back of the set)
Note: Connecting the headphones will switch
off the speakers.
5 CASSETTE RECORDER
PAUSE ; ...............interrupts recording or
playback
OPEN·STOP / 9 ..stops the tape and opens
the cassette compartment
SEARCH 6 ...........rewinds the tape
SEARCH 5 ...........fast forwards the tape
PLAY 1 .................starts playback
RECORD 0 ...........starts recording
4
RADIO
6 TUNING ................tunes to radio stations
1 BAND: FM, MW ...selects the wave band
7 CD PLAYER
/ OPEN ................opens the CD
compartment
9...........................stops CD play and erases
the program
2; ........................starts and interrupts CD
play
§ .........................skips and searches
forward
∞ .........................skips and searches
backward
CD MODE..............selects the different CD
playing modes and
programs tracks
8 Display
