- Page 1 MANUAL PCR3000R INFO@APART-AUDIO.COM...
-
Page 2: Important Safety Instructions

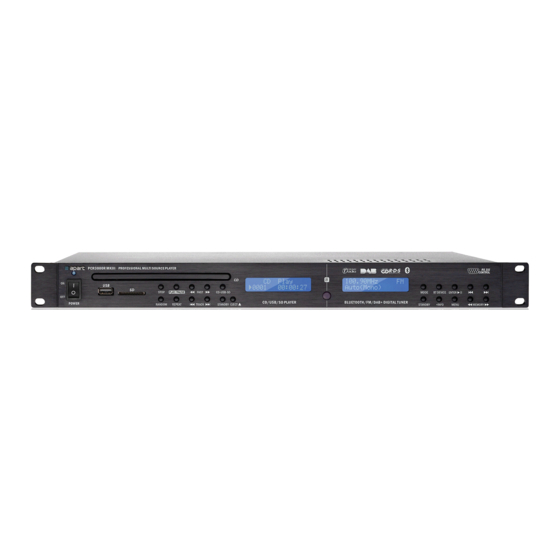

Features The APart PC3000R is a professional multisource CD/USB/SD card music player with integrated FM RDS and DAB+ tuner, equipped with multiple independent analog outputs, coaxial and optical digital output for the CD/USB/SD player and a RS232 port for use in automated systems. -
Page 3: Front Panel
26. USB connector: accepts memory sticks only, capacity up to 32 GB. 27. Power button. Push to power on or off. This button powers off the unit entirely in the off position. The power led will not light up when in the off position. 28. Removable rack ears. INFO@APART-AUDIO.COM... -
Page 4: Rear Panel
This volume control is located before the master output level knob (4) on the rear of the unit. After waking up from standby or after power up, the volume level is automatically reset to the maximum as set by the rear volume knob. WWW.APART-AUDIO.COM... - Page 5 This is the easiest way to find out whether your serial communication settings are correct. Unknown characters in your terminal communication program usually indicate that the baudrate is incorrect. Below is a table with the list of commands recognized by PCR3000R and some examples of the replies sent by the PCR3000R.
-
Page 6: Rs232 Commands
PCR3000R--> Random Mode Off REPEAT 1 PCR3000R--> Repeat 1 REPEAT ALL PCR3000R--> Repeat All REPEAT OFF PCR3000R--> Repeat Off STATUS CD (displays the status of the PCR3000R) PCR3000R--> Device: CD Player PCR3000R--> MP3: 030 PCR3000R--> Status: Play PCR3000R--> Time: 03:18 WWW.APART-AUDIO.COM... - Page 7 Please note that the commands are not case sensitive. Company names, product names, and names of formats etc. are the trademarks or registered trademarks of their respective owners. © 2010 APart-Audio specifications subject to change without notice. INFO@APART-AUDIO.COM...
- Page 8 38400 baudrate, 8 databits, no parity, handshake off Infrared extension port Mini jack connector at the rear, disables the front infrared receiver Remote control battery type AAA type LR03 Operating temperature 10 - 40 °C Relative humidity 10 to 80 % non condensing WWW.APART-AUDIO.COM...
