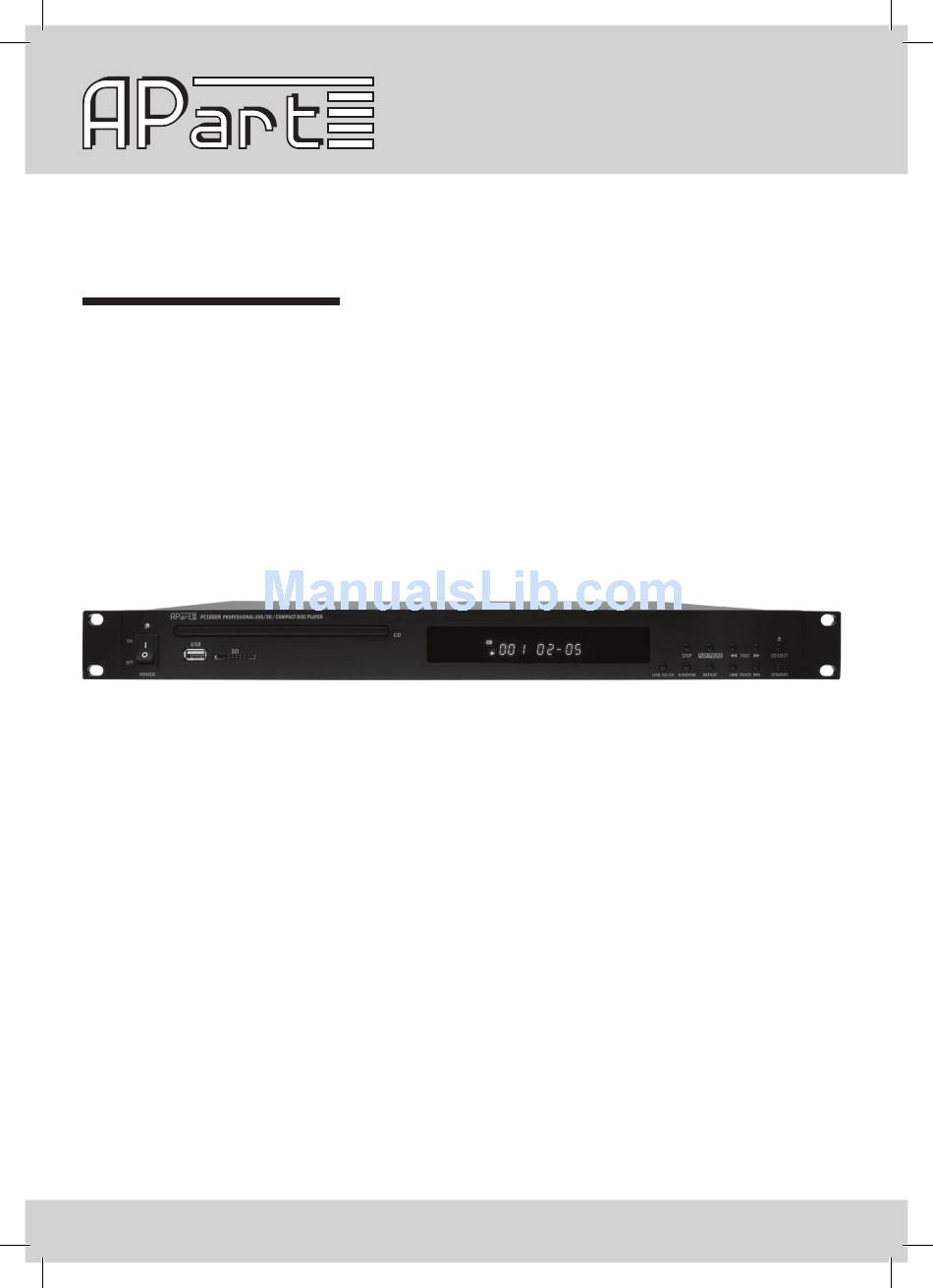

- Page 1 MANUAL PC1000R INFO@APART-AUDIO.COM...

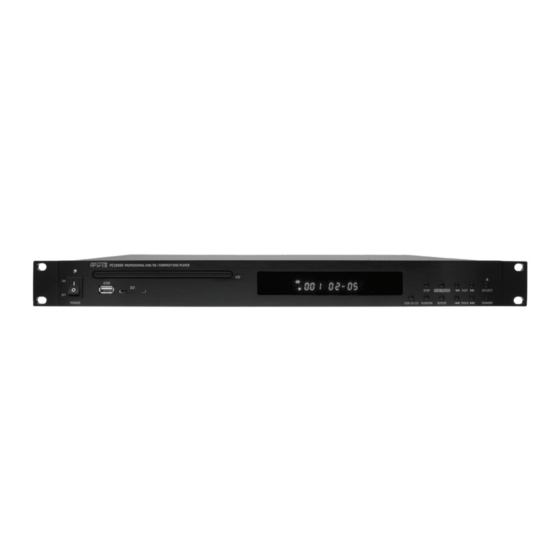

- Page 2 Features The APart PC1000R is a professional multisource CD/USB/SD card music player, equipped with balanced and unbalanced analog outputs, coaxial and optical digital outs and a RS232 port for use in automated systems. The maximum analog output level can be preset at the back to match the output level of other audio sources, such as tuners and other media players.
-
Page 3: Front Panel
This is not a malfunction and depends on the amount of data present on the selected media. 15. SD card slot 16. USB slot. 17. Power switch. 18. Removable rackears, for use in 19 inch racks or as a standalone unit in hifi chains etc. INFO@APART-AUDIO.COM... -
Page 4: Rear Panel
This volume control is located before the master output level knob (4) on the rear of the unit. After waking up from standby or after power up, the volume level is automatically reset to the maximum as set by the rear volume knob. WWW.APART-AUDIO.COM... - Page 5 This is the easiest way to find out whether your serial communication settings are correct. Unknown characters in your terminal communication program usually indicate that the baudrate is incorrect. Below is a table with the list of commands recognized by PC1000R and some examples of the replies sent by the PC1000R.
-
Page 6: Rs232 Commands
PC1000R--> Repeat 1 REPEAT ALL PC1000R--> Repeat All REPEAT OFF PC1000R--> Repeat Off STATUS (displays the status of the PC1000R) PC1000R--> Device: CD Player PC1000R--> MP3: 030 PC1000R--> Status: Play PC1000R--> Time: 03:18 Important notice: always allow the unit to acclimatize during at least one hour. E.g when the unit has been... -
Page 7: Technical Specifications
38400 baudrate, 8 databits, no parity, handshake off Infrared extension port Mini jack connector at the rear, disables the front infrared receiver Remote control battery type AAA type LR03 Operating temperature 10 - 40 °C Relative humidity 10 to 80 % non condensing INFO@APART-AUDIO.COM... - Page 8 • In case of mal-function this device should be serviced by qualified service personnel only. Company names, product names, and names of formats etc. are the trademarks or registered trademarks of their respective owners. © 2010 APart-Audio specifications subject to change without notice. WWW.APART-AUDIO.COM...
- Page 9 Digital signage is about displaying still and moving images onto a display screen or video wall to engage with your audience... 1. Download Repeat signage software onto your Windows computer 2. easily create your presentations by inserting your logo, pictures, videos, text, clocks, Rss newsfeeds and other media into the software to promote your activities 3.
