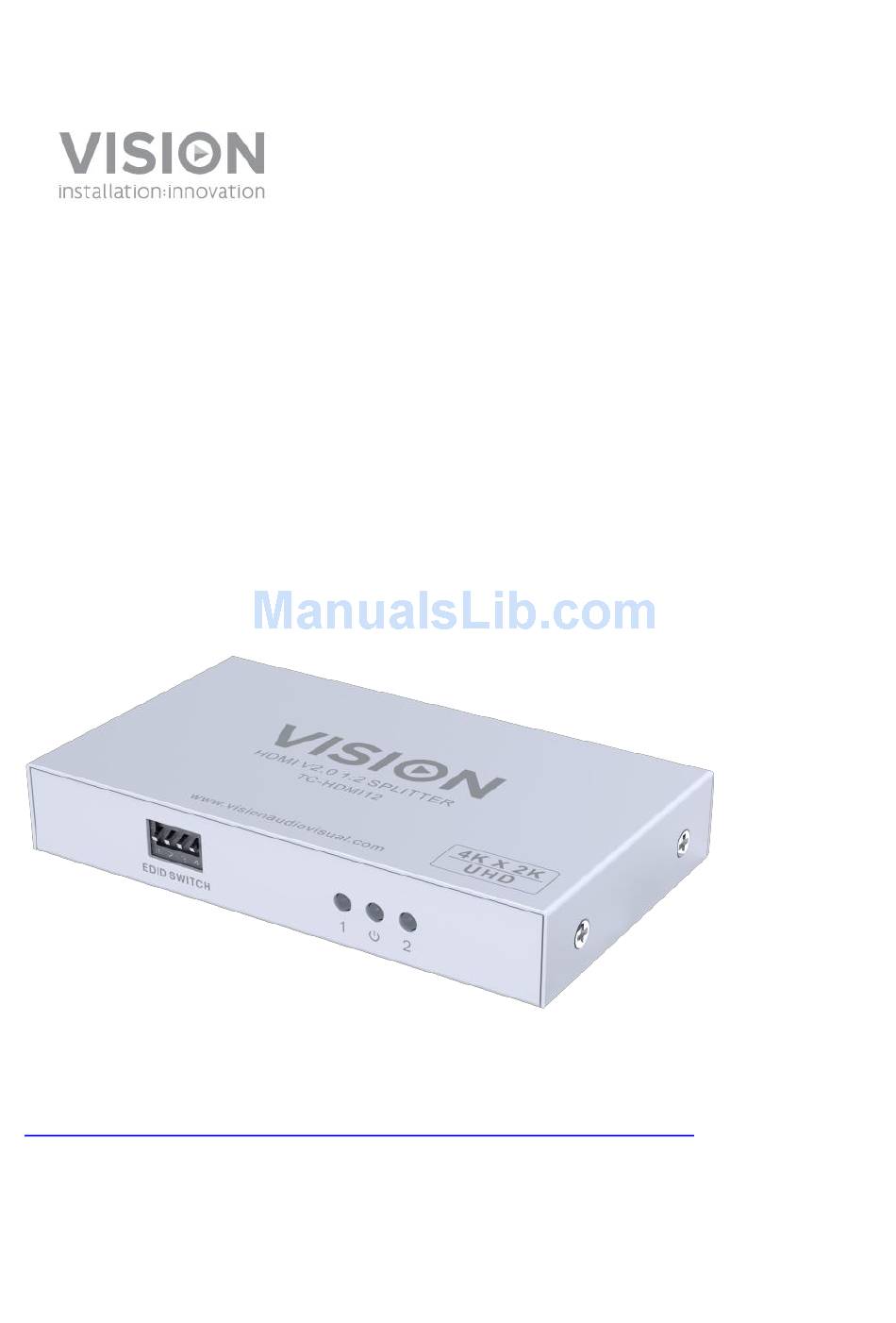

- Page 1 TC-HDMI12 OWNERS MANUAL www.visionaudiovisual.com/techconnect/tc-hdmi12/ TC-HDMI12_manual_en...
-
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by „Vision‟ who is wholly owned by „Azlan Logistics Ltd.‟, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair. -
Page 4: Front And Rear Panels
FRONT AND REAR PANELS EDID Dip Switches Power Indicator LED Output Status LED ON display is connected and powered on OFF display is not connected or it is powered off FLASHING problem with EDID handshake HDMI Inputs. Connect PC or BlueRay. HDMI Outputs. -
Page 5: Installation
INSTALLATION CONNECT INPUT Plug HDMI cable into input. Input and output cables are not included with this product. CONNECT OUTPUTS This product features pre-emphasis and equalization to overcome cable deficiencies. This may not always be successful if poor quality cable is used. TURN POWER ON With the switch off at the wall, connect power adaptor then turn on. - Page 6 EDID EDID is when the source “asks” the display what resolution it is, and outputs that resolution. If the resolutions of the two displays vary it can cause EDID handshake issues. This can be overcome with fixing the resolution; the splitter tells the source to output a resolution that might not match the displays, but most displays can accept and scale a resolution the same or less than their native resolution.
-
Page 7: Troubleshooting
TROUBLESHOOTING If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately. Problem Correction No status lights Check input and output cables Check source and displays are turned on No picture on display/s ... -
Page 8: Specifications
SPECIFICATIONS PRODUCT DIMENSIONS: 101 x 59.5 x 17 mm / 3.98" x 2.34" x 0.67" (length x width x height) PACKAGED DIMENSIONS: 120 x 84 x 77 mm / 4.72" x 3.31" x 3.03" PRODUCT WEIGHT: 0.11 kg / 0.24 lb PACKAGED WEIGHT: 0.34 kg / 0.75 lb CONSTRUCTION MATERIAL: Metal COLOUR: White... - Page 9 Some Vision products are very technical and require troubleshooting all elements of the installation as it may not be the Vision product at fault. Because of this the manufacturer may refuse to replace the item if an adequate description is not provided.
- Page 10 LEGAL DISCLAIMER: Because we are committed to improving our products, the details above may change without prior warning. This User Manual is published without warranty and any improvements or changes to the User Manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made at any time and without notice.
