Cellinx CamPilot MRH100-CP11MV User Manual

Ca mP il ot M RH 1 0 0
IP BOX Camera

User Manual

( L e n s a r e s o l d s e p a r a t e l y )
Detail Model Name
M R H 1 0 0 - C P 1 1 M V - T D N 5
Before installing and using the product, please read
this manual carefully.
Be sure to keep it handy for later reference.
Adapter and LAN cable are not included in the package.
Features
CamPilot MRH100 is an IP Camera that transmits real-time high-resolution digital video
and audio data with H.264 high compression rate over Internet or Intranet.
CamPilot MRH100 contains digital video/audio compressor, web server and network
interface. Users can simply connect power source and network cable for operation.
Additional operation equipments or programs are not required.

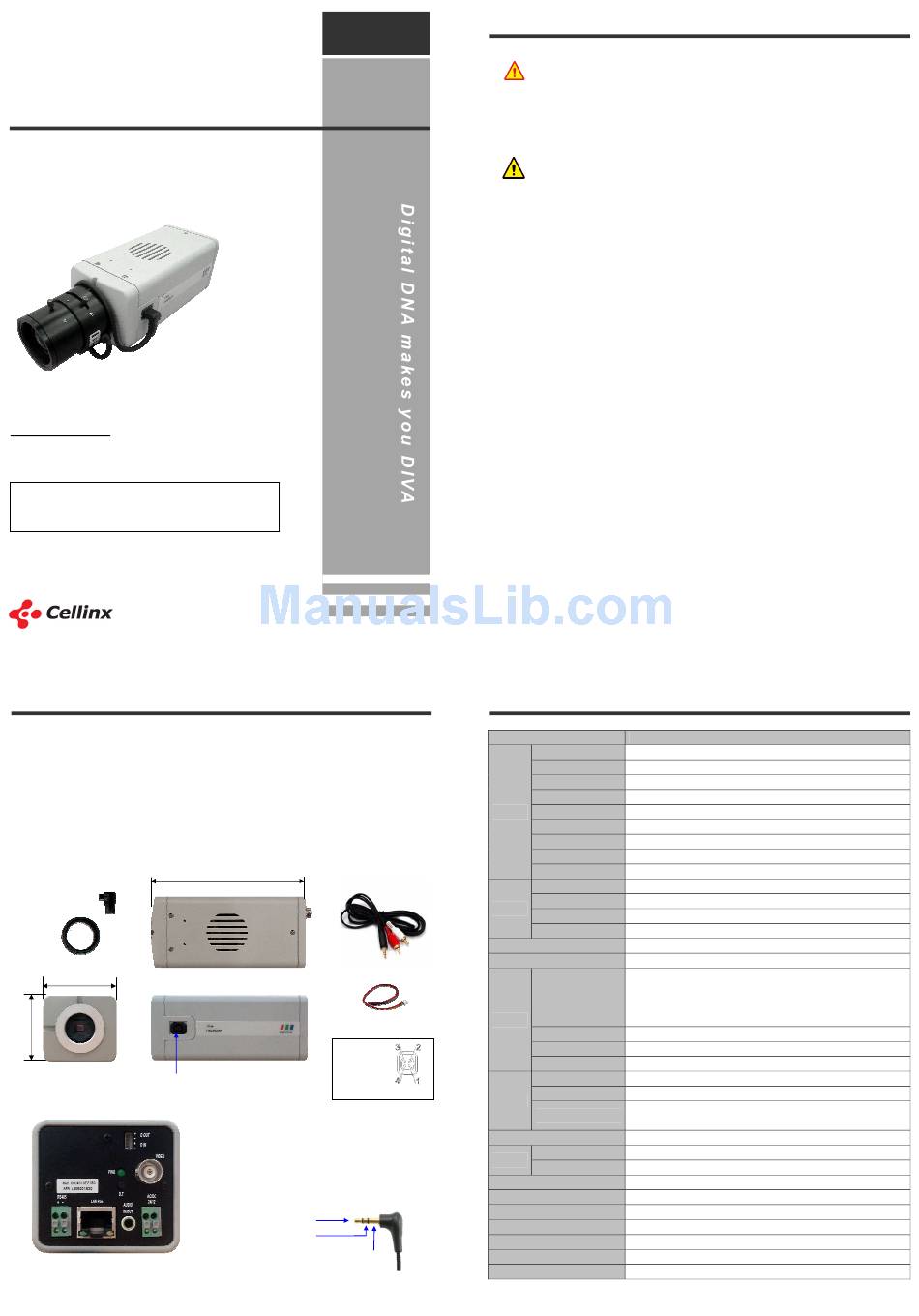

Appearance and Accessories
D C I r i s C o n n e c t o r
C / C S m o u n t r i n g
62mm
55mm
DC Iris c o n n e c t o r
▶ F r o n t
▶ R e a r
1
Overview
133mm
A u d i o c a b l e
▶ T o p
D I O C a b l e
1. control –
2. control +
▶ S i d e
3. drive +
4. GND
1. D OUT / D IN (Digital Output/Input)
2. PWR (Power Supply LED)
3. VIDEO (BNC connector for video test)
4. D.T (Default Switch, Reset to the initial network setting)
5. RS485 (Pan/Tilt Control)
6. LAN/PoE (10/100 Base-T LAN & PoE support)
7. AUDIO IN/OUT (Ø3.5 stereo jack)
- L : Audio IN (Mono)
- R : Audio OUT (Mono)
- White-MIC / Red-SPK
G N D
8. AC/DC 24/12 (DC12V 1A (Ignore the polarity)
or AC24V 0.6A)
3
Precaution
WARNING
TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTIONS
■ Do not open or modify
Do not open the case, as it may be dangerous and cause damages.
■ Do not put objects inside the unit
Make sure that no metal objects or flammable substances get inside the camera. It could cause
fire, short-circuits or damages.
■ Be careful when handling the unit.
To prevent damage, do not drop the camera or subject it to strong shock or vibration.
■ Install away from electric or magnetic fields.
■ Protect from humidity, dust and high temperature.
CamPilot MRH100 is for indoor use and vulnerable to water and/or moisture.
An additional case that is temperature-controllable, damp-proof and waterproof is required for
outdoor use.
■ Cleaning
Dirt can be removed from the case only by wiping it with a soft cloth moistened with a soft
detergent solution.
■ Mounting Surface
The mounting surface material must be strong enough to support the camera.
■ CamPilot MRH100 can be used for surveillance purpose.
Be thoroughly informed of related regulations prior to installation to ensure compliance with such
regulations.
Specification
Items
Effective Pixels
Min. Illumination
Camera Lens Mount
Auto Iris Control
IR Cut Filter Remove
White Balance
Flash Memory
Encoder
Video Output
Audio Input / Output
Transmission
IRIS PIN No.
Connection
Network
Firmware Update
Password Authentication
Security
User Authentication
DIO (Digital Input / Output)
Pan / Tilt / Zoom
Motion Detection
Dynamic IP support
Recording
FTP, Email Transmission
Power
2
CamPilot MRH100-CP11MV
Device
Size
3300mV / (Lux • sec)
C / CS Mount Lens Support
DC Iris Lens Support
S/N Ratio
CPU
RAM
OS
1ch. loop-throughout (BNC connector)
1ch. in / 1ch. out (Ø 3.5mm stereo jack - RCA)
NTSC : 720p(1280X720), D1(720X480), 4CIF(704X480), VGA(640x480),
CIF(352x240), QVGA (320x240), QCIF(176x112), QQVGA(160x112)
Size
PAL : 720p(1280X720), D1(720X576), 4CIF(704X576), VGA(640x480),
CIF(352x288), QVGA (320x240), QCIF(176x144), QQVGA(160x112)
Codec
Bandwidth
Up to 30fps (at 720p)
Interface RJ45 (10/100 Base-T)
TCP/IP, ICMP, HTTP, ARP, SMTP, FTP, PPP, PPPoE, DHCP, NTP, SNMP, UPnP
Protocol
Available on Web browser
O (DHCP, PPPoE support)
PoE support, DC 12V 1A / AC24V 1A (sold separately)
4
OmniVision CMOS
1/4 inch
1280 x 720 pixels
TDN5
AWB mode
39dB
ARM9
8MB
DDR2, 256MB
Embedded Linux
H.264, MJPEG
32Kb~4Mb
Up to 10
RTP, RTSP
O
O
1 in / 1 out
RS-485
O
PC software
O
