TREND IQView4 Installation Instructions Manual

TREND IQView4 Installation Instructions Manual

Touch screen display
Hide thumbs Also See for IQView4:
Table of Contents

Advertisement

Quick Links

Important: Retain these instructions
These instructions shall be used by trained service
personnel only.
If the equipment is used in a manner not
specified by these instructions, the protection provided by the
equipment may be impaired.
ConTenTS
1
Box Contents .................................................................1
3
Installation .....................................................................1
3.1
Installation - Mounting ...................................................1
2
Storing ...........................................................................1
3.2
Installation- Configuration .............................................4
1
Box ConTenTS
IQView 4
_ ¥
3
InSTallaTIon
WaRnInG Do not attempt to open the unit. Failure to
comply may cause damage to the unit.
labels used on IQView4
Connector for 24 Vac/dc input power.
24 Vac/dc
AC power line return
RS232
3.1
Installation - Mounting

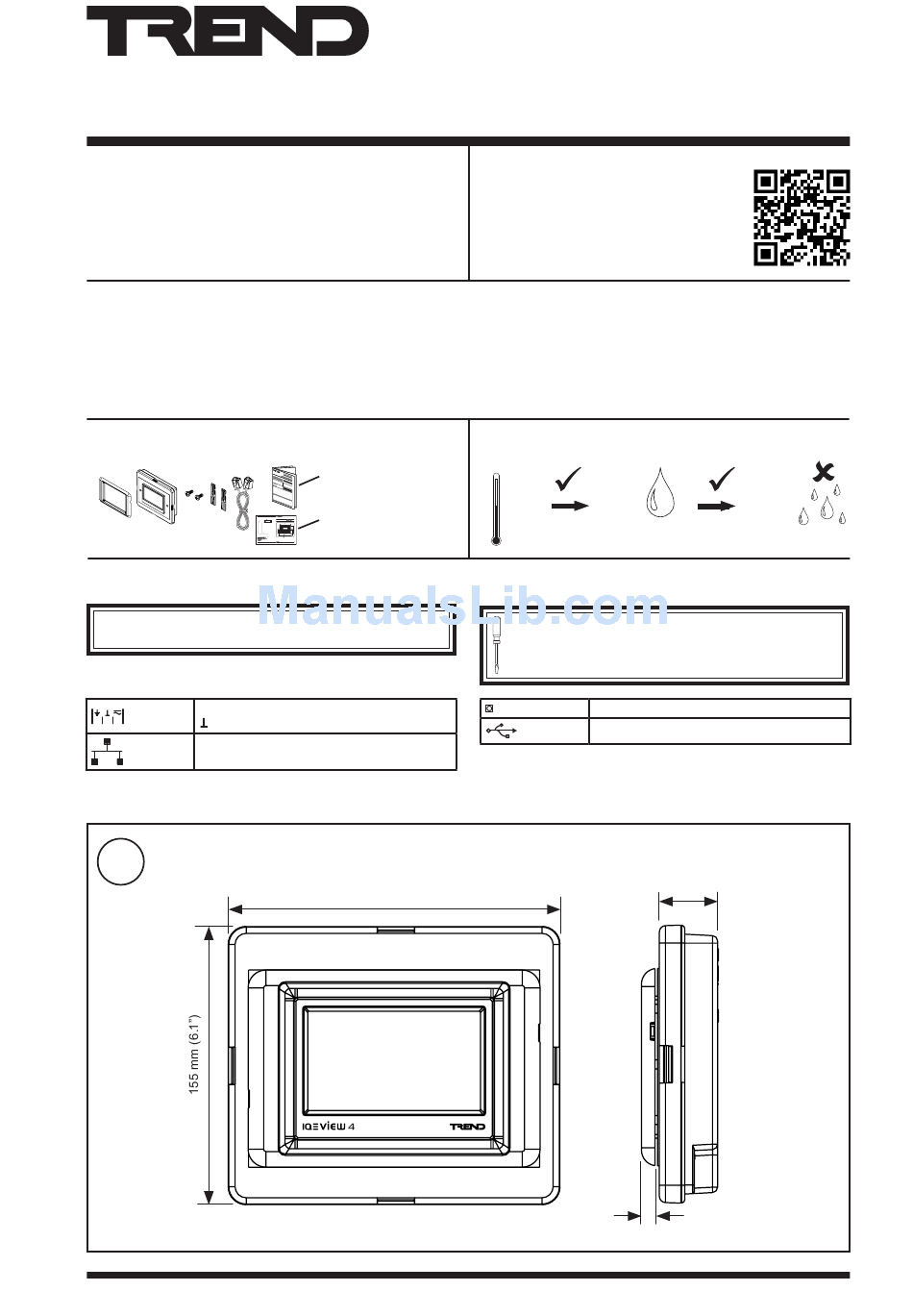

Dimensions
1
IQView4 Installation Instructions TG201038 Issue 8, 14-Jan-2016.
(TG201038)
IQView4 Template
IQview 4
IQview 4
IQview 4
Touch Screen Display
!
(TG201037)
Cut out
185 mm (7.3")
Installation Instructions
Touch Screen Display
https://partners.trendcontrols.com
4
Removal of Bezel ..........................................................9
5
Cleaning and Maintenance .........................................10
6
Disposal .......................................................................10
7
End User Licence Agreement .....................................11
2
SToRInG
(Altitude: <2000 m (6562'))
+50 °C
-10 °C
(122 °F)
(14 °F)
H O
It is recommended that the installation should comply
with the local electrical safety installation practices (e.g.
HSE Memorandum of Guidance on Electricity at Work
Regulations 1989, USA National Electric Code).
Service button
USB A connector
32.5 mm (1.3")
7.5 mm (0.3")
IQView4
0
90 %RH
2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQView4 and is the answer not in the manual?

Questions and answers

Related Manuals for TREND IQView4

Summary of Contents for TREND IQView4

  • Page 1: Table Of Contents

    IQView4 Connector for 24 Vac/dc input power. Service button 24 Vac/dc AC power line return USB A connector RS232 Installation - Mounting Dimensions 32.5 mm (1.3”) 185 mm (7.3”) 7.5 mm (0.3”) IQView4 Installation Instructions TG201038 Issue 8, 14-Jan-2016.

  • Page 2: Installation

    Prepare Panel (view from front) IQView4 Touch Screen Display Template (TG201037) - supplied 2 to 5 mm 115 ±1 mm (4.53”) (0.08” to 0.2”) 2 off Ø6 mm (0.24”) holes 140 ±0.5 mm (5.5”) IQView4 Installation Instructions TG201038 Issue 8, 14-Jan-2016.
  • Page 3 Note that the required power cannot be guaranteed to be a CenTRe TaPPeD To eaRTh TRanSfoRMeR provided from an IQ controller’s auxiliary supply output; a MUST noT Be USeD separate supply is generally required. IQView4 Installation Instructions TG201038 Issue 8, 14-Jan-2016.

  • Page 4: 3.2 Installation- Configuration

    (default). Note: For IQ1xx controllers with a separate CNC board, the Address module Local address parameter, R(L), must be set up correctly so that the IQView4 can identify the controller. SERVICE Note: RD/SDU-IQ2COMMS CABLE/10M, EJ105047, 10 m cable, may be used instead of the RD/SDU-IQ2COMMS CABLE/3M, EJ105046, 3 m cable, but it is not UL listed, and is not supplied with the IQView4.

  • Page 5: Iqview4 Installation Instructions Tg201038 Issue 8, 14-Jan

    If restoring from memory stick USB Stick: maximum size 2 Gbyte, fully formatted FAT/FAT32. Enter IQ PIN number if set up in IQ (should be level 99 in IQ) continued over page IQView4 Installation Instructions TG201038 Issue 8, 14-Jan-2016.
  • Page 6 IQView4 Installation Instructions 3.2 Installation- Configuration (continued) Start Up (continued) To enable security No security If password not set up IQView4 Installation Instructions TG201038 Issue 8, 14-Jan-2016.
  • Page 7 Key click Select key click ON/OFF (Default: OFF) Restart Perform a soft restart System Restore to factory defaults. This wll also cause a restart as in Restore to Defaults step 4 Test System IQView4 Installation Instructions TG201038 Issue 8, 14-Jan-2016.
  • Page 8 IQView4 Installation Instructions 3.3 Installation - Confi guration (continued) Mount IQView4 into Chassis IQView4 Manual (TG201041) USB Stick: maximum size 2 Gbyte, fully formatted FAT/ FAT32. System Backup to USB Drive IQView4 Installation Instructions TG201038 Issue 8, 14-Jan-2016.

  • Page 9: Removal Of Bezel

    Installation Instructions IQView4 ReMoVal of Bezel Remove Bezel IQView4 Installation Instructions TG201038 Issue 8, 14-Jan-2016.

  • Page 10: Cleaning And Maintenance

    Weee Directive: At the end of their useful life the packaging and product should be disposed of by a suitable recycling centre. Do not dispose of with normal household waste. Do not burn. IQView4 Installation Instructions TG201038 Issue 8, 14-Jan-2016.

  • Page 11: End User Licence Agreement

    USeR lICenCe aGReeMenT You have acquired an IQView4 (“Device”) that includes software licensed by Trend Control Systems Ltd from one or more software licensors (“Trend Control Systems Ltd Software Suppliers”). Such software products, as well as associated media printed materials and “online”...
  • Page 12 Division of Honeywell Technologies Sàrl, Z.A. La Pièce, 16, 1180 Rolle, Switzerland by its Authorized Representative, Trend Control Systems Limited. Trend Control Systems Limited reserves the right to revise this publication from time to time and make changes to the content hereof without obligation to notify any person of such revisions or changes.
