Connecting The System

Connecting
Audio Connections Audio Connections Audio Connections Audio Connections

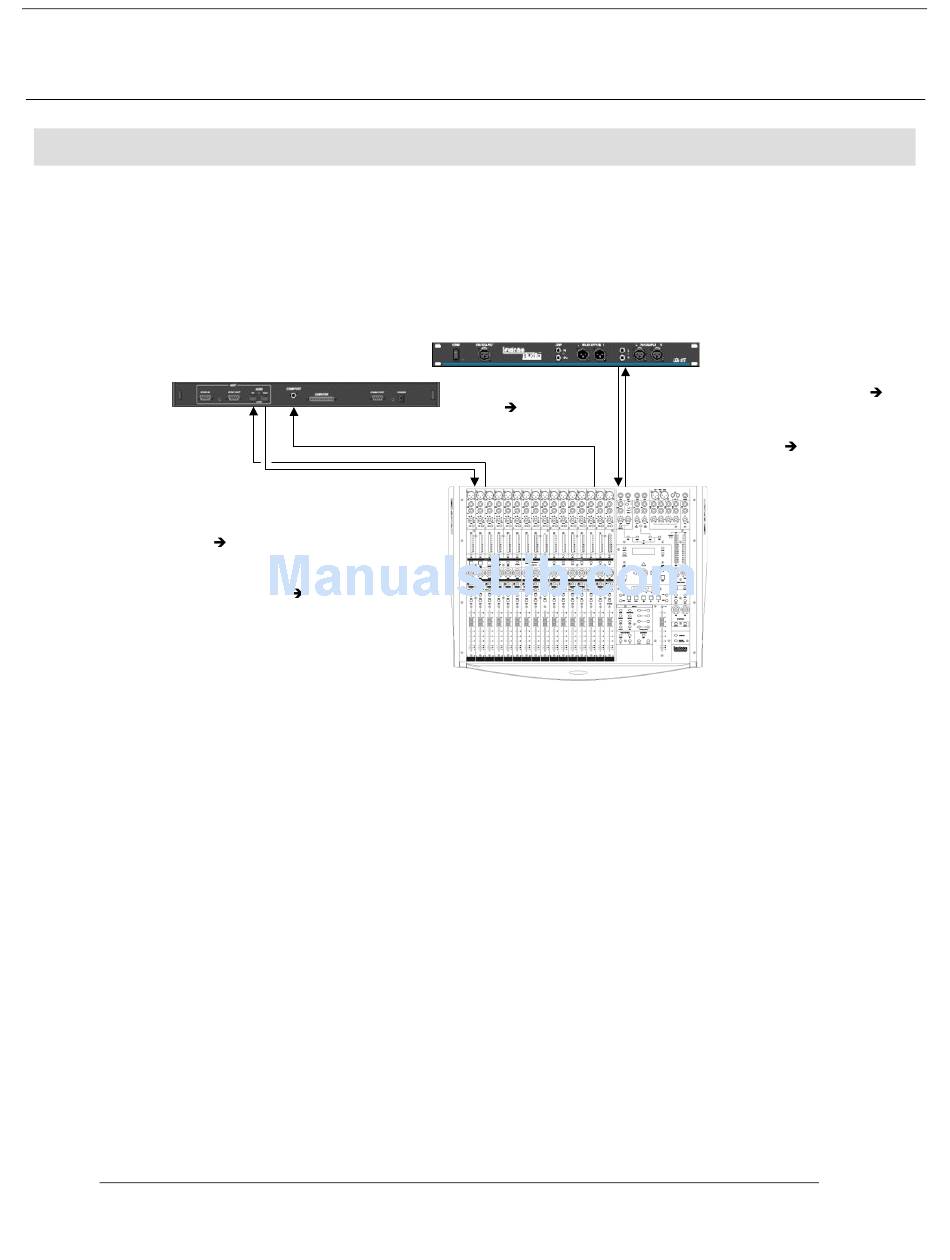

Connect audio connections as shown in the diagram below. Toslink Optical cables must be
connected from the ADAT Out port of the Lexicon Studio LDI-12T card to an ADAT In port of the
Digital 328 and vice versa. Coaxial digital S/PDIF cables can also be connected from the Lexicon
Studio LDI-12T S/PDIF output to the Digital 328 S/PDIF input and vice versa. The recommended
method of synchronization is to utilize the Wordclock Out feature of the Digital 328.
328 ADAT Out 1
ADAT In
Lexicon Studio ADAT Out
ADAT In 1
The ADAT connections allow digital transfer of either direct output for input channels 1-16 to the
Lexicon Studio LDI-12T card, or the Digital 328's 8 Group outputs. The S/PDIF output from the
console can be assigned to either the Mix output or 1 of 3 stereo auxiliary outputs. The 328
S/PDIF Input can be configured to be a digital Stereo Input or as a digital 2 Track Return.
2
Lexicon Studio
328
Spirit Digital 328 v2
The System The System The System
328 Wordclock
Out Lexicon
Studio
Wordclock In
Lexicon Studio S/PDIF Out
328 S/PDIF In
328 S/PDIF Out Lexicon
Studio S/PDIF In
