CE Domestic Slicer
ESSEDUE
OWNER'S AND MAINTENANCE MANUAL

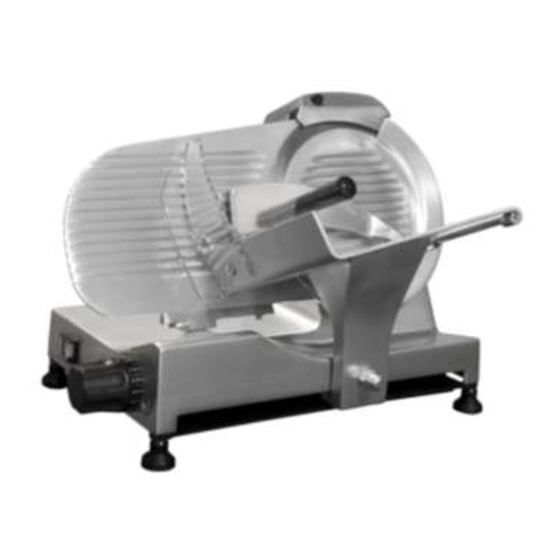

ESSEDUE CE Domestic Slicer
Models 220 AVP, 220 AV, 220 AF, 220 AFP, 250 AV, 250 AF, 250 AFP,
250C, 250T, 275 AF, 275V, 300E, 300, 300C, 300T, 300V, 330, 350
IMPORTANT SAFETY NOTICE
This manual contains important safety instructions which
must be strictly followed when using this equipment.
OWNER'S AND MAINTENANCE MANUAL – Original Manual
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ESSEDUE 220 AVP, 220 AV, 220 AF, 220 AFP, 250 AV, 250 AF, 250 AFP,250C
Summary of Contents for ESSEDUE 220 AVP, 220 AV, 220 AF, 220 AFP, 250 AV, 250 AF, 250 AFP,250C
- Page 1 CE Domestic Slicer ESSEDUE OWNER'S AND MAINTENANCE MANUAL ESSEDUE CE Domestic Slicer Models 220 AVP, 220 AV, 220 AF, 220 AFP, 250 AV, 250 AF, 250 AFP, 250C, 250T, 275 AF, 275V, 300E, 300, 300C, 300T, 300V, 330, 350 IMPORTANT SAFETY NOTICE This manual contains important safety instructions which must be strictly followed when using this equipment.
- Page 2 2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment. ESSEDUE thanks you for choosing this product. Please do not hesitate to contact us if you need any further information. ESSEDUE SRL VIA DELL’ELETTRONICA 53...
-
Page 3: Table Of Contents
CE Domestic Slicer ESSEDUE INDEX 1 GENERAL INFORMATION ....................5 1.1 General precautions ......................5 1.2 Safety devices ........................6 1.2.1 Mechanical safety devices ..................... 6 1.2.2 Electrical safety devices ....................7 1.3 Description of the Machine ....................7 1.3.1 General description ....................... 7 1.3.2 Characteristic of construction .................. - Page 4 CE Domestic Slicer ESSEDUE 7 EXTRAORDINARY MAINTENANCE ................. 17 7.1 General Information ......................17 7.2 Maintenance ........................17 7.2.1 Belt ..........................17 7.2.2 Feet ..........................17 7.2.3 Power cord ........................17 7.2.4 Blade........................... 17 7.2.5 Truing and Sharpening Stones ..................17 7.3 Lubrification ........................
-
Page 5: General Information
1 GENERAL INFORMATION 1.1 General precautions ESSEDUE’s equipment is designed to provide safe and productive processing of food products as long as the equipment is used in accordance with the instructions in this manual and with good hygiene practices principles, and is properly maintained. -
Page 6: Safety Devices
• If the machine remains unused for a long period, unplug it; if the period lasts, please ensure to have the machine checked by a “Service Centre” before using it again. • Use only ESSEDUE slicer accesories properly installed 1.2 Safety devices 1.2.1 Mechanical safety devices The slicer has been built complying to the Machine Directive 2006/42/CE and the EN 1974 Norm (Slicers. -
Page 7: Electrical Safety Devices
1.3.2 Characteristic of construction ESSEDUE slicers are made in an aluminium alloy or die casted aluminium which guarantees hygiene of material that come in contact with foodstuff, sliceable by this slicers (section 1.3.4 of this manual “Sliceable products”). -
Page 8: Components Definition
U) Rubber Foot K) Sharpener release knob W) Sharpening stone button Exploded views can be find on www.essedue.com/en/esplosi.html 1.3.4 Sliceable products Please slice only salami and meat without bones (with meat chute only); to cut bread and cheese please ask for special blades. -
Page 9: Technical Data
CE Domestic Slicer ESSEDUE 2 TECHNICAL DATA 2.1 Dimension, weight and other characteristics Figure 3 – Dimension drawing Model Blade Cutting Food Chute Minimum Maximum (mm) cross Chute Stroke Dimensions Dimension (mm) Weigh section (mm) (mm) (mm) A x B x H... -
Page 10: Receiving The Machine
CE Domestic Slicer ESSEDUE 3 RECEIVING THE MACHINE Ensure all the operators have read and understood this manual before installation and operating. If you are uncertain about a particular task or the proper method of operating this equipment, do not proceed with installation and operating;... -
Page 11: Installation
CE Domestic Slicer ESSEDUE 4 INSTALLATION 4.1 Positioning and mounting Install the slicer on a perfect horizontal level, solid, non-skid surface. Recommended height of work surface: about 800 mm. Make sure the work area is sufficient to support the slicer, taking into account the dimensions shown, according to the model in the table contained in section 2.1 "Dimensions, weight and... -
Page 12: Wiring Diagram
CE Domestic Slicer ESSEDUE 4.3 Wiring Diagram Figure 5 – Mono-phase wiring diagram a) 300, 330, 350 models; b) Other models 5 OPERATING THE MACHINE 5.1 Manual operation Make sure that power supply corresponds to that indicated on data label fixed on the machine. -
Page 13: Loading And Slicing Of The Product
CE Domestic Slicer ESSEDUE 5.2 Loading and slicing of the product 5.2.1 Traditional food chute N.B. The product to be cut must be loaded on the food chute only with the index knob on O (zero) and the motor stopped (Fig 9). -
Page 14: Sharpening The Blade
CE Domestic Slicer ESSEDUE N.B. The product to be cut must be loaded on the food chute only with the index knob on O (zero) and the motor stopped (Fig 10). Do not idle the slicer. Perform the sharpening of the blade as soon as the slices have a frayed or non-uniform surface and when you have a poor cut quality. -
Page 15: Cleaning
CE Domestic Slicer ESSEDUE Press sharpening stone button (Fig 2, W) for 3-4 seconds; if necessary, repeat the process up to 2 times, then press truing stone button (Fig 2, N) for 1-2 seconds; After sharpening press OFF switch and unplug the slicer;... -
Page 16: How To Clean The Slicer Machine
CE Domestic Slicer ESSEDUE Be always alert when performing cleaning. ALWAYS wear safety gloves. All these operations must be performed by trained and authorised personnel. 6.2 How to clean the slicer machine Before clearing operator must: Unplug the slicer from power supply;... -
Page 17: Cleaning The Knife Cover
3-4 years by a “Service Centre”. 7.2.2 Feet The feet may deteriorate over time and lose the characteristics of elasticity, decreasing the machine’s stability. To replace them, please contact a “Service Centre” and ask for ESSEDUE spare parts. 7.2.3 Power cord Check power cord usury, and, in case of replacement, please contact an authorised “Service... -
Page 18: Lubrification
Clean sharpener stones with a brush and warm water; Put several drops of ESSEDUE oil on the shaft behind each sharpener stone (Fig 11); Push both sharpener buttons a couple of times to distribute the oil onto the shafts;... -
Page 19: Demolition And Disposal
CE Domestic Slicer ESSEDUE 8 DEMOLITION AND DISPOSAL The WEEE symbol shown below indicates that the slicer, at the end of its useful life, must be collected separately from other waste. The user must adopt special precautions regarding the decommissioning of environmentally harmful materials such as plastic parts, electrical connections, and lubricants, in compliance to European, national regulations and local regulations. - Page 20 CE Domestic Slicer ESSEDUE WARRANTY The Manufacturer warrants to the first user from any defect in the manufacturing process for a period of 2 years. The Manufacturer will replace or repair, at its factory, any part that is find to be, also from its perspective, defective.
