DL-VHD Installation Guide
The DigitaLinx DL-VHD is a VGA to HDMI converter that converts
computer video and stereo audio to HDMI. The DL-VHD VGA input
supports resolution up to 1920x1200@60Hz along with HDMI output
support of HDMI 1.4. The DL-VHD features fixed EDID mode and
superior ESD protection. The DL-VHD is a Plug and Play device which
allows for a hassle free install.
Included Accessories
•
Installation Guide
•
USB to Micro-USB cable
HDMI OUT
•
Two Mounting Ears
•
Two Screws
POWER

Advertisement

loading
Need help?

Need help?

Do you have a question about the DL-VHD and is the answer not in the manual?

Questions and answers

Related Manuals for DigitaLinx DL-VHD

Summary of Contents for DigitaLinx DL-VHD

  • Page 1 1920x1200@60Hz along with HDMI output support of HDMI 1.4. The DL-VHD features fixed EDID mode and superior ESD protection. The DL-VHD is a Plug and Play device which allows for a hassle free install. Included Accessories •...

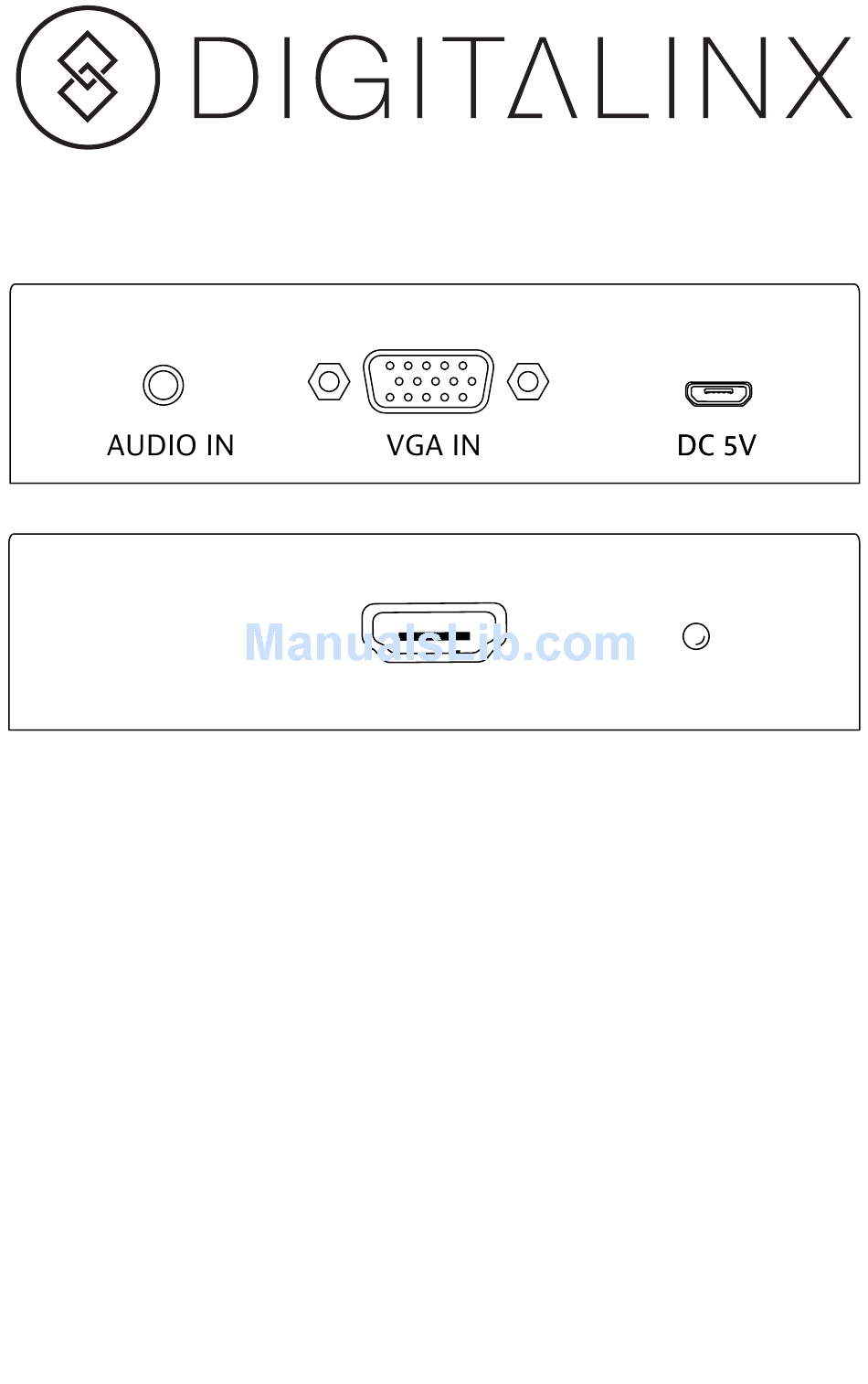

  • Page 2 Input and Output Connections Input Side Output Side HDMI OUT POWER...

  • Page 3: Troubleshooting Tips

    Instructions • Verify all components included with the DL-VHD are present before installation. • Connect a laptop to VGA IN and AUDIO IN ports via VGA and audio cables. • Connect a display device to HDMI OUT port via an HDMI cable.

  • Page 4: Technical Specifications

    Technical Specifications Input Connections Video Input One (1) VGA Audio Input One (1) Stereo Audio (3.5 mm) Power Input One (1) Micro USB Power Supply Output Connections Outputs One (1) HDMI Output Connector 19-pin Type A female HDMI HDMI Standard HDMI 1.4 Video Performance VGA Input Resolution...
