Before initial use, see "Getting Started"
on page 10.
Thank you for purchasing a Panasonic product.
Please read these operating instructions before using the unit and save them for
future reference.
To use this unit in your region, first change the display language (page 31),
and then change the region setting to match your region (page 31).

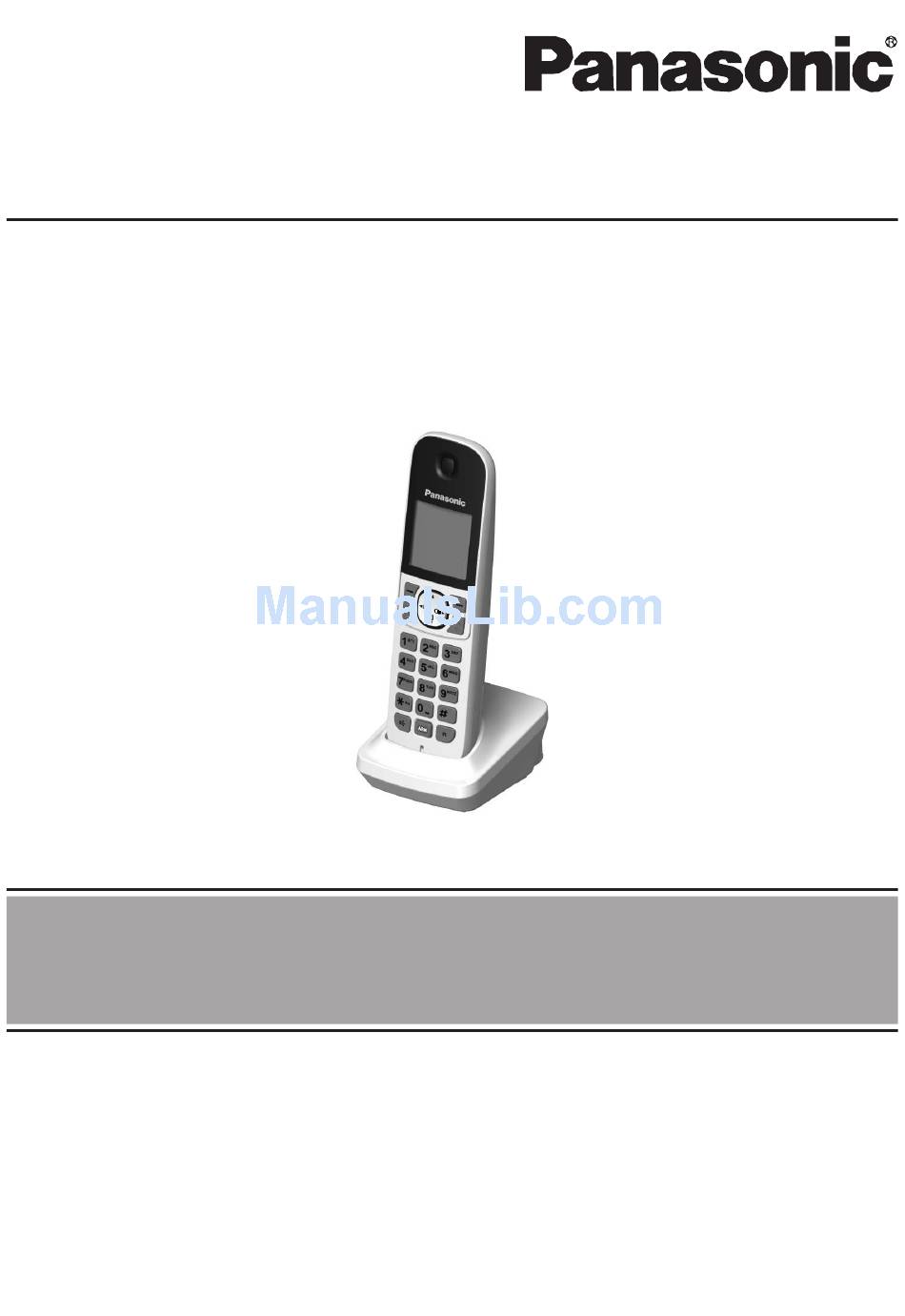

Operating Instructions
Home Network System
Digital Cordless Handset
KX-HNH100FX
Model No.
