Sony SPP-ID970 Service Manual

Hide thumbs Also See for SPP-ID970:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
General
Frequency band (SPP-ID970)
902 - 928 MHz
Frequency band (SPP-ID971)
923.1 - 927.75 MHz
Base unit : 18 pW
Handset : 73 pW
Operating channel
30 channels
Dial signal
Tone, 10 PPS (pulse) selectable
Supplied accessories
AC power adaptor AC-T127 (1)
Telephone line cords (2)
Wall bracket for base unit (1)
Rechargeable battery pack BP-T23 (I)
Handset
Power source
Rechargeable battery pack BP-T23
Battery
life
Standby : Approx. 7 days
T a l k
Dimensions
Approx. 58 x 177 x 46 mm (w/h/d),
antenna excluded
(approx. 2 ~8 x 7 x 1 1~16
inches)
Antenna: Approx. 72 mm
(approx. 2 718 inches)
M a s s
Approx. 270 g
(approx. 9.5 oz), battery included
Photo:
SPP-ID970

SPECIFICATIONS

Base unit
Power SO"Kx
DC 9V from AC power adaptor
AC-T127
Battery charging time
Approx. 12 hours
Dimensions
Approx. 123 x 63 x 225 mm (w/h/d),
antenna excluded
(approx. 4 718 x 2 112 x 8 718 inches)
Antenna: Approx. 120 mm
(approx. 4 3~ inches)
Approx. 360 g
(approx. 13 oz), wall bracket excluded
Design
and
specifications
change without notice.
Notes on Chip Component Replacement
Never reuse a disconnected chip component.
l
Notice that the minus side of a tantalum capacitor may be dam-
l
aged by heat.
US Model
Canadian Model
are
subject
to
CORDLESSTELEPHONE
SPP-ID970
SPP-ID971

Advertisement

Table of Contents
loading

Related Manuals for Sony SPP-ID970

Summary of Contents for Sony SPP-ID970

  • Page 1: Specifications

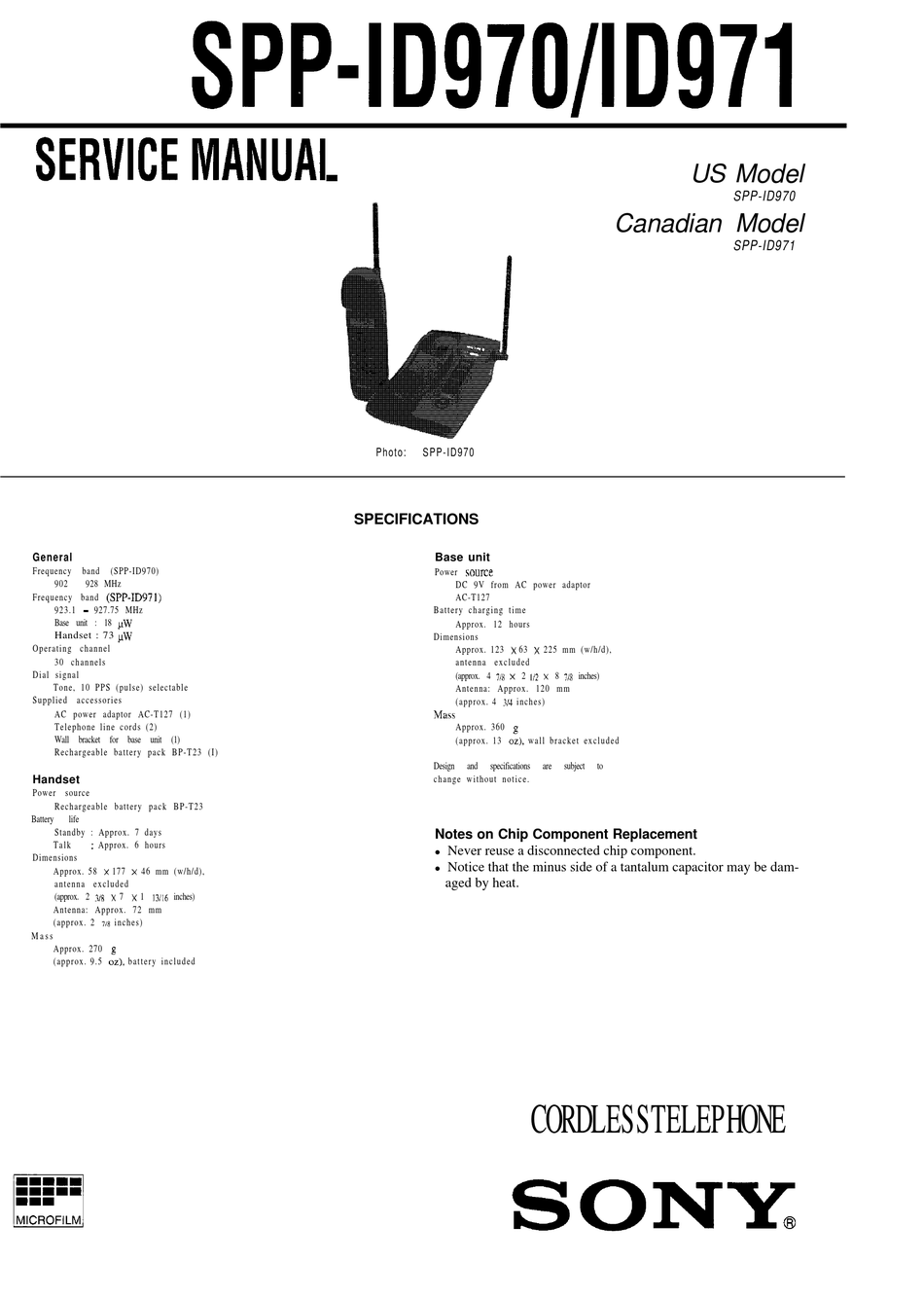

    SPP-ID970 Canadian Model SPP-ID971 Photo: SPP-ID970 SPECIFICATIONS General Base unit Frequency band (SPP-ID970) Power SO”Kx 902 - 928 MHz DC 9V from AC power adaptor Frequency band (SPP-ID971) AC-T127 923.1 - 927.75 MHz Battery charging time Base unit : 18 pW Approx.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Note for Replacement of the ASIC Board The ID is written in the ASIC board. When replacing the ASIC board, the U2001 on BASE MAIN board GENERAL and UlOOl on HAND MAIN board should be replaced together as Read This First ................

  • Page 3: General

    M a k e sure y o u i s m i s s i n g , contact y o u r local Sony d e a l e r . Step 1 a c c e s s o r i e s .

  • Page 4: Setting Up The Base Unit

    C o n t a c t y o u r local S o n y a u t h o r i z e d d e a l e r or se~vxe c e n t e r , a n d a s k for a Sony BP-V.3 battery pack.
  • Page 5 Step 4: Entering the area code (continued) “ENTER AREA CODE” appears on the d i s p l a y . Enter three digits of the local area code using the dialing keys. You will hear a long confirmation beep To change the home area code 1 Perform steps 1 to 4 on page 13.

  • Page 6: Making Calls

    base unit. Press (TALK) and wait until “TALK” appears on the display. The display also shows the operation duration in hours, t h e bat!e.y p a c k . You will then hear a dial tone. For optimum petiormance, charge the battery for a full 12 hours.

  • Page 7: Receiving Calls

    To enter two characters assigned to the key, or to enter a “space”, turn Jog Dial up to move the cunor to the Example: to enter “SONY”, press 0 (0), bun Jog Dial up to move the press 8 hvice...

  • Page 8: Setting The Ringer Type

    Phone Directory (continued) Erasing a memory location You may pie35 m&cl to make a cdl wtead Of doing steps 3 and 1. Display the name and phone number you want to erase by doing steps 1 and 2 in “Mahg calls About the search order f r o m t h e P h o n e D i r e c t o r y ”...

  • Page 9: Paging

    Caller ID Features Paging Understanding the Caller ID service You can page the handset kom the base tit. Note that you cannot page if the hand.%3 is in use. To Page Press (HANDSET LOCATOR). The handset rings for about one minute.

  • Page 10: Using The Caller Id List

    Using the Caller ID list To erase the entire list at once Calling back a number from the Caller ID list Press Jog Dial. Display the phone number you w a n t t o c a l l f r o m t h e C a l l e r I D l i s t ( s e e p a g e 3 2 ) .

  • Page 11: Using "Caller Id With Call Waiting" Service

    Using “Caller ID with call waiting” Using the Caller ID list (continued) service When the local area code matches service. Make wre t h a t y o u r t e l e p h o n e c o m p a n y o f f e r s this service. Like the basic C&r ID semce.

  • Page 12: Disassembly

    SECTION 2 DISASSEMBLY Note : This set can be disassemble according to the following sequence. HANDSET q CASE (REAR) + RF UNIT (HS), HAND MAIN BOARD BASE UNIT I, BASE (BOTTOM) q BASE MAIN BOARD + RF UNIT (BU) q LED BOARD Note : Follow the disassembly procedure in the numerical order given.

  • Page 13: Base (Bottom)

    2-3. BASE (BOTTOM) BTP 3x12 . base (bottom) BTP 3x12 2-4. BASE MAIN BOARD screws (3x30) Removal the solders.

  • Page 14: Rf Unit

    2-5. RF UNIT (BU) BTP 3x12 2-6. LED BOARD...

  • Page 15: Electrical Adjustments

    SECTION 3 ELECTRICAL ADJUSTMENTS 3-1. HANDSET 1. Test Mode Entry- Press “PGM” key and enter “**TEST” on keypad. Alternative entry- Write 99h into LSB of location 9 in EEPROM Exit- Press on “OFF” key. LCD test- Press the “7” key. Toggle TX power- Press the “0”...

  • Page 16: Base Unit

    3-2. BASE UNIT 1. Test Mode Entry- Simultaneously press the “HANDSET LOCATOR’ key and toggle the “DIAL MODE” switch. When in test mode, the “LINE” and “CHARGE” Alternative entry- Write 99h into LSB of location 9 in EEPROM. Exit- Remove the AC power adaptor. Toggle TX power- DIAL MODE switch (S2001) T (TONE) position : TX ON P (PULSE) position : TX OFF...

  • Page 17: Exploded Views

    SECTION 5 EXPLODED VIEWS NOTE: The mechanical parts with no reference -XX and -X mean standardized parts, so Accessories and packing materials are number in the exploded views are not supplied. they may have some difference from the given in the last of this parts list. Items marked “*”...

  • Page 18: Base Unit Section

    5-2. BASE UNIT SECTION ‘52 52’ Ref. No N o . Part Remark Ref. No. Description N o . Part A-3672-868-A BASE MAIN BOARD,COMPLETE HOOK 3-038-090-01 3-044-144-01 TERMINAL BOARD,ANTENNA 3-038-086-11 3-041-551-01 BASE,STUD PLATE,ANTENNA RETAINER 3-044-143-01 3-044-146-01 SCREW (3X30) 3-038-091-01 ND 2x8) 3-038-087-01 A-3672-867-A RFUNlT(BU) 3-041-534-01...

  • Page 19: Electrical Parts List

    SECTION 6 ELECTRICAL PARTS LIST NOTE: Items marked “*:” are not stocked since The components identified by Due to standardization, replacements in the parts list may be different from the they are seldom required for routine service. mark a or dotted line with mark parts specified in the diagrams or the Some delay should be anticipated Replace only with part number...
  • Page 20 Part No. Description Ref. No. Part No. Remark Ref. No. Remark 8-729-113-08 TRANSISTOR R2020 i-218-292-11 R2021 I-216-821-11 METALCHIP (11008 8-729-026-06 TRANSISTOR R2023 -216-833-11 METALCHIP (12003 8-729-050-67 TRANSISTOR R2025 -216-849-11 METALCHIP 220K -216-846-11 METALCHIP R2026 <RESISTOR> R2028 -218-292-11 RES,CHIP l-216-841-11 METALCHIP R2030 -216-833-11 METALCHIP...
  • Page 21 Remark Ref No. Part No. Remark Ref. No. Part No. l-164-227-11 CERAMICCHIP 0.022uF e-729-026-07 TRANSISTOR Cl018 1-162-918-11 CERAMIC CHIP e-729-026-07 TRANSISTOR Cl019 l-107-826-11 CERAMICCHIP O.luF 1 6 V T-941-615-31 TRANSISTOR Cl020 l-135-201-11 TANTALUMCHIP T-941-615-31 TRANSISTOR Cl021 I-107-826-11 CERAMIC CHIP 1 6 V e-729-922-00 TRANSISTOR e-729-033-61...
  • Page 22 Ref. No. Remark <SWITCH> S1002 1-475-568-12 (VOL) X-3378-158-l BOARD,COMPLETE) i-505-594-11 BUZZER U1003 l-542-260-31 I-505-593-11 <VIBRATOR > Xl001 l-577-269-11 VIBRATOR, CRYSTAL(18.4MHz) l-676-045-11 LED BOARD 8-719-031-09 LED 8-719-031-09 LED 8-719-059-40 LED 8-719-052-06 LED <SWITCH> MISCELLANEOUS A-3672-864-A RFUNlT(HS) (HANDSET) A-3672-867-A RFUNlT(BU) (BASE UNIT) ANT1001 l-754-103-11 ANTENNA(HANDSET)
  • Page 23 Sony Corporation Personal Audio Division Company g-927-617-11 Printed in Japan 01999. 11 Published by General Engineering Dept.
