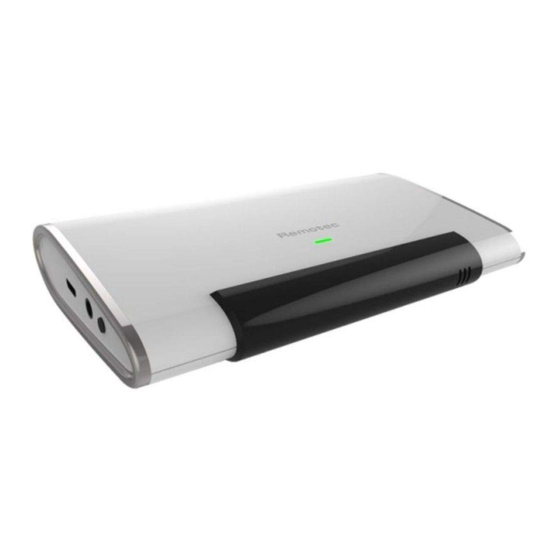

Remotec ZXT-600 Manual

For samsung smartthings hub
Hide thumbs Also See for ZXT-600:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

System Requirements

Gateway: Samsung SmartThings Hub
Target Device: ZXT-600 (Zwave-to-IR extender)
Device Handler source code for SmartThings:
zxt-600 v02.groovy

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZXT-600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Remotec ZXT-600

Summary of Contents for Remotec ZXT-600

  • Page 1: System Requirements

    System Requirements Gateway: Samsung SmartThings Hub Target Device: ZXT-600 (Zwave-to-IR extender) Device Handler source code for SmartThings: zxt-600 v02.groovy...
  • Page 2 Install Custom Device Code Step 1) Before you start creating your custom device code, you should have registered a SmartThings account in SmartThings Developer Portal. Step 2) Click “My Device Handlers” and create a new Device handler Select “From Code” and copy all content of the groovy file. And then click “Create” After that, you can “Save”...

  • Page 3: Include Zxt-600 To A Z-Wave Gateway

    Include ZXT-600 to a Z-wave Gateway Notes: 1. It is recommended to perform the Remove (Exclude) procedure before performing an Add (Include) procedure. 2. Red Indicator flashes TWICE then stay off to represent the Add / Remove process failed, please repeat the above step again.
  • Page 4 Configure IR code Click “Setup” icon Modify the code number. (Please use QR Code scanner to scan the QR code label (below), then it will reach to our Code Finder Webpage to obtain the Code Number)
  • Page 5 Click “Save” to confirm the change. Click the “Config” icon once to trigger the “Configuration Command Class” action. The ZXT-600 may turn on LED (up to 30s) for IR code setup. Please don’t do other operation until the LED is OFF.

  • Page 6: Ir Code Learning

    IR code learning According to the ZXT-600 user manual, here is the IR learning Mapping table.
  • Page 7 Click the icon as shows to change the learn location Click “UP” or “DOWN” to select different learn location. Click “X” to confirm and exit...
  • Page 8 • Click “Learn” icon to start IR learning action. Then Green Indicator still turns ON for indicating the IR Code Learning Start • Aim the Original Air Conditioner Remote at AC Master according to below position within 1-3cm Press “Power ON“ button on the Original Air Conditioner Remote.
