Motorola ORBIT User Manual

Wireless wi-fi video camera
Hide thumbs Also See for ORBIT:
Table of Contents

Advertisement

Quick Links

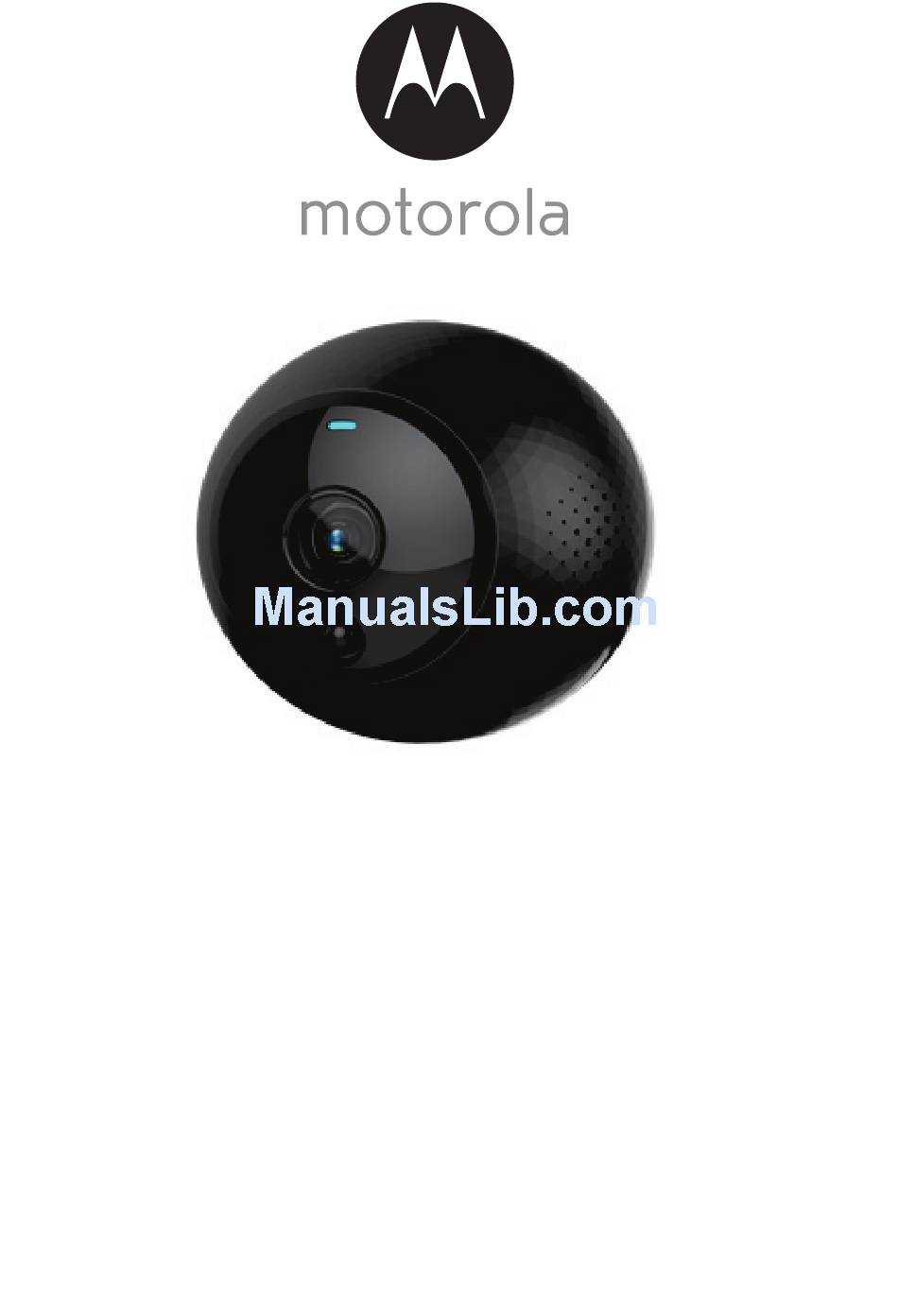

USER'S GUIDE
®
Wireless Wi-Fi
Video Camera
Model: ORBIT
The features described in this user's guide are subject to modifications without prior notice.

Advertisement

Table of Contents
loading

Related Manuals for Motorola ORBIT

Summary of Contents for Motorola ORBIT

  • Page 1 USER’S GUIDE ® Wireless Wi-Fi Video Camera Model: ORBIT The features described in this user’s guide are subject to modifications without prior notice.

  • Page 2: Inside The Box

    Android™ devices. Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.

  • Page 3: Camera Unit

    • Always ensure that you have a good Wi-Fi connection available. • Please ensure that the Orbit Camera is mounted in areas that are not exposed to unfavorable environmental conditions including, but not limited to, excessive vibration, humidity and wind.

  • Page 4: Table Of Contents

    Table of contents Safety Instructions ..................5 Getting Started .................... 6 Charging the Camera ................6 2.1.1 Using USB Charging Dock (included) ........6 2.1.2 Using micro-USB cable (not included) ........7 Powering the Camera ................8 Pairing the Camera ................8 Resetting the Camera................

  • Page 5: Safety Instructions

    1. Safety Instructions WARNING ® This Wi-Fi Camera Unit is compliant with all relevant electromagnetic field standards and is, when handled as described in the User’s Guide, safe to use. Therefore, always read the instructions in this User’s Guide carefully before using the device.

  • Page 6: Getting Started

    2. Getting Started Charging the Camera The Camera comes with a built-in rechargeable battery. Charge the battery fully before using it for the first time. It takes about 5 hours to charge the battery fully. For safety reasons, if the internal temperature of the Camera reaches 60⁰C, the Camera will turn off automatically and the battery will stop charging.

  • Page 7: Using Micro-Usb Cable (Not Included)

    2.1.2 Using micro-USB cable (not included) 1. Remove back cover. 2. Open waterproof rubber flap. 3. Connect a micro-USB cable to the Camera, then connect the USB cable to a standard USB power adapter (DC 5V / 2A, not included) and plug it into a power outlet.

  • Page 8: Powering The Camera

    Powering the Camera ON/OFF Red LED Green LED • Remove the back cover. • Press the on/off button for 5s until the RIGHT RED LED flashes rapidly to power on. • Press the on/off button for 5s until the GREEN and RED LEDs both turn off to power off.

  • Page 9: Resetting The Camera

    • For details on how to pair the Camera with your compatible iOS device, ® please refer to section 4.2 User Account and Camera Setup on iPhone ® iPad Resetting the Camera RESET • Remove the back cover. • Press the RESET button on the Camera. LED status indicators Red LED Green LED...

  • Page 10: Mounting The Camera

    Please ensure that the magnetic mounting plate is mounted on a secure and stable wall. Please ensure that the Orbit Camera is mounted in areas that are not exposed to unfavorable environmental conditions including, but not limited to, excessive vibration, humidity and wind.

  • Page 11: System Requirements

    3. System Requirements Please take note of the following minimum system requirements: Smartphones/Tablets: iOS 7, Android™ 4.4 ® Wi-Fi requirements: Preferably 1MByte upload bandwidth per camera. Test your Internet speed at: http://www.speedtest.net/ System Requirements...

  • Page 12: Connecting Devices

    Hubble Service When a user tries to access the Camera, our Hubble server authenticates the user’s identity before permitting access to the Camera. Install Motorola “Hubble Home” Application. Download the Motorola “Hubble Home” App from the App Store for iOS devices...

  • Page 13: User Account And Camera Setup On Android™ Devices

    User Account and Camera Setup on Android™ Devices What you need • ORBIT Camera (fully charged) • Smartphones/Tablets: iAndroid™ 4.4 or above ® • Wi-Fi requirement - preferably 1MByte upload bandwidth per camera. 4.1.1 Download the Hubble Home App • Go to Google Play™ Store to search for "Hubble Home".

  • Page 14: Add The Camera To Your Account

    4.1.3 Add the Camera to your account • Tap to add camera. (Picture A2) • The following setup instructions will appear on the screen. (Picture A3) Connecting Devices...
  • Page 15 • Tap DETECT CAMERA. • The App will automatically search for your Camera as shown in the pictures below. The Camera’s LED will flash in green and red rapidly. • Tap the detected camera, Camera (Orbit-xxxxxxxxx). Connecting Devices...
  • Page 16 • Tap NEXT. ® • Select your Wi-Fi Network, enter your router password and then tap CONNECT. ® • It will take a few minutes for the Camera to connect to the Wi-Fi network before showing the connection status. • If connection fails, please tap SEARCH AGAIN and repeat the steps starting from 4.1.3.

  • Page 17: Add More Cameras To Your Account

    4.1.4 Add more Cameras to your account • In Camera view, tap on the Hubble logo to go back to Add Camera page. • Tap and repeat the steps starting from 4.1.3. Connecting Devices...

  • Page 18: Ipad

    ® ® User Account and Camera Setup on iPhone /iPad What you need • ORBIT Camera Unit (fully charged) • Smartphones/Tablets: iOS 7 or later ® • Wi-Fi requirement - preferably 1MByte upload bandwidth per camera. 4.2.1 Download the Hubble Home App •...

  • Page 19: Add The Camera To Your Account

    4.2.3 Add the Camera to your account • Tap and select Orbit Cameras (Pictures i2 and i3). ® • If Bluetooth is not enabled on your iOS device, swipe up to enable ® Bluetooth . (Picture i4) Connecting Devices...
  • Page 20 • The following setup instructions will appear on the screen. (Picture i5) • Follow the setup instructions and tap Next when the Camera’s green and red LEDs flash alternately. • It will take a minute or so for your iOS device to detect the Camera. (Picture Connecting Devices...
  • Page 21 • Tap the detected camera, Orbit-xxxx. (Pictures i7 and i8) • If Bluetooth setup fails, tap Setup using WiFi. (Picture i9) Connecting Devices...
  • Page 22 • Wait until both the green and red LEDs flash alternately. • Go to Phone Settings and open Wifi. Then select Orbit from the list of networks and return to the Hubble Home app to resume setup.
  • Page 23 • Tap Next to access your WiFi router and enter your password. (Pictures i13, i14, i15) • Congratulations! The Camera has been setup successfully. (Picture i16) Connecting Devices...
  • Page 24 • Give your Camera a name and tap Continue. (Picture i17) • Pull down to refresh your dashboard. (Picture i18) • Tap the widget to go to viewfinder. (Picture i19) • Switch on or off your Camera. (Picture i20) Connecting Devices...
  • Page 25 • To add a new Camera, repeat the steps starting from 4.2.3. Connecting Devices...

  • Page 26: Help

    5. Help Noise interference To avoid background noise or echoes, ensure that there is enough distance ® between your device and the Wi-Fi Camera Unit. ® Use of other 2.4 GHz products, such as Bluetooth systems or microwave ® ovens, may cause interference with this product. Keep the Wi-Fi Camera Unit at least 3ft away from these types of products, or turn them off if they appear to be causing interference.
  • Page 27 ® Troubleshooting for Wi-Fi Internet Viewing Category Problem Solution Description / Error Account I am unable to login Please check your user name and even after registration. password. Account I receive an error Please ensure that you have message saying: "Email registered with us.
  • Page 28 Connectivity I get a message: We 1. Please try again in a few minutes. This could be because of any Issues are having problems issue with your internet accessing your connection. Camera. This could be 2. If the problem remains, please due to the lack of an restart your Camera to check if internet connection.
  • Page 29 General What is the A flashing LED indicates the following significance of LED status: flashing? Slow flashing: 1. Your Camera is in setup mode. You can add the Camera to your account in this mode. Out of the box, the Camera is in Setup mode. To reset to Setup mode, press the reset button on the Camera.
  • Page 30 General How do I download the Android™: App for Android™ and - Open the Google Play Store on iOS devices? your Android™ device. - Select Search - Type in "Hubble Home" - The results will show the Hubble - Select to install it iOS Device: - Open the App Store - Select Search...
  • Page 31 Setting Up While I am adding a If you are trying to add a Camera new Camera to my which has previously been added into account, I am not able your account or another account, you to find any Cameras to will first have to reset the Camera.

  • Page 32: General Information

    On the Web: www.motorolastore.com/support Consumer Products and Accessories Limited Warranty ("Warranty") Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International Ltd ("BINATONE"). What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory ("Accessory") sold...
  • Page 33 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
  • Page 34 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage.
  • Page 35 (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola branded housings, or parts, are excluded from coverage. Communication Services. Defects, damages, or the failure of Products or Accessories due to any communication service or signal you may subscribe to or use with the Products or Accessories is excluded from coverage.
  • Page 36 FCC and IC regulations FCC Part l5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 37 WARNING Changes or modifications, to this equipment not expressively approved by the party responsible for compliance could void the user’s authority to operate the equipment. The socket-outlet shall be installed near the equipment and shall be easily accessible. Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including...

  • Page 38: Technical Specifications

    7. Technical Specifications Camera Unit ® Wi-Fi 802.11 b/g/n Bluetooth 4.0 (BLE) Operating Temperature -10 C - 50 Image sensor 2MP, CMOS HD sensor Lens f = 2.3 mm, F = 2.4 IR LED 7 pcs Battery Lithium Rechargeable (3680 mAh) SD card slot Micro-SD card slot (up to 32 GB);...
  • Page 39 Manufactured, distributed or sold by Binatone Electronics International LTD., official licensee for this product. MOTOROLA and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. Apple logo and Safari are trademarks of Apple Inc., registered in the U.S.
