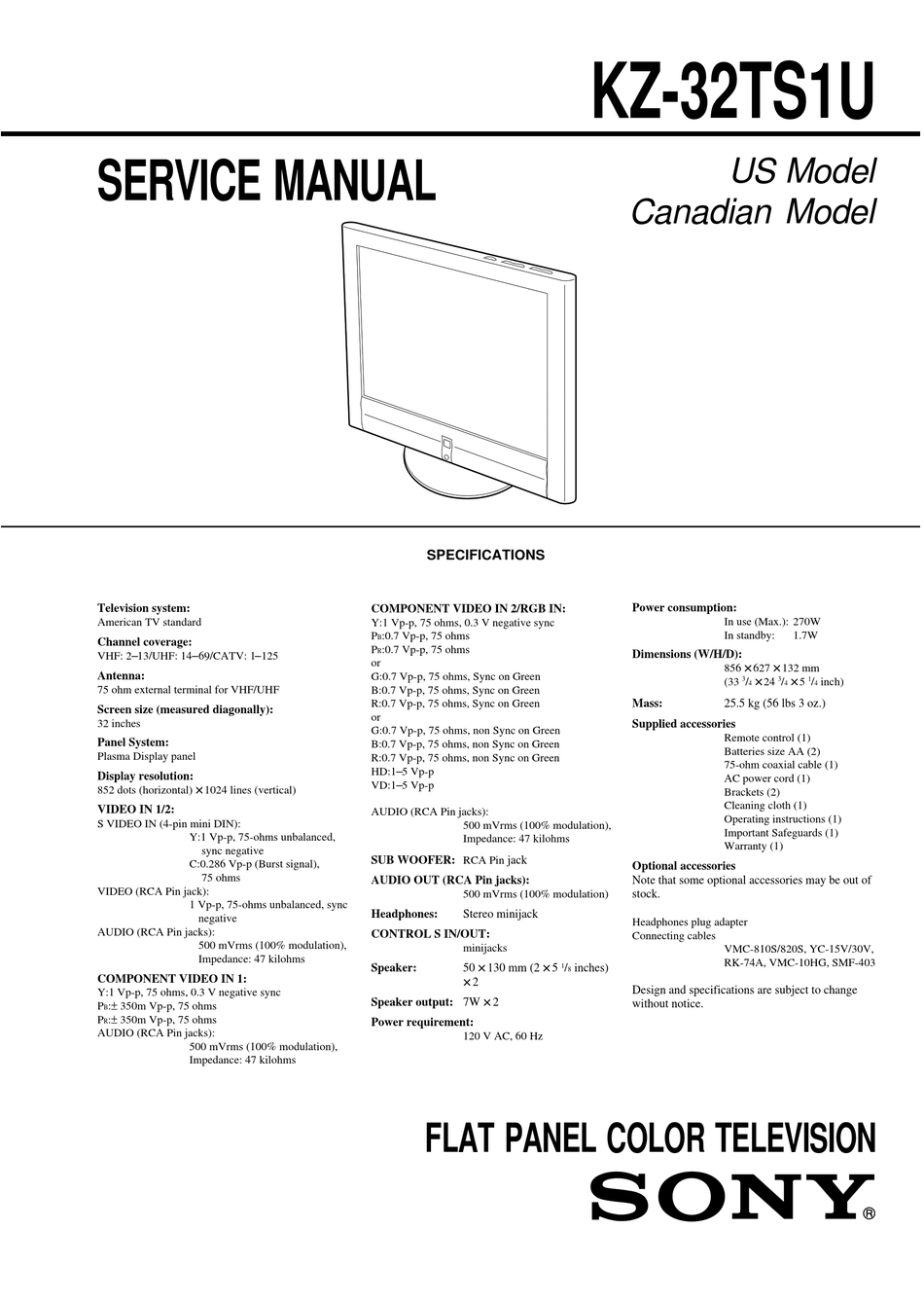

SERVICE MANUAL

Television system:
American TV standard
Channel coverage:
VHF: 2–13/UHF: 14–69/CATV: 1–125
Antenna:
75 ohm external terminal for VHF/UHF
Screen size (measured diagonally):
32 inches
Panel System:
Plasma Display panel
Display resolution:
852 dots (horizontal) x 1024 lines (vertical)
VIDEO IN 1/2:
S VIDEO IN (4-pin mini DIN):
Y:1 Vp-p, 75-ohms unbalanced,
sync negative
C:0.286 Vp-p (Burst signal),
75 ohms
VIDEO (RCA Pin jack):
1 Vp-p, 75-ohms unbalanced, sync
negative
AUDIO (RCA Pin jacks):
500 mVrms (100% modulation),
Impedance: 47 kilohms
COMPONENT VIDEO IN 1:
Y:1 Vp-p, 75 ohms, 0.3 V negative sync
P
:± 350m Vp-p, 75 ohms
B
P
:± 350m Vp-p, 75 ohms
R
AUDIO (RCA Pin jacks):
500 mVrms (100% modulation),
Impedance: 47 kilohms
SPECIFICATIONS
COMPONENT VIDEO IN 2/RGB IN:
Y:1 Vp-p, 75 ohms, 0.3 V negative sync
P
:0.7 Vp-p, 75 ohms
B
P
:0.7 Vp-p, 75 ohms
R
or
G:0.7 Vp-p, 75 ohms, Sync on Green
B:0.7 Vp-p, 75 ohms, Sync on Green
R:0.7 Vp-p, 75 ohms, Sync on Green
or
G:0.7 Vp-p, 75 ohms, non Sync on Green
B:0.7 Vp-p, 75 ohms, non Sync on Green
R:0.7 Vp-p, 75 ohms, non Sync on Green
HD:1–5 Vp-p
VD:1–5 Vp-p
AUDIO (RCA Pin jacks):
500 mVrms (100% modulation),
Impedance: 47 kilohms
SUB WOOFER: RCA Pin jack
AUDIO OUT (RCA Pin jacks):
500 mVrms (100% modulation)
Headphones:
Stereo minijack
CONTROL S IN/OUT:
minijacks
50 x 130 mm (2 x 5
Speaker:
x 2
Speaker output: 7W x 2
Power requirement:
120 V AC, 60 Hz

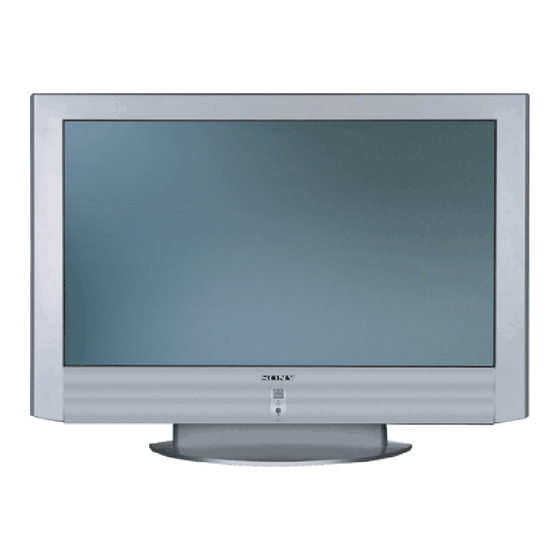

FLAT PANEL COLOR TELEVISION
KZ-32TS1U
US Model
Canadian Model
Power consumption:
In use (Max.): 270W
In standby:
Dimensions (W/H/D):
856 x 627 x 132 mm
(33
Mass:
25.5 kg (56 lbs 3 oz.)
Supplied accessories
Remote control (1)
Batteries size AA (2)
75-ohm coaxial cable (1)
AC power cord (1)
Brackets (2)
Cleaning cloth (1)
Operating instructions (1)
Important Safeguards (1)
Warranty (1)
Optional accessories
Note that some optional accessories may be out of
stock.
Headphones plug adapter
Connecting cables
VMC-810S/820S, YC-15V/30V,
RK-74A, VMC-10HG, SMF-403
1
/
inches)
8
Design and specifications are subject to change
without notice.
1.7W
x 24
x 5
3
3
1
/
/
/
inch)
4
4
4
