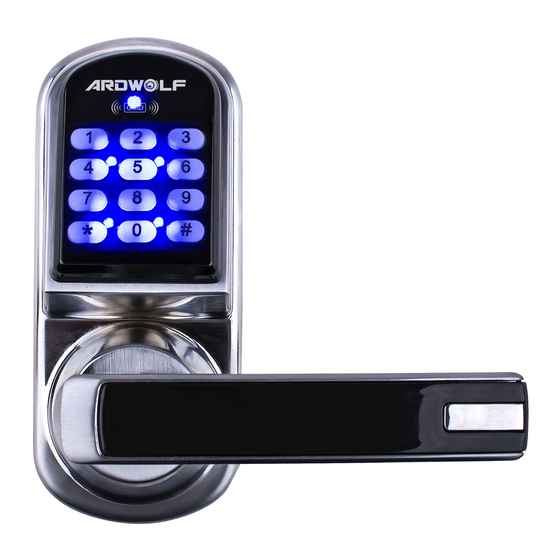

Ardwolf A30 User Manual
Keypad
Hide thumbs
Also See for A30:
- Quick start manuals (3 pages) ,
- User manual (1 page) ,
- User manual (1 page)
Related Manuals for Ardwolf A30
Summary of Contents for Ardwolf A30

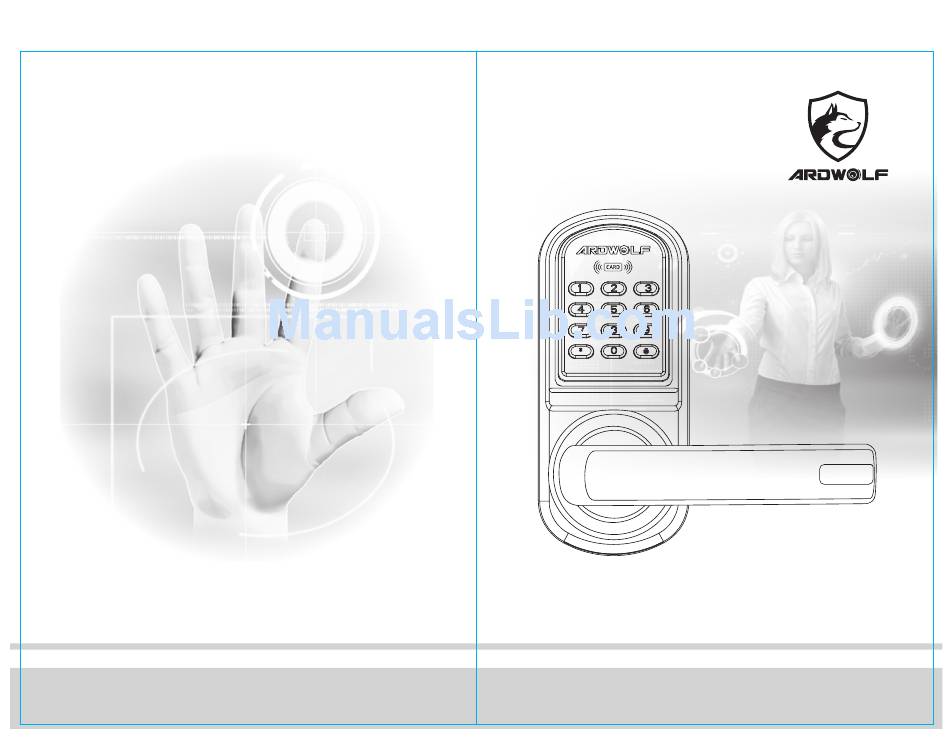

- Page 1 Customer Service Ardwolf A30 Keypad Door Lock Email: service@ardwolf.com Address: 12240 East End Ave Chino CA 91710 United States User Manual www.ardwolf.com...
-
Page 2: Table Of Contents
Content Product Introduction Product Introduction ---------------------------------------------------------- 01 1. Product Features -------------------------------------------------------------- 02 Switch Button 2. Product Specifications ------------------------------------------------------- 03 3. Packing List -------------------------------------------------------------------- 04 Installation Guide --------------------------------------------------------------- 05 1. Installation Conditions ------------------------------------------------------- 05 2. Installation Tools -------------------------------------------------------------- 06 3. Drill Holes On Door ---------------------------------------------------------- 06 4. -
Page 3: Product Features
1. Product Features 2. Product Specifications: Three ways to unlock: User Code, Mifare Card or Key. Standard 12-key keypad Up to 200 user codes can be programmed into the lock. Fit door thickness between 1.38” and 1.77” (user code is between 4-8 digits ) Factory default user code is “123456.”... -
Page 4: Packing List
3. Packing List Installation Guide 1. Front Panel 2. Back Panel 3. Waterproof Rubber Pad 1. Installation conditions 1.1 Door Thickness Requirements Door frame≥110mm (for Inconsistent door thickness ) 35mm≤Door Thickness≤45mm (More Than 45mm Need To Custom Accessories) 4. Inside Chassis 5. -
Page 5: Installation Tools
2. Installation Tools 4. Installation Steps 1. Draw lines 2. Drill Holes a. To draw a horizontal Drill Holes on the door centerline on both sides of according to the requirements the inner and outer door one of the Drill Holes template meter from the ground. -
Page 6: Programming
Programming Manufacturer default settings Daylight Savings: Disabled General Information Auto unlock/lock: Disabled Exit setting mode: Enter * to exit the setting procedure, or Default programming code: 123456 wait for 10 seconds Lock mode: Storehouse Low battery warning: When the voltage drops below 4.8V, Construction code: 0 # after entering a valid code, the LED will flash red and beep five times. - Page 7 Different methods to operate the lock Index No.*: For each user code or user card. It is associate with a unique number, we call it index No. (or slot No.). The Key code: User Code, # Index No. is auto generated by lock and starts with 001. The highest Index No.
-
Page 8: Functions Detail
Functions Detail 7. How to add one user access code (with time restriction) ▲ Function Code: 01# 1. How to change master code (but not delete existing {#Master code#}+{01#}+{index No. #}+{user code#}+ users) {yymmddhhmm#(start time)}+{yymmddhhmm# ▲ Function Code: 11# (ending time)} ... - Page 9 13. How to add multi-user card (with time restriction) 20. How to set up one time service code (up to 10 service codes) ▲ Function Code: 01# {#Master code#}+{01#}+{index No. #}+ touch {card (1)}+ ▲ Function Code: 33# {yymmddhhmm#(start time ) } + {yymmddhhmm#(end {#Master code#}+{33#}+{service code(1)#}+ {service time)} +{index No.
-
Page 10: Function Code
28. How to disable auto-lock function How to schedule with an “User card” ▲ Function Code: 68# Example: schedule for user card which will grant access {#Master code#}+{68#} Mon., Wed. and Fri., from 8:30AM to 5:30PM 29. How to enable / disable Lock-out mode (lock out all #1357# Card# 135#...
