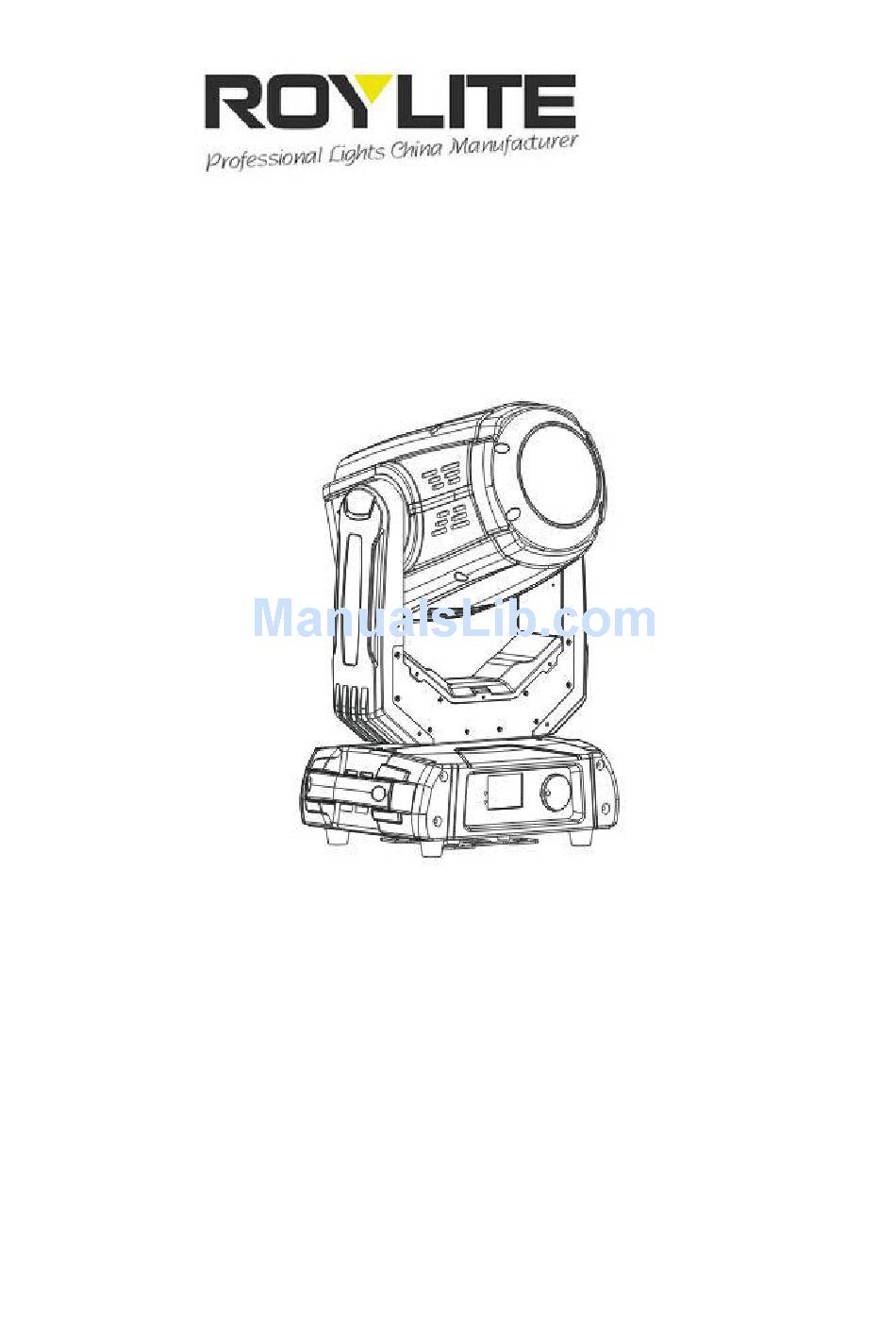

- Page 1 BEAM SPOT 280W Moving Head Light Net weight：19KG Color Temperature：9300K Power：470W...
-
Page 2: Table Of Contents
Item Item..........02 1.Product Introduce ........03 2.Fixture Size........03 3.Product Part Note.......04 4.Safety Information......05 5.Packing And Shipping......07 6.AC Power........08 7.Lamp Model And Changing.......08 8.Color Wheel And Gobo Wheel......10 9.Control Panel........11 10.Control Panel Operate......12 11.Channels Introduction......15 12.Manufacturer Contact Information....19 STATEMENT The product is good packing when ship out the factory. All users should strictly abide by the warnings and instructions stated in this manual, any damage and results due to misuse and the neglect of this operating manual will be excluded from the deal responsibility this manual will not informed in additionally if have technical changes. -
Page 3: Product Introduce
Product Introduce Thank you for choose this 280w beam spot product, this model is the moving head light which is the latest development of the smart, efficient products, beautiful shape, smooth, combined with the advanced technology of today's stage lighting products with international advanced electronic control technology and excellent user-friendly industrial design , fully comply with CE standard, accepted international standard DMX512 signal mode. -
Page 4: Product Part Note

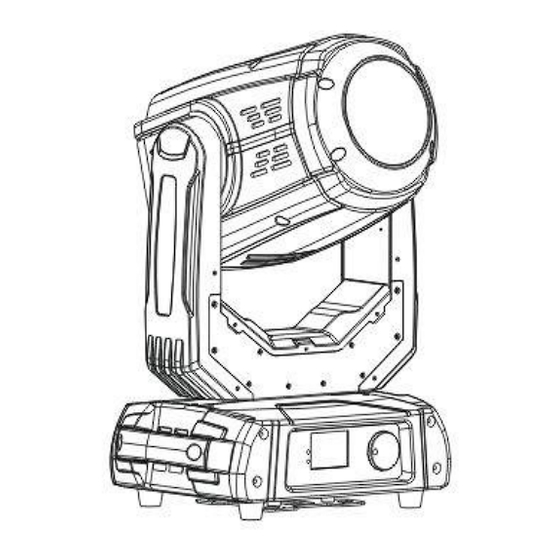

Product Part Note 01 — Lens 02 — Light body 03 — Vertical Lock 04 — Arm 05 — H orizontal Lock 06 — Handle 07 — Light Holder 安 01 — Display Screen 02 — Control Wheel 01 — 3 Pin Signal 02 —... -
Page 5: Safety Information
Safety Warning Information This product is only suitable for professional use, and does not apply to security for other purposes.After you get the lights, please check the package whether have any damage caused by transportation. If there is any damage, do not use this fixture, and please contact the dealer or manufacturer as soon as possible. - Page 6 PREVENTION OF ELECTIC SHOCK The electrical connection must only be carried out with corresponding qualifications; Before installing, make sure you use the power voltage lamps must comply with the identified power, voltage and have an overload or leakage protection; Each lamp must be properly grounded, installed in accordance with the relevant standards; Cut off the power when stall or replace the lamp and the fuse;...
-
Page 7: Packing And Shipping
UNPACKING Note: Before unpacking check the damage is whether due to the transportation or not, if you find any such damage, please do not use this item, and contact with the dealer or manufacturer as soon as possible. 1. Open the fly-case, and discover the inside plastic bag. 2. - Page 8 Alternating Current Power Supply 6.1 VOLTAGE, POWER, FUSE SPECIFICATION Input Voltage Total Power Frequency 110~240V 470W 50/60HZ Fuse Voltage Current Specification 250V 5×20 6.2 POWER PROTECT The equipment must be operated by professionals; Make sure that the voltage of power supply must be comply with the voltage identified on the lamp, and must have an overload or leakage electrical protection.
- Page 9 3. After remove the light body cover,you can see the lamp clearly.Before replace lamp, fixture need 20 minutes for lamp cooling. Fasten the head with Y axis protect lock in 60 ° position. 4. Open stainless steel tablet holder with one hand and the use other hand to pull out the bulb at oblique 15 °...
- Page 10 8.Color Wheel And Gobo Wheel Describe 280w Beam Spot light adopts 13 colors+white, colors are pure and with great effect. 280w Beam Spot light is with 14 fixed gobo wheels+ white,abundant patterns with 8 prisms or 6 prisms will create amazing effect.
- Page 11 280w Beam Spot light is with 9 rotation gobo wheels +white,gobo wheels run smooth and easy to Change. 280w Beam Spot light adopts innovative 6 prisms and traditional 8 prisms. Prisms and Gobos with focus ,rotate,zoom & shake effects,rotate speed can be adjust. 9.Control Panel Control Wheel Display...
-
Page 12: Color Wheel And Gobo Wheel
Control Panel Operate Function Main Menu： Sub menu 1 Sub menu 2 Setting Function Introduce DMX address setting 001-512 DMX address setting Reverse Normal Normal display Display Inversion Reverse display Language Chinese Chinese display Setting English English display Brightness Setting 000-255 Brightness setting Display light 60s... - Page 13 Open Channel Mode Simplify Simplify channel mode Standard Standard channel mode Receive Mode Light receive DMX signal Light receive wireless signal Wireless Auto Light auto run Running Light receive outside signal Mode control Master/Slave Sound Control Light receive sound control Light auto run with built-in Auto program...
- Page 14 Fan 1 0000-9999 Display fan running speed 1 Fan 2 0000-9999 Display fan running speed 2 Panel Display panel software Software XMOA versions number Remaining Time Limitless No time limit Remaining Times Limitless No times limit Return ▲ Return main menu Channel Manual control each Control...
-
Page 15: Channels Introduction
Y driving wheel tooth Y driving wheel 000-255 number Y driven wheel tooth Y driven wheel 000-255 number Rectifier Connect ground Rectifier connect ground Connect 5V Rectifier connect 5V Vertical turn angle setting Y angle 000-255 Return 000-255 Return assist tool Checking Checking code Checking code... - Page 16 200－209 Reset 210－229 Null 230－239 Turn off lamp by console 240－255 Null Color wheel 0－8 White 9－17 Dark red 18－26 Dark blue 27－35 Yellow 36－44 Green 45－53 Magenta 54－62 Cyan 63－71 72－80 Sea green 81－89 Amber 90－98 Blue 99－107 Orange 108－116 TC32LT “convers”...
- Page 17 0－3 Null 4－9 Gobo 1 10－15 Gobo 2 16－21 Gobo 3 22－27 Gobo 4 28－33 Gobo 5 34－39 Gobo 6 40－45 Gobo 7 46－51 Gobo 8 52－57 Gobo 9 58－63 Gobo 10 64－69 Small beam 1 70－75 Small beam 2 76－87 Small beam 3 Gobo shaking from slow to fast...
- Page 18 98－106 Gobo 2 107－115 Gobo 3 116－124 Gobo 4 125－133 Gobo 5 134－142 Gobo 6 143－151 Gobo 7 152－160 Gobo 8 161－169 Gobo 9 171－179 Keep Gobo 9 Rotation gobo change from fast 180－217 to slow Rotation gobo change from 218－255 slow to fast Gobo auto run...
- Page 19 64－95 Strobe from slow to fast 96－127 Open strobe From fast to slow,close slow 128－143 and open fast From slow to fast,open fast and 144－159 close slow 160－191 Open strobe Random strobe from slow to 192－223 fast 224－255 Open strobe Dimming 0－255 Linear dimming...
