ROYLITE LED Mini MOVING BEAM User Manual

LED Mini MOVING BEAM

USERS MANUAL

Table of Contents

Need help?

Do you have a question about the LED Mini MOVING BEAM and is the answer not in the manual?

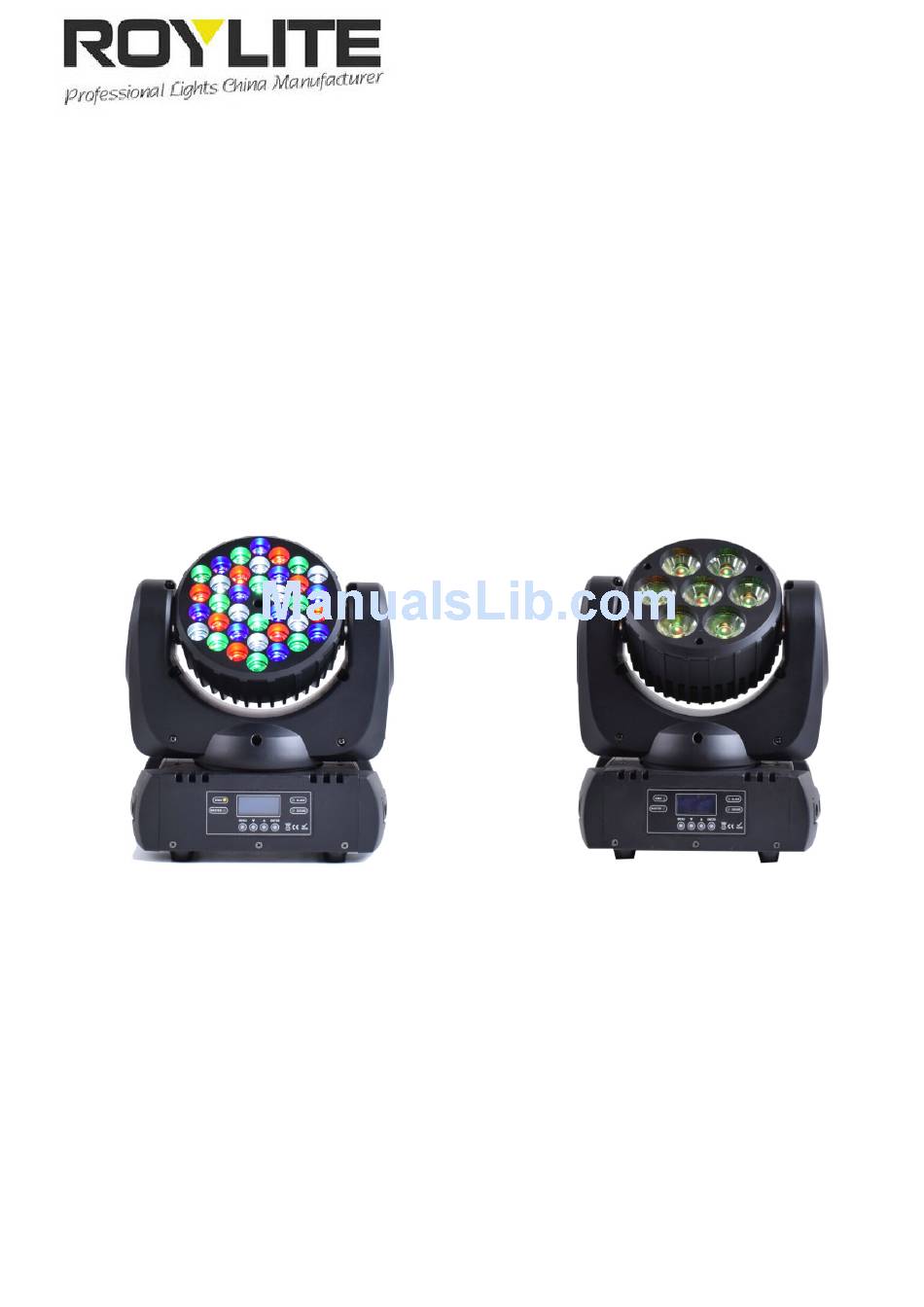

Page 1 LED Mini MOVING BEAM USERS MANUAL...
Page 2 Maintenance 1.To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. 2. Intermittently using will extend this item’s service life 3. Please clear the fan ,fan net , and optical lens in order to keep good work state. 4.
Page 3 Feature: Use the LED lamp, this light had these advantages: ●The Color is pure, colorful, the color pure can reach at 90%, so it can be more colorful and bright. ●Long life. The life can work reach 50,000 hours ●High effective, lower engery consumation 2, LED RGBW 4 colors, can be changed many colors, and colors change slowly as the Rainbow effect, Strobe like these effects.
Page 4 Functions: Led lamp: 36*3W Cree led( R8,W8.G10.B 10) or 7*12w multi RGBW 4 in 1 DMX Channels： X／Y angel：540°／240°，can adjust the speed Beam Angel： degree Linearity dimmer：0-100% Input：AC100-240V，50/60Hz Power：123W Weight： 5kg Size：275x138x296 Lux:...
Page 5 Channels Function: 13 Channel DMX value Function channel 1 Electronic shutter effect 0-19 Shutter closed 20 - 49 Shutter open Strobe 1 (fast → slow) 50 - 64 65 - 69 Shutter open 70 - 84 Strobe 2: opening pulse (fast →...
Page 6 0 → 100% Pan/Tilt Speed Fixture control settings 0 – 9 No function 10~14 Reset entire fixture 15 – 39 No function 40 – 44 PTSP = NORM 45 – 49 PTSP = FAST 50 – 54 PTSP = SLOW 55 –...
