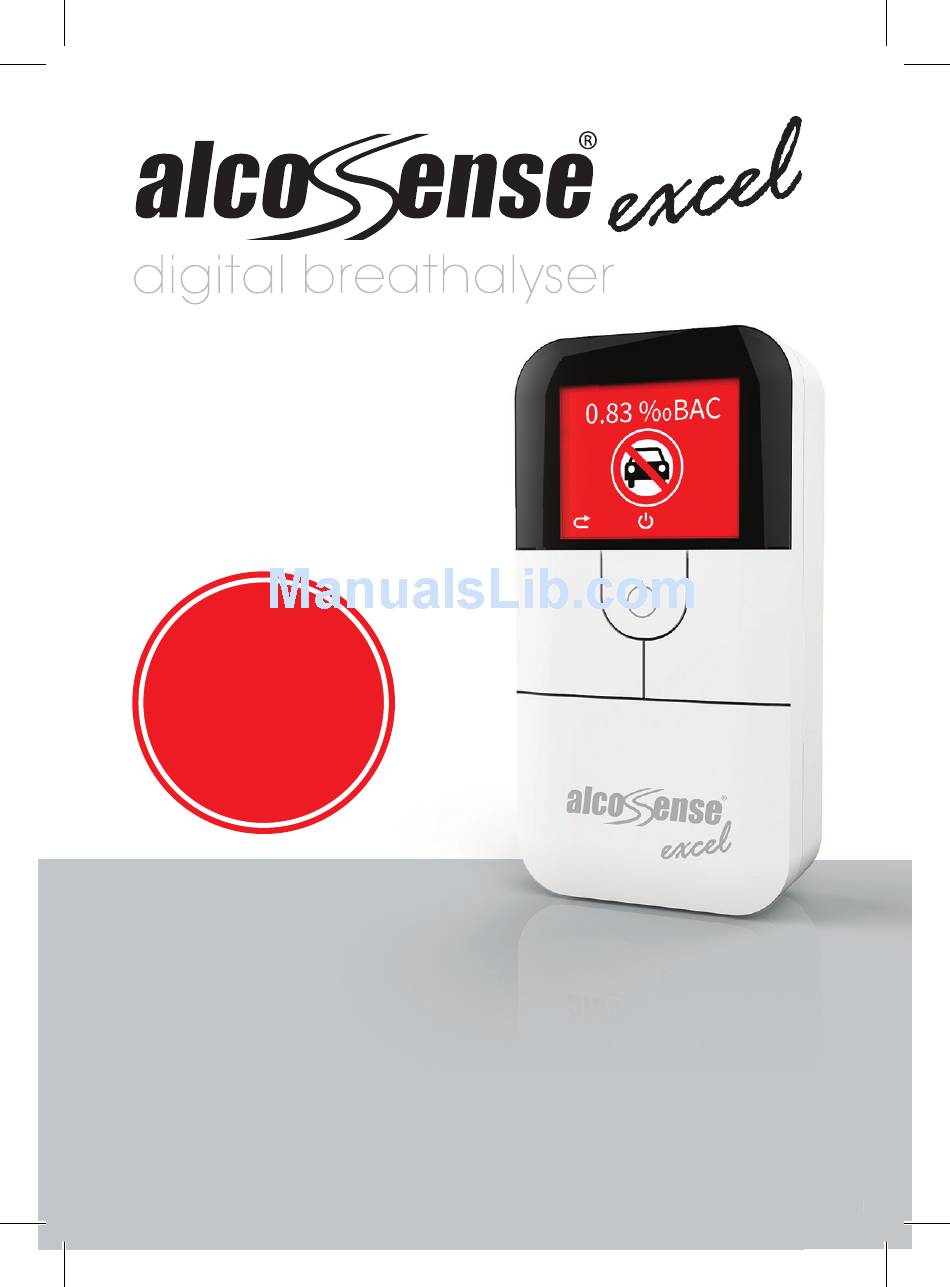

Cover
Cover
Instruction
Manual
PROBLEMS?
Before returning it to the shop,
call us on 0800 195 0088
(+44 1628 778885 outside
the UK) Mon-Sat 9am-5pm.
We can resolve most issues
on the phone in a couple
of minutes!
WARNING: AlcoSense is a sensitive measurement device. Performing a breath
test less than 10 minutes after drinking risks blowing high levels of alcohol
directly from your mouth into the system which could permanently damage
the sensor and cause the system to read inaccurately. Blood alcohol levels
can continue to rise for up to 90 minutes after drinking, as a result we only
recommend using the Breathalyser after this time (and ideally the morning
after) to ensure your reading will not increase after you test yourself. Do not
blow directly into the blow hole without a blow tube – this can damage the
sensor and signifi cantly reduce the lifetime of your unit.
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AlcoSense Excel
Summary of Contents for AlcoSense Excel
- Page 1 WARNING: AlcoSense is a sensitive measurement device. Performing a breath test less than 10 minutes after drinking risks blowing high levels of alcohol directly from your mouth into the system which could permanently damage the sensor and cause the system to read inaccurately.
-
Page 2: Table Of Contents
AlcoSense breathalyser shows zero and you feel 100%. If you have Specification any doubt that you may still have alcohol in your system - do not drive. Before using the AlcoSense breathalyser you agree you have read the operating instructions & are aware of the legal alcohol Accessories limit in your jurisdiction. -
Page 3: How Breathalysers Work
There are some factors that can affect the reading of breathalysers Breathalysers work by measuring the concentration of alcohol vapour whether it be the AlcoSense breathalyser or a police system. Please note in your breath. Contrary to popular belief the alcohol is not coming from... -
Page 4: Getting Started
First, take a minute to understand the how to use the screens and buttons This section will take you step by step through the basics of using your on the AlcoSense Excel BEFORE turning it on for the first time. There are new AlcoSense Breathalyser, namely: three buttons on the front, the ideal place to press each button is shown below by grey circles. - Page 5 Scrolls up a list of options or alerting you to an error Usage Tip AlcoSense Excel will give you tips to help you perform a good test the next Down Scrolls down a list of options time round.
- Page 6 3. Default Drink Drive Limit Settings. When you first turn your AlcoSense Excel on it is set to measure in ‰BAC, to alert you at the Scottish drink drive limit of 0.50‰BAC (0.22mg/L) and set to the UK Blood Breath Ratio (BBR) of 2300:1.
-
Page 7: How To Perform A Breath Test
If you do not blow for long enough or do not blow at 1. Slide the AlcoSense open and put a blow tube on the system as shown a steady pressure the screen on the right will be shown and you must in the image below. -
Page 8: Understanding The Results
Sensor Saturation Risk Above The unit has received an 1.00mg/L AlcoSense Excel will alert you not to drive from 20% below your selected extremely high sample outside (2.30‰BAC) drink drive limit. Before using the device, make sure you have set the the range expected from a correct drink drive limit and BBR for your country or region. -
Page 9: Changing Settings & Recalling Results
This is accessed through Main Menu > Settings > Set Limit. This will select the option. change the point at which the AlcoSense Excel will display the don’t drive Adjusting the Time & Date alert. Please note, the don’t drive alert is displayed from 20% below your Access the main menu and select “Settings”, then select the “Time &... -
Page 10: How Can A Breathalyser Display A Blood Alcohol Reading
The Relationship Between Different Units of Measure WARNING: AlcoSense Excel converts the value for you if you choose a different unit of Do not forget to reset the BBR to 2300:1 when you return to the UK. Using a measure and the correct Blood Breath Ration is set (see relevant section lower BBR in the UK will cause your unit to under-read. -
Page 11: Common Drink Drive Limits And Blood Breath Ratios
Common Drink Drive Limits and Blood Breath Ratios Breath Alcohol Blood Alcohol PLEASE NOTE: Due to differing Blood Breath Ratios (see page 18–19) Blood Breath Ratio Country mg/L Limit* ‰BAC Limit* (BBR) used in different countries the same breath reading may equate to a different blood reading in different countries. -
Page 12: Maintaining Your Alcosense Excel Breathalyser
Take care not to drop the AlcoSense breathalyser as sudden knocks can Re-Calibration affect the unit’s accuracy. If you have dropped your AlcoSense and feel that Your AlcoSense breathalyser will require re-calibration after 12 months, it is not reading correctly please call us to arrange to have the unit serviced. - Page 13 It can only be done using approved To comply with the pan-European breathalyser standard, EN16280, Breath Alcohol Simulators. the AlcoSense Excel cannot show a reading when a sample of less that 0.09mg/L (0.20‰BAC) is detected. This is remove the likelihood My unit says “Saturation Lockdown”...
-
Page 14: Specification
Defect, to the address provided any of its suppliers shall be limited to the amount actually paid to you by AlcoSense. If a defect arises and a valid claim by you for the Hardware. under this Limited Warranty is received by AlcoSense after... - Page 15 Now Group UK Limited AlcoSense™ is a trademark of Now Group UK Ltd Patents Pending www.alcosense.com/ip © Now Group UK Ltd Unit 3, Maidenhead Enterprise Centre, Cordwallis Street, Maidenhead, Berkshire, SL6 7BE. United Kingdom UK calls: 0800 195 0088 International calls: +44 1628 778885 info@alcosense.com...
