CB2 MONOLITH Assembly Instructions Manual

monolith
NOTE: Cabinet door can be installed
to open from either sides. Please refer
to the left/right hinged instructions.

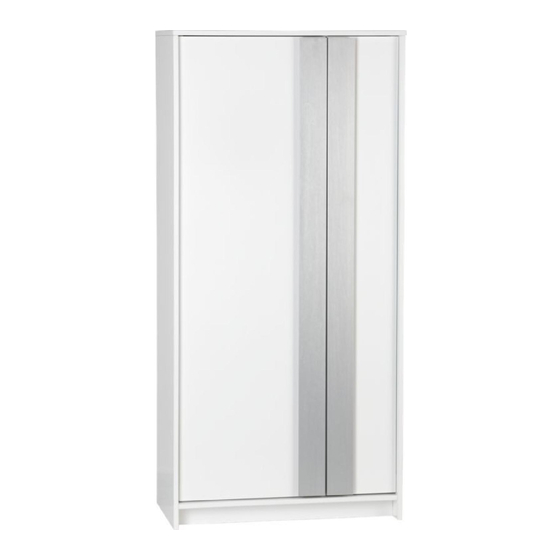

Thank you for purchasing the Monolith Cabinet. This
page lists all the contents included in the box. Please take
the time to identify the hardware as well as the individual
components to this product. As you unpack and prepare
for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.

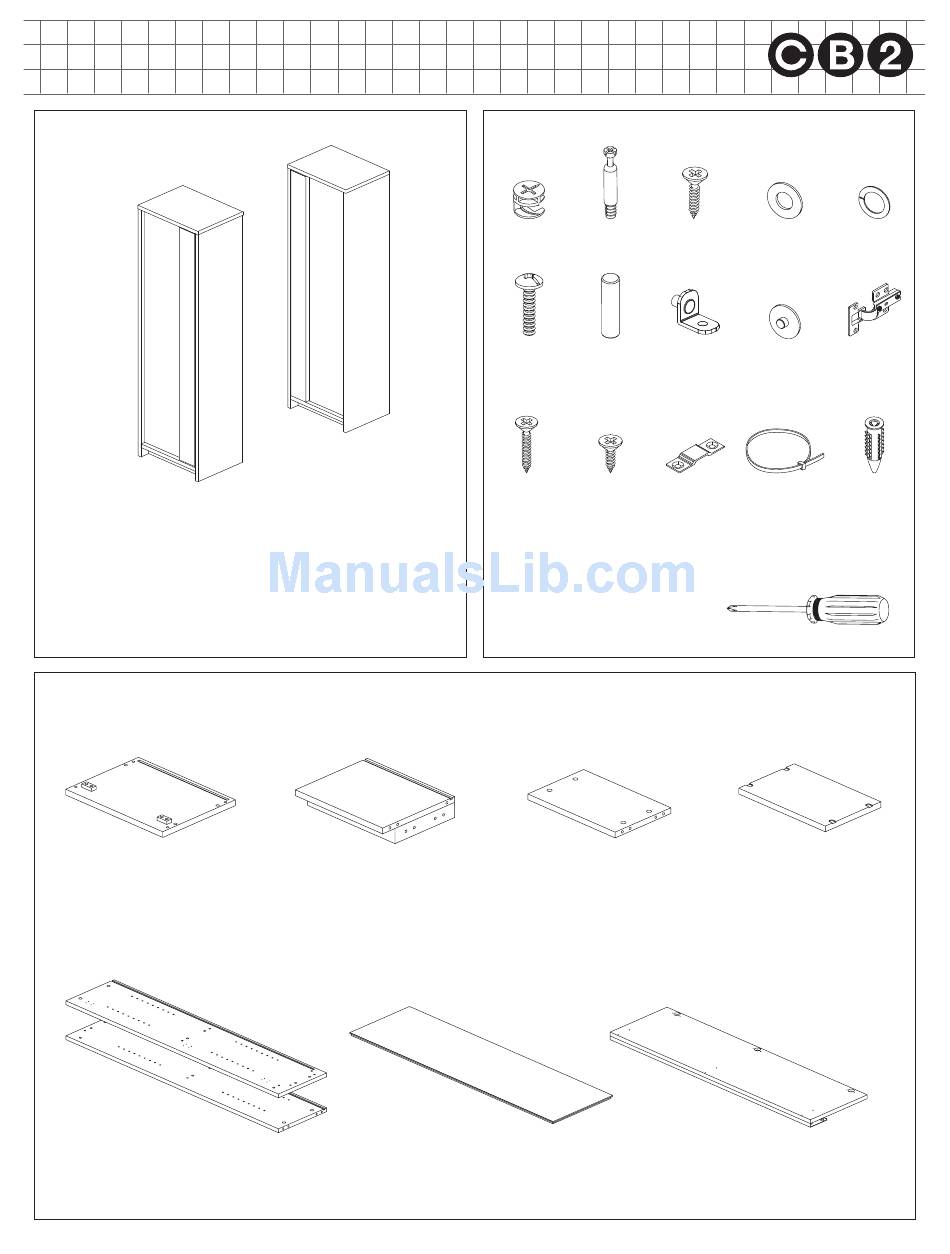

components
1 - top panel
Made in Vietnam - r06
CABINET
1 - base
2 - side panels
(1 left, 1 right)
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
assembly hardware
10 - cams 10 - cam 18 - hinge
screws screws
4 - bolts 16 - wood
dowels
mounting hardware
4 - large 4 - small
screws screws
Missing hardware?
Please call 800.606.6387 for replacements.

tools required

phillips head screwdriver
(We recommend the use of hand tools instead of power tools)
1 - fixed shelf
1 - back panel
4 - flat 4 - spring
washers washers
8 - shelf 4 - cam 3 - hinges
pins covers
4 - wall 2 - wall 4 - plastic
brackets straps anchors
2 - adjustable
shelves
1 - door
Page 1 of 6
