CB2 MINI CHILL Assembly Instructions Manual page 3

mini chill
middle
panel

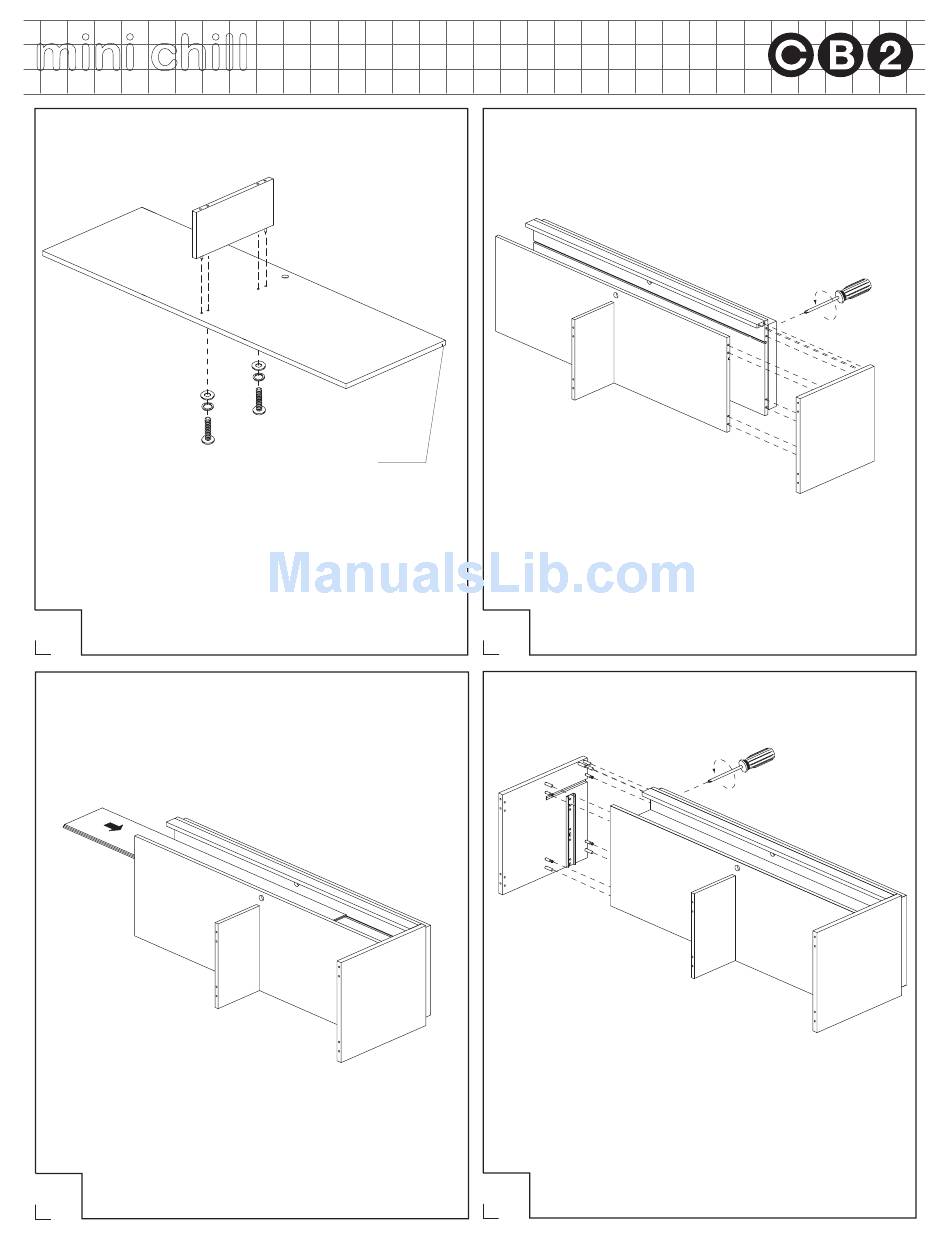

Fit dowels of partition into corresponding holes of
middle panel as shown. Secure middle panels
with 2 bolts, 2 spring washers, and 2 flat
5
washers.
back
panel
Fit back panel into grooves of assembly as shown.
7
Made in Vietnam - r03
MEDIA CONSOLE
partition
NOTE: Make sure
groove of middle
panel is positioned
down during assembly
as shown
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
Fit dowels of right side panel into corresponding
holes of assembly and as shown. Turn cams
clockwise with a screwdriver, until each cam
6
securely engages each cam screw.
left side
panel
Fit dowels of left side panel into corresponding
8
holes of assembly as shown. Secure cams.
right side
panel
Page 3 of 6
