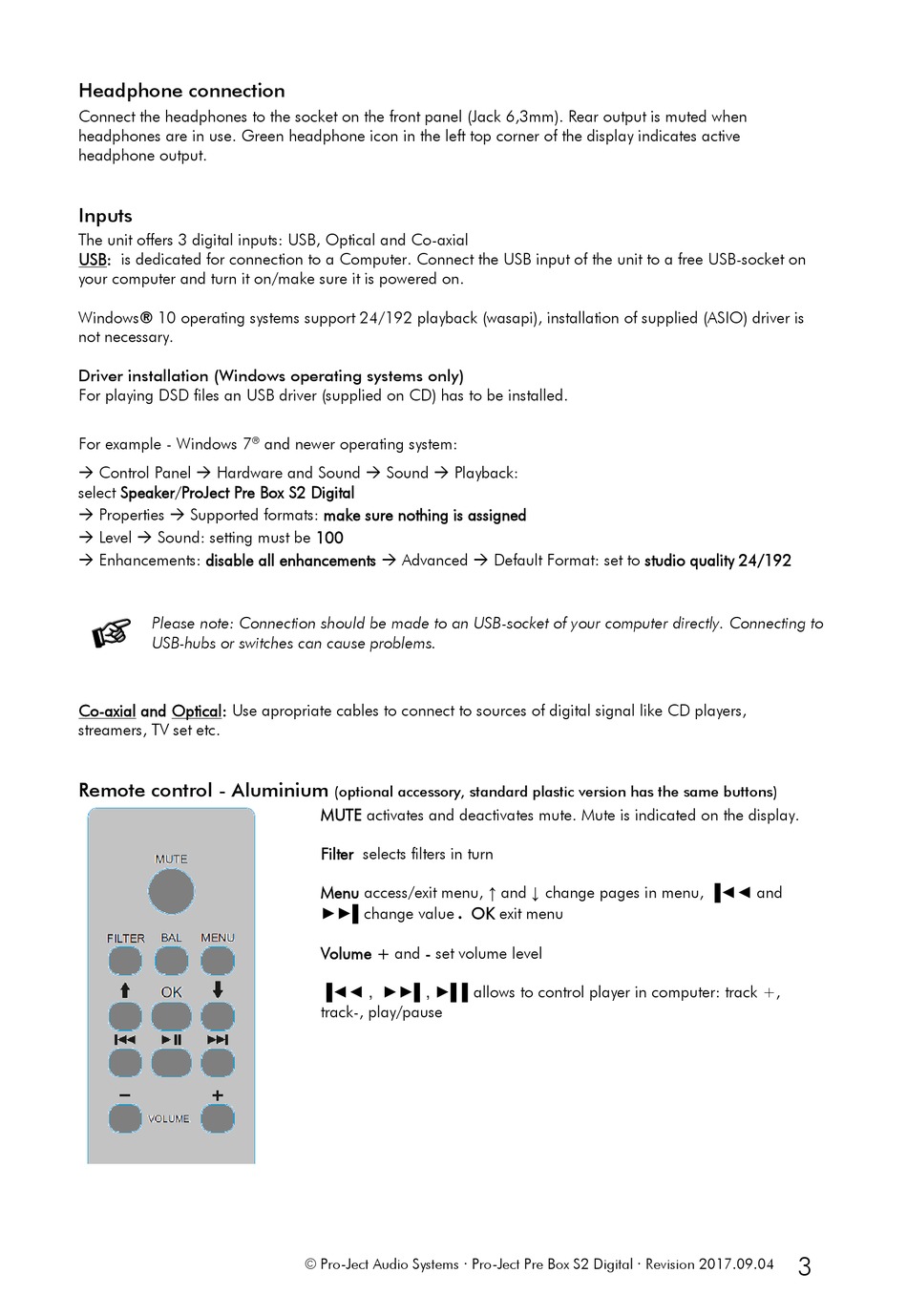

Headphone Connection; Inputs; Driver Installation (Windows Operating Systems Only); Remote Control - Aluminium - Box-Design Pro-Ject Pre Box S2 Digital Instructions For Use

Headphone connection

Connect the headphones to the socket on the front panel (Jack 6,3mm). Rear output is muted when
headphones are in use. Green headphone icon in the left top corner of the display indicates active
headphone output.

Inputs

The unit offers 3 digital inputs: USB, Optical and Co-axial
USB: is dedicated for connection to a Computer. Connect the USB input of the unit to a free USB-socket on
your computer and turn it on/make sure it is powered on.
Windows® 10 operating systems support 24/192 playback (wasapi), installation of supplied (ASIO) driver is
not necessary.

Driver installation (Windows operating systems only)

For playing DSD files an USB driver (supplied on CD) has to be installed.
For example - Windows 7
 Control Panel  Hardware and Sound  Sound  Playback:
select Speaker/ProJect Pre Box S2 Digital
 Properties  Supported formats: make sure nothing is assigned
 Level  Sound: setting must be 100
 Enhancements: disable all enhancements  Advanced  Default Format: set to studio quality 24/192
Please note: Connection should be made to an USB-socket of your computer directly. Connecting to
USB-hubs or switches can cause problems.
Co-axial and Optical: Use apropriate cables to connect to sources of digital signal like CD players,
streamers, TV set etc.

Remote control - Aluminium

and newer operating system:
®
(optional accessory, standard plastic version has the same buttons)
MUTE activates and deactivates mute. Mute is indicated on the display.
Filter selects filters in turn
Menu access/exit menu, ↑ and ↓ change pages in menu, ▐◄◄ and
►►▌change value
Volume + and - set volume level
▐◄◄ , ►►▌, ►▌▌allows to control player in computer: track +,
track-, play/pause
© Pro-Ject Audio Systems · Pro-Ject Pre Box S2 Digital · Revision 2017.09.04
.
OK exit menu
3
