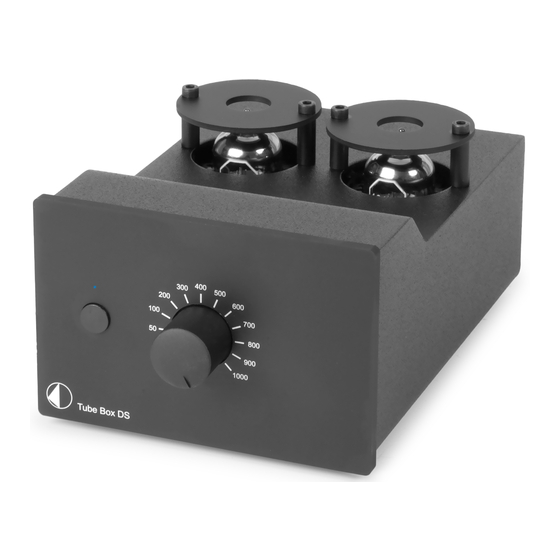

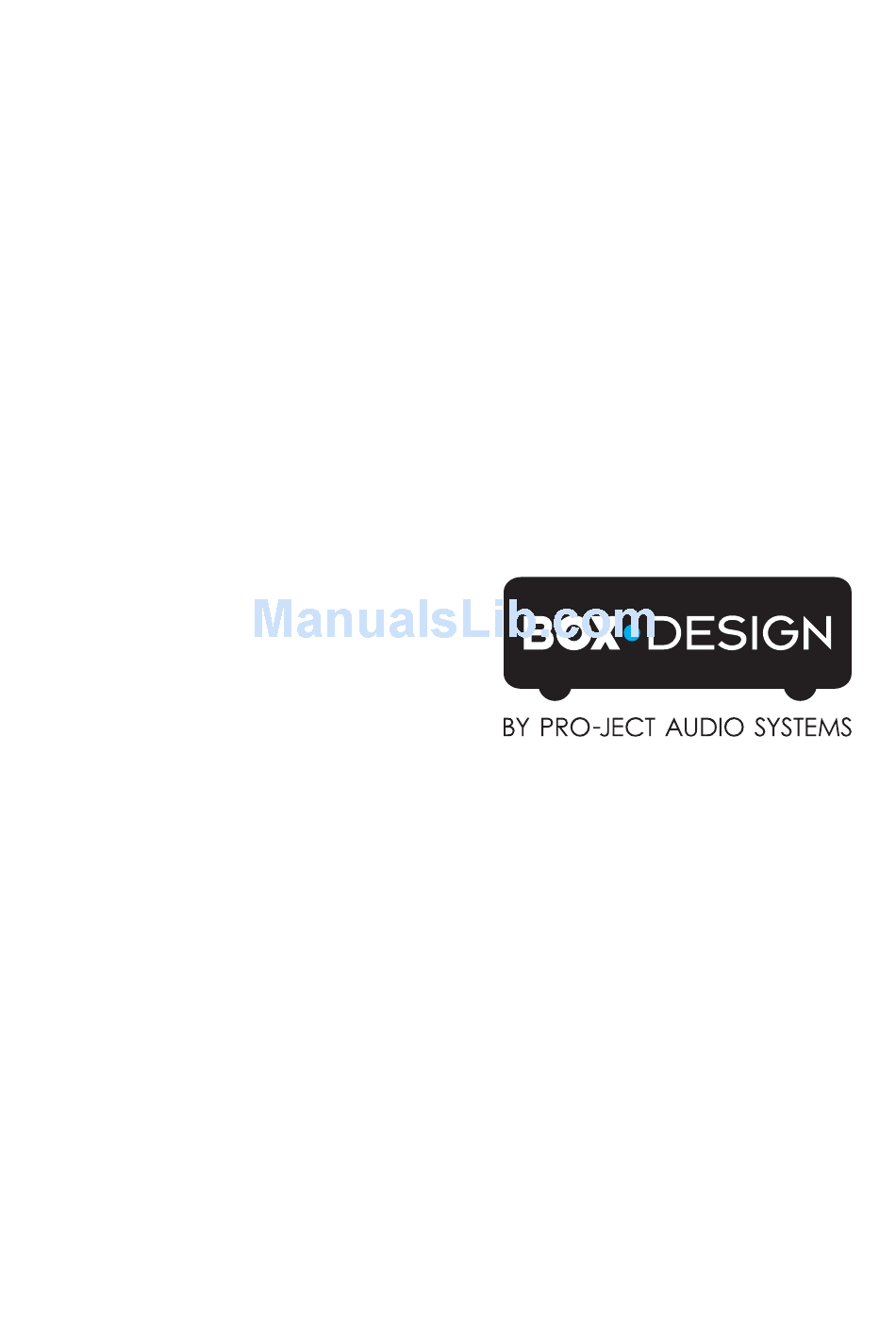

- Page 1 INSTRUCTIONS FOR USE Pro-Ject Tube Box DS...
-
Page 2: Safety Instructions
Ortofon X1-MC (high-output MC) - input gain 50dB, input capacitance 367pF, input impedance 47kohms Ortofon Rondo Red (low-output MC) - input gain 60dB, input capacitance *, input impedance 10ohms Input gain 60dB 50dB 40dB © Audio Trade GmbH · Pro-Ject Tube Box DS · Revision 2012.9.15... - Page 3 The literature for cartridges should also specify the correct input impedance (low-output MC cartridges) and the correct input capacitance (high-output MC and MM cartridges), into which the cartridge is designed to work. If in doubt please consult your dealer. © Audio Trade GmbH · Pro-Ject Tube Box DS · Revision 2012.9.15...
-
Page 4: Mains Power Connection
No earth connection from cartridge or arm, or arm cable to phono amplifier, or earth loop. Output too quiet or too loud, or distorted: Input gain incorrectly set - input overloading or insufficiently amplified. © Audio Trade GmbH · Pro-Ject Tube Box DS · Revision 2012.9.15... - Page 5 This guide was produced by: Audio Trade GmbH changes to the technical specification without prior Copyright © 2012. All rights reserved. notice as deemed necessary to uphold the ongoing process of technical development. © Audio Trade GmbH · Pro-Ject Tube Box DS · Revision 2012.9.15...
