Summary of Contents for Geberit ACO 202

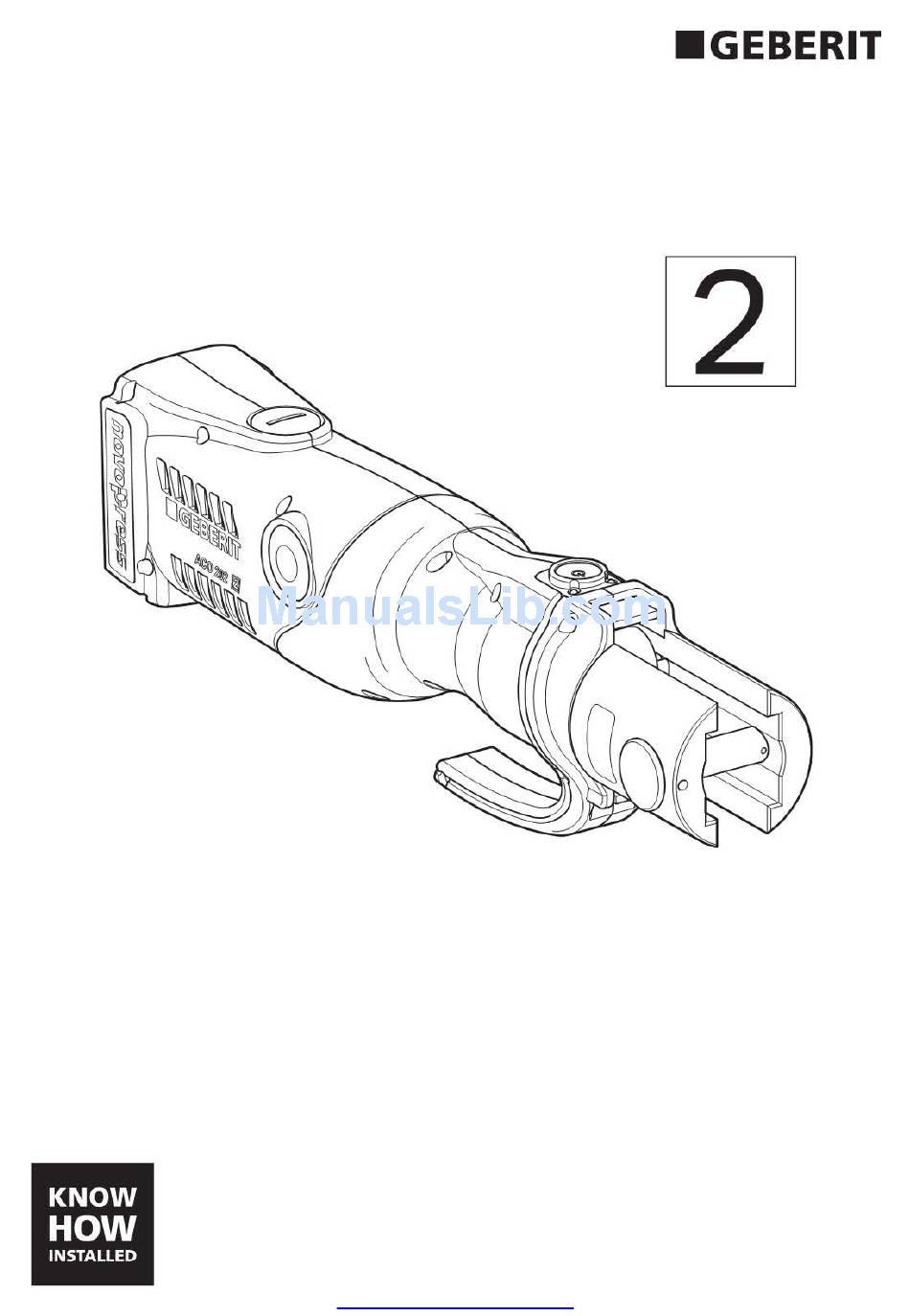

- Page 1 ACO 202 Operation Manual Betriebsanleitung Manuel d’utilisation Istruzioni di funzionamento www.inrusstrade.ru...
- Page 2 www.inrusstrade.ru...
-
Page 3: Target Group
This tool may only be used by skilled persons in accordance with EN IEC 82079-1:2012. Intended use The Geberit pressing tool ACO 202 is only allowed to be used for pressing pipes and pressfittings of the Geberit Mepla and Geberit Mapress pressing systems. -
Page 4: Explanation Of Symbols
NOTE Pressing attachments (pressing jaws, pressing collars, adapter jaws) are wearing parts. Frequent pressing will cause the material to become worn; advanced stages of wear will be indicated by incipient cracks. Pressing attachments that display this kind of wear or are damaged in any other way may break, particularly if they are used incorrectly (e.g. -
Page 5: Product Description
Product description Structure The Geberit pressing tool consists of: • pressing tool incl. operating instructions • pressing jaws or • adapter jaws with pressing collars • battery charger incl. user manual • rechargeable battery 12 V DC • safety notes •... - Page 6 LED [1] is lit. The red LED [2] or the flashing green LED [1] indicate malfunctions. If the Geberit pressing tool is not used for 30 minutes, it switches to standby mode. No LED is lit. To start the pressing tool, briefly press the start button [3].
-
Page 7: Technical Data
Technical data Nominal voltage V DC Power consumption Protection degree IP20 Nominal force Net weight dB(A) Sound pressure level at user's ear ≤ 2.5 Vibration emission value Operating temperature -20 – +60 °C Battery capacity Measurement inaccuracy of the sound pressure level: 3 dB(A) Measurement inaccuracy of the vibration emission value: 1.5 m/s The stated vibration emission value has been measured according to a standardised test process and can be used for comparison with another device. -
Page 8: Operation
Operation Inserting the Geberit pressing jaw or Geberit adapter jaw Prerequisites Pressing tool is de-energised. WARNING Danger of crushing by exposed parts Do not hold any parts of your body or other objects in between the pressing jaws Keep your fingers away from the roller range if there is no pressing jaw inserted... - Page 9 Pressing with Geberit pressing attachments Prerequisites Pipe ends are deburred and clean. Pipe and pressfitting have been fitted together in accordance with the piping system installation manual. WARNING Risk of injury caused by flying fragments if used incorrectly or if worn or damaged...
- Page 10 Make sure that the diameter of the pressfitting matches the diameter of the pressing attachment. To start the pressing sequence, press and hold the start button. Result The automatic pressing function switches off the pressing sequence after the pressing operation has been completed. The end of the pressing sequence is indicated by an increase in the motor speed and relief of the pressing tool.
- Page 11 Troubleshooting before the pressing sequence Fault Cause Actions The pressing tool cannot Rechargeable battery is Have the rechargeable battery be started and no LED defective examined by a repair shop and lights up replace it if necessary Rechargeable battery is Insert the rechargeable battery not inserted Green LED flashes...
- Page 12 Send the pressing tool to an alternately been reached authorised repair shop for testing 1) The addresses of authorised repair shops can be requested from the Geberit sales companies or found at www.geberit.com Troubleshooting after the pressing sequence Fault Cause...
-
Page 13: Maintenance Regulations
The pressing tool must always be taken for maintenance together with the pressing attachments in its transport case. Maintenance work and repair work may only be carried out by Novopress or authorised Novopress repair shops. For addresses of authorised repair shops, contact your Geberit sales company or visit www.geberit.com. Interval Maintenance work Regularly (before use, •... - Page 14 Cleaning and lubricating the Geberit pressing tool Prerequisites Rechargeable battery is not inserted in the pressing tool. WARNING Risk of injury from switching on inadvertently Remove the rechargeable battery before starting any maintenance work on the pressing tool CAUTION Damage to the device from dampness or moisture...
-
Page 15: Disposal Of Waste Electrical And Electronic Equipment
The symbol indicates that the product cannot be disposed of with non-recyclable waste. Old equipment should be returned directly to Geberit, where it will be disposed of appropriately. Please contact your responsible Geberit sales company for addresses to which equipment can be returned. - Page 16 EC declaration of conformity in accordance with directives 2004/108/EC and 2006/42/EC We hereby declare that the Geberit pressing tool ACO 202 meets the relevant basic health and safety requirements as a result of its design and construction type as well as the version that we have put on the market.
- Page 17 Geberit International AG Schachenstrasse 77 CH-8645 Jona T +41 55 221 63 00 F +41 55 221 63 16 documentation@geberit.com → www.geberit.com B971-003 © 05-2015 www.inrusstrade.ru 965.598.00.0 (02)
