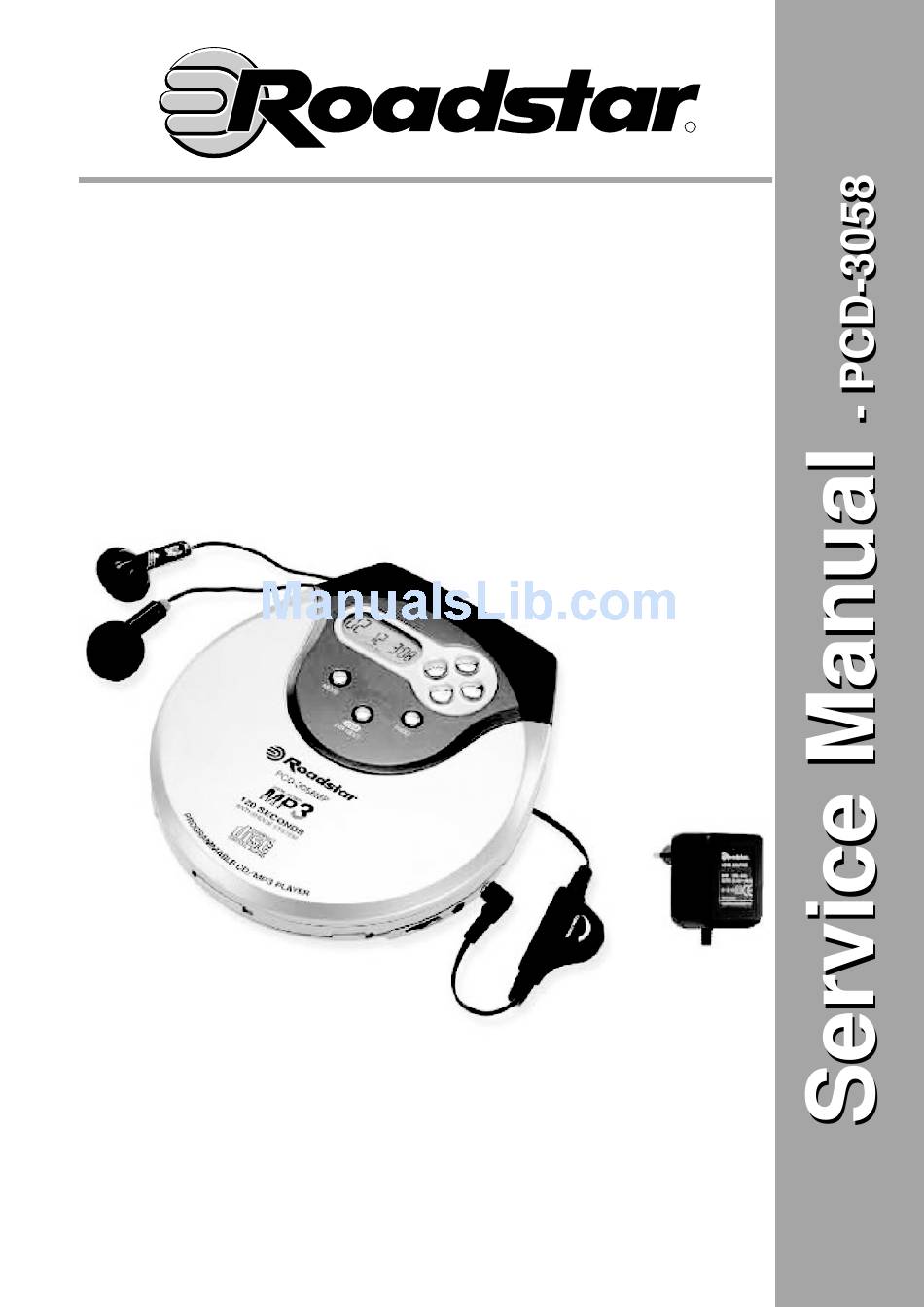

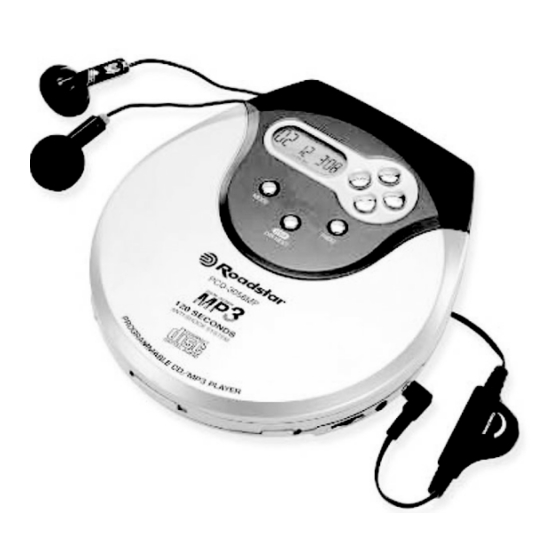

- Page 1 PCD-3058...
- Page 2 ITEM Description LOCATION 001-2046D-L10 P.C.B CD-2046/MP3 MAIN BOARD REV-1 001-2086S-D80 P.C.B CD-2086/MP3 KEY BOARD 002-0016M-P00 I.C 16M DRAM "SOJ" IC601 002-04533-G00 I.C LA4533 "SOP" IC 801 002-08038-H00 I.C FAN8038 (4CH Motor Driver) IC201 002-08249-000 I.C 3P8249X22-TWR9 IC101 002-09225-R01 I.C KA9225 "LQFP" (RF AMP+SSP) IC301 002-09276-H00 I.C KS9276 "QFP"...
- Page 3 ITEM Description LOCATION 28 011-B101A-200 RESISTOR CHIP 100 OHM ±5% 0603 R7.16.17 1K OHM ±5% 0603 29 011-B102A-200 RESISTOR CHIP R9.60. (KEY:R4) 30 011-B103A-200 RESISTOR CHIP 10K OHM ±5% 0603 100K OHM ±5% 0603 31 011-B104A-200 RESISTOR CHIP R3.23.39.40.51.52.53 1M OHM ±5% 0603 32 011-B105A-200 RESISTOR CHIP 33 011-B153A-200 RESISTOR CHIP 15K OHM ±5% 0603...
- Page 4 ITEM Description LOCATION 60 014-A104C-500 CER 0.1uF 50V ±10% 3PF 50V ±5% 0603 61 014-B030C-400 CHIP CER. CAP 62 014-B080C-500 CHIP CER. CAP 8PF 50V ±10% 0603 0.001uF 50V ±10% 0603 63 014-B102C-500 CHIP CER. CAP C2.10.19.20.24.36.44.61.62 0.01uF 50V ±10% 0603 64 014-B103C-500 CHIP CER.
- Page 5 ITEM Description LOCATION 91 201-EI350-062 AC Adaptor EI-35 230V 50Hz 4.5V DC 600mA"CE" According to order 92 203-CD02S-C40 CD DECK "SAMSUNG" 93 209-20010-S00 DOOR BUTTON SPRING 94 209-20660-P00 DOOR SPRING T=0.65 95 211-2006A-000 BATTERY PLATE "+.-" 96 211-2006B-000 BATTERY PLATE "-" 97 211-2006C-000 BATTERY PLATE "+"...
- Page 6 ITEM Description LOCATION 121 458-2006C-1NL RADIO/CD KNOB ABS Natural 122 459-2006A-1BK OPEN KNOB ABS BLACK 123 470-2002A-1BK DOOR BUTTON Black...
