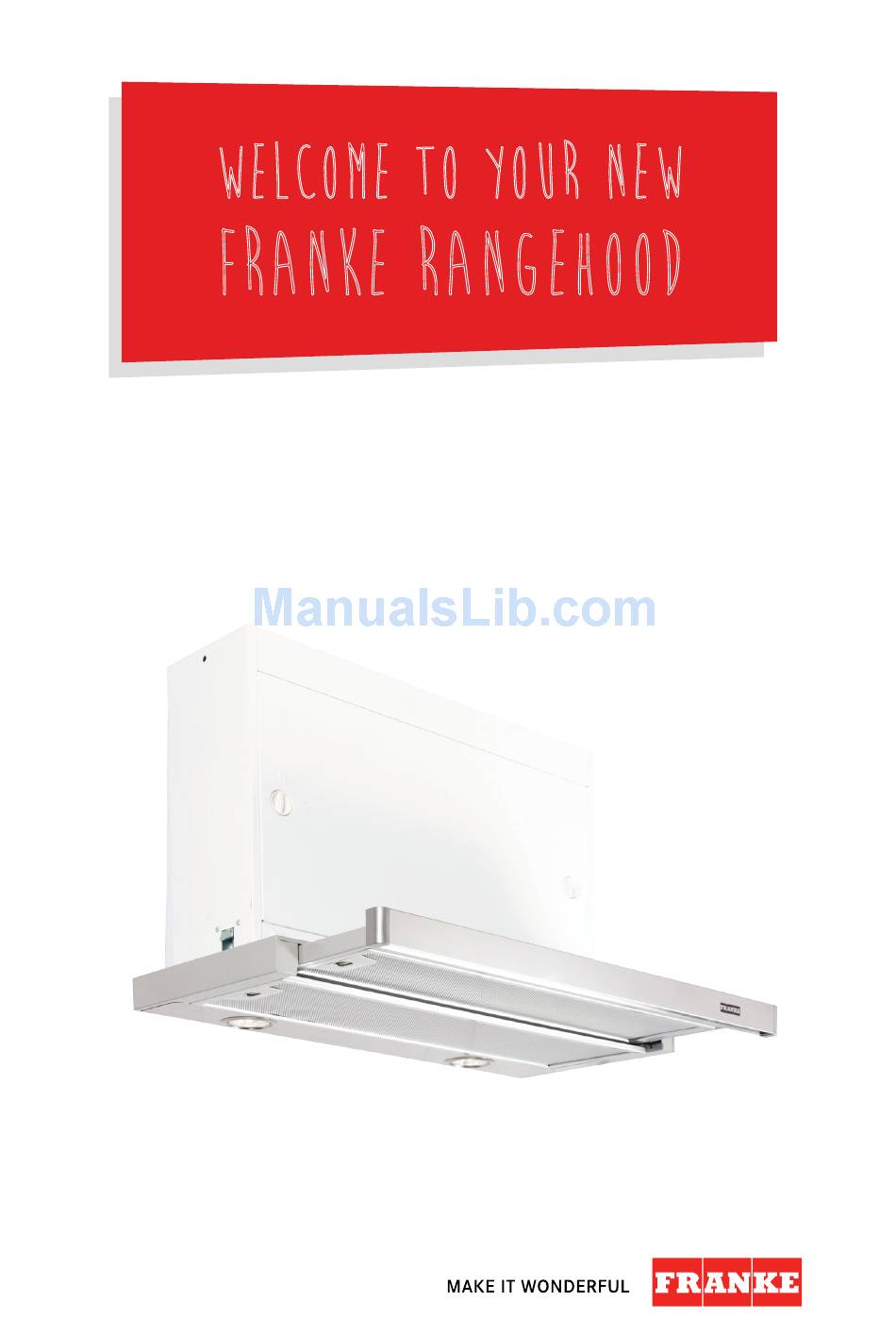

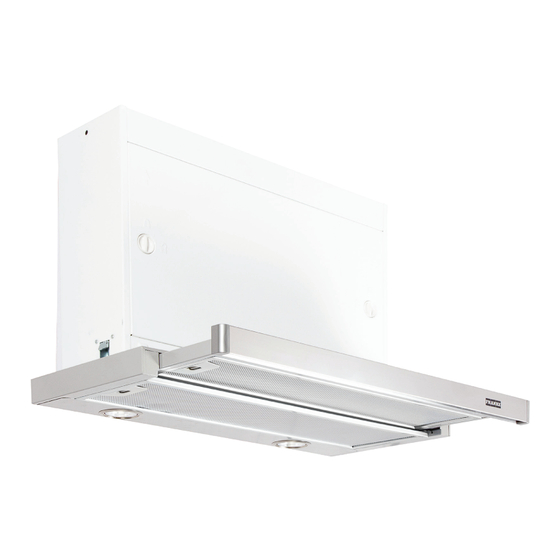

- Page 1 Welcome to your new Franke rangehood You’re about to begin a very happy and delicious relationship. Let’s get started. This is no ordinary rangehood. FTC622XSAU - 60CM SLIDE OUT RANGEHOOD...
- Page 2 Australia: 03 9700 9100 | info@prks.com.au New Zealand: 09 964 0400 | info@prks.co.nz WARRANTY Your Franke product is protected by a 2-year warranty. Should you ever need to make a warranty enquiry, simply contact our service department. Australia: 03 9700 9100 | service@prks.com.au New Zealand: 09 964 0400 | service@prks.co.nz...
-
Page 3: Table Of Contents
Maintenance Characteristics Installation Surrounding area info Intended function Environmental information Disposal Chapter 2: Life with your Franke Rangehood Operating your rangehood Maintenance information Cooking information Changing the filters Chapter 3: Last, but not least Warnings, hazards, risks and legal Looking for something? -
Page 4: Chapter 1: Ready, Set Up, Go
CHAPTER 1 READY, SET UP, GO Your Franke rangehood is designed to be set up quickly and easily - so you can start creating delicious masterpieces even sooner. Chapter 1 Ready, set up, go... -
Page 5: Rangehood Functions
RANGEHOOD FUNCTIONS Lamp Toggle On/Off Used to switch the lights on the rangehood on or off. Motor On/Off Used to turn the motor on or off. The default “on” setting is motor speed 1. Pressing this buttong again will turn the rangehood off. Motor Speed 2 Used to select motor speed 2. -
Page 6: First Time Use
FIRST TIME USE When the rangehood is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulation panels within the rangehood. Run the rangehood on the highest setting for 15 minutes before using the rangehood with the cooktop on. -
Page 7: Recommendation And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. -
Page 8: Use
• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells. • Never use the hood for purposes other than for which it has been designed. • Never leave high naked flames under the hood when it is in operation. •... -
Page 9: Characteristics
CHARACTERISTICS COMPONENTS Ref. Qty. Product Components Hood Body, complete with: Controls, Light, Blower, Filters Directional Air Outlet grille Flange ø150mm Flange ø120mm Adapting ring ø120-125mm Closing element Ref. Qty. Installation Components Hood Body Fixing Brackets Screws 3.5 x 16 Screws 2.9 x 12.7 Screws 2.9 x 9.5 Qty. -
Page 10: Installation
INSTALLATION DRILLING THE SUPPORT SURFACE AND FITTING THE HOOD • The Hood can be installed directly on the Nische / Niche / Haltewinkel / Nicchia/ Niche Cornières / underside of wall-mounted units (650 mm Staffe / Bra- min. from the Cooker Top) using the snapon ckets side supports. - Page 11 CONNECTIONS Ducting version air exhaust system When installing the hood in ducting version, a rigid or a flexible pipe with the diameter corresponding to the flange diameter is used in order to connect the hood to the air outlet piping. •...
-
Page 12: Surrounding Area Info
ENVIRONMENTAL INFORMATION This Franke appliance is particularly energy efficient, however to make the most out of it, and to save even more energy make sure you adhere to the following steps:. 1. It is more energy efficient to bake several items at the same time to avoid prolonged operation. -
Page 13: Chapter 2: Life With Your Franke Rangehood
CHAPTER 2 life with your franke rangehood We designed this rangehood with one thing in mind. How do we create a wonderfully simple user experience for you, our customer? Chapter 2 Life with your Franke rangehood... -
Page 14: Operating Your Rangehood
(The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency). • When refitting the filters, make sure that the handle is visible on the outside. • Close the sliding suction panel. Chapter 2 Life with your Franke rangehood... -
Page 15: Chapter 3 Last But Not Least
CHAPTER 3 last but not least This section contains the warnings, precautions and legal notices to make sure everything runs smoothly. Chapter 3 Last but not least... - Page 16 ELECTRIC SHOCK HAZARD Never carry out an repairs yourself, always get an authorized technician to do any repairs or maintenance on your rangehood. If any electrical components become damaged or there is exposed wiring, there is a risk of electrical shock. Ensure whenever the rangehood is in operation and you come into contact with it, that appropriate footwear is worn.
-
Page 17: Glossary
GLOSSARY Abrasive - a course and harsh substance capable of polishing or cleaning a surface by rubbing or grinding. Buzzer - a device that makes a loud noise and is used to signal something. Cabinetry - a collection of cupboards with drawers or shelves. Circuit breaker - and automatic device for stopping the flow of current in an electrical circuit for safety reasons. - Page 18 83 Bangholme Road Dandenong South VIC 3175 Australia Phone +61 3 9700 9100 +61 3 9700 9191 info@prks.com.au www.franke.com.au PR Kitchen & Washroom Systems NZ Ltd P.O Box 53171, Auckland Airport Auckland 2150 New Zealand Phone 09 964 0400 09 964 0401 info@prks.co.nz...
