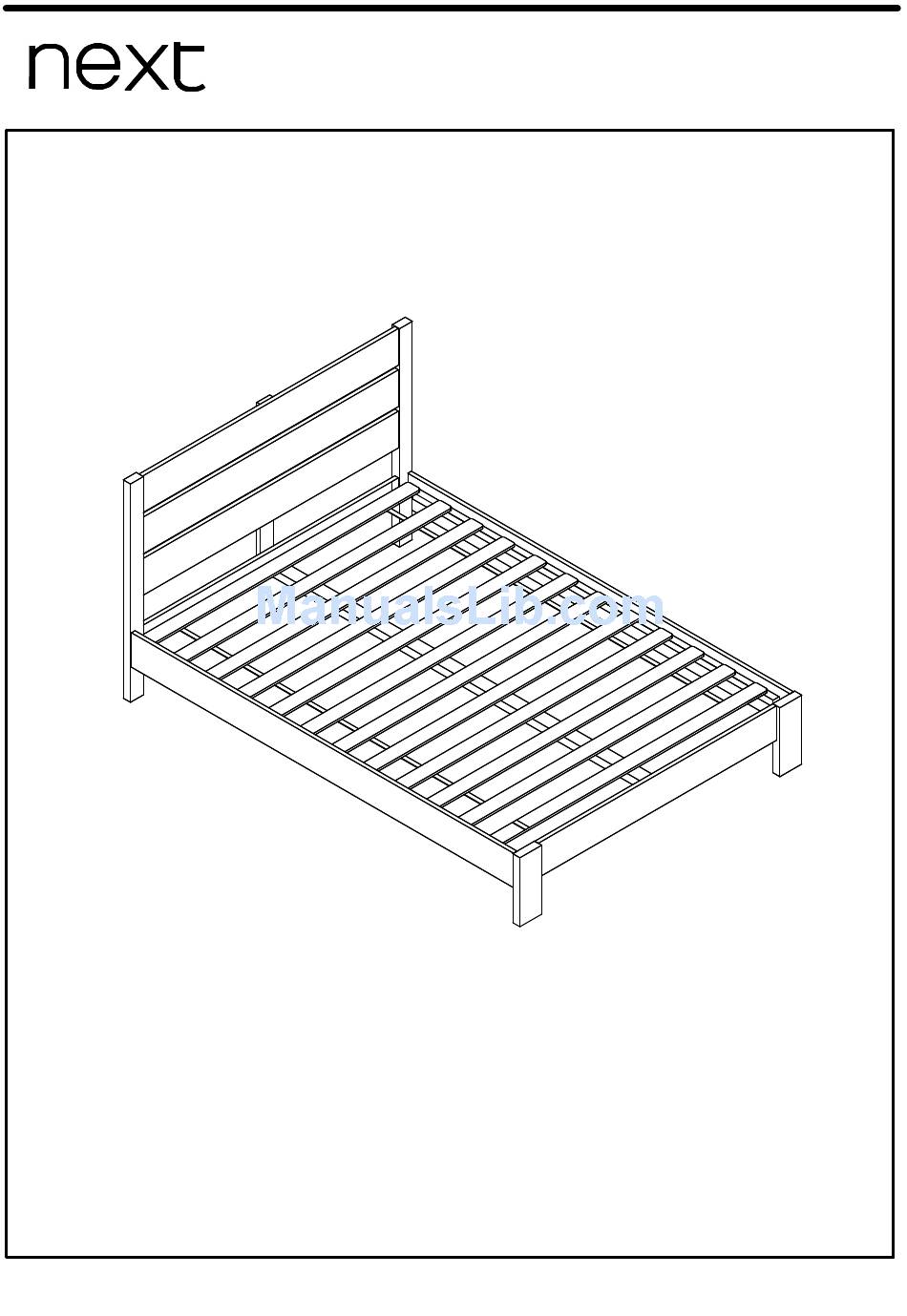

Next 859229 Assembly Instructions Manual

Rubix bed double

Advertisement

Quick Links

Actual product size
H95 x W142 x D199cm
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Produced in Poland for Next Retail Ltd
859229-2014-V1
RUBIX BED DOUBLE
859229
Assembly instructions
Need Help?
With: Assembly instructions
Missing or damaged parts
CALL: 0333 777 8999

Advertisement

loading
Need help?

Need help?

Do you have a question about the 859229 and is the answer not in the manual?

Questions and answers

Summary of Contents for Next 859229

  • Page 1 RUBIX BED DOUBLE 859229 Assembly instructions Actual product size H95 x W142 x D199cm Need Help? With: Assembly instructions Missing or damaged parts IMPORTANT - RETAIN FOR FUTURE REFERENCE CALL: 0333 777 8999 Produced in Poland for Next Retail Ltd 859229-2014-V1...
  • Page 2: Before You Start

    Never allow any kind of liquid to remain on your furniture. To View our full furniture range please visit www.next.co.uk Absorption can cause wood to warp or finishes to de-laminate. Do not place hot items (e.g. hot drinks) directly on to the wood surface.
  • Page 3: Getting To Know Your Product

    RS-961 30 x 11cm RS-121 192 x 15cm RS-910 142 x 95cm RS-125 112 x 15cm RS-891 181 x 30cm RS-960 30 x 11cm RS-893 181 x 136cm RS-892 191 x 60cm Produced in Poland for Next Retail Ltd 859229-2014-V1...
  • Page 4 H1 4 x 25 mm N1 6 x 70 mm O1 4 x 45 mm 7 x 82 mm Fixtures and fittings supplied (not to scale) Ref Dimensions Visual Ref Dimensions Visual Ref Dimensions Visual Produced in Poland for Next Retail Ltd 859229-2014-V1...
  • Page 5 RUBIX BED DOUBLE 859229 Assembly instructions CAM-LOCK Tighten until shoulder is flush Shoulder with panel. Do not overtighten or undertighten (see example below) NO GAP RS-960 RS-961 Panel Panel RS-125 8x30mm Produced in Poland for Next Retail Ltd 859229-2014-V1...
  • Page 6 RUBIX BED DOUBLE 859229 Assembly instructions RS-960 RS-125 RS-961 H1=H2 WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTIL SECURE 90° 90° CORRECT WRONG 7x82mm B1x8 Produced in Poland for Next Retail Ltd 859229-2014-V1...
  • Page 7 RUBIX BED DOUBLE 859229 Assembly instructions RS-120 RS-891 10x35mm 8x30mm 4x45mm O1x5 D1x4 RS-121 RS-891 10x35mm 8x30mm 4x45mm O1x5 D1x4 Produced in Poland for Next Retail Ltd 859229-2014-V1...
  • Page 8 RUBIX BED DOUBLE 859229 Assembly instructions RS-910 RS-121 RS-120 RS-961 RS-125 RS-960 RS-910 6x70mm B1x4 N1x4 C1x4 R1x1 Produced in Poland for Next Retail Ltd 859229-2014-V1...
  • Page 9 RUBIX BED DOUBLE 859229 Assembly instructions RS-910 RS-120 RS-960 RS-121 RS-125 RS-961 RS-892 4x25mm 6.3x13mm H1x2 G1x2 W1x2 Produced in Poland for Next Retail Ltd 859229-2014-V1...
  • Page 10 RUBIX BED DOUBLE 859229 Assembly instructions 4x25mm H1x8 Produced in Poland for Next Retail Ltd 859229-2014-V1...
  • Page 11 RUBIX BED DOUBLE 859229 Assembly instructions Actual product size H95 x W142 x D199cm Produced in Poland for Next Retail Ltd 859229-2014-V1...
