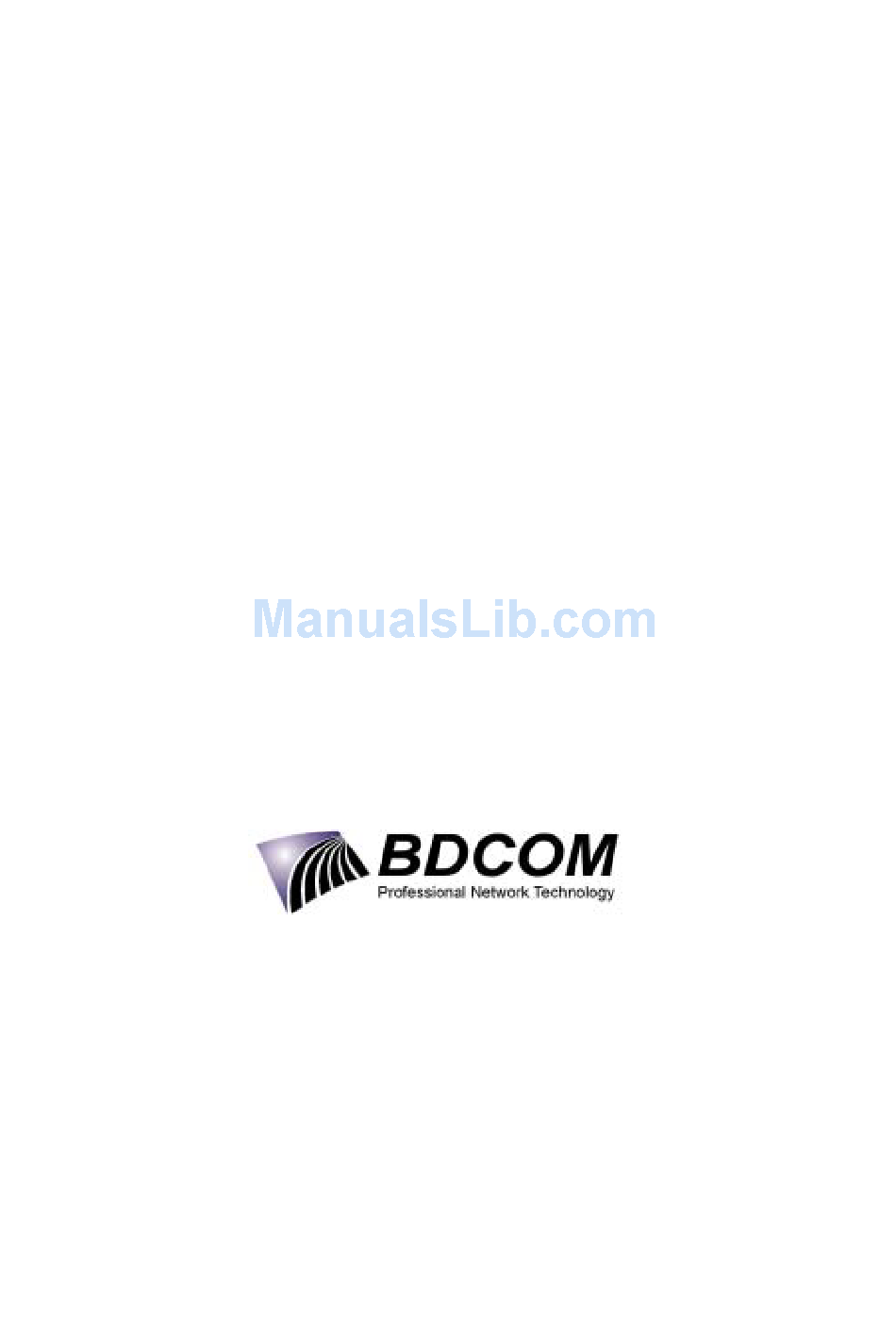

- Page 1 BDCOM S2008 Switch Hardware Installation Guide...
-
Page 2: Table Of Contents
Table of Content Chapter 1 Information of BDCOM S2008 Switch........................1 1.1 Standard configuration ............................1 1.2 BDCOM S2008 Switch System Properties Parameters ..................2 Chapter 2 Preparing for installation ............................4 2.1 Safety notice................................4 2.1.1 Ensure safety as the following principals ....................4 2.1.2 Safety warnings............................ -
Page 3: Chapter 1 Information Of Bdcom S2008 Switch
Chapter 1 Information of BDCOM S2008 Switch This section explains the parameters of BDCOM S2008 switch. 1.1 Standard configuration BDCOM S2008switch standard ports consists of 2 parts: 8 fast Ethernet interfaces and 1 Console interface. Refer to the following table: Features of standard ports:... -
Page 4: Bdcom S2008 Switch System Properties Parameters
BDCOM S2008 Switch Hardware Installation Guide Figuer 1-2 The rear-panel of BDCOM S2008 switch Table 1-1 Components of BDCOM S2008 Switch rear-panel Name Explanation Grounding bar Please ground as needed. AC connector AC100～240V Figuer 1-3 BDCOM S2008-DC power rea-panel 1.2 BDCOM S2008 Switch System Properties Parameters Table of BDCOM S2008 Switch property parameters: IEEE 802.1d Spanning Tree Protocol... - Page 5 BDCOM S2008 Switch Hardware Installation Guide Temperature/H ℃ ～85% without air conditioning 0℃～60 ; 10% umidity for working Temperature/H ℃ ～95% without air conditioning -40℃～80 ; 5% umidity for storage Input Voltage: AC100～240V; Input frequency: 47～63Hz Power supply Input current: 1A/230V...
-
Page 6: Chapter 2 Preparing For Installation
BDCOM S2008 Switch Hardware Installation Guide Chapter 2 Preparing for installation The following diccusses the considering cases of switch istallation,includes two sections: Please continre to read "switch Installation" after reading this section. 2.1 Safety notice 2.1.1 Ensure safety as the following principals 1. -
Page 7: Preventing Electrostatic Discharge Damage
BDCOM S2008 Switch Hardware Installation Guide 9. Incorrect connection of this or connected equipment to a general purpose outlet could result in a hazardous situation. 10. Read the installation instructions carefully before you connect the system to its power source. -
Page 8: Preventive Site Configuration
BDCOM S2008 Switch Hardware Installation Guide When planning your site layout and equipment loations, remamber the precautions described in the next section ,"Preventive Site Configuration" .If you are experiencing shutdowns or unusually high errors with your exsting equipment, this precautions might help you isolate the cause of failures and prevent future problemss. -
Page 9: Chapter 3 Installing Switch
Only qualified mechanics are allowed to install or replace the device. 3.1 Installation tools and devices Tools and devices needed for BDCOM S2008 switch are optional devices. Users have to buy according to their needs. The following tools and devices are typical for BDCOM S2008 switch:... -
Page 10: Connecting Console Port
BDCOM S2008 Switch Hardware Installation Guide 3.3 Connecting Console port There is a console port on BDCOM S2008 switch. This section explains the features and usage of the port. Speed: 1200 bps-115200bps, standard RJ 45 plug. Use dedicated cable to connect the port to PC parallel port. -
Page 11: Console Port Connection
3.3.1 Console port connection This cable is used to connect BDCOM S2008 switch console port to external terminal. One end is RJ45 8-pin plug. The other end are 25-hole (DB25) and 9 –hole (DB9) plugs. RJ45 connecter plugs into BDCOM S2008 switch console port. Use DB25 and DB9 according to the terminal parallel port. The side of the cable is shown as follows. - Page 12 BDCOM S2008 Switch Hardware Installation Guide UTP port explaination is shown as follows: Pin NO. Description Name Note Data transmission positive TPTXD+ Output Data transmission negative TPTXD- Output Data receive positive TPRXD+ Input Data receive negative TPRXD- Input Figuer 3-1 Parallel connection UTP5 Note: Cable connection and colors follow the regulations in EIA/TIA 568A.
-
Page 13: Chapter 4 Hardware Troubleshooting
9600 baud rate, 8-bit data bit, no parity bit, 1 stop bit and no flow control. 4.2 LEDs LEDs indicates what switches are doing. BDCOM S2008 switch LED and functions are as follows: Name Description... - Page 14 BDCOM S2008 Switch Hardware Installation Guide Indicator embedded on Indicator lights when the port is in 100M data the right side of each transfer mode. Indicator dies out when the port is in port. 10M data transfer mode. - 12 -...
-
Page 15: Chapter 5 Switch Maintenance
BDCOM S2008 Switch Hardware Installation Guide Chapter 5 Switch Maintenance Warning: Ensure static electricity emission of your body before openning the chassis.Please read “Safety Notices” before any operating in appendixB after closing the switch.. 2) Please unlatch power pin when operate near or on the Switch. -
Page 16: Close The Chassis
BDCOM S2008 Switch Hardware Installation Guide Put down the top steady avoiding any demage after lifting it , otherwise it will be very difficult to install later. 5.2 Close the chassis This section introduce the procession of locating the top and closing chassis .Please act as the following procession: 31.
