Summary of Contents for JVC LT-32C31BJE

Page 1: Table Of Contents

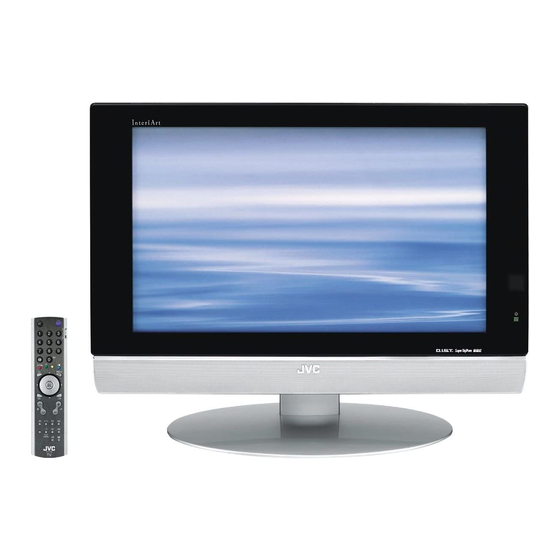

SERVICE MANUAL WIDE LCD PANEL TELEVISION YA015 2004 LT-32C31BJE, LT-32C31BUE, LT-32C31SJE, LT-32C31SUE BASIC CHASSIS TABLE OF CONTENTS PRECAUTION............... . . 1-3 SPECIFIC SERVICE INSTRUCTIONS .
Page 2 SPECIFICATION Items Contents Dimensions (W × H × D) 83.3 cm × 63.8 cm × 26.0 cm (Included stand) 83.3 cm × 56.9 cm × 9.7 cm (TV only) Mass 22.0 kg (Included stand) 19.2 kg (TV only) TV RF System CCIR B/G, I, D/K, L Colour System PAL / SECAM / NTSC 3.58 / NTSC 4.43 (NTSC:EXT only).
Page 3: Precaution
SECTION 1 PRECAUTION SAFETY PRECAUTIONS [EXCEPT FOR UK] (1) The design of this product contains special hardware, (8) When service is required, observe the original lead dress. many circuits and components specially for safety Extra precaution should be given to assure correct lead purposes.
Page 4 SAFETY PRECAUTIONS [FOR UK] (1) The design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits.
Page 5 INSTALLATION 1.3.1 HEAT DISSIPATION 1.3.3 INSTALLATION REQUIREMENTS If the heat dissipation vent behind this unit is blocked, cooling To ensure safety in an emergency such as an earthquake, and efficiency may deteriorate and temperature inside the unit will to prevent accidents, ensure that measures are taken to prevent rise.
Page 6 For storage, ensure that they are stacked in 2 layers or less even when placed upright. MAIN DIFFERENCE LIST Items LT-32C31BUE LT-32C31BJE LT-32C31SUE LT-32C31SJE FRONT PANEL COLOUR BLACK SILVER...
Page 7: Specific Service Instructions
SECTION 2 SPECIFIC SERVICE INSTRUCTIONS FEATURES 2.1.1 FUNCTION / CIRCUITS EXT-1 EXT-3 EXT-4 • DIST (Digital Image Scaling Technology) employs an interpolation method that doubles the scanning lines to realize 1250-line flicker- free picture making it especially suitable for reproducing high- resolution pictures even on large-screen displays.
Page 8 TECHNICAL INFORMATION 2.2.1 LCD PANEL This unit uses the flat type panel LCD (Liquid Crystal Display) panel that occupies as little space as possible, instead of the conventional CRT (Cathode Ray Tube), as a display unit. Since the unit has the two polarizing filter that are at right angles to each other, the unit adopts "normally black" mode, where light does not pass through the polarizing filter and the screen is black when no voltage is applied to the liquid crystals.
Page 9 2.2.2 MAIN CPU PIN FUNCTION (IC001) Pin No. Pin Name Remark Pin No. Pin Name Remark I/O Data (Program ROM) I Test purpose I/O Data (Program ROM) I Test purpose I/O Data (Program ROM) I Test purpose VSS33 I GND O Test purpose VDD33 I 3.3V...
Page 10 2.2.3 SUB CPU PIN FUNCTION (IC7807) Pin No. Pin name Function (SYSTEM0) (SYSTEM3) AVCC Sub clock Sub clock Internal down voltage Reset [Reset : L] TEST Operation test for SUB CPU OSC2 10MHz oscillation for system clock OSC1 10MHz oscillation for system clock Not used Not used BL_D2...
Page 11: Disassembly
SECTION 3 DISASSEMBLY DISASSEMBLY PROCEDURE NOTE: Since this model adopts a layer structure, follow the procedure below in disassembling this model. Be careful enough not to damage or scratch parts. 3.1.1 REMOVING THE STAND 3.1.6 REMOVING THE VIDEO PWB / MI-COM & DIST (1) Remove the 2 screws [A], and remove the STAND MODULE PWB COVER.
Page 12 JACK COVER STAND COVER STAND JACK COVER JACK BASE TUNER TUNER PWB BASE VIDEO PWB MSP PWB REAR COVER BRACKET RECEIVER COOLING VIDEO PWB BRACKET MI-COM & DIST REGULATOR PWB MODULE PWB POWER CORD POWER TERMINAL BASE FRONT CONTROL POWER CORD HOLDER FRONT SENSOR PWB CHASSIS BASE CONTROL KNOB...
Page 13 3.1.9 REMOVING THE SPEAKER 3.1.10 REMOVING THE LCD PANEL UNIT • Remove the STAND. • Remove the STAND. • Remove the REAR COVER. • Remove the REAR COVER. (1) Remove the 5 screws [a], and remove the SPEAKER BOX. • Remove the POWER CORD. (2) Remove the 4 screws [b], and remove the SPEAKER (L / •...
Page 14 REPLACEMENT OF MEMORY IC This unit uses the nonvolatile memory IC.The memory IC memories data for video and deflection circuits. To replace the memory IC without the data written, malfunctions might occurred while power is on, and the normal image might not appear. When replacing the memory IC, be sure to use the IC written with the initial values of data.
Page 15 3.2.3.2 USER SETTINGS OF MENU Setting item Setting value Setting item Setting value POWER SOUND SETTING CHANNEL BASS Centre TREBLE Centre PRESET CHANNEL Refer to BALANCE Centre OPERATING INSTRUCTIONS SPEAKER VOLUME PICTURE SETTING 3D SOUND PICTURE MODE BRIGHT A. H. B COLOUR TEMP.
Page 16 3.2.3.4 SERVICE MENU SETTING ITEMS Setting item Setting value Setting item Setting value 1.IF 1.VCO 6.STATUS (Do not adjust) 2.ATT ON/OFF 2.V/C 1.CUT OF R 7.VNR 1.MYLV 2.CUT OF G (Do not adjust) 2.ONMVF 3.CUT OF B 3.MYCOR 4.DRIVE R 4.MYGA 5.DRIVE G 5.YEGON...
Page 17 REPLACEMENT OF CHIP COMPONENT 3.3.1 CAUTIONS (1) Avoid heating for more than 3 seconds. (2) Do not rub the electrodes and the resist parts of the pattern. (3) When removing a chip part, melt the solder adequately. (4) Do not reuse a chip part after removing it. 3.3.2 SOLDERING IRON (1) Use a high insulation soldering iron with a thin pointed end of it.
Page 18: Adjustment
SECTION 4 ADJUSTMENT ADJUSTMENT PREPARATION MEASURING INSTRUMENT AND FIXTURES (1) Prior to the following procedure, be sure to connect the • DC voltmeter (or Digital voltmeter) receiver unit and the display unit. • Oscilloscope (2) Adjustment of many Majority of the adjustment items for •...
Page 19 ADJUSTMENT LOCATION & WIRING (No.YA015)1-19...
Page 20 SERVICE MENU SCREEN SERVICE MENU SERVICE MENU 1. IF 2. V/C 3. AUDIO 4. DD/CM 5. VSM PRESET 6. STATUS 7. VNR 8. IP 9. SHIPPING (OFF) 0. BUS FREE 1-9 : SELECT i : EXIT 1.IF 4. DD/CM IF SERVICE MENU DD/CM 1.
Page 21 BASIC OPERATION OF THE SERVICE MENU MODE [USING REMOTE CONTROL UNIT] 4.5.1 TOOLS OF SERVICE MENU OPERATION 4.5.5 SETTINGS OF THE SERVICE MENUS Operate the SERVICE MENU with the remote control unit. 1. IF (VCO adjustment, ATT setting) 4.5.2 HOW TO ENTER THE SERVICE MENU MODE [Do not adjust] (1) Press the [INFORMATION] key and the [MUTING] key of 2.
Page 22 DEFAULT VALUES IN THE SERVICE MENU SETTING MODE • Perform fine-tuning based on the "default values" using the remote control when in the SERVICE MENU setting mode. • The "default values" serve only as an indication rough standard and therefore the values with which optimal display can be achieved may be different from the default values.
Page 23 Setting value Variable Item No. Item range SECAM NTSC R GAIN 0000~0255 0255 0255 0255 (NO DISPLAY) -128~0127 0000 0000 0000 G GAIN 0000~0255 0237 0237 0237 (NO DISPLAY) -128~0127 0000 0000 0000 B GAIN 0000~0255 0230 0230 0230 (NO DISPLAY) -128~0127 0000 0000...
Page 24 Setting value Variable Item No. Item range SECAM NTSC (NO DISPLAY) 0000~0015 0000 0000 0000 (NO DISPLAY) 0000~0255 0000 0000 0000 (NO DISPLAY) 0000~0015 0000 0000 0000 (NO DISPLAY) 0000/0001 0001 0001 0001 (NO DISPLAY) 0000~0127 0016 0016 0016 (NO DISPLAY) 0000/0001 0000 0000...
Page 25 4.6.1.2 AUDIO SYSTEM Variable Item No. Item Setting value range (NO DISPLAY) 0000~0007 0001 (NO DISPLAY) 0000~0007 0001 (NO DISPLAY) 0000~0007 0001 (NO DISPLAY) 0000~0007 0000 (NO DISPLAY) 0000~0009 0003 (NO DISPLAY) 0000~0015 0004 (NO DISPLAY) 0000~0015 0006 (NO DISPLAY) 0000~0015 0003 (NO DISPLAY)
Page 26 4.6.3 [4.DD/CM] NOTE: For reference, initial setting values (except OSD-G/B/R) in the following conditions are written here. • Input signal : PAL/SECAM/NTSC • Picture mode : Standard • Zoom : Full • Multi screen : Single screen • Colour temp. : Normal Setting value Variable Item No.
Page 27 Setting value Variable Item No. Item range SECAM NTSC CMT03 (NO DISPLAY) 0000~0255 0030 0030 0020 CMT04 (NO DISPLAY) 0000~0255 0030 0030 0030 CMT05 (NO DISPLAY) 0000~0063 0059 0059 0060 CMT06 (NO DISPLAY) -128~0127 0005 0005 -002 CMT07 (NO DISPLAY) -128~0127 0002 0002...
Page 28 Setting value Variable Item No. Item range SECAM NTSC CMT48 (NO DISPLAY) 0000/0001 0000 0000 0000 CMT49 (NO DISPLAY) 0000/0001 0001 0001 0001 CMT50 (NO DISPLAY) 0000~0031 0021 0021 0021 CMT51 (NO DISPLAY) 0000~0031 0021 0021 0021 CMT52 (NO DISPLAY) 0000/0001 0000 0000...
Page 29 4.6.5 [8.IP] (*All fixed) NOTE: For reference, initial setting values in the following conditions are written here. • Input signal : PAL/SECAM/NTSC • Picture mode : Standard • Zoom : Full • Multi screen : Single screen • Colour temp. : Normal Setting value Variable Item No.
Page 30 Setting value Variable Item No. Item range SECAM NTSC PPB029 (NO DISPLAY) 0000~00FF 0000 0000 0000 PPB030 (NO DISPLAY) 0000~00FF 0000 0000 0000 PPB031 (NO DISPLAY) 0000~001F 0000 0000 0000 PPB032 (NO DISPLAY) 0000~00FF 0000 0000 0000 PPB033 (NO DISPLAY) 0000~00FF 0000 0000...
Page 31 Setting value Variable Item No. Item range SECAM NTSC ADS007 (NO DISPLAY) 0000~00FF 0096 0096 0096 ADS008 (NO DISPLAY) 0000~00FF 0020 0020 0020 ADS009 (NO DISPLAY) 0000~00FF 00FF 00FF 00FF ADS010 (NO DISPLAY) 0000~00FF 00FF 00FF 00FF ADS011 (NO DISPLAY) 0000~00FF 00FF 00FF...
Page 32 Setting value Variable Item No. Item range SECAM NTSC IPA016 (NO DISPLAY) 0000~003F 0003 0003 0006 IPA017 (NO DISPLAY) 0000/0001 0001 0001 0001 IPA018 (NO DISPLAY) 0000~003F 000D 000D 002A IPA019 (NO DISPLAY) 0000/0001 0001 0001 0001 IPA020 (NO DISPLAY) 0000/0001 0001 0001...
Page 33 Setting value Variable Item No. Item range SECAM NTSC IPA061 (NO DISPLAY) 0000~0003 0000 0000 0000 IPA062 (NO DISPLAY) 0000~003F 000A 000A 000A IPA063 (NO DISPLAY) 0000~003F 003F 003F 003F IPA064 (NO DISPLAY) 0000~000F 0006 0006 0006 IPA065 (NO DISPLAY) 0000~0007 0001 0001...
Page 34 Setting value Variable Item No. Item range SECAM NTSC IPA106 (NO DISPLAY) 0000~00FF 0000 0000 0000 IPA107 (NO DISPLAY) 0000~000F 0000 0000 0000 IPA108 (NO DISPLAY) 0000~00FF 0080 0080 0080 IPA109 (NO DISPLAY) 0000~000F 0000 0000 0000 IPA110 (NO DISPLAY) 0000~00FF 0040 0040...
Page 35 Setting value Variable Item No. Item range SECAM NTSC IPB001 (NO DISPLAY) 0000~00FF 0001 0001 0001 IPB002 (NO DISPLAY) 0000~00FF 0001 0001 0003 IPB003 (NO DISPLAY) 0000~000F 0000 0000 0000 IPB004 (NO DISPLAY) 0000~00FF 0000 0000 0000 IPB005 (NO DISPLAY) 0000~000F 0000 0000...
Page 36 Setting value Variable Item No. Item range SECAM NTSC IPB046 (NO DISPLAY) 0000~00FF 008B 008B 008B IPB047 (NO DISPLAY) 0000~000F 0000 0000 0000 IPB048 (NO DISPLAY) 0000~00FF 0000 0000 0000 IPB049 (NO DISPLAY) 0000~000F 0000 0000 0000 IPB050 (NO DISPLAY) 0000~00FF 000F 000F...
Page 37 Setting value Variable Item No. Item range SECAM NTSC IPC001 (NO DISPLAY) 0000~0003 0002 0002 0002 IPC002 (NO DISPLAY) 0000~00FF 00EA 00EA 00EA IPC003 (NO DISPLAY) 0000/0001 0000 0000 0000 IPC004 (NO DISPLAY) 0000/0001 0000 0000 0000 IPC005 (NO DISPLAY) 0000~000F 0000 0000...
Page 38 Setting value Variable Item No. Item range SECAM NTSC IPD001 (NO DISPLAY) 0000~00FF 0040 0040 0040 IPD002 (NO DISPLAY) 0000~00FF 0000 0000 0000 IPD003 (NO DISPLAY) 0000~00FF 0000 0000 0000 IPD004 (NO DISPLAY) 0000~0007 0000 0000 0000 IPD005 (NO DISPLAY) 0000~00FF 0000 0000...
Page 39 Setting value Variable Item No. Item range SECAM NTSC IPD046 (NO DISPLAY) 0000/0001 0000 0000 0000 IPD047 (NO DISPLAY) 0000~00FF 0000 0000 0000 IPD048 (NO DISPLAY) 0000~00FF 0000 0000 0000 IPD049 (NO DISPLAY) 0000~00FF 0090 0090 0090 IPD050 (NO DISPLAY) 0000~0007 0000 0000...
Page 40 ADJUSTMENT PROCEDURE 4.7.1 CHECK ITEM Measuring Item Test point Adjustment part Description instrument VCO (AFC) Remote control [1.IF] (1) Receive a PAL colour bar signal. check unit 1.VCO(CW) (2) Select "1. IF" from the SERVICE MENU. (3) Select "1. VCO." Signal generator (4) Make sure that an arrow of "MAIN"...
Page 41 Measuring Item Test point Adjustment part Description instrument Remote control [2. V/C] (1) Receive a PAL black and white pattern signal CONTRAST unit 10. CONT (colour off). (Contrast) (2) Select "2. V/C" from the SERVICE MENU. Signal generator (3) Adjust < 10. CONT > (Contrast) to set the white part to be white.
Page 42 Measuring Item Test point Adjustment part Description instrument SUB-SCREEN Remote control [2. V/C] (1) Receive a PAL black and white pattern signal BRIGHTNESS unit 11. TWN BRG (including 0% black signal). (Sub-screen (2) Select "2. V/C" from the SERVICE MENU. Signal generator bright) (3) Adjust <...
Page 43 Measuring Item Test point Adjustment part Description instrument PAL/SECAM/ Remote control [2. V/C] - SUB-SCREEN PAL COLOUR - NTSC unit 16. TWN COL (1) Receive a PAL colour bar signal (full field colour SUB-SCREEN (Sub-screen bar). COLOUR Signal generator colour) (2) Select "2.
Page 44: Troubleshooting
SECTION 5 TROUBLESHOOTING This service manual does not describe TROUBLESHOOTING. 1-44 (No.YA015)
Page 45 VICTOR COMPANY OF JAPAN, LIMITED AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan (No.YA015) Printed in Japan...
Page 46 SCHEMATIC DIAGRAMS WIDE LCD PANEL TELEVISION LT-32C31BJE, LT-32C31BUE, LT-32C31SJE, LT-32C31SUE CD-ROM No.SML200403 BASIC CHASSIS No.YA015 COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED 2004/2...
Page 48 LT-32C31BJE, LT-32C31BUE LT-32C31SJE, LT-32C31SUE STANDARD CIRCUIT DIAGRAM NOTE ON USING CIRCUIT DIAGRAMS 1.SAFETY Type No indication : Ceramic capacitor The components identified by the symbol and shading are : Metalized mylar capacitor critical for safety. For continued safety replace safety ciritical : Polypropylene capacitor components only with manufactures recommended parts.
Page 49 CONTENTS SEMICONDUCTOR SHAPES ..............2-2 BLOCK DIAGRAM ..................2-3 CIRCUIT DIAGRAMS ..................2-5 TUNER PWB CIRCUIT DIAGRAM ......................2-5 MSP PWB CIRCUIT DIAGRAM ........................2-7 RECEIVER PWB CIRCUIT DIAGRAM ......................2-9 VIDEO PWB CIRCUIT DIAGRAM ......................2-13 MI-COM & DIST PWB CIRCUIT DIAGRAM ....................2-17 POWER PWB CIRCUIT DIAGRAM ......................
Page 50: Block Diagram
BLOCK DIAGRAM IC501 IC6401 MULTI VOLUME SOUND CONTROL MHP_L/R L/R OUT PROCESSOR HEADPHONE MAIN SPEAKER(L) IC6501 IC6641 AUDIO AUDIO L/R OUT CONTROL MAIN SPEAKER(R) TU001 MAIN SC1_OUT_L TV V1 MI-COM & DIST PWB U/V FRONTEND SC1_OUT_R S_L/S_R MAIN CV/Y MAIN CV/Y IC702 MAIN C MAIN C...
Page 51: Circuit Diagrams
CIRCUIT DIAGRAMS TUNER PWB CIRCUIT DIAGRAM SHEET1 TUNER PWB ASS'Y SMK0R602A-U2 NCF31AZ-105X C010 R005 R004 CN004 QGB2038J1-09 SI F M_SW0 M_SW1 VTV1 AFC1 L003 M_MONO NQL034K-100X C008 C009 1000 /6.3 MSP PWB SHEET 2 CN005 QGB2038J1-09 L002 NCB31HK-103X C006 NQL034K-100X SDA1 C007 SCL1...
Page 52: Msp Pwb Circuit Diagram
MSP PWB CIRCUIT DIAGRAM SHEET 2 RECEIVER PWB (1/2) SHEET 3 MSP PWB ASS'Y SMK0A602A-U2 C536 C537 QENC1EM-106Z QENC1EM-106Z IC502 AN77L08-T C525 C526 C529 C530 .001 .001 C541 C542 C528 C527 .001 .001 SIF_GND R522 SIF_GND Q503 C524 DTC144EKA-X R516 QGB2038K1-09 C535 C531...
Page 53: Receiver Pwb Circuit Diagram
RECEIVER PWB CIRCUIT DIAGRAM (1/2) SHEET 3 R308 R310 L_SWMAI N C309 QNN0595-001 R316 NCB11CK-225X C312 D311 R306 C307 Q313 UN2110- X J401 D308 Q311 R312 MA111- X .0047 OPEN QETN1EM-476Z UN2226- X R313 R314 C310 NCB21CK-105X OPEN R309 Q314 QNN0595-001 R311 C311...
Page 54 RECEIVER PWB CIRCUIT DIAGRAM (2/2) SHEET 4 IC6101 AN77L12-T D6101 AU_12V OPEN C6103 C6102 C6101 K6103 OPEN AU_GND R6105 R6106 R6107 R6108 CN000F QGA2001C2-04V AU_VCC R6541 K6101 5.6K NQR0413-002X VREF IC6641 AU_D_VCC POWER PWB (2/2) TA2024ASE-X C6104 K6102 SHEET 19 D6541 C6541 1000p...
Page 55: Video Pwb Circuit Diagram
VIDEO PWB CIRCUIT DIAGRAM (1/2) SHEET 5 C830 C831 C832 C833 C834 C835 R820 R824 R828 R832 R836 R840 SRGB2/OTH 150K 150K 150K 150K 150K 150K SHEET 6 SRGB2/OTH R822 R826 R830 R834 R838 R842 CN0AE Q803 Q804 Q805 Q806 Q807 Q808 QGA1501C2-07V...
Page 56 VIDEO PWB CIRCUIT DIAGRAM (2/2) SHEET 6 RECEIVER PWB (1/2) SHEET 5 SHEET 3 CN00N QGA1501C2-07V VCC9A IC1202 SN74AHC2G08T-X AD_HD R1216 C1208 J1202 C1207 QNN0595-001 NCF11CZ-475X IC1201 TA1370FG-X IC1101 R1124 AN15851A-W NR_HD Q1101 C1101 R1215 2SC2412K/QR/-X TEXT_G NR_Y C1102 R1104 R1101 TEXT_B OPEN...
Page 57 MI-COM & DIST PWB CIRCUIT DIAGRAM (1/11) SHEET 7 CN00C1 CN00C2 QGA1501F2-07V QGA2001F2-05V R091 R093 MI-COM & DIST PWB ASS'Y(1/11) R094 R092 R143 OPEN SBD01 SMK-0Z602A SBO01 SHEET 15 VCC3A 2SA1022/BC/-X C058 TC7WH126FU-X R141 SMGND D006 SMRST OPEN IC007 OPEN RSA6.1J4-W R046 R048...
Page 58 MI-COM & DIST PWB CIRCUIT DIAGRAM (2/11) SHEET 8 C741 C742 C743 C744 C745 C746 VCC3D R731 R735 R739 R743 R710 R714 C1341 150K 150K 150K 150K 150K 150K R733 R737 R741 R745 R712 R721 R1341 Q712 Q713 Q714 Q715 Q716 Q711 SHEET 7...
Page 59: Mi-Com & Dist Pwb Circuit Diagram
MI-COM & DIST PWB CIRCUIT DIAGRAM (3/11) SHEET9 IC301 R1170H251B-X VCC5A VC2.5_1YC VCAVDYC L1002 LC1051 NQR0450-008X NQR0413-003X VC5YC NBE71CM-476X VCC9A R1003 C1004 C1005 C1006 L1004 C1007 C1003 NQR0413-003X NCB21AK-105X AGND C1001 C1002 NCB21CK-334X AGND AGND AGND LC1052 NQR0450-008X VCVINYC AGND AGND AGND L1001...
Page 60 MI-COM & DIST PWB CIRCUIT DIAGRAM (4/11) SHEET 10 SHEET 7 OSD_B SHEET 16 OSD_G VCC5A VCC9A VCC9AMAD LC1201 NEH91CM-476X EFP5 C1321 NQR0415-005X IC1205 VCC5D Q1201 Q1202 C1252 TC4053BF/N/-XE AGND LC1206 2SC2412K/QR/-X 2SC2412K/QR/-X EFP5 C1322 R1209 R1201 C1202 NDC31HJ-120X C1251 C1201 C1206 NQR0415-005X...
Page 61 MI-COM & DIST PWB CIRCUIT DIAGRAM (5/11) SHEET 11 MI-COM & DIST PWB ASS'Y(5/11) SMK-0Z602A VCC9A VCC9ASAD L4025 EFP5 NQR0415-005X Q4002 AGND 2SA1022/BC/-X VCC3A VCC3D R4008 Q4001 C4008 R4047 R4011 2SC3837K/NP/-X 1.5k C4004 OPEN K4301 NCB31EK-393X R4046 YS_IN K4302 NQR0413-003X C4032 C4063 SHEET 10...
Page 62 MI-COM & DIST PWB CIRCUIT DIAGRAM (6/11) SHEET 12 C4356 C4355 C4362 R4343 C4354 0.47 IC4107 LP3964EMP-ADJ-X R4268 R4267 R4344 R4281 R4282 VCC2.5 RA122 RA122 RA122 RA122 VCC1.4B DQ103 DQ014 DQ100 DQ010 DQ104 DQ013 R4362 DQ101 DQ011 DQ28 C4341 C4353 R4270 R4269 VDDQ...
Page 63 MI-COM & DIST PWB CIRCUIT DIAGRAM (7/11) SHEET 13 SHEET 14 IC4203 R1170H151B-X VCC2.5 VCC3D NRSA63D-562X R4492 R4493 R4494 R4495 R4496 R4497 R4498 R4499 R4474 RA101 RA101 RA101 RA101 RA101 RA101 RA101 RA101 5.6k R4476 OPEN R4473 C4424 L4201 R4475 NCB10JK-106X C4412 DGND...
Page 64 MI-COM & DIST PWB CIRCUIT DIAGRAM (8/11) SHEET 14 DOSDR0 DOSDR0 DOSDR1 DOSDR1 DOSDR2 DOSDR2 DOSDR3 DOSDR3 RGBHD DOSDR4 RGBHD DOSDR4 DOSDR5 RGBCLK RGBCLK DOSDR5 VCC3D DOSDR6 DOSDR6 DOSDR7 DOSDR7 AJR0 VCC3D AJR0 DOSDB0 VCC2.5PDP AJR1 DOSDB0 AJR1 DOSDB1 NEH90JM-107X AJR2 DOSDB1 AJR2...
Page 65 MI-COM & DIST PWB CIRCUIT DIAGRAM (9/11) SHEET 15 VCC5STB Y7801 OPEN VCC3D Y7802 NRSA63J-0R0X R7822 DSDHD SHEET 13, 14 DSDHD R7823 DSDVD SHEET 16 DSDVD K7801 NQR0351-001X AGND SMGND K7804 SMRST SMRST NQR0351-001X VCC5/3 DGND SMGND VCC5/3 NCB11AK-106X R7854 R7903 R7926 R7928...
Page 66 MI-COM & DIST PWB CIRCUIT DIAGRAM (10/11) SHEET 16 VCC3A K7303 R7333 NQR0351-003X R7332 C7335 C7348 L7305 NQL092K-R10X OPEN R7342 L7304 NQL092K-R10X RGB_PWM OSD_B L7303 NQL092K-R10X L7306 NQL092K-2R2X C7336 RGB_BLK C7347 C7343 C7342 OPEN C7341 Q7301 2SA1022/BC/-X R7335 RGBCLK SHEET 14 C7344 C7345 C7346...
Page 67 MI-COM & DIST PWB CIRCUIT DIAGRAM (11/11) SHEET 17 LB_PRO STB_5V LB_POW D1903 OPEN SDA0P SDA0P SHEET 10 SCL0P SCL0P IC1901 CN000B QGA1501C2-13V PQ070XH02Z-W LC110 OPEN IC1903 R1906 OPEN R1902 2.2K R1901 NRSA63D-222X 2.2K AGND R1907 OPEN NRSA63D-222X D1901 C1913 D1FS4-X /6.3 C1902...
Page 68: Power Pwb Circuit Diagram
POWER PWB CIRCUIT DIAGRAM (1/2) SHEET 18 R9001 QRZ9046-105Z F9001 LF9001 C9002 LF9002 QMF51D2-6R3-J1 POWER CORD QQR1281-004 QQR1281-004 QFZ9075-105 CN000D OPEN CN00PW NOT USE L9201 QQR1399-001 QGA7901C1-02 VA9001 LF9003 H9211 ERZV10V621CS QQR1376-001 LC32378-001A C9001 R9201 QFZ9075-225 C9204 CP9211 .0022 QRZ0121-200 QMFZ043-5R0Z-J1 QCZ9082-222Z R9202...
Page 69 POWER PWB CIRCUIT DIAGRAM (2/2) SHEET 19 LCD PANEL LCD PANEL (TOP INVERTER UNIT) (BOTTOM INVERTER UNIT) CN000P CN000Q GND2 R9605 R9606 CN000Y OPEN OPEN POWER PWB ASS'Y (2/2) Y9547 D9602 COOLING FAN OPEN SMK-9603A-U2 H9541 IC9601 OPEN OPEN CN000Z LC32377-001A C9603 OPEN...
Page 70 REGULATOR PWB CIRCUIT DIAGRAM SHEET 20 REGULATOR PWB ASS'Y SMK-9613A-U2 IC9801 SI-8090JD-W R9807 4.7K C9815 R9808 L9802 NEH91CM-476X GND2 NQL63EM-101X L9801 D9802 OPEN C9802 R9802 C9804 R9805 R9809 OPEN GND2 OPEN OPEN C9803 MA111-X 1/2W NBZ0010-396X R9801 D9801 D9809 EC30HA03L-X PTZ11B-X K9801 R9803...
Page 71 FRONT CONTROL PWB CIRCUIT DIAGRAM SHEET 21 FRONT CONTROL PWB ASS'Y CN300T QGA1501C2-10W SMK0L601A-U2 S8707 QSW0797-001 S8703 S8702 S8701 MI-COM & DIST PWB (1/11) SHEET 7 QSW0797-001 QSW0797-001 QSW0797-001 R8701 R8702 5.6k CN3003 S8706 S8705 S8704 QGB2542K1-08 QSW0797-001 QSW0797-001 QSW0797-001 FRONT SENSOR PWB SHEET 22 R8703...
Page 72: Front Sensor Pwb Circuit Diagram
FRONT SENSOR PWB CIRCUIT DIAGRAM SHEET 22 TPS818 IC8751 CN8003 OPEN QGB2542J1-08 FRONT CONTROL PWB SHEET 21 R8751 OPEN R8754 OPEN R8752 OPEN R8753 C8751 OPEN OPEN R8759 IC8752 GP1UM281QK R8756 STB5V R8755 OPEN C8753 C8752 OPEN R8758 R8757 OPEN FRONT SENSOR PWB ASS'Y SMK0L602A-U2 NOTES) 1.
Page 73: Pattern Diagrams
PATTERN DIAGRAMS RECEIVER PWB PATTERN [SOLDER SIDE] J301 D301 J302 J401 J201 J101 C223 R115 C191 C221 R308 R302 D101 D131 Q131 D308 R309 D204 D206 D201 D205 D309 D202 D203 D207 C105 C6704 R6725 R6724 R133 R132 R6723 R255 C131 R131 Q6703...
Page 74: Msp Pwb Pattern
MSP PWB PATTERN [SOLDER SIDE] VIDEO PWB PATTERN [SOLDER SIDE] R1216 R1208 EC3010 EC3011 R1212 C534 Y502 R1207 L505 L504 R522 R1211 EC3009 C527 C543 C536 C533 C528 C525 C813 C822 C537 C529 C535 C523 C526 C532 C530 R516 C1202 C818 C531 C522...
Page 75: Power Pwb Pattern
POWER PWB PATTERN [SOLDER SIDE] R9545 R9604 Y9101 R9514 H9211 D9511 C9510 Q9501 C9198 C9199 R9625 C9551 H9541 R9613 C9511 C9554 D9510 D9506 D9502 R9512 D9509 R9509 PC9541 C9509 R9518 D9508 C9550 IC9603 D9501 D9513 R9611 R9608 R9610 K9505 R9609 K9501 C9604 D9602...
Page 76 POWER PWB PATTERN [PARTS SIDE] Y9101 H9211 H9541 Q9501 R9545 C9198 Y9547 C9199 Y9548 C9511 C9602 D9502 R9512 C9510 C9606 C9551 C9509 C9550 R9509 Y9546 Y9550 D9501 K9501 K9505 K9502 K9504 R9541 C9545 C9503 R9505 CP9541 R9506 D9541 C9544 C9504 R9502 R9501 C9541...
Page 77: Mi-Com & Dist Pwb Pattern
MI-COM & DIST PWB PATTERN [SOLDER SIDE] MI-COM & DIST PWB PATTERN [PARTS SIDE] C7612 Q7601 C7613 R7628 C404 #PC01718 C7601 #PC01715 R7622 R7621 RA7302 R7302 C463 R7629 C770 C796 C769 C7601 IC7301 RA7301 L753 R774 R773 R4469 R4427 C4532 C7312 R4511 R7625...
Page 78: Regulator Pwb Pattern
REGULATOR PWB PATTERN [SOLDER SIDE] FRONT CONTROL PWB PATTERN [SOLDER SIDE] R9820 D9804 Q9802 D9805 IC9802 C9802 S8707 S8701 S8705 R9814 C9804 S8706 D9808 R8713 C9806 C9808 R9805 R9829 R9812 R8702 S8704 S8703 S8702 R9817 R9816 R6417 R8701 D9807 C6416 Q9803 CN3003 D9803...
Page 79: Voltage Charts
VOLTAGE CHARTS <MI-COM & DIST> [P.2-17 - P.2-18] [P.2-19 - P.2-20] [P.2-21 - P.2-22] [P.2-23 - P.2-24] [P.2-25 - P.2-26] [P.2-27 - P.2-28] [P.2-31 - P.2-32] [P.2-33 - P.2-34] [P.2-35 - P.2-36] MODE MODE MODE MODE MODE MODE MODE MODE MODE MODE MODE...
Page 80 <TUNER> <RECEIVER> <POWER> [P.2-5 - P.2-6] [P.2-9 - P.2-12] [ P.2-39 - P.2-42 ] MODE MODE MODE MODE MODE MODE MODE MODE MODE MODE MODE DC ( V ) DC ( V ) DC ( V ) DC ( V ) DC ( V ) DC ( V ) DC ( V )
Page 81: Waveforms
WAVEFORMS -TUNER PWB- -RECEIVER PWB- [ P.2-9 - P.2-10 ] [P.2-5 - P.2-6] TU001-16 IC101-15 IC101-41 IC101-44 IC101-47 IC101-49 IC101-53 IC101-56 IC101-58 IC101-63 0.9Vp-p 1.0Vp-p 2.0Vp-p 2.0Vp-p 1.5Vp-p 2.2Vp-p 2.2Vp-p 2.2Vp-p 1.5Vp-p 0.9Vp-p -VIDEO PWB- [P.2-13 - P.2-14] IC801-1 IC801-3 IC801-4 IC801-5 IC801-7...
Page 83 VICTOR COMPANY OF JAPAN, LIMITED AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan (No.YA015) Printed in Japan...
Page 84: Parts List
PARTS LIST CAUTION  The parts identified by the symbol are important for the safety . Whenever replacing these parts, be sure to use specified ones to secure the safety. The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No. columns will not be supplied. P.
Page 85 MI-COM & DIST MODULE P.W. BOARD ASS’Y (SMK-0Z602A) ........... 3-13 REMOTE CONTROL UNIT PARTS LIST (RM-C1808-1C) ..............3-22 PACKING ..............................3-23 PACKING PARTS LIST ..........................3-23 USING P.W. BOARD & REMOTE CONTROL UNIT P.W.B ASS'Y LT-32C31BJE LT-32C31BUE LT-32C31SJE LT-32C31SUE ← ←...
Page 86: Smk0R602A-U2
EXPLODED VIEW PARTS LIST  Ref.No. Part No. Part Name Description Local LC11686-001B-0K JACK COVER (x2)  102 LC21301-013A RATING LABEL LT-32C31BJE  102 LC21301-012A RATING LABEL LT-32C31BUE  102 LC21301-015A RATING LABEL LT-32C31SJE  102 LC21301-014A RATING LABEL LT-32C31SUE ...
Page 87: Exploded View
EXPLODED VIEW 106A 106B 109C 109B 109A BRACKET VIDEO PWB BRACKET CHASSIS BASE RECEIVER PWB BRACKET 3-4 (No.YA015)
Page 88 CENTRE FRAME FRAME(L) TOP FRAME FRAME(R) BOTTOM FRAME INVERTER UNIT BOTTOM INVERTER UNIT 131B 131A (No.YA015) 3-5...
Page 89: Printed Wiring Board Parts List
PRINTED WIRING BOARD PARTS LIST Ref No. VIDEO P.W. BOARD ASS’Y (SMK-1602A-U2) Part No. Part Name Description Local Ref No. Part No. Part Name Description Local C856 NCB31HK-103X C CAPACITOR 0.01uF 50V K C857 NCB31HK-103X C CAPACITOR 0.01uF 50V K IC801 TB1274AF C858...
Page 90: Regulator P.w. Board Ass'y (Smk-9613A-U2)
Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local R816 NRSA63J-273X MG RESISTOR 27kΩ 1/16W J R1209 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R817 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1210 NRSA63J-101X MG RESISTOR 100Ω...
Page 91: Power P.w. Board Ass'y (Smk-9603A-U2)
Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local D9545 RD16E/B/-T5 Z DIODE R9801 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J D9546 RD16E/B/-T5 Z DIODE R9802 NRS12BJ-6R8W MG RESISTOR 6.8Ω 1/2W J D9901 RK44-LFT4 S B DIODE R9803 NRSA63D-152X...
Page 92: Msp P.w. Board Ass'y (Smk0A602A-U2)
Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local LF9003 R9228 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J QQR1376-001 LINE FILTER PC9541 R9233 NRS12BJ-474W MG RESISTOR 470kΩ 1/2W J PC123Y22FZ PHOTO COUPLER PC9542 R9236 NRS12BJ-474W MG RESISTOR 470kΩ...
Page 93 Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local C105 QETN1CM-477Z E CAPACITOR 470uF 16V M Q101 2SC2412K/QR/-X TRANSISTOR C115 QETN1CM-477Z E CAPACITOR 470uF 16V M Q102 2SC2412K/QR/-X TRANSISTOR C125 NCB31HK-102X C CAPACITOR 1000pF 50V K Q103 2SA1037AK/QR/-X...
Page 94 Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local C6513 QETN1HM-225Z E CAPACITOR 2.2uF 50V M R133 NRSA63J-750X MG RESISTOR 75Ω 1/16W J C6514 QETN1HM-225Z E CAPACITOR 2.2uF 50V M R134 NRSA63J-101X MG RESISTOR 100Ω...
Page 95: Front Sensor P.w. Board Ass'y (Smk0L602A-U2)
Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local R316 NRSA63J-563X MG RESISTOR 56kΩ 1/16W J R6587 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R341 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R6588 NRSA63J-0R0X MG RESISTOR 0Ω...
Page 96: Front Control P.w. Board Ass'y (Smk0L601A-U2)
Ref No. MI-COM & DIST MODULE P.W. BOARD ASS’Y Part No. Part Name Description Local (SMK-0Z602A) R8756 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J Ref No. Part No. Part Name Description Local R8757 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R8759 NRSA63J-102X MG RESISTOR 1kΩ...
Page 97 Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local Q758 2SC2412K/QR/-X TRANSISTOR C048 NEH71CM-476X E CAPACITOR 47uF 16V M Q759 2SC2412K/QR/-X TRANSISTOR C049 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z Q760 2SA1037AK/QR/-X TRANSISTOR C050 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z...
Page 98 Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local C713 NEH71CM-476X E CAPACITOR 47uF 16V M C1106 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C714 NCB31HK-103X C CAPACITOR 0.01uF 50V K C1107 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C715 NCF31CZ-104X...
Page 99 Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local C4023 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C4365 NBE71CM-476X TA E CAPACITOR 47uF 16V M C4024 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C4371 NCF31AZ-105X C CAPACITOR 1uF 10V Z C4025...
Page 100 Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local C7608 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z R117 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J C7609 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z R121 NRSA63J-0R0X MG RESISTOR 0Ω...
Page 101 Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local R419 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R768 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R420 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R769 NRSA63J-102X MG RESISTOR 1kΩ...
Page 102 Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local R1267 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R4096 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R1271 NRZ0040-101X NET RESISTOR 100Ω 1/16W J x4 R4121 NRZ0040-101X NET RESISTOR 100Ω...
Page 103 Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local R4368 NRSA63D-682X MG RESISTOR 6.8kΩ 1/16W D R7303 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R4371 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R7306 NRSA63J-101X MG RESISTOR 100Ω...
Page 104 Ref No. Ref No. Part No. Part Name Description Local Part No. Part Name Description Local R7892 NRSA63J-101X MG RESISTOR 100Ω 1/16W J L4027 NQR0415-005X EMI FILTER 0.1uF 25V M R7893 NRSA63J-101X MG RESISTOR 100Ω 1/16W J L4028 NQR0415-005X EMI FILTER 0.1uF 25V M R7894 NRSA63J-103X...
Page 105: Remote Control Unit Parts List (Rm-C1808-1C)
Ref No. Part No. Part Name Description Local X001 NAX0644-001X CRYSTAL 6.000000MHz X301 NAX0118-001X CRYSTAL 20.000MHz X701 NAX0621-001X CRYSTAL 16.200MHz X4101 NAX0636-001X 10.000MHz X4201 NAX0637-001X 74.1758MHz X7801 NAX0497-001X C RESONATOR 10.000MHz REMOTE CONTROL UNIT PARTS LIST (RM-C1808-1C) Ref No. Part No. Part Name Description Local 2AA070311...
Page 106: Packing
PACKING PARTS LIST  Ref.No. Part No. Part Name Description Local AEM1002-088-E PACKING CASE AEM1066-030-E EURO LABEL 2pcs in 1set LT-32C31BJE AEM1066-029-E EURO LABEL 2pcs in 1set LT-32C31BUE AEM1066-032-E EURO LABEL 2pcs in 1set LT-32C31SJE AEM1066-031-E EURO LABEL 2pcs in 1set...
Page 107 SERVICE MANUAL WIDE LCD PANEL TELEVISION YA015B 2004 LT-32C31BSE, BASIC CHASSIS LT-32C31SSE The following items for the LT-32C31BSE and LT-32C31SSE were changed partly from LT-32C31BUE and LT-32C31SUE. Therefore, this service manual describes only the items which differ from those of the LT-32C31BUE and LT-32C31SUE service manual.
Page 108 VICTOR COMPANY OF JAPAN, LIMITED AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan (No.YA015B) Printed in Japan...
Page 109 Here is some information related to the exchange of CONTROL PWB in the LCD PANEL UNIT. For details other than those described in this manual, please refer to the LT-32C31BJE, LT-32C31BUE, LT- 32C31SJE, LT-32C31SUE service manual (No.YA015, 2004/2) and LT-32C31BSE, LT-32C31SSE service manual (No.YA015B, 2004/4).
Page 110 HOW TO DIFFERENTIATE LCD PANEL UNIT Two types of LCD PANEL UNITS are used in this model. Make sure to confirm the parts No. of LCD PANEL UNIT before exchanging CONTROL PWB. As PARTS No. is not described on the LCD PANEL UNIT, differentiate two types by checking the RATING LABEL(Revision) fixed on the back of the LCD PANEL UNIT.
Page 111 LCD PANEL UNIT (polarizer). 1. DISASSEMBLY OF LCD PANEL For removing the LCD PANEL UNIT, see page 1-13 "3.1.10 CONTROL PWB COVER REMOVING THE LCD PANEL UNIT" in LT-32C31BJE,LT- 32C31BUE, LT-32C31SJE, LT-32C31SUE service manual. CONTROL PWB 1.1 REMOVING THE CONTROL PWB •...
Page 112 EXPLODED VIEW CONTROL PWB COVER EXPLODED VIEW PARTS LIST CONTROL PWB which is to be exchanged differ according to the PARTS No. of the LCD PANEL UNIT. Be sure to confirm the PARTS No. of the LCD PANEL UNIT without fail. ...
Page 113 ENGLISH DEUTSCH FRANÇAIS LT-32C31BUE LT-26C31BUE LT-32C31SUE LT-26C31SUE LT-32C31BJE LT-26C31BJE LT-32C31SJE LT-26C31SJE WIDE LCD PANEL TV INSTRUCTIONS 16:9 LCD TV BEDIENUNGSANLEITUNG TELEVISEUR A ECRAN LCD PANORAMIQUE MANUEL D’INSTRUCTIONS...
Page 114 Warning DO NOT cut off the mains plug from this equipment. If As these colours may not correspond with the coloured the plug fitted is not suitable for the power points in your marking identifying the terminals in your plug proceed as home or the cable is too short to reach a power point, then follows: obtain an appropriate safety approved extension lead or...
Page 115 Thank you for buying this JVC LCD flat television. To make sure you understand how to use your new TV, please read this manual thoroughly before you begin. (“LCD” stands for Liquid Crystal Display.) WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Page 116: Cleaning The Screen
Pixel defects LCDs use collections of fine points (“pixels”) to display images. While there is no problem with more than 99.99% of these pixels, please understand that a very small number of pixels may not light, or may light all the time. Distance recommendations Avoid improper installation and never position the unit where good ventilation is impossible.
Page 117 Using the FREEZE function ......13 Using the PIP function ........13 Connecting external equipment ...... 33 Using the MULTI-PICTURE function ....14 CH/CC numbers ........35 Operating a JVC brand VCR or DVD player ..14 Troubleshooting........36 Teletext function........15 Specifications........38 Basic operation ..........15 Using the List Mode .........15...
Page 118: Setting Up Your Tv
Setting up your TV • When you install the TV on the wall, only use a JVC wall mounting unit (optional) which is designed for this TV. • Make sure that the TV is installed on the wall by a skilled installer.
Page 119: Putting The Batteries Into The Remote Control
Setting up your TV Putting the batteries into the Remote control Use two AA/R6 dry cell batteries. Insert the batteries from the - end, making sure the + and - polarities are correct. • Follow the warnings printed on the batteries. •...
Page 120: Connecting The Aerial And Video Cassette Recorder (Vcr)
Setting up your TV Connecting the aerial and video Connecting the power cord to the AC cassette recorder (VCR) outlet Insert the AC plug on the power cord from the TV into an • The connecting cables are not provided. AC outlet.
Page 121: Initial Settings
2 Press the # # button on the remote control PROGRAM function The TV turns on from standby mode and the JVC logo is The AUTO PROGRAM menu appears and received TV displayed. channels are automatically stored in the programme •...
Page 122: T-V Link Functions
DOWNLOAD and to view videos. T-V LINK uses the following features: To use T-V LINK functions: BACK A “T-V LINK compatible VCR” means a JVC video cassette recorder with the T-V LINK logo, or with one of EXIT D0005-EN the following logos. However, these VCRs may support 8 If you do not have a T-V LINK compatible VCR some or all of the features described earlier.
Page 123: Tv Buttons And Functions
TV buttons and functions Turn the TV on from standby mode Press the A A A A button or P p p buttons to turn the TV on from standby mode When the TV is turned on, the power lamp dims slightly. •...
Page 124: Remote Control Buttons And Functions
Remote control buttons and functions 1 Muting button 2 Number buttons 3 Information button 4 c button 5 3 sound button 6 b button 7 5 buttons 8 g (Text) button 9 p p buttons 0 VCR/DVD/Teletext control buttons - p buttons = Standby button ~ VCR/TV/DVD switch ! R button...
Page 125: Adjust The Volume
Remote control buttons and functions Use the PR LIST: Use the PR LIST: 1 Press the h h (information) button to display the 1 Press the h h (information) button to display the PR LIST PR LIST Pressing the h (information) button changes the display 2 Press the 5 5 and 6 6 buttons to choose an...
Page 126: Zoom Function
Remote control buttons and functions Choose the ZOOM mode ZOOM function 1 Press the c c button to display the ZOOM You can change the screen size according to the picture menu aspect ratio. Choose the optimum one from the following ZOOM modes.
Page 127: Displaying The Current Time
Remote control buttons and functions Displaying the current time Using the PIP function You can display the current time on the screen. You can view two pictures (Main-picture and sub-picture). A TV programme and a video programme from an external Press the h h (information) button to display the device can be watched at the same time.
Page 128: Using The Multi-Picture Function
525p signal, you cannot choose EXT-4 with the your VCR or DVD player p buttons. • If your device is not made by JVC, these buttons will - When the EXT-4 picture signal is changed to 625p, not work. 525p or 1125i signal while the EXT-4 picture is •...
Page 129: Teletext Function
Teletext function Basic operation Using the List Mode You can store the numbers of your favourite teletext pages 1 Choose a TV channel with a teletext broadcast in memory and call them up quickly using the colour buttons. 2 Make sure you set the VCR/TV/DVD switch to To store the page numbers: the TV position.
Page 130: Sub-Page
Teletext function Sub-page Some teletext pages include sub-pages that are automatically displayed. 1 Choose a teletext page that includes sub-pages Sub-page numbers that can be viewed are automatically displayed at the top of the screen. 2 Press the 5 5 buttons to choose a sub-page number Reveal Some teletext pages include hidden text (such as the...
Page 131: Using The Tv's Menu
Using the TV’s menu This TV has a number of functions you can operate using 3 Press the 6 6 buttons to choose a function menus. To use all your TV’s functions, you need to • For details of the functions in the menus, see the understand the basic menu operating techniques fully.
Page 132: Picture Setting
PICTURE SETTING Refer to “Using the TV’s menu” (see page 17) for details of COLOUR TEMP. displaying the menu. You can select one of three COLOUR TEMP. modes (three PICTURE SETTING tones of white) to adjust the white balance of the picture. PICTURE MODE BRIGHT Since white is the colour which is used as a reference for all...
Page 133: Picture Features
PICTURE FEATURES Refer to “Using the TV’s menu” (see page 17) for details of Super DigiPure displaying the menu. The Super DigiPure function uses the latest in digital PICTURE FEATURES technology to give you a natural-looking picture. The Super DigiPure function includes the following two functions. DIGITAL VNR AUTO AUTO...
Page 134: Colour System
PICTURE FEATURES COLOUR SYSTEM 4:3 AUTO ASPECT The colour system is chosen automatically. However, if the You can choose one of three ZOOM modes, REGULAR, picture is not clear or no colour appears, choose the colour PANORAMIC or 14:9 ZOOM, as the ZOOM mode for the system manually.
Page 135: Sound Setting
SOUND SETTING Refer to “Using the TV’s menu” (see page 17) for details of SPEAKER displaying the menu. You can turn off the sound from the TV speakers; but you SOUND SETTING should only do this if an audio system is connected to the STEREO/ TV as a substitute for the TV speakers.
Page 136: Headphone
SOUND SETTING HEADPHONE You need to use the HEADPHONE menu to adjust the volume of the headphones. The HEADPHONE menu can also be used to set whether or not sound comes from the TV speakers when the headphones are being used and to perform the settings for the sound coming from the headphones.
Page 137: Ext Setting
EXT SETTING Refer to “Using the TV’s menu” (see page 17) for details of ID LIST displaying the menu. You can have a name corresponding to the devices EXT SETTING connected for each EXT terminal. Giving a name to an EXT EXT-1 terminal makes the EXT terminal number appear on the DUBBING...
Page 138 EXT SETTING 2 Press the 6 6 buttons to choose an EXT terminal or TV. Then press the a a button The arrow in the menu represents a signal flow. The left side of the arrow shows a signal source output from the EXT-2 terminal.
Page 139: Features
FEATURES To set the CHILD LOCK function Refer to “Using the TV’s menu” (see page 17) for details of displaying the menu. 1 Choose CHILD LOCK, then press the o button FEATURES “SET ID NO.” (ID number setting screen) appears. SLEEP TIMER BLUE BACK CHILD LOCK...
Page 140: Decoder (Ext-2)
FEATURES 3 Press the Number buttons to enter the ID number The lock is temporarily released so you can view the TV channel. If you have forgotten the ID number: Perform step 1 of “To set the CHILD LOCK function”. After confirming the ID number, press the b button to exit the menu.
Page 141: Install
INSTALL Refer to “Using the TV’s menu” (see page 17) for details of • You can now edit the programme numbers (PR) displaying the menu. using the EDIT/MANUAL function. For details, see “EDIT/MANUAL” on page 28. • If you do not need to use the EDIT/MANUAL INSTALL function, go to the next step.
Page 142: Edit/Manual
INSTALL 3 Press the a a button to complete the settings EDIT/MANUAL The T-V LINK menu appears. The EDIT/MANUAL functions are divided into two types: T-V LINK • editing the current programme numbers (PR) (EDIT functions); and DOWNLOAD • manually storing a TV channel you want to view on a BACK particular programme number (PR) (MANUAL function).
Page 143 INSTALL INSERT Preparation: 1 Press the 6 6 buttons to choose a TV channel • A CH/CC number unique to this TV and corresponding Every time you press the 6 buttons, the programme to the Channel number of a TV channel is required. Find number (PR) changes and the picture of the TV channel the corresponding CH/CC number from a table “CH/CC stored in the programme number (PR) appears on the...
Page 144 INSTALL DELETE 4 Press the green or red button to search for a TV channel 1 Press the 6 6 buttons to choose a TV channel Scanning stops when the TV finds a TV channel. Then Every time you press the 6 buttons, the programme the TV channel is displayed.
Page 145: Additional Menu Operations
Additional menu operations Using the ACI function Downloading data to a VCR This TV has an ACI function which decodes the ACI You can send the latest programme numbers (PR) data to a (Automatic Channel Installation) data. VCR with the T-V LINK function. Using the ACI function allows all TV channels transmitted •...
Page 146: Changing The Country Setting
Additional menu operations Changing the COUNTRY setting Using the DECODER (EXT-2) function After the AUTO PROGRAM function is completed, you If you have a decoder connected to a T-V LINK compatible can change the country you have already set by using the VCR, which in turn is connected to the EXT-2 terminal, use AUTO PROGRAM function.
Page 147: Additional Preparation
Additional preparation Connecting external equipment Connect the equipment to the TV, making the correct rear 1 VCR (composite signal) panel and front panel connections. 2 VCR (composite signal/S-VIDEO signal) 3 T-V LINK compatible VCR (composite signal/S-VIDEO Before connecting anything: signal) •...
Page 148: Connecting Headphones
Additional preparation Equipment which can output the S-VIDEO Connecting Speakers/Amplifier signal (Y/C signal) such as an S-VHS VCR See the Audio equipment connection diagram, then connect the audio equipment you desire to the TV. Connect the equipment to an EXT terminal (but not the You can use external front speakers to listen to the TV EXT-1 terminal).
Page 149: Ch/Cc Numbers
CH/CC numbers When you want to use the INSERT function on page 29, find the CH/CC number corresponding to the Channel number of the TV channel from this table. Channel Channel Channel Channel CH 02 / CH 202 E2, R1 CH 40 / CH 240 E40, R40 CC 01 / CC 201...
Page 150: Troubleshooting
Troubleshooting If a problem arises while you are using the TV, please read this troubleshooting guide carefully before you ask to have the TV repaired. You may be able to fix it easily by yourself. For example, if the mains plug is disconnected from the mains outlet, or the TV aerial has problems, you may think there is a problem with the TV itself.
Page 151 Troubleshooting Other concerns • When the SLEEP TIMER function operates, the TV is automatically turned off. If the TV suddenly turns off, try to press the # (standby) button to turn on the TV once again. If the TV goes back to normal, there is no problem.
Page 152: Specifications
Specifications Model LT-32C31BUE/LT-32C31SUE LT-32C31BJE/LT-32C31SJE Item Broadcasting systems CCIR B/G, I, D/K, L Colour systems PAL, SECAM • The EXT terminals also support the NTSC 3.58/4.43 MHz system. Channels and frequencies • E2-E12, E21-E69, S1-S41, X, Y, Z, Z+1, Z+2, ITALY A-H, ITALY H+1, ITALY H+2, F2-F10, F21-F69, R1-R12, R21-R69 •...
Page 153 Specifications Model LT-26C31BUE/LT-26C31SUE LT-26C31BJE/LT-26C31SJE Item Broadcasting systems CCIR B/G, I, D/K, L Colour systems PAL, SECAM • The EXT terminals also support the NTSC 3.58/4.43 MHz system. Channels and frequencies • E2-E12, E21-E69, S1-S41, X, Y, Z, Z+1, Z+2, ITALY A-H, ITALY H+1, ITALY H+2, F2-F10, F21-F69, R1-R12, R21-R69, IR A-J •...

This manual is also suitable for:

Lt-32c31bue Lt-32c31sue Lt-32c31sje

JVC LT-32C31BJE Service Manual

English

Unknown

Semiconductor Shapes

Block Diagram

Circuit Diagrams

Pattern Diagrams

Voltage Charts

Waveforms

Quick Links

TABLE OF CONTENTS

Chapters

Troubleshooting

Related Manuals for JVC LT-32C31BJE

Summary of Contents for JVC LT-32C31BJE

This manual is also suitable for:

Table of Contents
